Hewlett-Packard Company ProLiant BL2x220c G6 ssj_ops@100% = 16,445,126
ssj_ops@100% per Host = 513,910
ssj_ops@100% per JVM = 128,478
Test Sponsor: Hewlett-Packard Company SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett-Packard Company Test Location: Houston, TX, USA Test Date: Oct 2, 2009
Hardware Availability: Nov-2009 Software Availability: Jul-2009 Publication: Nov 18, 2009
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     16,361,622
Calibration 2     16,472,432
Calibration 3     16,459,909
ssj_ops@calibrated=16,466,171
100% 99.9% 16,466,171 16,445,126
90% 90.4% 14,819,553 14,881,823
80% 80.3% 13,172,936 13,226,781
70% 70.0% 11,526,319 11,524,212
60% 60.0% 9,879,702 9,872,870
50% 50.0% 8,233,085 8,234,022
40% 40.0% 6,586,468 6,593,544
30% 30.0% 4,939,851 4,936,502
20% 20.0% 3,293,234 3,293,145
10% 10.0% 1,646,617 1,646,307
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
32 64 256 512 256 32 128
System Under Test
Shared Hardware
Shared Hardware
Enclosure: HP BladeSystem c7000 Enclosure
Form Factor: 10U
Power Supply Quantity and Rating (W): 4 x 2400
Power Supply Details: HP Part #499243-B21
Network Switch: HP ProCurve 2848
Network Switch Details: 48-port GbE Managed Switch
KVM Switch: HP Onboard Administrator
KVM Switch Details: Virtual KVM based remote console
Other Hardware: 2xEthernet Pass-Through Module for HP BladeSystem, part #406740-B21; 10xHP Active Cool 200 Fans, part #412120-B21
Comment: Network switch is a standalone device and is not included in the measured power. Two power supplies were connected to each of the two power analyzers using "Y" power cords.
Set: 'sut'
Set Identifier: sut
Set Description: Systems Under Test
# of Identical Nodes: 32
Comment: None
Hardware per Node
Hardware Vendor: Hewlett-Packard Company
Model: ProLiant BL2x220c G6
Form Factor: Half-height server blade
CPU Name: Intel Xeon L5520
CPU Characteristics: Quad-Core, 2.26GHz, 8MB L3 Cache
CPU Frequency (MHz): 2266
CPU(s) Enabled: 8 cores, 2 chips, 4 cores/chip
Hardware Threads: 16 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 8 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 8
# and size of DIMM: 4 x 2048 MB
Memory Details: PC3-10600E CL9; 4 slots populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 32 GB SSD 2.5" SATA; HP part #461201-B21
Disk Controller: On board SATA controller
# and type of Network Interface Cards (NICs) Installed: 2 x NC362i
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: KVM
Mouse: KVM
Monitor: KVM
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Balanced power enabled in OS
Operating System (OS): Microsoft Windows Server 2008 x64 Enterprise Edition
OS Version: SP2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1450m -Xms1600m -Xmx1600m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [F,F0,F00,F000]
JVM Instances: 4
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: I26 09/06/2009
Management Firmware Version: 1.79
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
See SUT Notes
Management Firmware Settings
See SUT notes
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
220g6-10a-19-da 512,130
220g6-10b-20-da 512,103
220g6-11a-21-da 515,762
220g6-11b-22-da 514,702
220g6-12a-23-da 515,077
220g6-12b-24-da 510,212
220g6-13a-25-da 511,585
220g6-13b-26-da 512,743
220g6-14a-27-da 516,670
220g6-14b-28-da 516,464
220g6-15a-29-da 515,221
220g6-15b-30-da 512,790
220g6-16a-31-da 512,629
220g6-16b-32-da 515,083
220g6-1a-1-da 512,568
220g6-1b-2-da 516,899
220g6-2a-3-da 513,369
220g6-2b-4-da 512,758
220g6-3a-5-da 514,798
220g6-3b-6-da 512,924
220g6-4a-7-da 512,098
220g6-4b-8-da 516,247
220g6-5a-9-da 512,751
220g6-5b-10-da 514,747
220g6-6a-11-da 515,999
220g6-6b-12-da 516,036
220g6-7a-13-da 514,913
220g6-7b-14-da 511,488
220g6-8a-15-da 513,318
220g6-8b-16-da 514,803
220g6-9a-17-da 513,493
220g6-9b-18-da 512,745
ssj_ops@100% 16,445,126
ssj_ops@100% per Host 513,910
ssj_ops@100% per JVM 128,478
Graph of per-host results
Host '220g6-10a-19-da' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     509,978
Calibration 2     515,340
Calibration 3     513,225
ssj_ops@calibrated=514,282
100% 99.6% 514,282 512,130
90% 90.7% 462,854 466,517
80% 80.7% 411,426 414,778
70% 70.3% 359,998 361,601
60% 60.2% 308,569 309,343
50% 49.8% 257,141 255,959
40% 40.2% 205,713 206,695
30% 30.2% 154,285 155,219
20% 20.3% 102,856 104,631
10% 9.9% 51,428 51,019
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host '220g6-10b-20-da' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     508,698
Calibration 2     513,222
Calibration 3     512,128
ssj_ops@calibrated=512,675
100% 99.9% 512,675 512,103
90% 90.7% 461,407 464,949
80% 80.2% 410,140 411,310
70% 69.7% 358,872 357,272
60% 59.8% 307,605 306,480
50% 49.9% 256,337 256,007
40% 40.1% 205,070 205,481
30% 29.9% 153,802 153,423
20% 19.9% 102,535 101,805
10% 9.9% 51,267 50,791
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host '220g6-11a-21-da' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     513,509
Calibration 2     516,935
Calibration 3     516,601
ssj_ops@calibrated=516,768
100% 99.8% 516,768 515,762
90% 90.4% 465,091 467,079
80% 79.5% 413,414 410,826
70% 69.8% 361,737 360,728
60% 60.0% 310,061 310,227
50% 50.1% 258,384 258,861
40% 39.9% 206,707 206,315
30% 30.0% 155,030 155,006
20% 20.1% 103,354 103,918
10% 10.0% 51,677 51,567
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host '220g6-11b-22-da' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     512,545
Calibration 2     515,913
Calibration 3     515,874
ssj_ops@calibrated=515,893
100% 99.8% 515,893 514,702
90% 90.1% 464,304 464,674
80% 80.8% 412,715 416,754
70% 70.2% 361,125 362,143
60% 59.6% 309,536 307,372
50% 50.5% 257,947 260,534
40% 40.2% 206,357 207,314
30% 29.9% 154,768 154,199
20% 19.7% 103,179 101,691
10% 10.1% 51,589 52,186
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host '220g6-12a-23-da' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     511,845
Calibration 2     515,034
Calibration 3     516,316
ssj_ops@calibrated=515,675
100% 99.9% 515,675 515,077
90% 90.5% 464,107 466,821
80% 79.9% 412,540 411,798
70% 69.9% 360,972 360,226
60% 59.7% 309,405 307,963
50% 50.1% 257,837 258,284
40% 40.0% 206,270 206,110
30% 30.0% 154,702 154,726
20% 19.8% 103,135 102,121
10% 10.1% 51,567 52,215
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host '220g6-12b-24-da' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     510,099
Calibration 2     511,403
Calibration 3     510,466
ssj_ops@calibrated=510,935
100% 99.9% 510,935 510,212
90% 90.6% 459,841 462,754
80% 80.1% 408,748 409,395
70% 69.8% 357,654 356,479
60% 60.0% 306,561 306,329
50% 50.1% 255,467 255,907
40% 39.9% 204,374 203,895
30% 29.9% 153,280 152,815
20% 20.2% 102,187 103,130
10% 10.0% 51,093 51,221
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host '220g6-13a-25-da' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     510,826
Calibration 2     511,129
Calibration 3     511,536
ssj_ops@calibrated=511,332
100% 100.0% 511,332 511,585
90% 89.7% 460,199 458,816
80% 80.0% 409,066 408,848
70% 69.8% 357,933 356,862
60% 59.7% 306,799 305,451
50% 50.3% 255,666 257,035
40% 40.0% 204,533 204,319
30% 29.9% 153,400 152,753
20% 19.9% 102,266 101,919
10% 10.1% 51,133 51,738
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host '220g6-13b-26-da' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     509,594
Calibration 2     513,558
Calibration 3     512,311
ssj_ops@calibrated=512,934
100% 100.0% 512,934 512,743
90% 90.7% 461,641 465,337
80% 80.6% 410,348 413,383
70% 69.9% 359,054 358,312
60% 60.2% 307,761 308,778
50% 50.3% 256,467 257,824
40% 40.1% 205,174 205,672
30% 30.3% 153,880 155,637
20% 20.1% 102,587 103,233
10% 10.0% 51,293 51,412
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host '220g6-14a-27-da' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     513,077
Calibration 2     517,022
Calibration 3     515,576
ssj_ops@calibrated=516,299
100% 100.1% 516,299 516,670
90% 90.3% 464,669 466,049
80% 80.0% 413,039 412,813
70% 69.7% 361,409 359,665
60% 59.7% 309,779 308,068
50% 49.7% 258,150 256,609
40% 39.9% 206,520 205,916
30% 29.7% 154,890 153,570
20% 20.2% 103,260 104,473
10% 10.0% 51,630 51,800
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host '220g6-14b-28-da' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     513,023
Calibration 2     515,526
Calibration 3     516,880
ssj_ops@calibrated=516,203
100% 100.1% 516,203 516,464
90% 90.3% 464,583 465,998
80% 80.0% 412,962 413,136
70% 70.0% 361,342 361,463
60% 59.9% 309,722 309,378
50% 49.7% 258,101 256,563
40% 40.2% 206,481 207,598
30% 30.0% 154,861 155,081
20% 20.0% 103,241 103,370
10% 10.0% 51,620 51,480
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host '220g6-15a-29-da' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     512,080
Calibration 2     517,825
Calibration 3     516,434
ssj_ops@calibrated=517,129
100% 99.6% 517,129 515,221
90% 90.7% 465,416 468,881
80% 80.2% 413,703 414,651
70% 69.7% 361,990 360,314
60% 60.0% 310,278 310,089
50% 50.0% 258,565 258,503
40% 40.1% 206,852 207,319
30% 30.0% 155,139 155,094
20% 20.0% 103,426 103,170
10% 10.0% 51,713 51,631
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host '220g6-15b-30-da' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     509,883
Calibration 2     513,534
Calibration 3     513,560
ssj_ops@calibrated=513,547
100% 99.9% 513,547 512,790
90% 90.3% 462,192 463,904
80% 79.4% 410,838 407,925
70% 69.9% 359,483 359,216
60% 60.1% 308,128 308,590
50% 50.1% 256,774 257,198
40% 40.3% 205,419 206,959
30% 30.0% 154,064 154,033
20% 20.0% 102,709 102,688
10% 10.1% 51,355 51,748
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host '220g6-16a-31-da' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     508,829
Calibration 2     513,750
Calibration 3     512,796
ssj_ops@calibrated=513,273
100% 99.9% 513,273 512,629
90% 90.5% 461,946 464,297
80% 79.7% 410,618 409,046
70% 70.2% 359,291 360,404
60% 60.2% 307,964 308,735
50% 49.8% 256,636 255,649
40% 39.9% 205,309 204,970
30% 30.1% 153,982 154,588
20% 19.9% 102,655 102,056
10% 10.1% 51,327 52,031
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host '220g6-16b-32-da' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     511,998
Calibration 2     515,850
Calibration 3     516,208
ssj_ops@calibrated=516,029
100% 99.8% 516,029 515,083
90% 90.3% 464,426 465,792
80% 80.0% 412,823 412,880
70% 69.7% 361,220 359,538
60% 59.8% 309,617 308,803
50% 49.6% 258,015 256,207
40% 40.2% 206,412 207,535
30% 30.0% 154,809 154,959
20% 20.2% 103,206 104,114
10% 10.1% 51,603 52,162
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host '220g6-1a-1-da' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     512,289
Calibration 2     514,520
Calibration 3     513,425
ssj_ops@calibrated=513,973
100% 99.7% 513,973 512,568
90% 90.3% 462,575 463,944
80% 80.5% 411,178 413,944
70% 70.4% 359,781 361,675
60% 60.2% 308,384 309,406
50% 49.9% 256,986 256,536
40% 40.0% 205,589 205,483
30% 30.1% 154,192 154,663
20% 20.2% 102,795 103,720
10% 10.1% 51,397 51,761
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host '220g6-1b-2-da' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     513,416
Calibration 2     517,076
Calibration 3     516,981
ssj_ops@calibrated=517,029
100% 100.0% 517,029 516,899
90% 90.2% 465,326 466,231
80% 81.0% 413,623 418,880
70% 70.1% 361,920 362,433
60% 60.1% 310,217 310,661
50% 50.0% 258,514 258,435
40% 40.0% 206,811 206,650
30% 30.0% 155,109 155,358
20% 20.0% 103,406 103,512
10% 10.0% 51,703 51,805
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host '220g6-2a-3-da' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     511,397
Calibration 2     514,982
Calibration 3     513,953
ssj_ops@calibrated=514,467
100% 99.8% 514,467 513,369
90% 90.3% 463,021 464,568
80% 80.3% 411,574 412,917
70% 69.8% 360,127 359,294
60% 59.8% 308,680 307,667
50% 49.7% 257,234 255,793
40% 40.0% 205,787 205,614
30% 30.1% 154,340 154,710
20% 20.0% 102,893 102,770
10% 10.0% 51,447 51,503
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host '220g6-2b-4-da' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     510,441
Calibration 2     513,367
Calibration 3     513,871
ssj_ops@calibrated=513,619
100% 99.8% 513,619 512,758
90% 89.9% 462,257 461,722
80% 80.2% 410,895 411,846
70% 70.0% 359,533 359,662
60% 60.0% 308,171 308,336
50% 50.4% 256,809 259,062
40% 40.0% 205,448 205,274
30% 30.1% 154,086 154,558
20% 20.2% 102,724 103,816
10% 10.0% 51,362 51,540
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host '220g6-3a-5-da' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     510,987
Calibration 2     515,397
Calibration 3     514,504
ssj_ops@calibrated=514,951
100% 100.0% 514,951 514,798
90% 89.9% 463,455 463,184
80% 80.4% 411,960 413,906
70% 69.9% 360,465 360,076
60% 59.8% 308,970 308,017
50% 50.0% 257,475 257,286
40% 39.9% 205,980 205,430
30% 30.2% 154,485 155,591
20% 20.0% 102,990 102,962
10% 9.8% 51,495 50,497
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host '220g6-3b-6-da' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     510,249
Calibration 2     513,172
Calibration 3     512,867
ssj_ops@calibrated=513,020
100% 100.0% 513,020 512,924
90% 90.8% 461,718 466,023
80% 80.4% 410,416 412,679
70% 69.8% 359,114 358,045
60% 60.0% 307,812 308,032
50% 50.3% 256,510 257,845
40% 40.1% 205,208 205,811
30% 30.1% 153,906 154,572
20% 19.8% 102,604 101,544
10% 9.8% 51,302 50,206
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host '220g6-4a-7-da' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     510,798
Calibration 2     515,172
Calibration 3     513,969
ssj_ops@calibrated=514,570
100% 99.5% 514,570 512,098
90% 90.4% 463,113 464,926
80% 80.8% 411,656 415,888
70% 70.2% 360,199 361,003
60% 59.9% 308,742 308,392
50% 50.2% 257,285 258,424
40% 40.1% 205,828 206,252
30% 29.7% 154,371 152,715
20% 20.0% 102,914 102,953
10% 9.9% 51,457 50,870
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host '220g6-4b-8-da' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     513,172
Calibration 2     516,133
Calibration 3     518,176
ssj_ops@calibrated=517,155
100% 99.8% 517,155 516,247
90% 90.9% 465,439 469,888
80% 81.0% 413,724 418,762
70% 70.6% 362,008 364,962
60% 59.7% 310,293 308,925
50% 49.8% 258,577 257,310
40% 40.1% 206,862 207,499
30% 30.0% 155,146 155,225
20% 19.9% 103,431 102,981
10% 10.0% 51,715 51,525
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host '220g6-5a-9-da' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     510,619
Calibration 2     512,454
Calibration 3     513,429
ssj_ops@calibrated=512,941
100% 100.0% 512,941 512,751
90% 90.1% 461,647 462,175
80% 80.7% 410,353 413,872
70% 70.0% 359,059 358,989
60% 60.1% 307,765 308,186
50% 50.2% 256,471 257,541
40% 39.8% 205,177 204,397
30% 29.9% 153,882 153,488
20% 20.0% 102,588 102,498
10% 10.1% 51,294 51,951
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host '220g6-5b-10-da' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     510,498
Calibration 2     514,949
Calibration 3     515,169
ssj_ops@calibrated=515,059
100% 99.9% 515,059 514,747
90% 90.4% 463,553 465,461
80% 80.6% 412,047 415,034
70% 70.0% 360,541 360,452
60% 60.0% 309,035 309,126
50% 49.8% 257,529 256,282
40% 40.2% 206,024 207,244
30% 30.1% 154,518 155,098
20% 19.8% 103,012 102,000
10% 10.1% 51,506 51,888
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host '220g6-6a-11-da' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     511,432
Calibration 2     516,750
Calibration 3     516,404
ssj_ops@calibrated=516,577
100% 99.9% 516,577 515,999
90% 90.1% 464,919 465,659
80% 80.2% 413,262 414,213
70% 70.1% 361,604 362,310
60% 59.8% 309,946 308,857
50% 49.9% 258,289 257,746
40% 40.0% 206,631 206,878
30% 29.6% 154,973 152,921
20% 19.8% 103,315 102,198
10% 9.7% 51,658 50,212
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host '220g6-6b-12-da' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     512,475
Calibration 2     517,033
Calibration 3     515,869
ssj_ops@calibrated=516,451
100% 99.9% 516,451 516,036
90% 90.4% 464,806 466,913
80% 80.2% 413,161 413,958
70% 70.1% 361,516 362,098
60% 60.2% 309,871 310,715
50% 50.0% 258,226 258,363
40% 40.2% 206,580 207,853
30% 30.2% 154,935 155,777
20% 20.2% 103,290 104,506
10% 10.0% 51,645 51,802
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host '220g6-7a-13-da' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     511,268
Calibration 2     514,786
Calibration 3     516,361
ssj_ops@calibrated=515,574
100% 99.9% 515,574 514,913
90% 90.4% 464,016 466,156
80% 80.2% 412,459 413,474
70% 70.0% 360,902 360,646
60% 59.9% 309,344 308,780
50% 50.0% 257,787 257,927
40% 40.0% 206,230 206,292
30% 30.0% 154,672 154,479
20% 19.8% 103,115 102,240
10% 10.0% 51,557 51,655
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host '220g6-7b-14-da' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     512,130
Calibration 2     512,489
Calibration 3     511,384
ssj_ops@calibrated=511,936
100% 99.9% 511,936 511,488
90% 90.2% 460,743 461,787
80% 80.5% 409,549 411,928
70% 70.0% 358,356 358,462
60% 60.1% 307,162 307,626
50% 50.1% 255,968 256,391
40% 40.0% 204,775 204,659
30% 29.9% 153,581 153,053
20% 19.9% 102,387 102,113
10% 9.9% 51,194 50,841
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host '220g6-8a-15-da' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     510,300
Calibration 2     514,549
Calibration 3     513,313
ssj_ops@calibrated=513,931
100% 99.9% 513,931 513,318
90% 90.7% 462,538 466,250
80% 80.6% 411,145 414,196
70% 70.0% 359,752 359,809
60% 60.2% 308,358 309,320
50% 49.8% 256,965 256,101
40% 40.0% 205,572 205,656
30% 29.9% 154,179 153,749
20% 20.0% 102,786 102,946
10% 10.0% 51,393 51,168
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host '220g6-8b-16-da' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     511,872
Calibration 2     515,293
Calibration 3     514,823
ssj_ops@calibrated=515,058
100% 100.0% 515,058 514,803
90% 90.2% 463,552 464,435
80% 80.3% 412,046 413,812
70% 69.9% 360,541 360,164
60% 60.2% 309,035 310,161
50% 49.8% 257,529 256,689
40% 39.9% 206,023 205,745
30% 29.9% 154,517 154,019
20% 20.1% 103,012 103,684
10% 10.0% 51,506 51,499
Active Idle   0 0

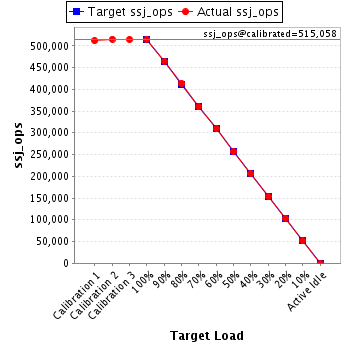

Graph of results
See the Host Performance Report for additional details.
Host '220g6-9a-17-da' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     512,516
Calibration 2     513,647
Calibration 3     513,285
ssj_ops@calibrated=513,466
100% 100.0% 513,466 513,493
90% 90.7% 462,120 465,726
80% 80.4% 410,773 412,649
70% 69.9% 359,426 358,832
60% 60.0% 308,080 308,150
50% 50.0% 256,733 256,797
40% 40.0% 205,386 205,386
30% 29.5% 154,040 151,606
20% 20.0% 102,693 102,542
10% 10.0% 51,347 51,097
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host '220g6-9b-18-da' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     509,779
Calibration 2     514,623
Calibration 3     512,213
ssj_ops@calibrated=513,418
100% 99.9% 513,418 512,745
90% 90.6% 462,077 464,909
80% 81.3% 410,735 417,279
70% 70.3% 359,393 361,079
60% 59.8% 308,051 306,909
50% 50.3% 256,709 258,357
40% 40.0% 205,367 205,322
30% 30.0% 154,026 153,818
20% 19.8% 102,684 101,843
10% 10.0% 51,342 51,490
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
