SPECpower_ssj2008
Host '220g6-12b-24-da' Performance Report
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant BL2x220c G6 | ssj_ops@100% = 510,212 ssj_ops@100% per JVM = 127,553 |
||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Multi Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Oct 2, 2009 |
| Hardware Availability: | Nov-2009 | Software Availability: | Jul-2009 | Publication: | Nov 18, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 510,099 | ||
| Calibration 2 | 511,403 | ||
| Calibration 3 | 510,466 | ||
| ssj_ops@calibrated=510,935 | |||
| 100% | 99.9% | 510,935 | 510,212 |
| 90% | 90.6% | 459,841 | 462,754 |
| 80% | 80.1% | 408,748 | 409,395 |
| 70% | 69.8% | 357,654 | 356,479 |
| 60% | 60.0% | 306,561 | 306,329 |
| 50% | 50.1% | 255,467 | 255,907 |
| 40% | 39.9% | 204,374 | 203,895 |
| 30% | 29.9% | 153,280 | 152,815 |
| 20% | 20.2% | 102,187 | 103,130 |
| 10% | 10.0% | 51,093 | 51,221 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | Systems Under Test |
| # of Identical Nodes: | 32 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant BL2x220c G6 |
| Form Factor: | Half-height server blade |
| CPU Name: | Intel Xeon L5520 |
| CPU Characteristics: | Quad-Core, 2.26GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 2266 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 16 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | PC3-10600E CL9; 4 slots populated |
| Power Supply Quantity and Rating (W): | None |
| Power Supply Details: | Shared |
| Disk Drive: | 1 x 32 GB SSD 2.5" SATA; HP part #461201-B21 |
| Disk Controller: | On board SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x NC362i |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Balanced power enabled in OS |
| Operating System (OS): | Microsoft Windows Server 2008 x64 Enterprise Edition |
| OS Version: | SP2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1450m -Xms1600m -Xmx1600m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [F,F0,F00,F000] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 1600 |
| JVM Maximum Heap (MB): | 1600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | I26 09/06/2009 |
| Management Firmware Version: | 1.79 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |

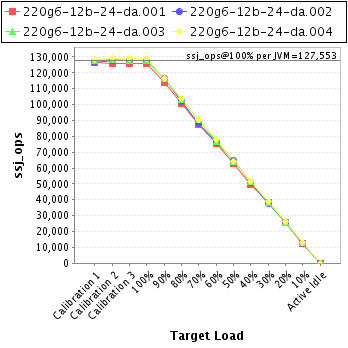

| JVM Instance | ssj_ops@100% |
|---|---|
| 220g6-12b-24-da.001 | 125,818 |
| 220g6-12b-24-da.002 | 127,708 |
| 220g6-12b-24-da.003 | 127,893 |
| 220g6-12b-24-da.004 | 128,793 |
| ssj_ops@100% | 510,212 |
| ssj_ops@100% per JVM | 127,553 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 126,642 | ||
| Calibration 2 | 125,615 | ||
| Calibration 3 | 125,625 | ||
| ssj_ops@calibrated=125,620 | |||
| 100% | 100.2% | 125,620 | 125,818 |
| 90% | 90.7% | 113,058 | 113,916 |
| 80% | 80.0% | 100,496 | 100,482 |
| 70% | 69.7% | 87,934 | 87,542 |
| 60% | 60.0% | 75,372 | 75,429 |
| 50% | 50.1% | 62,810 | 62,875 |
| 40% | 39.4% | 50,248 | 49,437 |
| 30% | 30.4% | 37,686 | 38,199 |
| 20% | 20.3% | 25,124 | 25,558 |
| 10% | 10.1% | 12,562 | 12,734 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 126,715 | ||
| Calibration 2 | 127,919 | ||
| Calibration 3 | 127,838 | ||
| ssj_ops@calibrated=127,879 | |||
| 100% | 99.9% | 127,879 | 127,708 |
| 90% | 90.8% | 115,091 | 116,139 |
| 80% | 79.8% | 102,303 | 102,055 |
| 70% | 68.8% | 89,515 | 88,030 |
| 60% | 59.6% | 76,727 | 76,246 |
| 50% | 50.5% | 63,939 | 64,549 |
| 40% | 40.0% | 51,152 | 51,187 |
| 30% | 29.4% | 38,364 | 37,627 |
| 20% | 20.1% | 25,576 | 25,687 |
| 10% | 10.0% | 12,788 | 12,729 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 128,059 | ||
| Calibration 2 | 128,640 | ||
| Calibration 3 | 127,831 | ||
| ssj_ops@calibrated=128,236 | |||
| 100% | 99.7% | 128,236 | 127,893 |
| 90% | 90.8% | 115,412 | 116,450 |
| 80% | 80.4% | 102,589 | 103,153 |
| 70% | 70.7% | 89,765 | 90,627 |
| 60% | 59.8% | 76,941 | 76,722 |
| 50% | 49.9% | 64,118 | 64,049 |
| 40% | 40.2% | 51,294 | 51,556 |
| 30% | 29.6% | 38,471 | 38,009 |
| 20% | 20.2% | 25,647 | 25,882 |
| 10% | 10.1% | 12,824 | 12,942 |
| Active Idle | 0 | 0 | |

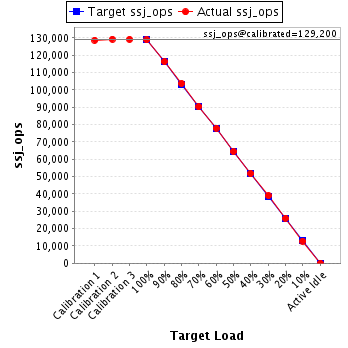

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 128,683 | ||
| Calibration 2 | 129,229 | ||
| Calibration 3 | 129,172 | ||
| ssj_ops@calibrated=129,200 | |||
| 100% | 99.7% | 129,200 | 128,793 |
| 90% | 90.0% | 116,280 | 116,248 |
| 80% | 80.3% | 103,360 | 103,705 |
| 70% | 69.9% | 90,440 | 90,279 |
| 60% | 60.3% | 77,520 | 77,933 |
| 50% | 49.9% | 64,600 | 64,435 |
| 40% | 40.0% | 51,680 | 51,715 |
| 30% | 30.2% | 38,760 | 38,980 |
| 20% | 20.1% | 25,840 | 26,004 |
| 10% | 9.9% | 12,920 | 12,815 |
| Active Idle | 0 | 0 | |
