SPECpower_ssj2008
Host '220g6-3b-6-da' Performance Report
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant BL2x220c G6 | ssj_ops@100% = 512,924 ssj_ops@100% per JVM = 128,231 |
||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Multi Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Oct 2, 2009 |
| Hardware Availability: | Nov-2009 | Software Availability: | Jul-2009 | Publication: | Nov 18, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 510,249 | ||
| Calibration 2 | 513,172 | ||
| Calibration 3 | 512,867 | ||
| ssj_ops@calibrated=513,020 | |||
| 100% | 100.0% | 513,020 | 512,924 |
| 90% | 90.8% | 461,718 | 466,023 |
| 80% | 80.4% | 410,416 | 412,679 |
| 70% | 69.8% | 359,114 | 358,045 |
| 60% | 60.0% | 307,812 | 308,032 |
| 50% | 50.3% | 256,510 | 257,845 |
| 40% | 40.1% | 205,208 | 205,811 |
| 30% | 30.1% | 153,906 | 154,572 |
| 20% | 19.8% | 102,604 | 101,544 |
| 10% | 9.8% | 51,302 | 50,206 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | Systems Under Test |
| # of Identical Nodes: | 32 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant BL2x220c G6 |
| Form Factor: | Half-height server blade |
| CPU Name: | Intel Xeon L5520 |
| CPU Characteristics: | Quad-Core, 2.26GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 2266 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 16 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | PC3-10600E CL9; 4 slots populated |
| Power Supply Quantity and Rating (W): | None |
| Power Supply Details: | Shared |
| Disk Drive: | 1 x 32 GB SSD 2.5" SATA; HP part #461201-B21 |
| Disk Controller: | On board SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x NC362i |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Balanced power enabled in OS |
| Operating System (OS): | Microsoft Windows Server 2008 x64 Enterprise Edition |
| OS Version: | SP2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1450m -Xms1600m -Xmx1600m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [F,F0,F00,F000] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 1600 |
| JVM Maximum Heap (MB): | 1600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | I26 09/06/2009 |
| Management Firmware Version: | 1.79 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |

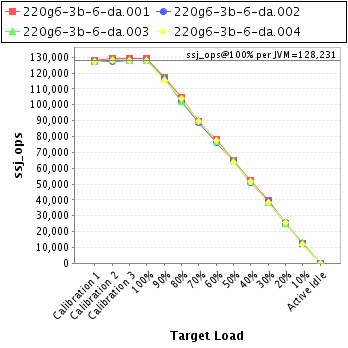

| JVM Instance | ssj_ops@100% |
|---|---|
| 220g6-3b-6-da.001 | 129,137 |
| 220g6-3b-6-da.002 | 128,128 |
| 220g6-3b-6-da.003 | 127,826 |
| 220g6-3b-6-da.004 | 127,833 |
| ssj_ops@100% | 512,924 |
| ssj_ops@100% per JVM | 128,231 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 127,950 | ||
| Calibration 2 | 129,311 | ||
| Calibration 3 | 129,405 | ||
| ssj_ops@calibrated=129,358 | |||
| 100% | 99.8% | 129,358 | 129,137 |
| 90% | 90.7% | 116,422 | 117,322 |
| 80% | 81.1% | 103,486 | 104,858 |
| 70% | 69.4% | 90,550 | 89,751 |
| 60% | 60.1% | 77,615 | 77,807 |
| 50% | 50.3% | 64,679 | 65,116 |
| 40% | 40.2% | 51,743 | 52,035 |
| 30% | 30.5% | 38,807 | 39,395 |
| 20% | 19.6% | 25,872 | 25,300 |
| 10% | 9.8% | 12,936 | 12,721 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 127,382 | ||
| Calibration 2 | 127,479 | ||
| Calibration 3 | 128,010 | ||
| ssj_ops@calibrated=127,745 | |||
| 100% | 100.3% | 127,745 | 128,128 |
| 90% | 91.4% | 114,970 | 116,722 |
| 80% | 79.8% | 102,196 | 101,906 |
| 70% | 69.5% | 89,421 | 88,797 |
| 60% | 59.8% | 76,647 | 76,344 |
| 50% | 50.3% | 63,872 | 64,289 |
| 40% | 39.8% | 51,098 | 50,856 |
| 30% | 30.5% | 38,323 | 38,931 |
| 20% | 20.1% | 25,549 | 25,710 |
| 10% | 9.8% | 12,774 | 12,466 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 127,378 | ||
| Calibration 2 | 128,416 | ||
| Calibration 3 | 127,647 | ||
| ssj_ops@calibrated=128,032 | |||
| 100% | 99.8% | 128,032 | 127,826 |
| 90% | 91.2% | 115,228 | 116,752 |
| 80% | 79.8% | 102,425 | 102,124 |
| 70% | 70.1% | 89,622 | 89,797 |
| 60% | 59.8% | 76,819 | 76,541 |
| 50% | 50.6% | 64,016 | 64,743 |
| 40% | 40.1% | 51,213 | 51,387 |
| 30% | 29.7% | 38,409 | 38,086 |
| 20% | 19.6% | 25,606 | 25,111 |
| 10% | 10.2% | 12,803 | 13,087 |
| Active Idle | 0 | 0 | |

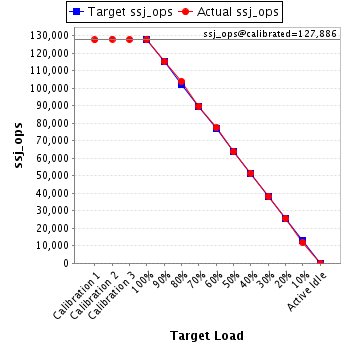

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 127,538 | ||
| Calibration 2 | 127,965 | ||
| Calibration 3 | 127,806 | ||
| ssj_ops@calibrated=127,886 | |||
| 100% | 100.0% | 127,886 | 127,833 |
| 90% | 90.1% | 115,097 | 115,227 |
| 80% | 81.2% | 102,309 | 103,792 |
| 70% | 70.1% | 89,520 | 89,700 |
| 60% | 60.5% | 76,731 | 77,340 |
| 50% | 49.8% | 63,943 | 63,697 |
| 40% | 40.3% | 51,154 | 51,532 |
| 30% | 29.8% | 38,366 | 38,160 |
| 20% | 19.9% | 25,577 | 25,423 |
| 10% | 9.3% | 12,789 | 11,932 |
| Active Idle | 0 | 0 | |
