SPECpower_ssj2008
Host '220g6-15b-30-da' Performance Report
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant BL2x220c G6 | ssj_ops@100% = 512,790 ssj_ops@100% per JVM = 128,198 |
||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Multi Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Oct 2, 2009 |
| Hardware Availability: | Nov-2009 | Software Availability: | Jul-2009 | Publication: | Nov 18, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 509,883 | ||
| Calibration 2 | 513,534 | ||
| Calibration 3 | 513,560 | ||
| ssj_ops@calibrated=513,547 | |||
| 100% | 99.9% | 513,547 | 512,790 |
| 90% | 90.3% | 462,192 | 463,904 |
| 80% | 79.4% | 410,838 | 407,925 |
| 70% | 69.9% | 359,483 | 359,216 |
| 60% | 60.1% | 308,128 | 308,590 |
| 50% | 50.1% | 256,774 | 257,198 |
| 40% | 40.3% | 205,419 | 206,959 |
| 30% | 30.0% | 154,064 | 154,033 |
| 20% | 20.0% | 102,709 | 102,688 |
| 10% | 10.1% | 51,355 | 51,748 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | Systems Under Test |
| # of Identical Nodes: | 32 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant BL2x220c G6 |
| Form Factor: | Half-height server blade |
| CPU Name: | Intel Xeon L5520 |
| CPU Characteristics: | Quad-Core, 2.26GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 2266 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 16 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | PC3-10600E CL9; 4 slots populated |
| Power Supply Quantity and Rating (W): | None |
| Power Supply Details: | Shared |
| Disk Drive: | 1 x 32 GB SSD 2.5" SATA; HP part #461201-B21 |
| Disk Controller: | On board SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x NC362i |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Balanced power enabled in OS |
| Operating System (OS): | Microsoft Windows Server 2008 x64 Enterprise Edition |
| OS Version: | SP2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1450m -Xms1600m -Xmx1600m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [F,F0,F00,F000] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 1600 |
| JVM Maximum Heap (MB): | 1600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | I26 09/06/2009 |
| Management Firmware Version: | 1.79 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |

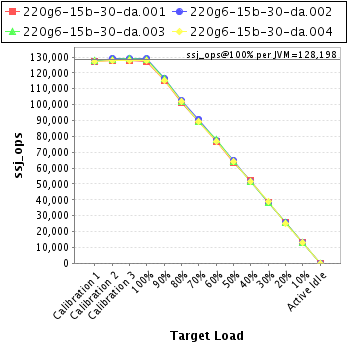

| JVM Instance | ssj_ops@100% |
|---|---|
| 220g6-15b-30-da.001 | 127,363 |
| 220g6-15b-30-da.002 | 129,085 |
| 220g6-15b-30-da.003 | 128,569 |
| 220g6-15b-30-da.004 | 127,773 |
| ssj_ops@100% | 512,790 |
| ssj_ops@100% per JVM | 128,198 |

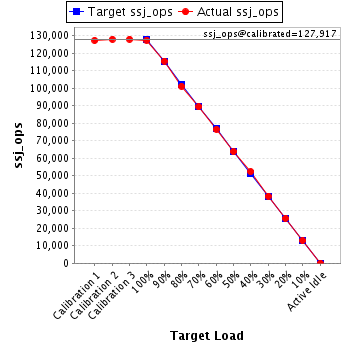

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 127,211 | ||
| Calibration 2 | 127,898 | ||
| Calibration 3 | 127,935 | ||
| ssj_ops@calibrated=127,917 | |||
| 100% | 99.6% | 127,917 | 127,363 |
| 90% | 90.3% | 115,125 | 115,470 |
| 80% | 79.0% | 102,333 | 101,091 |
| 70% | 69.8% | 89,542 | 89,301 |
| 60% | 59.8% | 76,750 | 76,541 |
| 50% | 49.9% | 63,958 | 63,796 |
| 40% | 40.9% | 51,167 | 52,315 |
| 30% | 30.0% | 38,375 | 38,313 |
| 20% | 20.1% | 25,583 | 25,717 |
| 10% | 10.2% | 12,792 | 13,008 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 127,506 | ||
| Calibration 2 | 129,317 | ||
| Calibration 3 | 129,068 | ||
| ssj_ops@calibrated=129,192 | |||
| 100% | 99.9% | 129,192 | 129,085 |
| 90% | 90.4% | 116,273 | 116,813 |
| 80% | 79.5% | 103,354 | 102,687 |
| 70% | 70.3% | 90,435 | 90,855 |
| 60% | 59.9% | 77,515 | 77,349 |
| 50% | 50.4% | 64,596 | 65,072 |
| 40% | 39.8% | 51,677 | 51,369 |
| 30% | 29.9% | 38,758 | 38,617 |
| 20% | 20.0% | 25,838 | 25,829 |
| 10% | 10.1% | 12,919 | 13,070 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 127,765 | ||
| Calibration 2 | 128,319 | ||
| Calibration 3 | 128,969 | ||
| ssj_ops@calibrated=128,644 | |||
| 100% | 99.9% | 128,644 | 128,569 |
| 90% | 90.4% | 115,779 | 116,271 |
| 80% | 79.2% | 102,915 | 101,927 |
| 70% | 69.7% | 90,051 | 89,645 |
| 60% | 60.4% | 77,186 | 77,757 |
| 50% | 49.9% | 64,322 | 64,224 |
| 40% | 40.2% | 51,458 | 51,653 |
| 30% | 29.8% | 38,593 | 38,316 |
| 20% | 20.0% | 25,729 | 25,790 |
| 10% | 10.0% | 12,864 | 12,828 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 127,401 | ||
| Calibration 2 | 128,000 | ||
| Calibration 3 | 127,588 | ||
| ssj_ops@calibrated=127,794 | |||
| 100% | 100.0% | 127,794 | 127,773 |
| 90% | 90.3% | 115,015 | 115,351 |
| 80% | 80.0% | 102,235 | 102,219 |
| 70% | 70.0% | 89,456 | 89,414 |
| 60% | 60.2% | 76,677 | 76,943 |
| 50% | 50.2% | 63,897 | 64,107 |
| 40% | 40.4% | 51,118 | 51,622 |
| 30% | 30.4% | 38,338 | 38,787 |
| 20% | 19.8% | 25,559 | 25,351 |
| 10% | 10.0% | 12,779 | 12,841 |
| Active Idle | 0 | 0 | |
