SPECpower_ssj2008
Host '220g6-14b-28-da' Performance Report
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant BL2x220c G6 | ssj_ops@100% = 516,464 ssj_ops@100% per JVM = 129,116 |
||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Multi Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Oct 2, 2009 |
| Hardware Availability: | Nov-2009 | Software Availability: | Jul-2009 | Publication: | Nov 18, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 513,023 | ||
| Calibration 2 | 515,526 | ||
| Calibration 3 | 516,880 | ||
| ssj_ops@calibrated=516,203 | |||
| 100% | 100.1% | 516,203 | 516,464 |
| 90% | 90.3% | 464,583 | 465,998 |
| 80% | 80.0% | 412,962 | 413,136 |
| 70% | 70.0% | 361,342 | 361,463 |
| 60% | 59.9% | 309,722 | 309,378 |
| 50% | 49.7% | 258,101 | 256,563 |
| 40% | 40.2% | 206,481 | 207,598 |
| 30% | 30.0% | 154,861 | 155,081 |
| 20% | 20.0% | 103,241 | 103,370 |
| 10% | 10.0% | 51,620 | 51,480 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | Systems Under Test |
| # of Identical Nodes: | 32 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant BL2x220c G6 |
| Form Factor: | Half-height server blade |
| CPU Name: | Intel Xeon L5520 |
| CPU Characteristics: | Quad-Core, 2.26GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 2266 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 16 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | PC3-10600E CL9; 4 slots populated |
| Power Supply Quantity and Rating (W): | None |
| Power Supply Details: | Shared |
| Disk Drive: | 1 x 32 GB SSD 2.5" SATA; HP part #461201-B21 |
| Disk Controller: | On board SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x NC362i |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Balanced power enabled in OS |
| Operating System (OS): | Microsoft Windows Server 2008 x64 Enterprise Edition |
| OS Version: | SP2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1450m -Xms1600m -Xmx1600m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [F,F0,F00,F000] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 1600 |
| JVM Maximum Heap (MB): | 1600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | I26 09/06/2009 |
| Management Firmware Version: | 1.79 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |

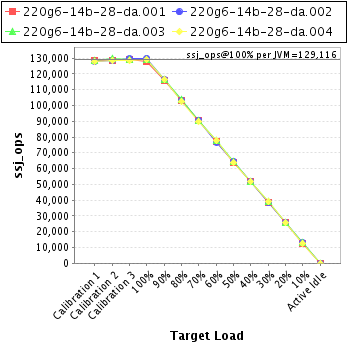

| JVM Instance | ssj_ops@100% |
|---|---|
| 220g6-14b-28-da.001 | 128,136 |
| 220g6-14b-28-da.002 | 129,897 |
| 220g6-14b-28-da.003 | 129,385 |
| 220g6-14b-28-da.004 | 129,046 |
| ssj_ops@100% | 516,464 |
| ssj_ops@100% per JVM | 129,116 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 128,325 | ||
| Calibration 2 | 128,512 | ||
| Calibration 3 | 129,138 | ||
| ssj_ops@calibrated=128,825 | |||
| 100% | 99.5% | 128,825 | 128,136 |
| 90% | 89.9% | 115,942 | 115,799 |
| 80% | 79.9% | 103,060 | 102,890 |
| 70% | 70.3% | 90,177 | 90,558 |
| 60% | 60.0% | 77,295 | 77,316 |
| 50% | 49.5% | 64,412 | 63,748 |
| 40% | 40.1% | 51,530 | 51,723 |
| 30% | 29.8% | 38,647 | 38,421 |
| 20% | 20.0% | 25,765 | 25,766 |
| 10% | 9.9% | 12,882 | 12,804 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 127,987 | ||
| Calibration 2 | 128,584 | ||
| Calibration 3 | 129,573 | ||
| ssj_ops@calibrated=129,079 | |||
| 100% | 100.6% | 129,079 | 129,897 |
| 90% | 90.4% | 116,171 | 116,721 |
| 80% | 80.1% | 103,263 | 103,448 |
| 70% | 70.3% | 90,355 | 90,769 |
| 60% | 59.5% | 77,447 | 76,757 |
| 50% | 50.1% | 64,539 | 64,687 |
| 40% | 40.3% | 51,632 | 51,974 |
| 30% | 29.9% | 38,724 | 38,536 |
| 20% | 20.2% | 25,816 | 26,107 |
| 10% | 10.0% | 12,908 | 12,933 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 128,549 | ||
| Calibration 2 | 129,979 | ||
| Calibration 3 | 129,394 | ||
| ssj_ops@calibrated=129,686 | |||
| 100% | 99.8% | 129,686 | 129,385 |
| 90% | 90.0% | 116,718 | 116,769 |
| 80% | 80.2% | 103,749 | 103,985 |
| 70% | 69.5% | 90,781 | 90,183 |
| 60% | 59.8% | 77,812 | 77,514 |
| 50% | 49.7% | 64,843 | 64,447 |
| 40% | 40.0% | 51,875 | 51,891 |
| 30% | 30.2% | 38,906 | 39,134 |
| 20% | 20.0% | 25,937 | 25,916 |
| 10% | 10.0% | 12,969 | 12,969 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 128,163 | ||
| Calibration 2 | 128,451 | ||
| Calibration 3 | 128,774 | ||
| ssj_ops@calibrated=128,613 | |||
| 100% | 100.3% | 128,613 | 129,046 |
| 90% | 90.7% | 115,751 | 116,709 |
| 80% | 79.9% | 102,890 | 102,813 |
| 70% | 69.9% | 90,029 | 89,953 |
| 60% | 60.5% | 77,168 | 77,790 |
| 50% | 49.5% | 64,306 | 63,681 |
| 40% | 40.4% | 51,445 | 52,010 |
| 30% | 30.3% | 38,584 | 38,990 |
| 20% | 19.9% | 25,723 | 25,581 |
| 10% | 9.9% | 12,861 | 12,774 |
| Active Idle | 0 | 0 | |
