SPECpower_ssj2008
Host '220g6-10a-19-da' Performance Report
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant BL2x220c G6 | ssj_ops@100% = 512,130 ssj_ops@100% per JVM = 128,032 |
||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Multi Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Oct 2, 2009 |
| Hardware Availability: | Nov-2009 | Software Availability: | Jul-2009 | Publication: | Nov 18, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 509,978 | ||
| Calibration 2 | 515,340 | ||
| Calibration 3 | 513,225 | ||
| ssj_ops@calibrated=514,282 | |||
| 100% | 99.6% | 514,282 | 512,130 |
| 90% | 90.7% | 462,854 | 466,517 |
| 80% | 80.7% | 411,426 | 414,778 |
| 70% | 70.3% | 359,998 | 361,601 |
| 60% | 60.2% | 308,569 | 309,343 |
| 50% | 49.8% | 257,141 | 255,959 |
| 40% | 40.2% | 205,713 | 206,695 |
| 30% | 30.2% | 154,285 | 155,219 |
| 20% | 20.3% | 102,856 | 104,631 |
| 10% | 9.9% | 51,428 | 51,019 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | Systems Under Test |
| # of Identical Nodes: | 32 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant BL2x220c G6 |
| Form Factor: | Half-height server blade |
| CPU Name: | Intel Xeon L5520 |
| CPU Characteristics: | Quad-Core, 2.26GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 2266 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 16 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | PC3-10600E CL9; 4 slots populated |
| Power Supply Quantity and Rating (W): | None |
| Power Supply Details: | Shared |
| Disk Drive: | 1 x 32 GB SSD 2.5" SATA; HP part #461201-B21 |
| Disk Controller: | On board SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x NC362i |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Balanced power enabled in OS |
| Operating System (OS): | Microsoft Windows Server 2008 x64 Enterprise Edition |
| OS Version: | SP2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1450m -Xms1600m -Xmx1600m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [F,F0,F00,F000] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 1600 |
| JVM Maximum Heap (MB): | 1600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | I26 09/06/2009 |
| Management Firmware Version: | 1.79 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |

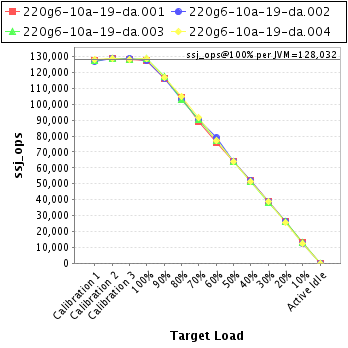

| JVM Instance | ssj_ops@100% |
|---|---|
| 220g6-10a-19-da.001 | 127,430 |
| 220g6-10a-19-da.002 | 127,488 |
| 220g6-10a-19-da.003 | 128,719 |
| 220g6-10a-19-da.004 | 128,493 |
| ssj_ops@100% | 512,130 |
| ssj_ops@100% per JVM | 128,032 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 127,310 | ||
| Calibration 2 | 128,488 | ||
| Calibration 3 | 127,895 | ||
| ssj_ops@calibrated=128,191 | |||
| 100% | 99.4% | 128,191 | 127,430 |
| 90% | 90.4% | 115,372 | 115,923 |
| 80% | 81.4% | 102,553 | 104,288 |
| 70% | 69.7% | 89,734 | 89,378 |
| 60% | 59.4% | 76,915 | 76,162 |
| 50% | 49.9% | 64,096 | 63,955 |
| 40% | 40.4% | 51,277 | 51,778 |
| 30% | 30.3% | 38,457 | 38,897 |
| 20% | 20.3% | 25,638 | 26,053 |
| 10% | 10.2% | 12,819 | 13,125 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 127,104 | ||
| Calibration 2 | 128,984 | ||
| Calibration 3 | 128,835 | ||
| ssj_ops@calibrated=128,910 | |||
| 100% | 98.9% | 128,910 | 127,488 |
| 90% | 90.3% | 116,019 | 116,364 |
| 80% | 79.7% | 103,128 | 102,776 |
| 70% | 70.3% | 90,237 | 90,612 |
| 60% | 61.2% | 77,346 | 78,941 |
| 50% | 49.8% | 64,455 | 64,199 |
| 40% | 40.2% | 51,564 | 51,864 |
| 30% | 30.2% | 38,673 | 38,988 |
| 20% | 20.5% | 25,782 | 26,410 |
| 10% | 9.7% | 12,891 | 12,550 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 127,623 | ||
| Calibration 2 | 128,910 | ||
| Calibration 3 | 128,269 | ||
| ssj_ops@calibrated=128,589 | |||
| 100% | 100.1% | 128,589 | 128,719 |
| 90% | 91.2% | 115,730 | 117,257 |
| 80% | 80.0% | 102,871 | 102,823 |
| 70% | 70.1% | 90,012 | 90,188 |
| 60% | 60.1% | 77,154 | 77,344 |
| 50% | 49.6% | 64,295 | 63,799 |
| 40% | 40.0% | 51,436 | 51,460 |
| 30% | 29.9% | 38,577 | 38,420 |
| 20% | 20.5% | 25,718 | 26,399 |
| 10% | 10.0% | 12,859 | 12,903 |
| Active Idle | 0 | 0 | |

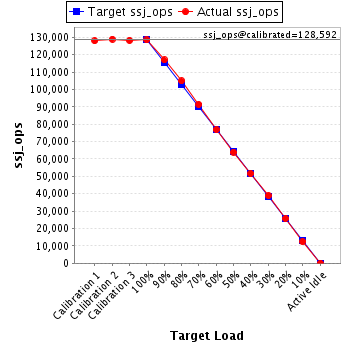

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 127,941 | ||
| Calibration 2 | 128,957 | ||
| Calibration 3 | 128,227 | ||
| ssj_ops@calibrated=128,592 | |||
| 100% | 99.9% | 128,592 | 128,493 |
| 90% | 91.0% | 115,733 | 116,972 |
| 80% | 81.6% | 102,874 | 104,891 |
| 70% | 71.1% | 90,014 | 91,423 |
| 60% | 59.8% | 77,155 | 76,897 |
| 50% | 49.8% | 64,296 | 64,005 |
| 40% | 40.1% | 51,437 | 51,593 |
| 30% | 30.3% | 38,578 | 38,914 |
| 20% | 20.0% | 25,718 | 25,769 |
| 10% | 9.7% | 12,859 | 12,441 |
| Active Idle | 0 | 0 | |
