SPECpower_ssj2008
Host '220g6-12a-23-da' Performance Report
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant BL2x220c G6 | ssj_ops@100% = 515,077 ssj_ops@100% per JVM = 128,769 |
||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Multi Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Oct 2, 2009 |
| Hardware Availability: | Nov-2009 | Software Availability: | Jul-2009 | Publication: | Nov 18, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 511,845 | ||
| Calibration 2 | 515,034 | ||
| Calibration 3 | 516,316 | ||
| ssj_ops@calibrated=515,675 | |||
| 100% | 99.9% | 515,675 | 515,077 |
| 90% | 90.5% | 464,107 | 466,821 |
| 80% | 79.9% | 412,540 | 411,798 |
| 70% | 69.9% | 360,972 | 360,226 |
| 60% | 59.7% | 309,405 | 307,963 |
| 50% | 50.1% | 257,837 | 258,284 |
| 40% | 40.0% | 206,270 | 206,110 |
| 30% | 30.0% | 154,702 | 154,726 |
| 20% | 19.8% | 103,135 | 102,121 |
| 10% | 10.1% | 51,567 | 52,215 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | Systems Under Test |
| # of Identical Nodes: | 32 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant BL2x220c G6 |
| Form Factor: | Half-height server blade |
| CPU Name: | Intel Xeon L5520 |
| CPU Characteristics: | Quad-Core, 2.26GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 2266 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 16 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | PC3-10600E CL9; 4 slots populated |
| Power Supply Quantity and Rating (W): | None |
| Power Supply Details: | Shared |
| Disk Drive: | 1 x 32 GB SSD 2.5" SATA; HP part #461201-B21 |
| Disk Controller: | On board SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x NC362i |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Balanced power enabled in OS |
| Operating System (OS): | Microsoft Windows Server 2008 x64 Enterprise Edition |
| OS Version: | SP2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1450m -Xms1600m -Xmx1600m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [F,F0,F00,F000] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 1600 |
| JVM Maximum Heap (MB): | 1600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | I26 09/06/2009 |
| Management Firmware Version: | 1.79 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |

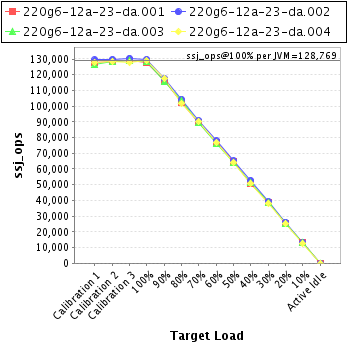

| JVM Instance | ssj_ops@100% |
|---|---|
| 220g6-12a-23-da.001 | 128,041 |
| 220g6-12a-23-da.002 | 129,766 |
| 220g6-12a-23-da.003 | 128,465 |
| 220g6-12a-23-da.004 | 128,806 |
| ssj_ops@100% | 515,077 |
| ssj_ops@100% per JVM | 128,769 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 128,042 | ||
| Calibration 2 | 128,548 | ||
| Calibration 3 | 129,028 | ||
| ssj_ops@calibrated=128,788 | |||
| 100% | 99.4% | 128,788 | 128,041 |
| 90% | 90.3% | 115,909 | 116,350 |
| 80% | 79.3% | 103,030 | 102,135 |
| 70% | 69.4% | 90,151 | 89,317 |
| 60% | 59.8% | 77,273 | 76,996 |
| 50% | 50.1% | 64,394 | 64,494 |
| 40% | 39.6% | 51,515 | 51,029 |
| 30% | 29.9% | 38,636 | 38,468 |
| 20% | 19.5% | 25,758 | 25,120 |
| 10% | 10.3% | 12,879 | 13,237 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 129,409 | ||
| Calibration 2 | 129,771 | ||
| Calibration 3 | 130,521 | ||
| ssj_ops@calibrated=130,146 | |||
| 100% | 99.7% | 130,146 | 129,766 |
| 90% | 90.1% | 117,132 | 117,310 |
| 80% | 80.2% | 104,117 | 104,429 |
| 70% | 69.8% | 91,102 | 90,816 |
| 60% | 59.9% | 78,088 | 77,931 |
| 50% | 50.1% | 65,073 | 65,144 |
| 40% | 40.5% | 52,058 | 52,773 |
| 30% | 30.2% | 39,044 | 39,298 |
| 20% | 20.2% | 26,029 | 26,235 |
| 10% | 10.2% | 13,015 | 13,279 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 126,389 | ||
| Calibration 2 | 128,229 | ||
| Calibration 3 | 128,804 | ||
| ssj_ops@calibrated=128,517 | |||
| 100% | 100.0% | 128,517 | 128,465 |
| 90% | 89.9% | 115,665 | 115,570 |
| 80% | 80.4% | 102,813 | 103,276 |
| 70% | 69.8% | 89,962 | 89,703 |
| 60% | 59.2% | 77,110 | 76,123 |
| 50% | 50.0% | 64,258 | 64,218 |
| 40% | 39.9% | 51,407 | 51,302 |
| 30% | 30.1% | 38,555 | 38,623 |
| 20% | 19.8% | 25,703 | 25,441 |
| 10% | 10.0% | 12,852 | 12,904 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 128,005 | ||
| Calibration 2 | 128,486 | ||
| Calibration 3 | 127,962 | ||
| ssj_ops@calibrated=128,224 | |||
| 100% | 100.5% | 128,224 | 128,806 |
| 90% | 91.7% | 115,402 | 117,592 |
| 80% | 79.5% | 102,579 | 101,958 |
| 70% | 70.5% | 89,757 | 90,389 |
| 60% | 60.0% | 76,935 | 76,914 |
| 50% | 50.2% | 64,112 | 64,428 |
| 40% | 39.8% | 51,290 | 51,005 |
| 30% | 29.9% | 38,467 | 38,337 |
| 20% | 19.8% | 25,645 | 25,325 |
| 10% | 10.0% | 12,822 | 12,795 |
| Active Idle | 0 | 0 | |
