SPECpower_ssj2008
Host '220g6-8a-15-da' Performance Report
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant BL2x220c G6 | ssj_ops@100% = 513,318 ssj_ops@100% per JVM = 128,329 |
||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Multi Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Oct 2, 2009 |
| Hardware Availability: | Nov-2009 | Software Availability: | Jul-2009 | Publication: | Nov 18, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 510,300 | ||
| Calibration 2 | 514,549 | ||
| Calibration 3 | 513,313 | ||
| ssj_ops@calibrated=513,931 | |||
| 100% | 99.9% | 513,931 | 513,318 |
| 90% | 90.7% | 462,538 | 466,250 |
| 80% | 80.6% | 411,145 | 414,196 |
| 70% | 70.0% | 359,752 | 359,809 |
| 60% | 60.2% | 308,358 | 309,320 |
| 50% | 49.8% | 256,965 | 256,101 |
| 40% | 40.0% | 205,572 | 205,656 |
| 30% | 29.9% | 154,179 | 153,749 |
| 20% | 20.0% | 102,786 | 102,946 |
| 10% | 10.0% | 51,393 | 51,168 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | Systems Under Test |
| # of Identical Nodes: | 32 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant BL2x220c G6 |
| Form Factor: | Half-height server blade |
| CPU Name: | Intel Xeon L5520 |
| CPU Characteristics: | Quad-Core, 2.26GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 2266 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 16 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | PC3-10600E CL9; 4 slots populated |
| Power Supply Quantity and Rating (W): | None |
| Power Supply Details: | Shared |
| Disk Drive: | 1 x 32 GB SSD 2.5" SATA; HP part #461201-B21 |
| Disk Controller: | On board SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x NC362i |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Balanced power enabled in OS |
| Operating System (OS): | Microsoft Windows Server 2008 x64 Enterprise Edition |
| OS Version: | SP2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1450m -Xms1600m -Xmx1600m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [F,F0,F00,F000] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 1600 |
| JVM Maximum Heap (MB): | 1600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | I26 09/06/2009 |
| Management Firmware Version: | 1.79 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |

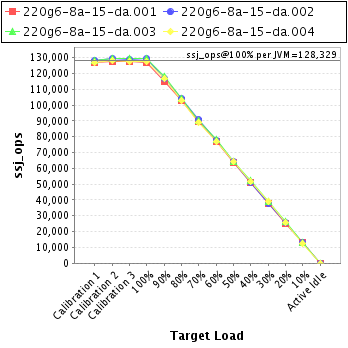

| JVM Instance | ssj_ops@100% |
|---|---|
| 220g6-8a-15-da.001 | 127,142 |
| 220g6-8a-15-da.002 | 129,218 |
| 220g6-8a-15-da.003 | 129,480 |
| 220g6-8a-15-da.004 | 127,477 |
| ssj_ops@100% | 513,318 |
| ssj_ops@100% per JVM | 128,329 |

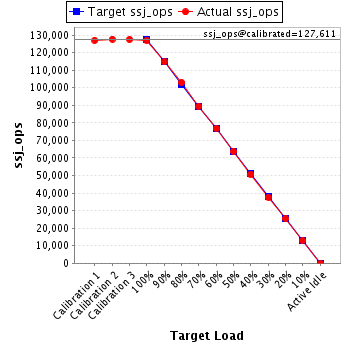

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 127,049 | ||
| Calibration 2 | 127,660 | ||
| Calibration 3 | 127,561 | ||
| ssj_ops@calibrated=127,611 | |||
| 100% | 99.6% | 127,611 | 127,142 |
| 90% | 89.8% | 114,850 | 114,657 |
| 80% | 80.7% | 102,089 | 102,999 |
| 70% | 70.2% | 89,328 | 89,551 |
| 60% | 60.2% | 76,567 | 76,868 |
| 50% | 50.0% | 63,805 | 63,816 |
| 40% | 39.8% | 51,044 | 50,816 |
| 30% | 29.5% | 38,283 | 37,642 |
| 20% | 19.9% | 25,522 | 25,387 |
| 10% | 10.0% | 12,761 | 12,815 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 128,252 | ||
| Calibration 2 | 129,342 | ||
| Calibration 3 | 128,931 | ||
| ssj_ops@calibrated=129,137 | |||
| 100% | 100.1% | 129,137 | 129,218 |
| 90% | 90.4% | 116,223 | 116,726 |
| 80% | 80.4% | 103,309 | 103,851 |
| 70% | 70.2% | 90,396 | 90,626 |
| 60% | 60.2% | 77,482 | 77,696 |
| 50% | 49.6% | 64,568 | 64,099 |
| 40% | 39.7% | 51,655 | 51,209 |
| 30% | 29.4% | 38,741 | 37,987 |
| 20% | 19.8% | 25,827 | 25,625 |
| 10% | 9.9% | 12,914 | 12,829 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 128,126 | ||
| Calibration 2 | 129,590 | ||
| Calibration 3 | 129,315 | ||
| ssj_ops@calibrated=129,452 | |||
| 100% | 100.0% | 129,452 | 129,480 |
| 90% | 91.3% | 116,507 | 118,183 |
| 80% | 80.6% | 103,562 | 104,365 |
| 70% | 69.9% | 90,617 | 90,426 |
| 60% | 60.2% | 77,671 | 77,891 |
| 50% | 49.5% | 64,726 | 64,097 |
| 40% | 40.3% | 51,781 | 52,168 |
| 30% | 30.2% | 38,836 | 39,134 |
| 20% | 20.2% | 25,890 | 26,085 |
| 10% | 10.0% | 12,945 | 12,958 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 126,873 | ||
| Calibration 2 | 127,956 | ||
| Calibration 3 | 127,506 | ||
| ssj_ops@calibrated=127,731 | |||
| 100% | 99.8% | 127,731 | 127,477 |
| 90% | 91.4% | 114,958 | 116,683 |
| 80% | 80.6% | 102,185 | 102,982 |
| 70% | 69.8% | 89,412 | 89,205 |
| 60% | 60.2% | 76,639 | 76,865 |
| 50% | 50.2% | 63,865 | 64,089 |
| 40% | 40.3% | 51,092 | 51,464 |
| 30% | 30.5% | 38,319 | 38,986 |
| 20% | 20.2% | 25,546 | 25,849 |
| 10% | 9.8% | 12,773 | 12,566 |
| Active Idle | 0 | 0 | |
