SPECpower_ssj2008
Host '220g6-16a-31-da' Performance Report
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant BL2x220c G6 | ssj_ops@100% = 512,629 ssj_ops@100% per JVM = 128,157 |
||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Multi Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Oct 2, 2009 |
| Hardware Availability: | Nov-2009 | Software Availability: | Jul-2009 | Publication: | Nov 18, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 508,829 | ||
| Calibration 2 | 513,750 | ||
| Calibration 3 | 512,796 | ||
| ssj_ops@calibrated=513,273 | |||
| 100% | 99.9% | 513,273 | 512,629 |
| 90% | 90.5% | 461,946 | 464,297 |
| 80% | 79.7% | 410,618 | 409,046 |
| 70% | 70.2% | 359,291 | 360,404 |
| 60% | 60.2% | 307,964 | 308,735 |
| 50% | 49.8% | 256,636 | 255,649 |
| 40% | 39.9% | 205,309 | 204,970 |
| 30% | 30.1% | 153,982 | 154,588 |
| 20% | 19.9% | 102,655 | 102,056 |
| 10% | 10.1% | 51,327 | 52,031 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | Systems Under Test |
| # of Identical Nodes: | 32 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant BL2x220c G6 |
| Form Factor: | Half-height server blade |
| CPU Name: | Intel Xeon L5520 |
| CPU Characteristics: | Quad-Core, 2.26GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 2266 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 16 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | PC3-10600E CL9; 4 slots populated |
| Power Supply Quantity and Rating (W): | None |
| Power Supply Details: | Shared |
| Disk Drive: | 1 x 32 GB SSD 2.5" SATA; HP part #461201-B21 |
| Disk Controller: | On board SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x NC362i |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Balanced power enabled in OS |
| Operating System (OS): | Microsoft Windows Server 2008 x64 Enterprise Edition |
| OS Version: | SP2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1450m -Xms1600m -Xmx1600m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [F,F0,F00,F000] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 1600 |
| JVM Maximum Heap (MB): | 1600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | I26 09/06/2009 |
| Management Firmware Version: | 1.79 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |

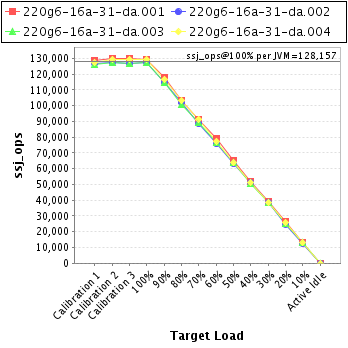

| JVM Instance | ssj_ops@100% |
|---|---|
| 220g6-16a-31-da.001 | 129,067 |
| 220g6-16a-31-da.002 | 127,046 |
| 220g6-16a-31-da.003 | 127,252 |
| 220g6-16a-31-da.004 | 129,265 |
| ssj_ops@100% | 512,629 |
| ssj_ops@100% per JVM | 128,157 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 128,787 | ||
| Calibration 2 | 129,793 | ||
| Calibration 3 | 130,085 | ||
| ssj_ops@calibrated=129,939 | |||
| 100% | 99.3% | 129,939 | 129,067 |
| 90% | 90.9% | 116,945 | 118,124 |
| 80% | 79.6% | 103,951 | 103,401 |
| 70% | 70.4% | 90,958 | 91,486 |
| 60% | 60.9% | 77,964 | 79,183 |
| 50% | 49.9% | 64,970 | 64,888 |
| 40% | 39.7% | 51,976 | 51,600 |
| 30% | 30.0% | 38,982 | 39,004 |
| 20% | 20.3% | 25,988 | 26,422 |
| 10% | 10.4% | 12,994 | 13,466 |
| Active Idle | 0 | 0 | |

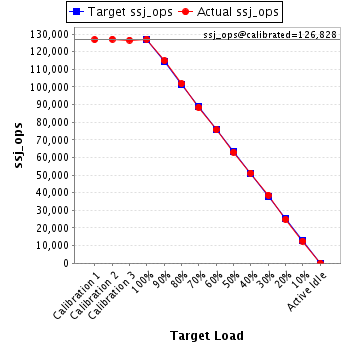

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 126,819 | ||
| Calibration 2 | 127,073 | ||
| Calibration 3 | 126,582 | ||
| ssj_ops@calibrated=126,828 | |||
| 100% | 100.2% | 126,828 | 127,046 |
| 90% | 90.6% | 114,145 | 114,901 |
| 80% | 80.3% | 101,462 | 101,833 |
| 70% | 69.7% | 88,779 | 88,400 |
| 60% | 59.7% | 76,097 | 75,730 |
| 50% | 49.7% | 63,414 | 63,038 |
| 40% | 40.3% | 50,731 | 51,151 |
| 30% | 30.5% | 38,048 | 38,621 |
| 20% | 19.6% | 25,366 | 24,866 |
| 10% | 9.9% | 12,683 | 12,608 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 125,923 | ||
| Calibration 2 | 127,524 | ||
| Calibration 3 | 126,991 | ||
| ssj_ops@calibrated=127,258 | |||
| 100% | 100.0% | 127,258 | 127,252 |
| 90% | 90.1% | 114,532 | 114,664 |
| 80% | 79.1% | 101,806 | 100,707 |
| 70% | 70.0% | 89,080 | 89,044 |
| 60% | 60.1% | 76,355 | 76,443 |
| 50% | 50.3% | 63,629 | 64,044 |
| 40% | 40.0% | 50,903 | 50,878 |
| 30% | 30.1% | 38,177 | 38,304 |
| 20% | 19.7% | 25,452 | 25,025 |
| 10% | 10.2% | 12,726 | 12,999 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 127,300 | ||
| Calibration 2 | 129,359 | ||
| Calibration 3 | 129,138 | ||
| ssj_ops@calibrated=129,248 | |||
| 100% | 100.0% | 129,248 | 129,265 |
| 90% | 90.2% | 116,323 | 116,607 |
| 80% | 79.8% | 103,399 | 103,104 |
| 70% | 70.8% | 90,474 | 91,474 |
| 60% | 59.9% | 77,549 | 77,379 |
| 50% | 49.3% | 64,624 | 63,679 |
| 40% | 39.7% | 51,699 | 51,341 |
| 30% | 29.9% | 38,774 | 38,659 |
| 20% | 19.9% | 25,850 | 25,743 |
| 10% | 10.0% | 12,925 | 12,958 |
| Active Idle | 0 | 0 | |
