SPECpower_ssj2008
Host '220g6-11a-21-da' Performance Report
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant BL2x220c G6 | ssj_ops@100% = 515,762 ssj_ops@100% per JVM = 128,941 |
||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Multi Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Oct 2, 2009 |
| Hardware Availability: | Nov-2009 | Software Availability: | Jul-2009 | Publication: | Nov 18, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 513,509 | ||
| Calibration 2 | 516,935 | ||
| Calibration 3 | 516,601 | ||
| ssj_ops@calibrated=516,768 | |||
| 100% | 99.8% | 516,768 | 515,762 |
| 90% | 90.4% | 465,091 | 467,079 |
| 80% | 79.5% | 413,414 | 410,826 |
| 70% | 69.8% | 361,737 | 360,728 |
| 60% | 60.0% | 310,061 | 310,227 |
| 50% | 50.1% | 258,384 | 258,861 |
| 40% | 39.9% | 206,707 | 206,315 |
| 30% | 30.0% | 155,030 | 155,006 |
| 20% | 20.1% | 103,354 | 103,918 |
| 10% | 10.0% | 51,677 | 51,567 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | Systems Under Test |
| # of Identical Nodes: | 32 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant BL2x220c G6 |
| Form Factor: | Half-height server blade |
| CPU Name: | Intel Xeon L5520 |
| CPU Characteristics: | Quad-Core, 2.26GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 2266 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 16 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | PC3-10600E CL9; 4 slots populated |
| Power Supply Quantity and Rating (W): | None |
| Power Supply Details: | Shared |
| Disk Drive: | 1 x 32 GB SSD 2.5" SATA; HP part #461201-B21 |
| Disk Controller: | On board SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x NC362i |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Balanced power enabled in OS |
| Operating System (OS): | Microsoft Windows Server 2008 x64 Enterprise Edition |
| OS Version: | SP2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1450m -Xms1600m -Xmx1600m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [F,F0,F00,F000] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 1600 |
| JVM Maximum Heap (MB): | 1600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | I26 09/06/2009 |
| Management Firmware Version: | 1.79 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |

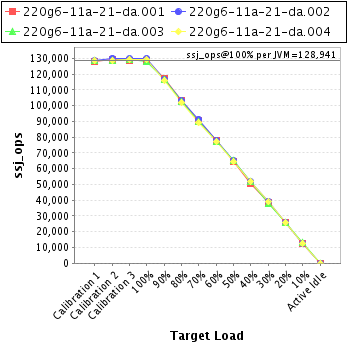

| JVM Instance | ssj_ops@100% |
|---|---|
| 220g6-11a-21-da.001 | 128,527 |
| 220g6-11a-21-da.002 | 129,886 |
| 220g6-11a-21-da.003 | 128,241 |
| 220g6-11a-21-da.004 | 129,109 |
| ssj_ops@100% | 515,762 |
| ssj_ops@100% per JVM | 128,941 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 128,206 | ||
| Calibration 2 | 129,485 | ||
| Calibration 3 | 128,790 | ||
| ssj_ops@calibrated=129,138 | |||
| 100% | 99.5% | 129,138 | 128,527 |
| 90% | 90.9% | 116,224 | 117,400 |
| 80% | 79.8% | 103,310 | 103,014 |
| 70% | 70.0% | 90,396 | 90,446 |
| 60% | 60.2% | 77,483 | 77,753 |
| 50% | 49.8% | 64,569 | 64,287 |
| 40% | 39.4% | 51,655 | 50,841 |
| 30% | 29.9% | 38,741 | 38,562 |
| 20% | 20.1% | 25,828 | 25,967 |
| 10% | 9.9% | 12,914 | 12,783 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 128,452 | ||
| Calibration 2 | 130,103 | ||
| Calibration 3 | 129,743 | ||
| ssj_ops@calibrated=129,923 | |||
| 100% | 100.0% | 129,923 | 129,886 |
| 90% | 89.9% | 116,931 | 116,809 |
| 80% | 79.3% | 103,939 | 102,985 |
| 70% | 70.3% | 90,946 | 91,330 |
| 60% | 60.1% | 77,954 | 78,055 |
| 50% | 50.0% | 64,962 | 64,995 |
| 40% | 39.9% | 51,969 | 51,782 |
| 30% | 30.4% | 38,977 | 39,474 |
| 20% | 20.1% | 25,985 | 26,102 |
| 10% | 9.8% | 12,992 | 12,750 |
| Active Idle | 0 | 0 | |

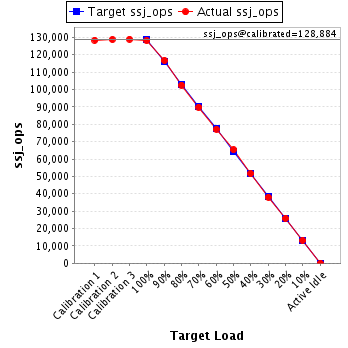

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 128,419 | ||
| Calibration 2 | 128,794 | ||
| Calibration 3 | 128,973 | ||
| ssj_ops@calibrated=128,884 | |||
| 100% | 99.5% | 128,884 | 128,241 |
| 90% | 90.6% | 115,995 | 116,791 |
| 80% | 79.6% | 103,107 | 102,593 |
| 70% | 69.7% | 90,218 | 89,883 |
| 60% | 59.9% | 77,330 | 77,177 |
| 50% | 50.7% | 64,442 | 65,298 |
| 40% | 40.0% | 51,553 | 51,577 |
| 30% | 29.5% | 38,665 | 38,068 |
| 20% | 20.1% | 25,777 | 25,883 |
| 10% | 10.3% | 12,888 | 13,260 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 128,432 | ||
| Calibration 2 | 128,552 | ||
| Calibration 3 | 129,094 | ||
| ssj_ops@calibrated=128,823 | |||
| 100% | 100.2% | 128,823 | 129,109 |
| 90% | 90.1% | 115,941 | 116,079 |
| 80% | 79.4% | 103,059 | 102,234 |
| 70% | 69.1% | 90,176 | 89,070 |
| 60% | 60.0% | 77,294 | 77,243 |
| 50% | 49.9% | 64,412 | 64,280 |
| 40% | 40.5% | 51,529 | 52,115 |
| 30% | 30.2% | 38,647 | 38,902 |
| 20% | 20.2% | 25,765 | 25,965 |
| 10% | 9.9% | 12,882 | 12,774 |
| Active Idle | 0 | 0 | |
