SPECpower_ssj2008
Host '220g6-1b-2-da' Performance Report
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant BL2x220c G6 | ssj_ops@100% = 516,899 ssj_ops@100% per JVM = 129,225 |
||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Multi Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Oct 2, 2009 |
| Hardware Availability: | Nov-2009 | Software Availability: | Jul-2009 | Publication: | Nov 18, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 513,416 | ||
| Calibration 2 | 517,076 | ||
| Calibration 3 | 516,981 | ||
| ssj_ops@calibrated=517,029 | |||
| 100% | 100.0% | 517,029 | 516,899 |
| 90% | 90.2% | 465,326 | 466,231 |
| 80% | 81.0% | 413,623 | 418,880 |
| 70% | 70.1% | 361,920 | 362,433 |
| 60% | 60.1% | 310,217 | 310,661 |
| 50% | 50.0% | 258,514 | 258,435 |
| 40% | 40.0% | 206,811 | 206,650 |
| 30% | 30.0% | 155,109 | 155,358 |
| 20% | 20.0% | 103,406 | 103,512 |
| 10% | 10.0% | 51,703 | 51,805 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | Systems Under Test |
| # of Identical Nodes: | 32 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant BL2x220c G6 |
| Form Factor: | Half-height server blade |
| CPU Name: | Intel Xeon L5520 |
| CPU Characteristics: | Quad-Core, 2.26GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 2266 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 16 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | PC3-10600E CL9; 4 slots populated |
| Power Supply Quantity and Rating (W): | None |
| Power Supply Details: | Shared |
| Disk Drive: | 1 x 32 GB SSD 2.5" SATA; HP part #461201-B21 |
| Disk Controller: | On board SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x NC362i |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Balanced power enabled in OS |
| Operating System (OS): | Microsoft Windows Server 2008 x64 Enterprise Edition |
| OS Version: | SP2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1450m -Xms1600m -Xmx1600m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [F,F0,F00,F000] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 1600 |
| JVM Maximum Heap (MB): | 1600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | I26 09/06/2009 |
| Management Firmware Version: | 1.79 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |

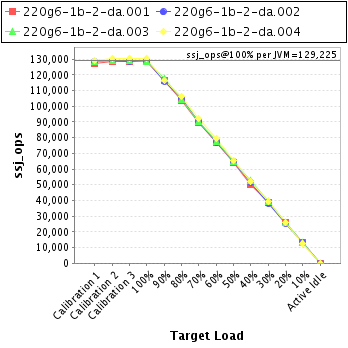

| JVM Instance | ssj_ops@100% |
|---|---|
| 220g6-1b-2-da.001 | 128,321 |
| 220g6-1b-2-da.002 | 129,330 |
| 220g6-1b-2-da.003 | 128,676 |
| 220g6-1b-2-da.004 | 130,573 |
| ssj_ops@100% | 516,899 |
| ssj_ops@100% per JVM | 129,225 |

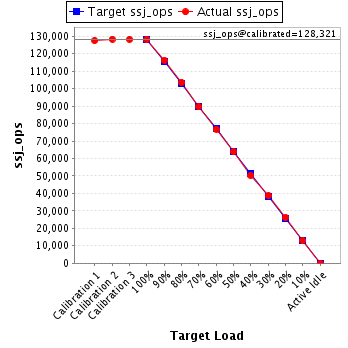

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 127,530 | ||
| Calibration 2 | 128,328 | ||
| Calibration 3 | 128,314 | ||
| ssj_ops@calibrated=128,321 | |||
| 100% | 100.0% | 128,321 | 128,321 |
| 90% | 90.6% | 115,489 | 116,201 |
| 80% | 80.8% | 102,657 | 103,657 |
| 70% | 69.8% | 89,825 | 89,559 |
| 60% | 59.9% | 76,992 | 76,804 |
| 50% | 49.8% | 64,160 | 63,920 |
| 40% | 39.2% | 51,328 | 50,309 |
| 30% | 30.1% | 38,496 | 38,663 |
| 20% | 20.4% | 25,664 | 26,169 |
| 10% | 10.1% | 12,832 | 12,920 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 128,250 | ||
| Calibration 2 | 129,061 | ||
| Calibration 3 | 128,757 | ||
| ssj_ops@calibrated=128,909 | |||
| 100% | 100.3% | 128,909 | 129,330 |
| 90% | 90.0% | 116,018 | 115,990 |
| 80% | 81.2% | 103,127 | 104,638 |
| 70% | 70.1% | 90,236 | 90,402 |
| 60% | 59.9% | 77,345 | 77,176 |
| 50% | 50.1% | 64,454 | 64,526 |
| 40% | 40.0% | 51,563 | 51,557 |
| 30% | 29.5% | 38,673 | 38,053 |
| 20% | 19.7% | 25,782 | 25,455 |
| 10% | 10.1% | 12,891 | 13,015 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 128,525 | ||
| Calibration 2 | 129,212 | ||
| Calibration 3 | 129,278 | ||
| ssj_ops@calibrated=129,245 | |||
| 100% | 99.6% | 129,245 | 128,676 |
| 90% | 90.8% | 116,321 | 117,399 |
| 80% | 80.7% | 103,396 | 104,260 |
| 70% | 70.0% | 90,472 | 90,501 |
| 60% | 59.9% | 77,547 | 77,481 |
| 50% | 50.2% | 64,623 | 64,827 |
| 40% | 40.7% | 51,698 | 52,570 |
| 30% | 30.6% | 38,774 | 39,529 |
| 20% | 20.0% | 25,849 | 25,792 |
| 10% | 10.2% | 12,925 | 13,203 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 129,112 | ||
| Calibration 2 | 130,475 | ||
| Calibration 3 | 130,633 | ||
| ssj_ops@calibrated=130,554 | |||
| 100% | 100.0% | 130,554 | 130,573 |
| 90% | 89.3% | 117,499 | 116,641 |
| 80% | 81.4% | 104,443 | 106,325 |
| 70% | 70.4% | 91,388 | 91,970 |
| 60% | 60.7% | 78,332 | 79,201 |
| 50% | 49.9% | 65,277 | 65,162 |
| 40% | 40.0% | 52,222 | 52,213 |
| 30% | 30.0% | 39,166 | 39,113 |
| 20% | 20.0% | 26,111 | 26,097 |
| 10% | 9.7% | 13,055 | 12,666 |
| Active Idle | 0 | 0 | |
