SPECpower_ssj2008
Host '220g6-9b-18-da' Performance Report
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant BL2x220c G6 | ssj_ops@100% = 512,745 ssj_ops@100% per JVM = 128,186 |
||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Multi Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Oct 2, 2009 |
| Hardware Availability: | Nov-2009 | Software Availability: | Jul-2009 | Publication: | Nov 18, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 509,779 | ||
| Calibration 2 | 514,623 | ||
| Calibration 3 | 512,213 | ||
| ssj_ops@calibrated=513,418 | |||
| 100% | 99.9% | 513,418 | 512,745 |
| 90% | 90.6% | 462,077 | 464,909 |
| 80% | 81.3% | 410,735 | 417,279 |
| 70% | 70.3% | 359,393 | 361,079 |
| 60% | 59.8% | 308,051 | 306,909 |
| 50% | 50.3% | 256,709 | 258,357 |
| 40% | 40.0% | 205,367 | 205,322 |
| 30% | 30.0% | 154,026 | 153,818 |
| 20% | 19.8% | 102,684 | 101,843 |
| 10% | 10.0% | 51,342 | 51,490 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | Systems Under Test |
| # of Identical Nodes: | 32 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant BL2x220c G6 |
| Form Factor: | Half-height server blade |
| CPU Name: | Intel Xeon L5520 |
| CPU Characteristics: | Quad-Core, 2.26GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 2266 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 16 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | PC3-10600E CL9; 4 slots populated |
| Power Supply Quantity and Rating (W): | None |
| Power Supply Details: | Shared |
| Disk Drive: | 1 x 32 GB SSD 2.5" SATA; HP part #461201-B21 |
| Disk Controller: | On board SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x NC362i |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Balanced power enabled in OS |
| Operating System (OS): | Microsoft Windows Server 2008 x64 Enterprise Edition |
| OS Version: | SP2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1450m -Xms1600m -Xmx1600m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [F,F0,F00,F000] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 1600 |
| JVM Maximum Heap (MB): | 1600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | I26 09/06/2009 |
| Management Firmware Version: | 1.79 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |

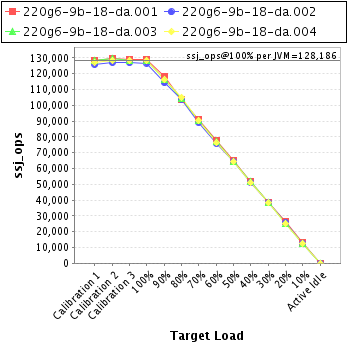

| JVM Instance | ssj_ops@100% |
|---|---|
| 220g6-9b-18-da.001 | 129,143 |
| 220g6-9b-18-da.002 | 126,577 |
| 220g6-9b-18-da.003 | 128,609 |
| 220g6-9b-18-da.004 | 128,415 |
| ssj_ops@100% | 512,745 |
| ssj_ops@100% per JVM | 128,186 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 128,094 | ||
| Calibration 2 | 129,791 | ||
| Calibration 3 | 128,687 | ||
| ssj_ops@calibrated=129,239 | |||
| 100% | 99.9% | 129,239 | 129,143 |
| 90% | 91.7% | 116,315 | 118,449 |
| 80% | 80.4% | 103,391 | 103,950 |
| 70% | 70.5% | 90,467 | 91,107 |
| 60% | 60.1% | 77,543 | 77,678 |
| 50% | 50.4% | 64,619 | 65,184 |
| 40% | 40.0% | 51,695 | 51,682 |
| 30% | 29.8% | 38,772 | 38,556 |
| 20% | 20.3% | 25,848 | 26,219 |
| 10% | 10.3% | 12,924 | 13,291 |
| Active Idle | 0 | 0 | |

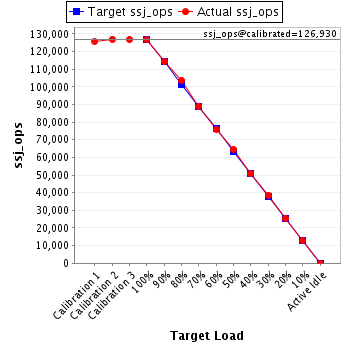

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 125,757 | ||
| Calibration 2 | 127,036 | ||
| Calibration 3 | 126,823 | ||
| ssj_ops@calibrated=126,930 | |||
| 100% | 99.7% | 126,930 | 126,577 |
| 90% | 90.0% | 114,237 | 114,279 |
| 80% | 81.6% | 101,544 | 103,628 |
| 70% | 70.2% | 88,851 | 89,056 |
| 60% | 59.7% | 76,158 | 75,798 |
| 50% | 50.8% | 63,465 | 64,526 |
| 40% | 40.1% | 50,772 | 50,867 |
| 30% | 30.3% | 38,079 | 38,520 |
| 20% | 20.1% | 25,386 | 25,541 |
| 10% | 10.0% | 12,693 | 12,741 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 128,569 | ||
| Calibration 2 | 129,419 | ||
| Calibration 3 | 128,530 | ||
| ssj_ops@calibrated=128,974 | |||
| 100% | 99.7% | 128,974 | 128,609 |
| 90% | 90.0% | 116,077 | 116,098 |
| 80% | 81.1% | 103,180 | 104,589 |
| 70% | 70.1% | 90,282 | 90,455 |
| 60% | 59.9% | 77,385 | 77,279 |
| 50% | 49.8% | 64,487 | 64,212 |
| 40% | 40.2% | 51,590 | 51,898 |
| 30% | 29.9% | 38,692 | 38,574 |
| 20% | 19.4% | 25,795 | 25,074 |
| 10% | 9.9% | 12,897 | 12,758 |
| Active Idle | 0 | 0 | |

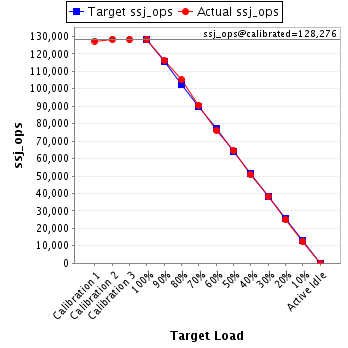

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 127,359 | ||
| Calibration 2 | 128,378 | ||
| Calibration 3 | 128,173 | ||
| ssj_ops@calibrated=128,276 | |||
| 100% | 100.1% | 128,276 | 128,415 |
| 90% | 90.5% | 115,448 | 116,085 |
| 80% | 81.9% | 102,620 | 105,112 |
| 70% | 70.5% | 89,793 | 90,461 |
| 60% | 59.4% | 76,965 | 76,155 |
| 50% | 50.2% | 64,138 | 64,436 |
| 40% | 39.7% | 51,310 | 50,875 |
| 30% | 29.8% | 38,483 | 38,167 |
| 20% | 19.5% | 25,655 | 25,009 |
| 10% | 9.9% | 12,828 | 12,700 |
| Active Idle | 0 | 0 | |
