SPECpower_ssj2008
Host '220g6-7b-14-da' Performance Report
Copyright © 2007-2009 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant BL2x220c G6 | ssj_ops@100% = 511,488 ssj_ops@100% per JVM = 127,872 |
||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Multi Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Oct 2, 2009 |
| Hardware Availability: | Nov-2009 | Software Availability: | Jul-2009 | Publication: | Nov 18, 2009 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 512,130 | ||
| Calibration 2 | 512,489 | ||
| Calibration 3 | 511,384 | ||
| ssj_ops@calibrated=511,936 | |||
| 100% | 99.9% | 511,936 | 511,488 |
| 90% | 90.2% | 460,743 | 461,787 |
| 80% | 80.5% | 409,549 | 411,928 |
| 70% | 70.0% | 358,356 | 358,462 |
| 60% | 60.1% | 307,162 | 307,626 |
| 50% | 50.1% | 255,968 | 256,391 |
| 40% | 40.0% | 204,775 | 204,659 |
| 30% | 29.9% | 153,581 | 153,053 |
| 20% | 19.9% | 102,387 | 102,113 |
| 10% | 9.9% | 51,194 | 50,841 |
| Active Idle | 0 | 0 | |
| Set Identifier: | sut |
| Set Description: | Systems Under Test |
| # of Identical Nodes: | 32 |
| Comment: | None |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant BL2x220c G6 |
| Form Factor: | Half-height server blade |
| CPU Name: | Intel Xeon L5520 |
| CPU Characteristics: | Quad-Core, 2.26GHz, 8MB L3 Cache |
| CPU Frequency (MHz): | 2266 |
| CPU(s) Enabled: | 8 cores, 2 chips, 4 cores/chip |
| Hardware Threads: | 16 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 8 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 8 |
| # and size of DIMM: | 4 x 2048 MB |
| Memory Details: | PC3-10600E CL9; 4 slots populated |
| Power Supply Quantity and Rating (W): | None |
| Power Supply Details: | Shared |
| Disk Drive: | 1 x 32 GB SSD 2.5" SATA; HP part #461201-B21 |
| Disk Controller: | On board SATA controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x NC362i |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | KVM |
| Mouse: | KVM |
| Monitor: | KVM |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Balanced power enabled in OS |
| Operating System (OS): | Microsoft Windows Server 2008 x64 Enterprise Edition |
| OS Version: | SP2 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn1450m -Xms1600m -Xmx1600m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp |
| JVM Affinity: | start /affinity [F,F0,F00,F000] |
| JVM Instances: | 4 |
| JVM Initial Heap (MB): | 1600 |
| JVM Maximum Heap (MB): | 1600 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | I26 09/06/2009 |
| Management Firmware Version: | 1.79 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |

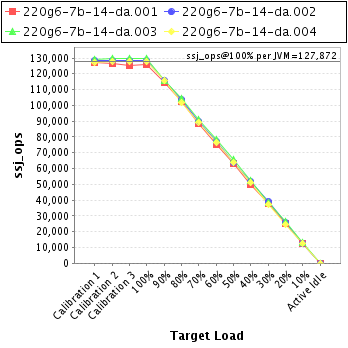

| JVM Instance | ssj_ops@100% |
|---|---|
| 220g6-7b-14-da.001 | 125,861 |
| 220g6-7b-14-da.002 | 128,299 |
| 220g6-7b-14-da.003 | 129,697 |
| 220g6-7b-14-da.004 | 127,631 |
| ssj_ops@100% | 511,488 |
| ssj_ops@100% per JVM | 127,872 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 127,010 | ||
| Calibration 2 | 126,209 | ||
| Calibration 3 | 125,153 | ||
| ssj_ops@calibrated=125,681 | |||
| 100% | 100.1% | 125,681 | 125,861 |
| 90% | 91.0% | 113,113 | 114,402 |
| 80% | 81.6% | 100,545 | 102,494 |
| 70% | 70.2% | 87,977 | 88,288 |
| 60% | 60.1% | 75,409 | 75,510 |
| 50% | 50.2% | 62,841 | 63,031 |
| 40% | 39.5% | 50,272 | 49,676 |
| 30% | 30.2% | 37,704 | 37,952 |
| 20% | 20.2% | 25,136 | 25,383 |
| 10% | 10.0% | 12,568 | 12,529 |
| Active Idle | 0 | 0 | |

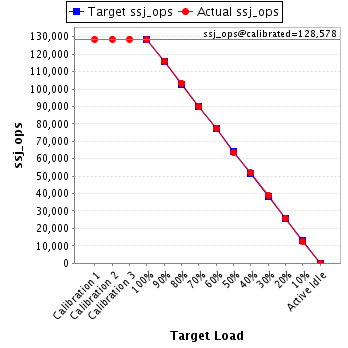

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 128,502 | ||
| Calibration 2 | 128,546 | ||
| Calibration 3 | 128,610 | ||
| ssj_ops@calibrated=128,578 | |||
| 100% | 99.8% | 128,578 | 128,299 |
| 90% | 90.2% | 115,720 | 116,023 |
| 80% | 80.4% | 102,862 | 103,402 |
| 70% | 70.0% | 90,005 | 89,987 |
| 60% | 60.2% | 77,147 | 77,377 |
| 50% | 49.6% | 64,289 | 63,791 |
| 40% | 40.3% | 51,431 | 51,824 |
| 30% | 30.3% | 38,573 | 39,001 |
| 20% | 20.1% | 25,716 | 25,841 |
| 10% | 9.8% | 12,858 | 12,663 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 129,267 | ||
| Calibration 2 | 129,793 | ||
| Calibration 3 | 129,888 | ||
| ssj_ops@calibrated=129,841 | |||
| 100% | 99.9% | 129,841 | 129,697 |
| 90% | 89.3% | 116,857 | 115,924 |
| 80% | 80.5% | 103,872 | 104,507 |
| 70% | 69.9% | 90,888 | 90,754 |
| 60% | 60.3% | 77,904 | 78,263 |
| 50% | 50.6% | 64,920 | 65,640 |
| 40% | 40.2% | 51,936 | 52,160 |
| 30% | 29.9% | 38,952 | 38,795 |
| 20% | 20.2% | 25,968 | 26,177 |
| 10% | 10.0% | 12,984 | 12,924 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 127,351 | ||
| Calibration 2 | 127,940 | ||
| Calibration 3 | 127,733 | ||
| ssj_ops@calibrated=127,837 | |||
| 100% | 99.8% | 127,837 | 127,631 |
| 90% | 90.3% | 115,053 | 115,438 |
| 80% | 79.4% | 102,269 | 101,525 |
| 70% | 70.0% | 89,486 | 89,433 |
| 60% | 59.8% | 76,702 | 76,476 |
| 50% | 50.0% | 63,918 | 63,930 |
| 40% | 39.9% | 51,135 | 50,999 |
| 30% | 29.2% | 38,351 | 37,304 |
| 20% | 19.3% | 25,567 | 24,712 |
| 10% | 10.0% | 12,784 | 12,724 |
| Active Idle | 0 | 0 | |
