Fujitsu FUJITSU Server PRIMERGY RX4770 M4 ssj_ops@100% = 10,536,721
ssj_ops@100% per JVM = 94,078
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Sep 27, 2017
Hardware Availability: Aug-2017 Software Availability: Jan-2015 Publication: Oct 18, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     10,573,957
Calibration 2     10,541,425
Calibration 3     10,553,370
ssj_ops@calibrated=10,547,398
100% 99.9% 10,547,398 10,536,721
90% 90.0% 9,492,658 9,495,762
80% 79.9% 8,437,918 8,432,356
70% 70.0% 7,383,178 7,387,361
60% 60.0% 6,328,439 6,327,725
50% 50.0% 5,273,699 5,268,885
40% 40.0% 4,218,959 4,214,761
30% 30.0% 3,164,219 3,165,430
20% 20.0% 2,109,480 2,108,875
10% 10.0% 1,054,740 1,055,600
Active Idle   0 0
Graph of results
System Under Test
Set: 'RX4770 M4'
Set Identifier: RX4770 M4
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY RX4770 M4
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8176M
CPU Characteristics: 28-Core, 2.10GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 112 cores, 4 chips, 28 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 24 x 8192 MB
Memory Details: 24 x 8 GB 2Rx8 PC4-2666V-R; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J, 1K, 1L, 1M, 1N, 1P, 1Q, 1R, 1S, 1T, 1U, 1V, 1W, 1X, 1Y, 1Z populated
Power Supply Quantity and Rating (W): 1 x 1600
Power Supply Details: Standard power supply part of base unit S26361-K1587-V100
Disk Drive: 1 x SSD M.2 SATA 6Gbps 150GB N H-P, S26361-F5656-L150
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x PLAN EM 4 x 1Gb T OCP(Dynamic LOM), S26361-F3953-E401
NICs Enabled in Firmware / OS / Connected: 4/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600 Build 9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1400m -Xmx1400m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,2,4,7] /AFFINTY 0x3,0xC,0x30,0xC0,0xC000,0x30000,0xC0000,0x30000000,0xC0000000,0x300000000,0xC00000000,0xC0000000000,0x300000000000,0xC00000000000 /NODE [1,3,5,7] /AFFINTY 0x3,0xC,0x30,0x3000,0xC000,0x30000,0xC0000,0x30000000,0xC0000000,0x300000000,0xC00000000,0xC0000000000,0x300000000000,0xC00000000000
JVM Instances: 112
JVM Initial Heap (MB): 1400
JVM Maximum Heap (MB): 1400
JVM Address Bits: 64
Boot Firmware Version: R1.1.0
Management Firmware Version: 1.13P
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
RX4770M4.001 93,180
RX4770M4.002 94,558
RX4770M4.003 93,868
RX4770M4.004 93,110
RX4770M4.005 94,369
RX4770M4.006 94,039
RX4770M4.007 92,329
RX4770M4.008 94,906
RX4770M4.009 95,498
RX4770M4.010 92,950
RX4770M4.011 93,177
RX4770M4.012 94,573
RX4770M4.013 94,323
RX4770M4.014 92,250
RX4770M4.015 93,261
RX4770M4.016 94,231
RX4770M4.017 94,188
RX4770M4.018 93,516
RX4770M4.019 93,500
RX4770M4.020 94,531
RX4770M4.021 94,763
RX4770M4.022 93,243
RX4770M4.023 95,604
RX4770M4.024 94,981
RX4770M4.025 95,950
RX4770M4.026 95,935
RX4770M4.027 93,881
RX4770M4.028 91,226
RX4770M4.029 94,956
RX4770M4.030 93,564
RX4770M4.031 94,670
RX4770M4.032 95,852
RX4770M4.033 93,907
RX4770M4.034 94,865
RX4770M4.035 93,046
RX4770M4.036 95,661
RX4770M4.037 93,798
RX4770M4.038 92,225
RX4770M4.039 93,246
RX4770M4.040 94,425
RX4770M4.041 93,583
RX4770M4.042 93,826
RX4770M4.043 93,081
RX4770M4.044 94,136
RX4770M4.045 93,316
RX4770M4.046 93,582
RX4770M4.047 92,511
RX4770M4.048 93,961
RX4770M4.049 92,354
RX4770M4.050 92,729
RX4770M4.051 95,189
RX4770M4.052 92,325
RX4770M4.053 96,112
RX4770M4.054 92,812
RX4770M4.055 93,583
RX4770M4.056 95,153
RX4770M4.057 94,415
RX4770M4.058 92,499
RX4770M4.059 95,728
RX4770M4.060 94,034
RX4770M4.061 93,377
RX4770M4.062 96,543
RX4770M4.063 93,143
RX4770M4.064 94,541
RX4770M4.065 94,100
RX4770M4.066 95,003
RX4770M4.067 94,218
RX4770M4.068 94,965
RX4770M4.069 95,625
RX4770M4.070 94,523
RX4770M4.071 94,020
RX4770M4.072 95,576
RX4770M4.073 94,325
RX4770M4.074 93,754
RX4770M4.075 95,195
RX4770M4.076 94,444
RX4770M4.077 93,933
RX4770M4.078 95,638
RX4770M4.079 95,337
RX4770M4.080 93,780
RX4770M4.081 97,867
RX4770M4.082 95,437
RX4770M4.083 95,633
RX4770M4.084 93,719
RX4770M4.085 91,881
RX4770M4.086 92,337
RX4770M4.087 93,899
RX4770M4.088 92,243
RX4770M4.089 93,841
RX4770M4.090 93,922
RX4770M4.091 93,270
RX4770M4.092 93,979
RX4770M4.093 94,976
RX4770M4.094 95,270
RX4770M4.095 93,317
RX4770M4.096 93,974
RX4770M4.097 95,255
RX4770M4.098 94,428
RX4770M4.099 96,099
RX4770M4.100 95,496
RX4770M4.101 93,264
RX4770M4.102 92,592
RX4770M4.103 92,684
RX4770M4.104 92,862
RX4770M4.105 93,668
RX4770M4.106 93,694
RX4770M4.107 93,685
RX4770M4.108 93,539
RX4770M4.109 95,270
RX4770M4.110 93,540
RX4770M4.111 93,189
RX4770M4.112 92,766
ssj_ops@100% 10,536,721
ssj_ops@100% per JVM 94,078

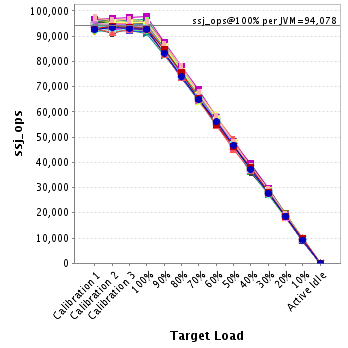

Graph of per-instance results
JVM 'RX4770M4.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,610
Calibration 2     93,263
Calibration 3     93,000
ssj_ops@calibrated=93,132
100% 100.1% 93,132 93,180
90% 90.6% 83,818 84,344
80% 80.0% 74,505 74,522
70% 70.9% 65,192 66,056
60% 60.1% 55,879 55,994
50% 50.1% 46,566 46,677
40% 40.0% 37,253 37,222
30% 30.2% 27,939 28,103
20% 19.7% 18,626 18,341
10% 9.6% 9,313 8,911
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,137
Calibration 2     94,488
Calibration 3     94,501
ssj_ops@calibrated=94,494
100% 100.1% 94,494 94,558
90% 88.8% 85,045 83,882
80% 81.1% 75,595 76,607
70% 70.7% 66,146 66,765
60% 60.8% 56,697 57,437
50% 50.5% 47,247 47,766
40% 39.6% 37,798 37,452
30% 29.6% 28,348 27,942
20% 20.3% 18,899 19,167
10% 10.3% 9,449 9,766
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,057
Calibration 2     94,202
Calibration 3     93,995
ssj_ops@calibrated=94,098
100% 99.8% 94,098 93,868
90% 90.7% 84,688 85,302
80% 79.2% 75,279 74,560
70% 70.8% 65,869 66,656
60% 59.9% 56,459 56,341
50% 50.4% 47,049 47,406
40% 39.8% 37,639 37,460
30% 29.8% 28,229 27,995
20% 20.5% 18,820 19,252
10% 10.1% 9,410 9,462
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,112
Calibration 2     93,051
Calibration 3     92,835
ssj_ops@calibrated=92,943
100% 100.2% 92,943 93,110
90% 89.9% 83,649 83,593
80% 79.8% 74,354 74,162
70% 69.5% 65,060 64,574
60% 59.5% 55,766 55,327
50% 49.5% 46,472 46,039
40% 40.0% 37,177 37,140
30% 29.8% 27,883 27,697
20% 20.4% 18,589 18,987
10% 10.1% 9,294 9,362
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,126
Calibration 2     94,192
Calibration 3     94,755
ssj_ops@calibrated=94,473
100% 99.9% 94,473 94,369
90% 90.2% 85,026 85,204
80% 79.7% 75,579 75,265
70% 69.4% 66,131 65,522
60% 60.2% 56,684 56,841
50% 49.9% 47,237 47,096
40% 39.5% 37,789 37,273
30% 30.7% 28,342 28,961
20% 20.1% 18,895 19,003
10% 9.6% 9,447 9,107
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,000
Calibration 2     93,796
Calibration 3     93,982
ssj_ops@calibrated=93,889
100% 100.2% 93,889 94,039
90% 89.6% 84,500 84,089
80% 80.3% 75,111 75,396
70% 69.3% 65,722 65,064
60% 60.5% 56,333 56,799
50% 50.5% 46,944 47,436
40% 40.4% 37,556 37,940
30% 29.7% 28,167 27,878
20% 19.8% 18,778 18,587
10% 10.1% 9,389 9,487
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,487
Calibration 2     92,535
Calibration 3     93,417
ssj_ops@calibrated=92,976
100% 99.3% 92,976 92,329
90% 90.7% 83,678 84,294
80% 79.6% 74,381 74,055
70% 70.3% 65,083 65,395
60% 59.6% 55,786 55,445
50% 50.2% 46,488 46,645
40% 40.1% 37,190 37,270
30% 29.8% 27,893 27,681
20% 19.9% 18,595 18,499
10% 10.1% 9,298 9,379
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,655
Calibration 2     94,659
Calibration 3     94,955
ssj_ops@calibrated=94,807
100% 100.1% 94,807 94,906
90% 89.1% 85,326 84,471
80% 80.2% 75,846 76,082
70% 69.5% 66,365 65,926
60% 59.9% 56,884 56,783
50% 49.9% 47,403 47,324
40% 39.6% 37,923 37,555
30% 29.7% 28,442 28,163
20% 19.9% 18,961 18,879
10% 9.9% 9,481 9,416
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,698
Calibration 2     95,298
Calibration 3     95,151
ssj_ops@calibrated=95,225
100% 100.3% 95,225 95,498
90% 90.3% 85,702 85,975
80% 80.5% 76,180 76,669
70% 71.5% 66,657 68,122
60% 60.2% 57,135 57,308
50% 49.5% 47,612 47,112
40% 40.4% 38,090 38,476
30% 29.9% 28,567 28,443
20% 20.3% 19,045 19,288
10% 9.6% 9,522 9,116
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,484
Calibration 2     92,103
Calibration 3     92,624
ssj_ops@calibrated=92,363
100% 100.6% 92,363 92,950
90% 89.4% 83,127 82,554
80% 80.0% 73,891 73,866
70% 70.2% 64,654 64,876
60% 59.4% 55,418 54,851
50% 50.6% 46,182 46,691
40% 39.7% 36,945 36,665
30% 29.9% 27,709 27,620
20% 19.9% 18,473 18,362
10% 10.1% 9,236 9,370
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,451
Calibration 2     93,397
Calibration 3     93,473
ssj_ops@calibrated=93,435
100% 99.7% 93,435 93,177
90% 89.6% 84,091 83,740
80% 79.4% 74,748 74,216
70% 68.9% 65,404 64,345
60% 60.6% 56,061 56,612
50% 50.1% 46,717 46,842
40% 39.9% 37,374 37,251
30% 29.2% 28,030 27,319
20% 20.1% 18,687 18,825
10% 9.8% 9,343 9,191
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,728
Calibration 2     94,330
Calibration 3     94,702
ssj_ops@calibrated=94,516
100% 100.1% 94,516 94,573
90% 89.9% 85,065 85,009
80% 80.2% 75,613 75,803
70% 69.7% 66,161 65,873
60% 60.4% 56,710 57,067
50% 50.6% 47,258 47,801
40% 39.8% 37,806 37,611
30% 30.1% 28,355 28,467
20% 19.9% 18,903 18,770
10% 10.3% 9,452 9,725
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,536
Calibration 2     94,372
Calibration 3     94,423
ssj_ops@calibrated=94,398
100% 99.9% 94,398 94,323
90% 90.8% 84,958 85,741
80% 79.5% 75,518 75,035
70% 70.3% 66,078 66,375
60% 60.1% 56,639 56,715
50% 49.3% 47,199 46,518
40% 40.0% 37,759 37,735
30% 29.6% 28,319 27,949
20% 20.2% 18,880 19,058
10% 10.0% 9,440 9,399
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,933
Calibration 2     92,428
Calibration 3     92,139
ssj_ops@calibrated=92,283
100% 100.0% 92,283 92,250
90% 90.5% 83,055 83,509
80% 79.6% 73,827 73,431
70% 69.8% 64,598 64,424
60% 59.1% 55,370 54,579
50% 49.8% 46,142 45,949
40% 39.6% 36,913 36,517
30% 29.6% 27,685 27,306
20% 19.5% 18,457 18,011
10% 10.0% 9,228 9,188
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,070
Calibration 2     93,508
Calibration 3     93,426
ssj_ops@calibrated=93,467
100% 99.8% 93,467 93,261
90% 90.5% 84,120 84,556
80% 79.7% 74,773 74,508
70% 70.6% 65,427 66,008
60% 61.4% 56,080 57,433
50% 49.9% 46,733 46,595
40% 40.1% 37,387 37,505
30% 30.0% 28,040 28,027
20% 20.1% 18,693 18,796
10% 10.3% 9,347 9,640
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,098
Calibration 2     94,234
Calibration 3     94,605
ssj_ops@calibrated=94,420
100% 99.8% 94,420 94,231
90% 90.4% 84,978 85,399
80% 79.1% 75,536 74,723
70% 69.3% 66,094 65,429
60% 60.5% 56,652 57,105
50% 50.1% 47,210 47,332
40% 39.7% 37,768 37,477
30% 29.0% 28,326 27,413
20% 19.6% 18,884 18,490
10% 10.1% 9,442 9,541
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,100
Calibration 2     93,741
Calibration 3     94,087
ssj_ops@calibrated=93,914
100% 100.3% 93,914 94,188
90% 90.7% 84,523 85,224
80% 80.3% 75,131 75,390
70% 69.0% 65,740 64,825
60% 59.9% 56,349 56,269
50% 49.6% 46,957 46,622
40% 40.1% 37,566 37,659
30% 30.1% 28,174 28,254
20% 19.9% 18,783 18,692
10% 9.8% 9,391 9,204
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,863
Calibration 2     93,487
Calibration 3     93,623
ssj_ops@calibrated=93,555
100% 100.0% 93,555 93,516
90% 89.7% 84,199 83,894
80% 79.7% 74,844 74,600
70% 70.2% 65,488 65,674
60% 59.7% 56,133 55,810
50% 49.9% 46,777 46,716
40% 39.5% 37,422 36,995
30% 30.1% 28,066 28,127
20% 20.0% 18,711 18,675
10% 10.0% 9,355 9,394
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,607
Calibration 2     93,274
Calibration 3     93,231
ssj_ops@calibrated=93,252
100% 100.3% 93,252 93,500
90% 88.9% 83,927 82,879
80% 80.2% 74,602 74,800
70% 70.5% 65,277 65,734
60% 61.0% 55,951 56,841
50% 49.7% 46,626 46,347
40% 39.6% 37,301 36,934
30% 29.3% 27,976 27,369
20% 20.2% 18,650 18,814
10% 9.8% 9,325 9,180
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,887
Calibration 2     93,539
Calibration 3     94,529
ssj_ops@calibrated=94,034
100% 100.5% 94,034 94,531
90% 88.9% 84,631 83,606
80% 79.5% 75,227 74,715
70% 69.7% 65,824 65,530
60% 60.2% 56,420 56,639
50% 50.4% 47,017 47,434
40% 39.9% 37,614 37,474
30% 30.6% 28,210 28,757
20% 19.8% 18,807 18,645
10% 10.3% 9,403 9,658
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,891
Calibration 2     93,459
Calibration 3     94,788
ssj_ops@calibrated=94,124
100% 100.7% 94,124 94,763
90% 90.5% 84,711 85,142
80% 79.8% 75,299 75,143
70% 70.3% 65,887 66,124
60% 60.2% 56,474 56,660
50% 49.9% 47,062 47,008
40% 40.1% 37,650 37,733
30% 30.0% 28,237 28,202
20% 19.8% 18,825 18,608
10% 9.8% 9,412 9,236
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,281
Calibration 2     93,212
Calibration 3     92,509
ssj_ops@calibrated=92,860
100% 100.4% 92,860 93,243
90% 90.4% 83,574 83,970
80% 79.7% 74,288 73,996
70% 70.4% 65,002 65,392
60% 58.7% 55,716 54,510
50% 50.3% 46,430 46,697
40% 40.1% 37,144 37,228
30% 29.6% 27,858 27,529
20% 20.1% 18,572 18,661
10% 10.2% 9,286 9,508
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,818
Calibration 2     96,258
Calibration 3     95,079
ssj_ops@calibrated=95,669
100% 99.9% 95,669 95,604
90% 90.1% 86,102 86,239
80% 80.6% 76,535 77,073
70% 68.9% 66,968 65,874
60% 59.6% 57,401 56,975
50% 49.6% 47,834 47,483
40% 39.8% 38,268 38,108
30% 30.1% 28,701 28,794
20% 20.4% 19,134 19,486
10% 10.4% 9,567 9,958
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,783
Calibration 2     96,105
Calibration 3     95,771
ssj_ops@calibrated=95,938
100% 99.0% 95,938 94,981
90% 90.0% 86,344 86,306
80% 79.4% 76,750 76,207
70% 70.6% 67,157 67,737
60% 59.3% 57,563 56,924
50% 49.7% 47,969 47,711
40% 40.5% 38,375 38,881
30% 30.1% 28,781 28,873
20% 19.7% 19,188 18,907
10% 10.0% 9,594 9,628
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,224
Calibration 2     96,117
Calibration 3     96,481
ssj_ops@calibrated=96,299
100% 99.6% 96,299 95,950
90% 89.4% 86,669 86,102
80% 79.1% 77,039 76,181
70% 70.4% 67,409 67,761
60% 60.3% 57,780 58,104
50% 49.3% 48,150 47,458
40% 40.4% 38,520 38,888
30% 30.6% 28,890 29,459
20% 20.3% 19,260 19,547
10% 10.3% 9,630 9,941
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,362
Calibration 2     95,752
Calibration 3     95,878
ssj_ops@calibrated=95,815
100% 100.1% 95,815 95,935
90% 90.0% 86,233 86,265
80% 79.7% 76,652 76,353
70% 69.5% 67,070 66,548
60% 59.5% 57,489 57,019
50% 49.7% 47,907 47,629
40% 39.8% 38,326 38,128
30% 30.0% 28,744 28,790
20% 20.5% 19,163 19,610
10% 10.2% 9,581 9,804
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,970
Calibration 2     93,901
Calibration 3     94,054
ssj_ops@calibrated=93,977
100% 99.9% 93,977 93,881
90% 90.5% 84,580 85,060
80% 79.8% 75,182 75,001
70% 70.7% 65,784 66,463
60% 60.0% 56,386 56,402
50% 50.2% 46,989 47,186
40% 39.9% 37,591 37,467
30% 30.8% 28,193 28,906
20% 20.1% 18,795 18,856
10% 10.0% 9,398 9,387
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,154
Calibration 2     91,819
Calibration 3     92,325
ssj_ops@calibrated=92,072
100% 99.1% 92,072 91,226
90% 89.4% 82,865 82,319
80% 80.6% 73,658 74,221
70% 70.0% 64,451 64,416
60% 61.0% 55,243 56,152
50% 50.2% 46,036 46,246
40% 40.0% 36,829 36,801
30% 29.5% 27,622 27,120
20% 19.8% 18,414 18,224
10% 9.8% 9,207 9,029
Active Idle   0 0

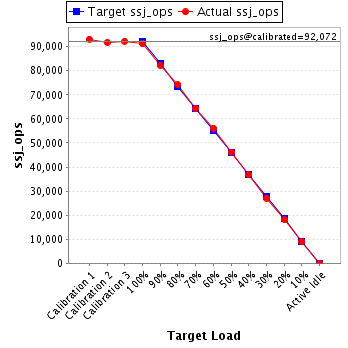

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,680
Calibration 2     95,079
Calibration 3     95,153
ssj_ops@calibrated=95,116
100% 99.8% 95,116 94,956
90% 89.2% 85,605 84,837
80% 79.5% 76,093 75,664
70% 69.4% 66,581 65,994
60% 59.7% 57,070 56,803
50% 49.8% 47,558 47,338
40% 40.5% 38,046 38,490
30% 29.5% 28,535 28,058
20% 20.3% 19,023 19,299
10% 10.2% 9,512 9,712
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,686
Calibration 2     93,529
Calibration 3     93,737
ssj_ops@calibrated=93,633
100% 99.9% 93,633 93,564
90% 89.0% 84,270 83,334
80% 80.7% 74,906 75,526
70% 71.0% 65,543 66,457
60% 60.1% 56,180 56,255
50% 49.7% 46,817 46,531
40% 40.8% 37,453 38,213
30% 29.6% 28,090 27,731
20% 20.3% 18,727 18,964
10% 9.7% 9,363 9,098
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,681
Calibration 2     94,415
Calibration 3     94,724
ssj_ops@calibrated=94,570
100% 100.1% 94,570 94,670
90% 90.4% 85,113 85,505
80% 80.4% 75,656 76,076
70% 70.6% 66,199 66,793
60% 60.0% 56,742 56,737
50% 50.0% 47,285 47,259
40% 39.5% 37,828 37,391
30% 30.0% 28,371 28,405
20% 19.8% 18,914 18,758
10% 10.1% 9,457 9,537
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,202
Calibration 2     95,779
Calibration 3     96,009
ssj_ops@calibrated=95,894
100% 100.0% 95,894 95,852
90% 90.2% 86,304 86,490
80% 80.5% 76,715 77,218
70% 69.9% 67,126 66,990
60% 60.3% 57,536 57,778
50% 49.7% 47,947 47,640
40% 40.5% 38,358 38,872
30% 30.0% 28,768 28,767
20% 20.0% 19,179 19,178
10% 9.9% 9,589 9,499
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,531
Calibration 2     93,765
Calibration 3     93,996
ssj_ops@calibrated=93,880
100% 100.0% 93,880 93,907
90% 91.2% 84,492 85,587
80% 79.4% 75,104 74,547
70% 69.5% 65,716 65,282
60% 60.8% 56,328 57,116
50% 49.7% 46,940 46,658
40% 40.2% 37,552 37,786
30% 29.9% 28,164 28,068
20% 20.3% 18,776 19,073
10% 9.7% 9,388 9,127
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,316
Calibration 2     94,971
Calibration 3     95,270
ssj_ops@calibrated=95,120
100% 99.7% 95,120 94,865
90% 89.1% 85,608 84,779
80% 80.4% 76,096 76,494
70% 69.6% 66,584 66,241
60% 60.2% 57,072 57,222
50% 48.9% 47,560 46,478
40% 40.3% 38,048 38,324
30% 30.2% 28,536 28,744
20% 20.0% 19,024 19,045
10% 10.3% 9,512 9,779
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,576
Calibration 2     93,307
Calibration 3     93,414
ssj_ops@calibrated=93,360
100% 99.7% 93,360 93,046
90% 90.8% 84,024 84,739
80% 80.5% 74,688 75,163
70% 70.3% 65,352 65,658
60% 59.4% 56,016 55,498
50% 49.8% 46,680 46,451
40% 40.6% 37,344 37,886
30% 31.3% 28,008 29,207
20% 19.8% 18,672 18,517
10% 10.8% 9,336 10,037
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,789
Calibration 2     95,717
Calibration 3     95,911
ssj_ops@calibrated=95,814
100% 99.8% 95,814 95,661
90% 89.7% 86,233 85,981
80% 80.5% 76,651 77,092
70% 70.1% 67,070 67,196
60% 59.6% 57,488 57,107
50% 49.5% 47,907 47,455
40% 40.0% 38,326 38,331
30% 29.7% 28,744 28,415
20% 19.9% 19,163 19,053
10% 9.8% 9,581 9,346
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,781
Calibration 2     94,149
Calibration 3     93,794
ssj_ops@calibrated=93,971
100% 99.8% 93,971 93,798
90% 89.7% 84,574 84,262
80% 79.9% 75,177 75,126
70% 69.8% 65,780 65,636
60% 60.3% 56,383 56,679
50% 49.7% 46,986 46,751
40% 40.0% 37,588 37,550
30% 29.8% 28,191 27,982
20% 20.0% 18,794 18,753
10% 9.6% 9,397 9,057
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,873
Calibration 2     91,922
Calibration 3     92,464
ssj_ops@calibrated=92,193
100% 100.0% 92,193 92,225
90% 90.0% 82,973 83,009
80% 81.7% 73,754 75,321
70% 69.3% 64,535 63,899
60% 60.6% 55,316 55,843
50% 50.8% 46,096 46,826
40% 40.0% 36,877 36,837
30% 30.0% 27,658 27,635
20% 19.4% 18,439 17,868
10% 10.2% 9,219 9,404
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,372
Calibration 2     93,544
Calibration 3     93,432
ssj_ops@calibrated=93,488
100% 99.7% 93,488 93,246
90% 90.2% 84,139 84,360
80% 79.9% 74,790 74,667
70% 70.1% 65,441 65,546
60% 60.5% 56,093 56,522
50% 50.1% 46,744 46,880
40% 39.8% 37,395 37,206
30% 30.6% 28,046 28,640
20% 19.7% 18,698 18,384
10% 10.1% 9,349 9,462
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,116
Calibration 2     94,856
Calibration 3     94,905
ssj_ops@calibrated=94,880
100% 99.5% 94,880 94,425
90% 90.2% 85,392 85,618
80% 79.7% 75,904 75,635
70% 69.6% 66,416 66,049
60% 59.1% 56,928 56,066
50% 49.6% 47,440 47,059
40% 39.9% 37,952 37,872
30% 30.0% 28,464 28,429
20% 19.9% 18,976 18,920
10% 10.1% 9,488 9,546
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,945
Calibration 2     93,722
Calibration 3     93,444
ssj_ops@calibrated=93,583
100% 100.0% 93,583 93,583
90% 90.0% 84,225 84,180
80% 79.9% 74,866 74,782
70% 71.2% 65,508 66,675
60% 60.4% 56,150 56,489
50% 50.0% 46,791 46,768
40% 40.0% 37,433 37,475
30% 30.3% 28,075 28,398
20% 20.0% 18,717 18,703
10% 10.0% 9,358 9,324
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,000
Calibration 2     93,686
Calibration 3     93,696
ssj_ops@calibrated=93,691
100% 100.1% 93,691 93,826
90% 89.8% 84,322 84,111
80% 79.6% 74,953 74,598
70% 70.0% 65,584 65,575
60% 60.0% 56,215 56,178
50% 49.5% 46,846 46,346
40% 40.2% 37,476 37,636
30% 30.5% 28,107 28,547
20% 20.0% 18,738 18,699
10% 10.2% 9,369 9,573
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,574
Calibration 2     93,470
Calibration 3     93,314
ssj_ops@calibrated=93,392
100% 99.7% 93,392 93,081
90% 90.5% 84,053 84,502
80% 80.4% 74,713 75,116
70% 69.8% 65,374 65,197
60% 60.1% 56,035 56,099
50% 49.5% 46,696 46,199
40% 39.6% 37,357 36,964
30% 30.5% 28,018 28,457
20% 20.1% 18,678 18,743
10% 10.5% 9,339 9,848
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,185
Calibration 2     93,827
Calibration 3     94,680
ssj_ops@calibrated=94,254
100% 99.9% 94,254 94,136
90% 89.4% 84,828 84,281
80% 80.3% 75,403 75,667
70% 69.8% 65,977 65,780
60% 59.8% 56,552 56,361
50% 49.9% 47,127 47,063
40% 40.0% 37,701 37,736
30% 29.6% 28,276 27,890
20% 20.4% 18,851 19,254
10% 10.1% 9,425 9,550
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,982
Calibration 2     92,809
Calibration 3     93,380
ssj_ops@calibrated=93,095
100% 100.2% 93,095 93,316
90% 89.9% 83,785 83,696
80% 79.7% 74,476 74,181
70% 69.8% 65,166 64,972
60% 60.2% 55,857 56,019
50% 50.4% 46,547 46,925
40% 38.6% 37,238 35,942
30% 30.3% 27,928 28,162
20% 20.3% 18,619 18,864
10% 9.9% 9,309 9,246
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,896
Calibration 2     94,091
Calibration 3     94,518
ssj_ops@calibrated=94,305
100% 99.2% 94,305 93,582
90% 90.5% 84,874 85,362
80% 80.8% 75,444 76,236
70% 69.0% 66,013 65,106
60% 59.6% 56,583 56,220
50% 49.4% 47,152 46,558
40% 39.7% 37,722 37,394
30% 29.7% 28,291 27,998
20% 19.9% 18,861 18,787
10% 9.8% 9,430 9,262
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,427
Calibration 2     92,430
Calibration 3     93,057
ssj_ops@calibrated=92,743
100% 99.7% 92,743 92,511
90% 90.2% 83,469 83,653
80% 80.5% 74,195 74,650
70% 70.6% 64,920 65,495
60% 60.4% 55,646 56,017
50% 49.9% 46,372 46,278
40% 39.1% 37,097 36,231
30% 30.2% 27,823 27,969
20% 20.4% 18,549 18,886
10% 9.4% 9,274 8,694
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,676
Calibration 2     93,017
Calibration 3     94,687
ssj_ops@calibrated=93,852
100% 100.1% 93,852 93,961
90% 89.2% 84,467 83,702
80% 79.4% 75,082 74,526
70% 68.8% 65,696 64,592
60% 61.1% 56,311 57,361
50% 50.5% 46,926 47,358
40% 39.6% 37,541 37,206
30% 30.1% 28,156 28,250
20% 20.3% 18,770 19,021
10% 10.2% 9,385 9,596
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,146
Calibration 2     91,233
Calibration 3     92,914
ssj_ops@calibrated=92,073
100% 100.3% 92,073 92,354
90% 90.8% 82,866 83,566
80% 80.2% 73,659 73,876
70% 70.4% 64,451 64,810
60% 60.7% 55,244 55,911
50% 50.5% 46,037 46,540
40% 39.3% 36,829 36,139
30% 30.3% 27,622 27,926
20% 20.3% 18,415 18,659
10% 10.2% 9,207 9,421
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,343
Calibration 2     93,977
Calibration 3     92,885
ssj_ops@calibrated=93,431
100% 99.2% 93,431 92,729
90% 90.6% 84,088 84,681
80% 80.0% 74,745 74,718
70% 70.6% 65,402 65,930
60% 60.1% 56,059 56,193
50% 50.2% 46,715 46,879
40% 40.1% 37,372 37,440
30% 29.7% 28,029 27,761
20% 19.7% 18,686 18,390
10% 10.0% 9,343 9,379
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

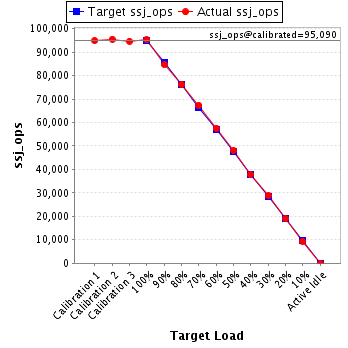

JVM 'RX4770M4.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,887
Calibration 2     95,528
Calibration 3     94,652
ssj_ops@calibrated=95,090
100% 100.1% 95,090 95,189
90% 89.0% 85,581 84,655
80% 80.2% 76,072 76,275
70% 70.8% 66,563 67,348
60% 60.5% 57,054 57,504
50% 50.6% 47,545 48,103
40% 39.8% 38,036 37,846
30% 30.3% 28,527 28,778
20% 19.9% 19,018 18,924
10% 9.8% 9,509 9,341
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,707
Calibration 2     93,299
Calibration 3     93,732
ssj_ops@calibrated=93,515
100% 98.7% 93,515 92,325
90% 90.3% 84,164 84,441
80% 79.9% 74,812 74,765
70% 70.7% 65,461 66,132
60% 59.1% 56,109 55,241
50% 49.5% 46,758 46,297
40% 39.9% 37,406 37,267
30% 30.2% 28,055 28,287
20% 19.8% 18,703 18,473
10% 10.1% 9,352 9,454
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,112
Calibration 2     96,306
Calibration 3     96,720
ssj_ops@calibrated=96,513
100% 99.6% 96,513 96,112
90% 89.6% 86,862 86,441
80% 79.1% 77,210 76,358
70% 70.1% 67,559 67,659
60% 60.8% 57,908 58,688
50% 49.4% 48,256 47,680
40% 40.3% 38,605 38,902
30% 29.5% 28,954 28,454
20% 20.1% 19,303 19,353
10% 9.7% 9,651 9,392
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,663
Calibration 2     92,660
Calibration 3     93,202
ssj_ops@calibrated=92,931
100% 99.9% 92,931 92,812
90% 91.4% 83,638 84,931
80% 80.0% 74,345 74,372
70% 70.0% 65,052 65,055
60% 60.0% 55,759 55,721
50% 49.2% 46,466 45,731
40% 40.2% 37,173 37,317
30% 30.2% 27,879 28,109
20% 19.8% 18,586 18,423
10% 10.4% 9,293 9,619
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,752
Calibration 2     93,413
Calibration 3     93,917
ssj_ops@calibrated=93,665
100% 99.9% 93,665 93,583
90% 90.8% 84,298 85,003
80% 80.4% 74,932 75,349
70% 69.8% 65,565 65,350
60% 59.8% 56,199 56,006
50% 50.0% 46,832 46,787
40% 40.2% 37,466 37,648
30% 29.8% 28,099 27,915
20% 20.1% 18,733 18,843
10% 10.0% 9,366 9,354
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,041
Calibration 2     95,197
Calibration 3     95,064
ssj_ops@calibrated=95,130
100% 100.0% 95,130 95,153
90% 89.9% 85,617 85,535
80% 78.9% 76,104 75,103
70% 70.0% 66,591 66,569
60% 58.8% 57,078 55,932
50% 49.9% 47,565 47,490
40% 40.0% 38,052 38,012
30% 30.2% 28,539 28,687
20% 19.4% 19,026 18,436
10% 9.6% 9,513 9,100
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.057' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,337
Calibration 2     93,815
Calibration 3     94,593
ssj_ops@calibrated=94,204
100% 100.2% 94,204 94,415
90% 90.5% 84,784 85,244
80% 80.1% 75,363 75,499
70% 70.8% 65,943 66,710
60% 59.6% 56,522 56,183
50% 51.2% 47,102 48,207
40% 40.0% 37,682 37,705
30% 29.9% 28,261 28,195
20% 20.3% 18,841 19,141
10% 10.1% 9,420 9,479
Active Idle   0 0

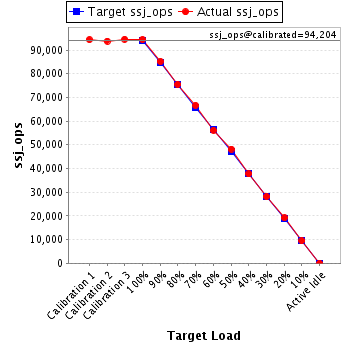

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.058' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,307
Calibration 2     92,763
Calibration 3     92,780
ssj_ops@calibrated=92,772
100% 99.7% 92,772 92,499
90% 90.2% 83,494 83,653
80% 79.2% 74,217 73,482
70% 69.5% 64,940 64,501
60% 59.9% 55,663 55,542
50% 49.6% 46,386 45,986
40% 39.8% 37,109 36,909
30% 30.2% 27,831 28,005
20% 19.8% 18,554 18,402
10% 10.2% 9,277 9,466
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.059' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,335
Calibration 2     95,685
Calibration 3     95,989
ssj_ops@calibrated=95,837
100% 99.9% 95,837 95,728
90% 90.4% 86,253 86,651
80% 78.9% 76,670 75,583
70% 69.0% 67,086 66,109
60% 59.2% 57,502 56,708
50% 50.1% 47,919 48,058
40% 40.3% 38,335 38,630
30% 30.6% 28,751 29,301
20% 19.9% 19,167 19,100
10% 9.9% 9,584 9,487
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.060' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,237
Calibration 2     94,825
Calibration 3     94,290
ssj_ops@calibrated=94,558
100% 99.4% 94,558 94,034
90% 89.6% 85,102 84,720
80% 79.4% 75,646 75,049
70% 69.6% 66,190 65,814
60% 59.7% 56,735 56,439
50% 50.5% 47,279 47,743
40% 39.6% 37,823 37,402
30% 29.5% 28,367 27,868
20% 20.6% 18,912 19,461
10% 9.7% 9,456 9,145
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.061' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,135
Calibration 2     93,528
Calibration 3     93,655
ssj_ops@calibrated=93,592
100% 99.8% 93,592 93,377
90% 90.1% 84,233 84,342
80% 80.0% 74,873 74,873
70% 69.4% 65,514 64,915
60% 59.1% 56,155 55,328
50% 49.7% 46,796 46,520
40% 39.8% 37,437 37,226
30% 30.1% 28,078 28,169
20% 19.6% 18,718 18,372
10% 9.7% 9,359 9,083
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.062' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,908
Calibration 2     96,109
Calibration 3     96,364
ssj_ops@calibrated=96,237
100% 100.3% 96,237 96,543
90% 90.2% 86,613 86,760
80% 79.2% 76,989 76,248
70% 69.8% 67,366 67,174
60% 60.4% 57,742 58,157
50% 49.8% 48,118 47,912
40% 39.5% 38,495 37,975
30% 30.3% 28,871 29,126
20% 20.0% 19,247 19,273
10% 10.0% 9,624 9,600
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.063' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,107
Calibration 2     93,354
Calibration 3     93,432
ssj_ops@calibrated=93,393
100% 99.7% 93,393 93,143
90% 90.3% 84,054 84,293
80% 80.1% 74,714 74,782
70% 70.3% 65,375 65,635
60% 60.9% 56,036 56,861
50% 49.6% 46,697 46,290
40% 40.0% 37,357 37,401
30% 30.2% 28,018 28,197
20% 19.4% 18,679 18,123
10% 9.8% 9,339 9,150
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.064' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,336
Calibration 2     94,459
Calibration 3     94,424
ssj_ops@calibrated=94,441
100% 100.1% 94,441 94,541
90% 89.0% 84,997 84,030
80% 80.4% 75,553 75,900
70% 70.1% 66,109 66,226
60% 59.9% 56,665 56,604
50% 50.9% 47,221 48,070
40% 40.5% 37,777 38,246
30% 30.2% 28,332 28,546
20% 19.8% 18,888 18,699
10% 9.9% 9,444 9,351
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.065' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,056
Calibration 2     93,988
Calibration 3     94,065
ssj_ops@calibrated=94,027
100% 100.1% 94,027 94,100
90% 89.4% 84,624 84,051
80% 80.6% 75,221 75,800
70% 70.0% 65,819 65,822
60% 59.9% 56,416 56,350
50% 50.1% 47,013 47,078
40% 40.0% 37,611 37,564
30% 29.4% 28,208 27,667
20% 19.9% 18,805 18,724
10% 10.1% 9,403 9,488
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.066' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,841
Calibration 2     95,072
Calibration 3     95,144
ssj_ops@calibrated=95,108
100% 99.9% 95,108 95,003
90% 89.8% 85,597 85,376
80% 79.8% 76,086 75,880
70% 69.5% 66,576 66,054
60% 59.6% 57,065 56,705
50% 50.4% 47,554 47,901
40% 40.0% 38,043 38,015
30% 29.5% 28,532 28,095
20% 19.7% 19,022 18,736
10% 9.8% 9,511 9,338
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.067' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,811
Calibration 2     94,656
Calibration 3     95,047
ssj_ops@calibrated=94,852
100% 99.3% 94,852 94,218
90% 90.3% 85,367 85,646
80% 79.7% 75,881 75,612
70% 70.1% 66,396 66,480
60% 59.1% 56,911 56,027
50% 50.4% 47,426 47,830
40% 40.3% 37,941 38,259
30% 29.8% 28,456 28,312
20% 20.0% 18,970 18,952
10% 9.9% 9,485 9,429
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.068' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,480
Calibration 2     95,360
Calibration 3     95,963
ssj_ops@calibrated=95,661
100% 99.3% 95,661 94,965
90% 89.5% 86,095 85,570
80% 79.6% 76,529 76,099
70% 70.1% 66,963 67,073
60% 58.8% 57,397 56,217
50% 49.4% 47,831 47,255
40% 39.7% 38,265 37,955
30% 30.1% 28,698 28,812
20% 20.2% 19,132 19,334
10% 10.1% 9,566 9,683
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.069' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,491
Calibration 2     96,040
Calibration 3     95,543
ssj_ops@calibrated=95,792
100% 99.8% 95,792 95,625
90% 91.2% 86,213 87,318
80% 80.2% 76,633 76,790
70% 70.3% 67,054 67,310
60% 60.5% 57,475 57,919
50% 51.3% 47,896 49,151
40% 40.1% 38,317 38,456
30% 29.9% 28,738 28,660
20% 19.8% 19,158 19,002
10% 10.2% 9,579 9,775
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.070' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,508
Calibration 2     94,790
Calibration 3     94,781
ssj_ops@calibrated=94,785
100% 99.7% 94,785 94,523
90% 89.8% 85,307 85,082
80% 79.4% 75,828 75,216
70% 69.8% 66,350 66,118
60% 61.1% 56,871 57,876
50% 49.4% 47,393 46,825
40% 40.4% 37,914 38,298
30% 29.4% 28,436 27,875
20% 20.3% 18,957 19,207
10% 10.1% 9,479 9,566
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.071' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,658
Calibration 2     94,287
Calibration 3     94,365
ssj_ops@calibrated=94,326
100% 99.7% 94,326 94,020
90% 90.3% 84,893 85,153
80% 79.4% 75,461 74,926
70% 69.8% 66,028 65,793
60% 60.4% 56,596 57,019
50% 49.8% 47,163 47,000
40% 39.7% 37,730 37,492
30% 29.9% 28,298 28,228
20% 20.1% 18,865 18,962
10% 9.8% 9,433 9,216
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.072' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,871
Calibration 2     96,259
Calibration 3     95,604
ssj_ops@calibrated=95,931
100% 99.6% 95,931 95,576
90% 90.6% 86,338 86,906
80% 80.0% 76,745 76,770
70% 70.6% 67,152 67,719
60% 59.8% 57,559 57,403
50% 50.0% 47,966 47,930
40% 40.3% 38,373 38,695
30% 29.5% 28,779 28,281
20% 20.3% 19,186 19,454
10% 10.0% 9,593 9,545
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.073' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,152
Calibration 2     94,126
Calibration 3     94,330
ssj_ops@calibrated=94,228
100% 100.1% 94,228 94,325
90% 90.4% 84,805 85,215
80% 79.5% 75,382 74,930
70% 69.8% 65,960 65,757
60% 59.5% 56,537 56,021
50% 49.5% 47,114 46,617
40% 39.7% 37,691 37,439
30% 30.5% 28,268 28,699
20% 20.2% 18,846 19,071
10% 9.8% 9,423 9,270
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.074' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,149
Calibration 2     93,674
Calibration 3     93,900
ssj_ops@calibrated=93,787
100% 100.0% 93,787 93,754
90% 89.5% 84,408 83,969
80% 80.5% 75,029 75,470
70% 70.4% 65,651 66,061
60% 60.8% 56,272 56,991
50% 49.8% 46,893 46,659
40% 40.2% 37,515 37,717
30% 30.2% 28,136 28,299
20% 20.2% 18,757 18,907
10% 9.7% 9,379 9,108
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.075' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,485
Calibration 2     95,079
Calibration 3     95,249
ssj_ops@calibrated=95,164
100% 100.0% 95,164 95,195
90% 90.3% 85,648 85,888
80% 80.0% 76,131 76,098
70% 70.0% 66,615 66,659
60% 60.7% 57,099 57,786
50% 49.7% 47,582 47,331
40% 39.4% 38,066 37,516
30% 30.0% 28,549 28,578
20% 20.4% 19,033 19,400
10% 9.9% 9,516 9,399
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.076' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,170
Calibration 2     93,549
Calibration 3     94,362
ssj_ops@calibrated=93,955
100% 100.5% 93,955 94,444
90% 89.0% 84,560 83,589
80% 80.4% 75,164 75,503
70% 70.5% 65,769 66,208
60% 60.0% 56,373 56,330
50% 50.3% 46,978 47,300
40% 39.8% 37,582 37,384
30% 29.2% 28,187 27,459
20% 19.7% 18,791 18,545
10% 10.1% 9,396 9,511
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.077' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,785
Calibration 2     93,022
Calibration 3     93,868
ssj_ops@calibrated=93,445
100% 100.5% 93,445 93,933
90% 90.7% 84,101 84,744
80% 80.1% 74,756 74,865
70% 70.1% 65,412 65,545
60% 59.9% 56,067 56,017
50% 50.1% 46,723 46,782
40% 39.6% 37,378 37,031
30% 29.9% 28,034 27,936
20% 20.0% 18,689 18,703
10% 10.0% 9,345 9,365
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.078' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,380
Calibration 2     95,210
Calibration 3     94,072
ssj_ops@calibrated=94,641
100% 101.1% 94,641 95,638
90% 89.9% 85,176 85,074
80% 79.7% 75,712 75,448
70% 69.8% 66,248 66,050
60% 59.0% 56,784 55,794
50% 50.2% 47,320 47,531
40% 39.8% 37,856 37,713
30% 30.3% 28,392 28,657
20% 19.8% 18,928 18,716
10% 10.0% 9,464 9,433
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.079' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,602
Calibration 2     95,838
Calibration 3     94,256
ssj_ops@calibrated=95,047
100% 100.3% 95,047 95,337
90% 90.5% 85,542 86,040
80% 79.6% 76,038 75,663
70% 69.8% 66,533 66,374
60% 58.7% 57,028 55,817
50% 49.6% 47,523 47,112
40% 39.8% 38,019 37,785
30% 30.4% 28,514 28,891
20% 19.3% 19,009 18,356
10% 9.8% 9,505 9,337
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.080' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,159
Calibration 2     94,290
Calibration 3     94,093
ssj_ops@calibrated=94,192
100% 99.6% 94,192 93,780
90% 90.7% 84,772 85,396
80% 80.0% 75,353 75,382
70% 70.1% 65,934 66,050
60% 60.6% 56,515 57,038
50% 50.2% 47,096 47,325
40% 39.7% 37,677 37,386
30% 30.1% 28,257 28,328
20% 20.3% 18,838 19,079
10% 10.0% 9,419 9,400
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.081' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,725
Calibration 2     97,162
Calibration 3     97,454
ssj_ops@calibrated=97,308
100% 100.6% 97,308 97,867
90% 90.0% 87,577 87,566
80% 80.3% 77,846 78,173
70% 70.7% 68,116 68,834
60% 59.4% 58,385 57,821
50% 49.3% 48,654 47,961
40% 40.6% 38,923 39,473
30% 30.6% 29,192 29,822
20% 20.0% 19,462 19,417
10% 9.7% 9,731 9,433
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.082' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,765
Calibration 2     95,623
Calibration 3     95,380
ssj_ops@calibrated=95,501
100% 99.9% 95,501 95,437
90% 89.3% 85,951 85,314
80% 79.6% 76,401 75,975
70% 70.5% 66,851 67,286
60% 60.2% 57,301 57,498
50% 50.2% 47,751 47,970
40% 39.9% 38,201 38,111
30% 30.4% 28,650 29,001
20% 19.8% 19,100 18,929
10% 9.8% 9,550 9,341
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.083' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,932
Calibration 2     95,363
Calibration 3     95,621
ssj_ops@calibrated=95,492
100% 100.1% 95,492 95,633
90% 89.5% 85,943 85,502
80% 79.7% 76,394 76,110
70% 69.4% 66,844 66,279
60% 60.1% 57,295 57,438
50% 49.6% 47,746 47,321
40% 40.0% 38,197 38,177
30% 30.0% 28,648 28,609
20% 20.4% 19,098 19,449
10% 9.9% 9,549 9,452
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.084' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,938
Calibration 2     94,014
Calibration 3     94,155
ssj_ops@calibrated=94,085
100% 99.6% 94,085 93,719
90% 90.3% 84,676 85,003
80% 80.3% 75,268 75,591
70% 69.4% 65,859 65,282
60% 60.7% 56,451 57,108
50% 50.0% 47,042 47,018
40% 40.0% 37,634 37,639
30% 29.2% 28,225 27,466
20% 20.0% 18,817 18,822
10% 10.1% 9,408 9,545
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.085' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,083
Calibration 2     92,861
Calibration 3     91,716
ssj_ops@calibrated=92,289
100% 99.6% 92,289 91,881
90% 90.4% 83,060 83,388
80% 79.5% 73,831 73,411
70% 70.9% 64,602 65,418
60% 59.3% 55,373 54,747
50% 50.3% 46,144 46,415
40% 40.3% 36,915 37,202
30% 29.7% 27,687 27,423
20% 19.9% 18,458 18,396
10% 10.0% 9,229 9,204
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.086' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,660
Calibration 2     92,179
Calibration 3     92,577
ssj_ops@calibrated=92,378
100% 100.0% 92,378 92,337
90% 90.8% 83,140 83,915
80% 80.2% 73,902 74,074
70% 69.9% 64,664 64,597
60% 60.5% 55,427 55,896
50% 50.2% 46,189 46,406
40% 40.4% 36,951 37,341
30% 29.6% 27,713 27,374
20% 19.8% 18,476 18,274
10% 10.0% 9,238 9,243
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.087' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,768
Calibration 2     93,727
Calibration 3     93,887
ssj_ops@calibrated=93,807
100% 100.1% 93,807 93,899
90% 90.2% 84,426 84,659
80% 80.4% 75,045 75,410
70% 70.4% 65,665 66,017
60% 60.0% 56,284 56,281
50% 50.0% 46,903 46,885
40% 40.7% 37,523 38,133
30% 30.4% 28,142 28,536
20% 20.3% 18,761 19,012
10% 10.3% 9,381 9,708
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.088' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,360
Calibration 2     92,648
Calibration 3     92,857
ssj_ops@calibrated=92,752
100% 99.5% 92,752 92,243
90% 90.4% 83,477 83,836
80% 80.2% 74,202 74,381
70% 69.5% 64,927 64,420
60% 59.5% 55,651 55,211
50% 49.2% 46,376 45,639
40% 40.4% 37,101 37,497
30% 30.3% 27,826 28,102
20% 19.8% 18,550 18,353
10% 10.0% 9,275 9,279
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.089' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,935
Calibration 2     93,392
Calibration 3     94,221
ssj_ops@calibrated=93,806
100% 100.0% 93,806 93,841
90% 89.5% 84,426 83,958
80% 79.9% 75,045 74,944
70% 70.6% 65,664 66,272
60% 60.2% 56,284 56,461
50% 50.9% 46,903 47,763
40% 40.1% 37,522 37,600
30% 29.7% 28,142 27,822
20% 20.2% 18,761 18,912
10% 10.0% 9,381 9,387
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.090' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,912
Calibration 2     94,604
Calibration 3     94,234
ssj_ops@calibrated=94,419
100% 99.5% 94,419 93,922
90% 89.8% 84,977 84,748
80% 79.6% 75,535 75,113
70% 70.5% 66,094 66,530
60% 59.7% 56,652 56,412
50% 50.5% 47,210 47,674
40% 39.6% 37,768 37,381
30% 29.8% 28,326 28,165
20% 19.9% 18,884 18,783
10% 10.0% 9,442 9,436
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.091' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,331
Calibration 2     93,590
Calibration 3     93,718
ssj_ops@calibrated=93,654
100% 99.6% 93,654 93,270
90% 90.4% 84,289 84,649
80% 79.7% 74,923 74,604
70% 70.5% 65,558 66,014
60% 60.0% 56,192 56,208
50% 50.7% 46,827 47,461
40% 39.5% 37,462 36,979
30% 30.8% 28,096 28,830
20% 19.9% 18,731 18,617
10% 9.7% 9,365 9,097
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.092' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,338
Calibration 2     93,425
Calibration 3     93,939
ssj_ops@calibrated=93,682
100% 100.3% 93,682 93,979
90% 89.8% 84,314 84,123
80% 79.8% 74,945 74,755
70% 70.0% 65,577 65,544
60% 60.8% 56,209 56,978
50% 50.1% 46,841 46,946
40% 41.0% 37,473 38,397
30% 30.1% 28,105 28,159
20% 20.0% 18,736 18,732
10% 10.1% 9,368 9,496
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.093' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     96,020
Calibration 2     95,599
Calibration 3     94,992
ssj_ops@calibrated=95,296
100% 99.7% 95,296 94,976
90% 90.3% 85,766 86,085
80% 80.0% 76,237 76,273
70% 69.6% 66,707 66,351
60% 59.8% 57,178 57,032
50% 49.5% 47,648 47,175
40% 40.2% 38,118 38,351
30% 30.1% 28,589 28,726
20% 20.2% 19,059 19,229
10% 9.7% 9,530 9,266
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.094' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,480
Calibration 2     95,459
Calibration 3     95,410
ssj_ops@calibrated=95,434
100% 99.8% 95,434 95,270
90% 89.2% 85,891 85,143
80% 80.2% 76,347 76,502
70% 70.7% 66,804 67,502
60% 60.5% 57,261 57,695
50% 49.9% 47,717 47,576
40% 39.3% 38,174 37,524
30% 29.8% 28,630 28,399
20% 20.1% 19,087 19,225
10% 10.0% 9,543 9,536
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.095' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,448
Calibration 2     93,259
Calibration 3     93,765
ssj_ops@calibrated=93,512
100% 99.8% 93,512 93,317
90% 89.4% 84,161 83,563
80% 78.4% 74,810 73,296
70% 70.9% 65,458 66,256
60% 60.4% 56,107 56,461
50% 51.0% 46,756 47,681
40% 39.9% 37,405 37,352
30% 30.2% 28,054 28,227
20% 19.7% 18,702 18,427
10% 9.8% 9,351 9,171
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.096' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,393
Calibration 2     93,660
Calibration 3     94,041
ssj_ops@calibrated=93,851
100% 100.1% 93,851 93,974
90% 90.8% 84,465 85,261
80% 80.3% 75,080 75,331
70% 69.8% 65,695 65,545
60% 60.2% 56,310 56,453
50% 50.0% 46,925 46,950
40% 40.0% 37,540 37,574
30% 30.3% 28,155 28,434
20% 20.0% 18,770 18,745
10% 10.1% 9,385 9,508
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.097' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,212
Calibration 2     94,951
Calibration 3     95,166
ssj_ops@calibrated=95,059
100% 100.2% 95,059 95,255
90% 90.9% 85,553 86,417
80% 80.3% 76,047 76,351
70% 70.3% 66,541 66,791
60% 60.1% 57,035 57,138
50% 50.2% 47,529 47,744
40% 40.5% 38,023 38,478
30% 30.4% 28,518 28,925
20% 20.3% 19,012 19,287
10% 10.1% 9,506 9,570
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.098' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,547
Calibration 2     94,490
Calibration 3     94,510
ssj_ops@calibrated=94,500
100% 99.9% 94,500 94,428
90% 90.0% 85,050 85,044
80% 80.5% 75,600 76,083
70% 70.0% 66,150 66,164
60% 60.4% 56,700 57,039
50% 49.3% 47,250 46,598
40% 39.8% 37,800 37,653
30% 30.1% 28,350 28,486
20% 20.2% 18,900 19,093
10% 9.9% 9,450 9,320
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.099' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,066
Calibration 2     95,563
Calibration 3     95,685
ssj_ops@calibrated=95,624
100% 100.5% 95,624 96,099
90% 90.0% 86,062 86,102
80% 80.2% 76,499 76,651
70% 70.7% 66,937 67,632
60% 59.9% 57,374 57,264
50% 49.4% 47,812 47,255
40% 39.9% 38,250 38,146
30% 30.0% 28,687 28,657
20% 20.3% 19,125 19,420
10% 10.1% 9,562 9,658
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.100' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,692
Calibration 2     95,469
Calibration 3     95,315
ssj_ops@calibrated=95,392
100% 100.1% 95,392 95,496
90% 90.1% 85,853 85,956
80% 79.6% 76,314 75,887
70% 70.9% 66,774 67,634
60% 60.0% 57,235 57,248
50% 50.0% 47,696 47,680
40% 39.7% 38,157 37,860
30% 30.3% 28,618 28,878
20% 19.9% 19,078 18,958
10% 10.2% 9,539 9,716
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.101' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,998
Calibration 2     93,227
Calibration 3     93,259
ssj_ops@calibrated=93,243
100% 100.0% 93,243 93,264
90% 89.0% 83,919 83,010
80% 79.7% 74,595 74,319
70% 69.7% 65,270 64,970
60% 59.7% 55,946 55,652
50% 49.9% 46,622 46,504
40% 39.9% 37,297 37,195
30% 30.4% 27,973 28,348
20% 19.5% 18,649 18,195
10% 10.3% 9,324 9,587
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.102' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,493
Calibration 2     91,967
Calibration 3     93,164
ssj_ops@calibrated=92,565
100% 100.0% 92,565 92,592
90% 90.9% 83,309 84,180
80% 81.0% 74,052 75,009
70% 70.2% 64,796 65,012
60% 60.2% 55,539 55,726
50% 49.7% 46,283 45,996
40% 40.2% 37,026 37,167
30% 29.6% 27,770 27,434
20% 20.1% 18,513 18,604
10% 9.8% 9,257 9,096
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.103' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,115
Calibration 2     91,456
Calibration 3     92,472
ssj_ops@calibrated=91,964
100% 100.8% 91,964 92,684
90% 90.0% 82,767 82,766
80% 79.9% 73,571 73,475
70% 70.8% 64,375 65,075
60% 59.3% 55,178 54,565
50% 49.2% 45,982 45,258
40% 39.8% 36,786 36,582
30% 30.0% 27,589 27,605
20% 19.9% 18,393 18,340
10% 10.3% 9,196 9,445
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.104' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,696
Calibration 2     94,148
Calibration 3     92,631
ssj_ops@calibrated=93,390
100% 99.4% 93,390 92,862
90% 89.9% 84,051 83,953
80% 78.9% 74,712 73,724
70% 70.0% 65,373 65,349
60% 59.9% 56,034 55,927
50% 50.4% 46,695 47,058
40% 39.3% 37,356 36,727
30% 30.3% 28,017 28,341
20% 20.2% 18,678 18,852
10% 10.3% 9,339 9,637
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.105' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,038
Calibration 2     94,413
Calibration 3     92,944
ssj_ops@calibrated=93,679
100% 100.0% 93,679 93,668
90% 90.4% 84,311 84,678
80% 81.1% 74,943 75,943
70% 70.1% 65,575 65,622
60% 59.7% 56,207 55,969
50% 49.3% 46,839 46,216
40% 39.8% 37,471 37,313
30% 29.7% 28,104 27,806
20% 19.8% 18,736 18,529
10% 9.9% 9,368 9,258
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.106' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,280
Calibration 2     93,966
Calibration 3     94,213
ssj_ops@calibrated=94,090
100% 99.6% 94,090 93,694
90% 88.8% 84,681 83,578
80% 80.3% 75,272 75,598
70% 69.0% 65,863 64,940
60% 60.1% 56,454 56,508
50% 50.0% 47,045 47,003
40% 39.6% 37,636 37,301
30% 30.8% 28,227 29,009
20% 19.9% 18,818 18,694
10% 10.5% 9,409 9,854
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.107' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,223
Calibration 2     94,466
Calibration 3     94,271
ssj_ops@calibrated=94,369
100% 99.3% 94,369 93,685
90% 89.5% 84,932 84,440
80% 79.2% 75,495 74,784
70% 68.9% 66,058 65,020
60% 59.9% 56,621 56,513
50% 50.4% 47,184 47,570
40% 40.2% 37,747 37,940
30% 30.5% 28,311 28,795
20% 19.4% 18,874 18,264
10% 10.4% 9,437 9,821
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.108' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,787
Calibration 2     93,645
Calibration 3     93,550
ssj_ops@calibrated=93,598
100% 99.9% 93,598 93,539
90% 90.3% 84,238 84,562
80% 79.7% 74,878 74,570
70% 70.0% 65,518 65,481
60% 59.6% 56,159 55,749
50% 50.3% 46,799 47,118
40% 39.7% 37,439 37,175
30% 29.9% 28,079 27,969
20% 20.0% 18,720 18,683
10% 10.0% 9,360 9,362
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.109' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     97,384
Calibration 2     96,091
Calibration 3     96,715
ssj_ops@calibrated=96,403
100% 98.8% 96,403 95,270
90% 90.1% 86,763 86,871
80% 81.0% 77,123 78,123
70% 70.4% 67,482 67,823
60% 60.5% 57,842 58,289
50% 49.8% 48,202 48,021
40% 40.0% 38,561 38,531
30% 30.2% 28,921 29,095
20% 20.1% 19,281 19,370
10% 9.9% 9,640 9,545
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.110' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,058
Calibration 2     93,764
Calibration 3     93,633
ssj_ops@calibrated=93,698
100% 99.8% 93,698 93,540
90% 90.5% 84,329 84,797
80% 79.9% 74,959 74,878
70% 70.3% 65,589 65,858
60% 59.4% 56,219 55,670
50% 49.6% 46,849 46,497
40% 40.5% 37,479 37,915
30% 30.2% 28,110 28,303
20% 20.2% 18,740 18,939
10% 10.0% 9,370 9,416
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.111' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,237
Calibration 2     93,926
Calibration 3     93,491
ssj_ops@calibrated=93,709
100% 99.4% 93,709 93,189
90% 90.4% 84,338 84,759
80% 80.6% 74,967 75,536
70% 69.6% 65,596 65,189
60% 58.8% 56,225 55,074
50% 49.3% 46,854 46,167
40% 40.4% 37,484 37,850
30% 29.7% 28,113 27,873
20% 19.8% 18,742 18,597
10% 10.3% 9,371 9,643
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'RX4770M4.112' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,686
Calibration 2     93,321
Calibration 3     93,211
ssj_ops@calibrated=93,266
100% 99.5% 93,266 92,766
90% 89.3% 83,940 83,318
80% 79.3% 74,613 73,935
70% 69.7% 65,286 65,022
60% 60.1% 55,960 56,056
50% 50.2% 46,633 46,850
40% 39.9% 37,306 37,237
30% 29.8% 27,980 27,811
20% 20.0% 18,653 18,698
10% 9.9% 9,327 9,200
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
