Fujitsu FUJITSU Server PRIMERGY RX4770 M4 | ssj_ops@100% = 95,255 | ||||
Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
Tested By: | Fujitsu | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | Sep 27, 2017 |
Hardware Availability: | Aug-2017 | Software Availability: | Jan-2015 | Publication: | Oct 18, 2017 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

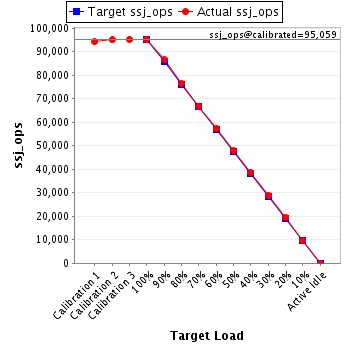

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,212 | ||
Calibration 2 | 94,951 | ||
Calibration 3 | 95,166 | ||
ssj_ops@calibrated=95,059 | |||
100% | 100.2% | 95,059 | 95,255 |
90% | 90.9% | 85,553 | 86,417 |
80% | 80.3% | 76,047 | 76,351 |
70% | 70.3% | 66,541 | 66,791 |
60% | 60.1% | 57,035 | 57,138 |
50% | 50.2% | 47,529 | 47,744 |
40% | 40.5% | 38,023 | 38,478 |
30% | 30.4% | 28,518 | 28,925 |
20% | 20.3% | 19,012 | 19,287 |
10% | 10.1% | 9,506 | 9,570 |
Active Idle | 0 | 0 |
Set Identifier: | RX4770 M4 |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | Single Node |
Hardware | |
---|---|
Hardware Vendor: | Fujitsu |
Model: | FUJITSU Server PRIMERGY RX4770 M4 |
Form Factor: | 2U |
CPU Name: | Intel Xeon Platinum 8176M |
CPU Characteristics: | 28-Core, 2.10GHz, 38.5MB L3 Cache |
CPU Frequency (MHz): | 2100 |
CPU(s) Enabled: | 112 cores, 4 chips, 28 cores/chip |
Hardware Threads: | 224 (2 / core) |
CPU(s) Orderable: | 2,4 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 1 MB I+D on chip per core |
Tertiary Cache: | 39424 KB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 192 |
# and size of DIMM: | 24 x 8192 MB |
Memory Details: | 24 x 8 GB 2Rx8 PC4-2666V-R; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J, 1K, 1L, 1M, 1N, 1P, 1Q, 1R, 1S, 1T, 1U, 1V, 1W, 1X, 1Y, 1Z populated |
Power Supply Quantity and Rating (W): | 1 x 1600 |
Power Supply Details: | Standard power supply part of base unit S26361-K1587-V100 |
Disk Drive: | 1 x SSD M.2 SATA 6Gbps 150GB N H-P, S26361-F5656-L150 |
Disk Controller: | Integrated SATA Controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x PLAN EM 4 x 1Gb T OCP(Dynamic LOM), S26361-F3953-E401 |
NICs Enabled in Firmware / OS / Connected: | 4/1/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Enabled ("Fujitsu Enhanced Power Settings" power plan) |
Operating System (OS): | Microsoft Windows Server 2012 R2 Datacenter |
OS Version: | Version 6.3.9600 Build 9600 |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80 |
JVM Command-line Options: | -server -Xmn1300m -Xms1400m -Xmx1400m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC |
JVM Affinity: | start /NODE [0,2,4,7] /AFFINTY 0x3,0xC,0x30,0xC0,0xC000,0x30000,0xC0000,0x30000000,0xC0000000,0x300000000,0xC00000000,0xC0000000000,0x300000000000,0xC00000000000 /NODE [1,3,5,7] /AFFINTY 0x3,0xC,0x30,0x3000,0xC000,0x30000,0xC0000,0x30000000,0xC0000000,0x300000000,0xC00000000,0xC0000000000,0x300000000000,0xC00000000000 |
JVM Instances: | 112 |
JVM Initial Heap (MB): | 1400 |
JVM Maximum Heap (MB): | 1400 |
JVM Address Bits: | 64 |
Boot Firmware Version: | R1.1.0 |
Management Firmware Version: | 1.13P |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | None |
Target Load | Actual Load | Transaction Type | Count | Total Heap (MB) |
---|---|---|---|---|
Calibration 1 | New Order | 6,852,191 | 1,395 | |
Payment | 6,852,189 | |||
Order Status | 685,219 | |||
Delivery | 685,219 | |||
Stock Level | 685,219 | |||
Customer Report | 6,852,187 | |||
Calibration 2 | New Order | 6,905,971 | 1,395 | |
Payment | 6,905,972 | |||
Order Status | 690,597 | |||
Delivery | 690,597 | |||
Stock Level | 690,597 | |||
Customer Report | 6,905,972 | |||
Calibration 3 | New Order | 6,921,637 | 1,395 | |
Payment | 6,921,635 | |||
Order Status | 692,164 | |||
Delivery | 692,164 | |||
Stock Level | 692,164 | |||
Customer Report | 6,921,638 | |||
100% | 100.2% | New Order | 6,928,071 | 1,395 |
Payment | 6,928,074 | |||
Order Status | 692,806 | |||
Delivery | 692,808 | |||
Stock Level | 692,808 | |||
Customer Report | 6,928,072 | |||
90% | 90.9% | New Order | 6,284,892 | 1,395 |
Payment | 6,284,885 | |||
Order Status | 628,491 | |||
Delivery | 628,489 | |||
Stock Level | 628,489 | |||
Customer Report | 6,284,886 | |||
80% | 80.3% | New Order | 5,553,135 | 1,395 |
Payment | 5,553,134 | |||
Order Status | 555,313 | |||
Delivery | 555,314 | |||
Stock Level | 555,313 | |||
Customer Report | 5,553,135 | |||
70% | 70.3% | New Order | 4,857,857 | 1,395 |
Payment | 4,857,863 | |||
Order Status | 485,788 | |||
Delivery | 485,787 | |||
Stock Level | 485,785 | |||
Customer Report | 4,857,865 | |||
60% | 60.1% | New Order | 4,157,030 | 1,395 |
Payment | 4,157,025 | |||
Order Status | 415,701 | |||
Delivery | 415,703 | |||
Stock Level | 415,703 | |||
Customer Report | 4,157,022 | |||
50% | 50.2% | New Order | 3,472,448 | 1,395 |
Payment | 3,472,450 | |||
Order Status | 347,245 | |||
Delivery | 347,246 | |||
Stock Level | 347,245 | |||
Customer Report | 3,472,448 | |||
40% | 40.5% | New Order | 2,798,598 | 1,395 |
Payment | 2,798,596 | |||
Order Status | 279,859 | |||
Delivery | 279,861 | |||
Stock Level | 279,860 | |||
Customer Report | 2,798,604 | |||
30% | 30.4% | New Order | 2,103,777 | 1,395 |
Payment | 2,103,771 | |||
Order Status | 210,378 | |||
Delivery | 210,377 | |||
Stock Level | 210,376 | |||
Customer Report | 2,103,771 | |||
20% | 20.3% | New Order | 1,402,724 | 1,395 |
Payment | 1,402,730 | |||
Order Status | 140,273 | |||
Delivery | 140,273 | |||
Stock Level | 140,272 | |||
Customer Report | 1,402,728 | |||
10% | 10.1% | New Order | 696,062 | 1,395 |
Payment | 696,059 | |||
Order Status | 69,606 | |||
Delivery | 69,607 | |||
Stock Level | 69,606 | |||
Customer Report | 696,060 | |||
Active Idle | New Order | 0 | 1,395 | |
Payment | 0 | |||
Order Status | 0 | |||
Delivery | 0 | |||
Stock Level | 0 | |||
Customer Report | 0 |
