Fujitsu FUJITSU Server PRIMERGY RX4770 M4 ssj_ops@100% = 93,046
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Sep 27, 2017
Hardware Availability: Aug-2017 Software Availability: Jan-2015 Publication: Oct 18, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,576
Calibration 2     93,307
Calibration 3     93,414
ssj_ops@calibrated=93,360
100% 99.7% 93,360 93,046
90% 90.8% 84,024 84,739
80% 80.5% 74,688 75,163
70% 70.3% 65,352 65,658
60% 59.4% 56,016 55,498
50% 49.8% 46,680 46,451
40% 40.6% 37,344 37,886
30% 31.3% 28,008 29,207
20% 19.8% 18,672 18,517
10% 10.8% 9,336 10,037
Active Idle   0 0

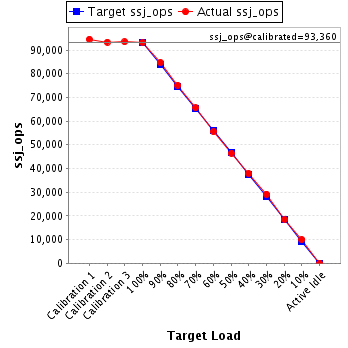

Graph of results
System Under Test
Set: 'RX4770 M4'
Set Identifier: RX4770 M4
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY RX4770 M4
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8176M
CPU Characteristics: 28-Core, 2.10GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 112 cores, 4 chips, 28 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 24 x 8192 MB
Memory Details: 24 x 8 GB 2Rx8 PC4-2666V-R; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J, 1K, 1L, 1M, 1N, 1P, 1Q, 1R, 1S, 1T, 1U, 1V, 1W, 1X, 1Y, 1Z populated
Power Supply Quantity and Rating (W): 1 x 1600
Power Supply Details: Standard power supply part of base unit S26361-K1587-V100
Disk Drive: 1 x SSD M.2 SATA 6Gbps 150GB N H-P, S26361-F5656-L150
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x PLAN EM 4 x 1Gb T OCP(Dynamic LOM), S26361-F3953-E401
NICs Enabled in Firmware / OS / Connected: 4/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600 Build 9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1400m -Xmx1400m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,2,4,7] /AFFINTY 0x3,0xC,0x30,0xC0,0xC000,0x30000,0xC0000,0x30000000,0xC0000000,0x300000000,0xC00000000,0xC0000000000,0x300000000000,0xC00000000000 /NODE [1,3,5,7] /AFFINTY 0x3,0xC,0x30,0x3000,0xC000,0x30000,0xC0000,0x30000000,0xC0000000,0x300000000,0xC00000000,0xC0000000000,0x300000000000,0xC00000000000
JVM Instances: 112
JVM Initial Heap (MB): 1400
JVM Maximum Heap (MB): 1400
JVM Address Bits: 64
Boot Firmware Version: R1.1.0
Management Firmware Version: 1.13P
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 6,878,672 1,395
Payment 6,878,673
Order Status 687,867
Delivery 687,866
Stock Level 687,867
Customer Report 6,878,669
Calibration 2 New Order 6,786,374 1,395
Payment 6,786,374
Order Status 678,639
Delivery 678,637
Stock Level 678,637
Customer Report 6,786,378
Calibration 3 New Order 6,794,135 1,395
Payment 6,794,133
Order Status 679,414
Delivery 679,413
Stock Level 679,413
Customer Report 6,794,137
100% 99.7% New Order 6,767,429 1,395
Payment 6,767,426
Order Status 676,742
Delivery 676,742
Stock Level 676,741
Customer Report 6,767,421
90% 90.8% New Order 6,162,949 1,395
Payment 6,162,948
Order Status 616,293
Delivery 616,295
Stock Level 616,295
Customer Report 6,162,958
80% 80.5% New Order 5,466,670 1,395
Payment 5,466,667
Order Status 546,666
Delivery 546,667
Stock Level 546,668
Customer Report 5,466,670
70% 70.3% New Order 4,775,198 1,395
Payment 4,775,201
Order Status 477,521
Delivery 477,521
Stock Level 477,521
Customer Report 4,775,198
60% 59.4% New Order 4,036,443 1,395
Payment 4,036,449
Order Status 403,645
Delivery 403,643
Stock Level 403,645
Customer Report 4,036,449
50% 49.8% New Order 3,378,460 1,395
Payment 3,378,461
Order Status 337,847
Delivery 337,845
Stock Level 337,846
Customer Report 3,378,461
40% 40.6% New Order 2,755,463 1,395
Payment 2,755,463
Order Status 275,547
Delivery 275,547
Stock Level 275,546
Customer Report 2,755,464
30% 31.3% New Order 2,124,242 1,395
Payment 2,124,242
Order Status 212,424
Delivery 212,425
Stock Level 212,425
Customer Report 2,124,242
20% 19.8% New Order 1,346,664 1,395
Payment 1,346,668
Order Status 134,667
Delivery 134,667
Stock Level 134,667
Customer Report 1,346,667
10% 10.8% New Order 730,002 1,395
Payment 730,003
Order Status 72,999
Delivery 72,999
Stock Level 72,999
Customer Report 729,998
Active Idle New Order 0 1,395
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
