Fujitsu FUJITSU Server PRIMERGY RX4770 M4 ssj_ops@100% = 93,907
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Sep 27, 2017
Hardware Availability: Aug-2017 Software Availability: Jan-2015 Publication: Oct 18, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,531
Calibration 2     93,765
Calibration 3     93,996
ssj_ops@calibrated=93,880
100% 100.0% 93,880 93,907
90% 91.2% 84,492 85,587
80% 79.4% 75,104 74,547
70% 69.5% 65,716 65,282
60% 60.8% 56,328 57,116
50% 49.7% 46,940 46,658
40% 40.2% 37,552 37,786
30% 29.9% 28,164 28,068
20% 20.3% 18,776 19,073
10% 9.7% 9,388 9,127
Active Idle   0 0

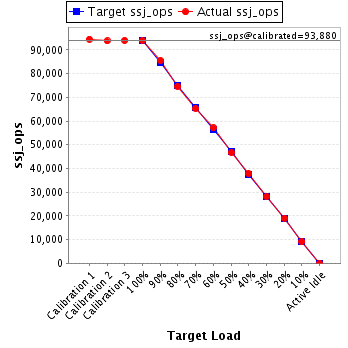

Graph of results
System Under Test
Set: 'RX4770 M4'
Set Identifier: RX4770 M4
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY RX4770 M4
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8176M
CPU Characteristics: 28-Core, 2.10GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 112 cores, 4 chips, 28 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 24 x 8192 MB
Memory Details: 24 x 8 GB 2Rx8 PC4-2666V-R; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J, 1K, 1L, 1M, 1N, 1P, 1Q, 1R, 1S, 1T, 1U, 1V, 1W, 1X, 1Y, 1Z populated
Power Supply Quantity and Rating (W): 1 x 1600
Power Supply Details: Standard power supply part of base unit S26361-K1587-V100
Disk Drive: 1 x SSD M.2 SATA 6Gbps 150GB N H-P, S26361-F5656-L150
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x PLAN EM 4 x 1Gb T OCP(Dynamic LOM), S26361-F3953-E401
NICs Enabled in Firmware / OS / Connected: 4/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600 Build 9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1400m -Xmx1400m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,2,4,7] /AFFINTY 0x3,0xC,0x30,0xC0,0xC000,0x30000,0xC0000,0x30000000,0xC0000000,0x300000000,0xC00000000,0xC0000000000,0x300000000000,0xC00000000000 /NODE [1,3,5,7] /AFFINTY 0x3,0xC,0x30,0x3000,0xC000,0x30000,0xC0000,0x30000000,0xC0000000,0x300000000,0xC00000000,0xC0000000000,0x300000000000,0xC00000000000
JVM Instances: 112
JVM Initial Heap (MB): 1400
JVM Maximum Heap (MB): 1400
JVM Address Bits: 64
Boot Firmware Version: R1.1.0
Management Firmware Version: 1.13P
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 6,875,442 1,395
Payment 6,875,441
Order Status 687,543
Delivery 687,546
Stock Level 687,544
Customer Report 6,875,442
Calibration 2 New Order 6,819,692 1,395
Payment 6,819,693
Order Status 681,970
Delivery 681,968
Stock Level 681,970
Customer Report 6,819,693
Calibration 3 New Order 6,836,481 1,395
Payment 6,836,476
Order Status 683,648
Delivery 683,649
Stock Level 683,647
Customer Report 6,836,483
100% 100.0% New Order 6,830,015 1,395
Payment 6,830,011
Order Status 683,000
Delivery 683,000
Stock Level 683,001
Customer Report 6,830,013
90% 91.2% New Order 6,224,616 1,395
Payment 6,224,621
Order Status 622,462
Delivery 622,462
Stock Level 622,462
Customer Report 6,224,618
80% 79.4% New Order 5,421,736 1,395
Payment 5,421,733
Order Status 542,173
Delivery 542,175
Stock Level 542,174
Customer Report 5,421,733
70% 69.5% New Order 4,748,101 1,395
Payment 4,748,096
Order Status 474,810
Delivery 474,809
Stock Level 474,809
Customer Report 4,748,095
60% 60.8% New Order 4,154,119 1,395
Payment 4,154,119
Order Status 415,412
Delivery 415,412
Stock Level 415,410
Customer Report 4,154,118
50% 49.7% New Order 3,393,485 1,395
Payment 3,393,481
Order Status 339,349
Delivery 339,348
Stock Level 339,350
Customer Report 3,393,484
40% 40.2% New Order 2,748,185 1,395
Payment 2,748,181
Order Status 274,818
Delivery 274,817
Stock Level 274,817
Customer Report 2,748,179
30% 29.9% New Order 2,041,415 1,395
Payment 2,041,410
Order Status 204,143
Delivery 204,141
Stock Level 204,140
Customer Report 2,041,416
20% 20.3% New Order 1,387,168 1,395
Payment 1,387,170
Order Status 138,716
Delivery 138,716
Stock Level 138,717
Customer Report 1,387,170
10% 9.7% New Order 663,834 1,395
Payment 663,839
Order Status 66,383
Delivery 66,384
Stock Level 66,383
Customer Report 663,836
Active Idle New Order 0 1,395
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
