Fujitsu FUJITSU Server PRIMERGY RX4770 M4 ssj_ops@100% = 93,754
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Sep 27, 2017
Hardware Availability: Aug-2017 Software Availability: Jan-2015 Publication: Oct 18, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,149
Calibration 2     93,674
Calibration 3     93,900
ssj_ops@calibrated=93,787
100% 100.0% 93,787 93,754
90% 89.5% 84,408 83,969
80% 80.5% 75,029 75,470
70% 70.4% 65,651 66,061
60% 60.8% 56,272 56,991
50% 49.8% 46,893 46,659
40% 40.2% 37,515 37,717
30% 30.2% 28,136 28,299
20% 20.2% 18,757 18,907
10% 9.7% 9,379 9,108
Active Idle   0 0

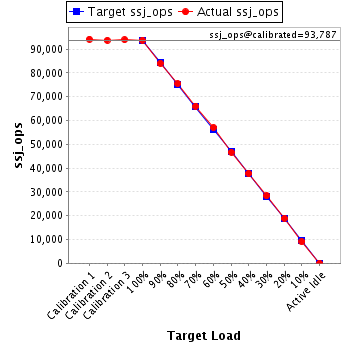

Graph of results
System Under Test
Set: 'RX4770 M4'
Set Identifier: RX4770 M4
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY RX4770 M4
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8176M
CPU Characteristics: 28-Core, 2.10GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 112 cores, 4 chips, 28 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 24 x 8192 MB
Memory Details: 24 x 8 GB 2Rx8 PC4-2666V-R; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J, 1K, 1L, 1M, 1N, 1P, 1Q, 1R, 1S, 1T, 1U, 1V, 1W, 1X, 1Y, 1Z populated
Power Supply Quantity and Rating (W): 1 x 1600
Power Supply Details: Standard power supply part of base unit S26361-K1587-V100
Disk Drive: 1 x SSD M.2 SATA 6Gbps 150GB N H-P, S26361-F5656-L150
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x PLAN EM 4 x 1Gb T OCP(Dynamic LOM), S26361-F3953-E401
NICs Enabled in Firmware / OS / Connected: 4/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600 Build 9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1400m -Xmx1400m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,2,4,7] /AFFINTY 0x3,0xC,0x30,0xC0,0xC000,0x30000,0xC0000,0x30000000,0xC0000000,0x300000000,0xC00000000,0xC0000000000,0x300000000000,0xC00000000000 /NODE [1,3,5,7] /AFFINTY 0x3,0xC,0x30,0x3000,0xC000,0x30000,0xC0000,0x30000000,0xC0000000,0x300000000,0xC00000000,0xC0000000000,0x300000000000,0xC00000000000
JVM Instances: 112
JVM Initial Heap (MB): 1400
JVM Maximum Heap (MB): 1400
JVM Address Bits: 64
Boot Firmware Version: R1.1.0
Management Firmware Version: 1.13P
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 6,852,276 1,395
Payment 6,852,277
Order Status 685,227
Delivery 685,228
Stock Level 685,229
Customer Report 6,852,279
Calibration 2 New Order 6,813,035 1,395
Payment 6,813,032
Order Status 681,304
Delivery 681,303
Stock Level 681,304
Customer Report 6,813,038
Calibration 3 New Order 6,829,505 1,395
Payment 6,829,513
Order Status 682,950
Delivery 682,951
Stock Level 682,950
Customer Report 6,829,503
100% 100.0% New Order 6,818,904 1,395
Payment 6,818,899
Order Status 681,890
Delivery 681,890
Stock Level 681,890
Customer Report 6,818,905
90% 89.5% New Order 6,106,841 1,395
Payment 6,106,839
Order Status 610,685
Delivery 610,684
Stock Level 610,684
Customer Report 6,106,839
80% 80.5% New Order 5,488,885 1,395
Payment 5,488,886
Order Status 548,889
Delivery 548,888
Stock Level 548,890
Customer Report 5,488,885
70% 70.4% New Order 4,804,726 1,395
Payment 4,804,728
Order Status 480,471
Delivery 480,473
Stock Level 480,472
Customer Report 4,804,726
60% 60.8% New Order 4,144,841 1,395
Payment 4,144,838
Order Status 414,484
Delivery 414,483
Stock Level 414,484
Customer Report 4,144,845
50% 49.8% New Order 3,393,571 1,395
Payment 3,393,569
Order Status 339,357
Delivery 339,356
Stock Level 339,356
Customer Report 3,393,566
40% 40.2% New Order 2,743,189 1,395
Payment 2,743,194
Order Status 274,319
Delivery 274,318
Stock Level 274,320
Customer Report 2,743,191
30% 30.2% New Order 2,058,186 1,395
Payment 2,058,178
Order Status 205,818
Delivery 205,817
Stock Level 205,819
Customer Report 2,058,182
20% 20.2% New Order 1,375,113 1,395
Payment 1,375,118
Order Status 137,511
Delivery 137,512
Stock Level 137,511
Customer Report 1,375,110
10% 9.7% New Order 662,424 1,395
Payment 662,429
Order Status 66,242
Delivery 66,243
Stock Level 66,241
Customer Report 662,421
Active Idle New Order 0 1,395
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
