Fujitsu FUJITSU Server PRIMERGY RX4770 M4 ssj_ops@100% = 92,250
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Sep 27, 2017
Hardware Availability: Aug-2017 Software Availability: Jan-2015 Publication: Oct 18, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,933
Calibration 2     92,428
Calibration 3     92,139
ssj_ops@calibrated=92,283
100% 100.0% 92,283 92,250
90% 90.5% 83,055 83,509
80% 79.6% 73,827 73,431
70% 69.8% 64,598 64,424
60% 59.1% 55,370 54,579
50% 49.8% 46,142 45,949
40% 39.6% 36,913 36,517
30% 29.6% 27,685 27,306
20% 19.5% 18,457 18,011
10% 10.0% 9,228 9,188
Active Idle   0 0

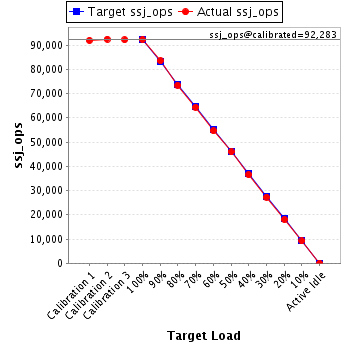

Graph of results
System Under Test
Set: 'RX4770 M4'
Set Identifier: RX4770 M4
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY RX4770 M4
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8176M
CPU Characteristics: 28-Core, 2.10GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 112 cores, 4 chips, 28 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 24 x 8192 MB
Memory Details: 24 x 8 GB 2Rx8 PC4-2666V-R; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J, 1K, 1L, 1M, 1N, 1P, 1Q, 1R, 1S, 1T, 1U, 1V, 1W, 1X, 1Y, 1Z populated
Power Supply Quantity and Rating (W): 1 x 1600
Power Supply Details: Standard power supply part of base unit S26361-K1587-V100
Disk Drive: 1 x SSD M.2 SATA 6Gbps 150GB N H-P, S26361-F5656-L150
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x PLAN EM 4 x 1Gb T OCP(Dynamic LOM), S26361-F3953-E401
NICs Enabled in Firmware / OS / Connected: 4/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600 Build 9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1400m -Xmx1400m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,2,4,7] /AFFINTY 0x3,0xC,0x30,0xC0,0xC000,0x30000,0xC0000,0x30000000,0xC0000000,0x300000000,0xC00000000,0xC0000000000,0x300000000000,0xC00000000000 /NODE [1,3,5,7] /AFFINTY 0x3,0xC,0x30,0x3000,0xC000,0x30000,0xC0000,0x30000000,0xC0000000,0x300000000,0xC00000000,0xC0000000000,0x300000000000,0xC00000000000
JVM Instances: 112
JVM Initial Heap (MB): 1400
JVM Maximum Heap (MB): 1400
JVM Address Bits: 64
Boot Firmware Version: R1.1.0
Management Firmware Version: 1.13P
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 6,686,490 1,395
Payment 6,686,492
Order Status 668,650
Delivery 668,649
Stock Level 668,649
Customer Report 6,686,490
Calibration 2 New Order 6,722,450 1,395
Payment 6,722,454
Order Status 672,245
Delivery 672,244
Stock Level 672,243
Customer Report 6,722,454
Calibration 3 New Order 6,701,411 1,395
Payment 6,701,416
Order Status 670,143
Delivery 670,140
Stock Level 670,140
Customer Report 6,701,412
100% 100.0% New Order 6,709,543 1,395
Payment 6,709,546
Order Status 670,955
Delivery 670,954
Stock Level 670,954
Customer Report 6,709,547
90% 90.5% New Order 6,073,526 1,395
Payment 6,073,529
Order Status 607,353
Delivery 607,353
Stock Level 607,354
Customer Report 6,073,529
80% 79.6% New Order 5,340,775 1,395
Payment 5,340,773
Order Status 534,078
Delivery 534,079
Stock Level 534,078
Customer Report 5,340,771
70% 69.8% New Order 4,685,607 1,395
Payment 4,685,604
Order Status 468,560
Delivery 468,560
Stock Level 468,563
Customer Report 4,685,604
60% 59.1% New Order 3,969,613 1,395
Payment 3,969,614
Order Status 396,961
Delivery 396,963
Stock Level 396,962
Customer Report 3,969,609
50% 49.8% New Order 3,341,926 1,395
Payment 3,341,922
Order Status 334,192
Delivery 334,194
Stock Level 334,192
Customer Report 3,341,922
40% 39.6% New Order 2,655,826 1,395
Payment 2,655,828
Order Status 265,582
Delivery 265,582
Stock Level 265,582
Customer Report 2,655,826
30% 29.6% New Order 1,985,928 1,395
Payment 1,985,923
Order Status 198,592
Delivery 198,594
Stock Level 198,592
Customer Report 1,985,918
20% 19.5% New Order 1,309,900 1,395
Payment 1,309,895
Order Status 130,989
Delivery 130,990
Stock Level 130,989
Customer Report 1,309,895
10% 10.0% New Order 668,280 1,395
Payment 668,281
Order Status 66,828
Delivery 66,827
Stock Level 66,829
Customer Report 668,284
Active Idle New Order 0 1,395
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
