Fujitsu FUJITSU Server PRIMERGY RX4770 M4 ssj_ops@100% = 94,531
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Sep 27, 2017
Hardware Availability: Aug-2017 Software Availability: Jan-2015 Publication: Oct 18, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,887
Calibration 2     93,539
Calibration 3     94,529
ssj_ops@calibrated=94,034
100% 100.5% 94,034 94,531
90% 88.9% 84,631 83,606
80% 79.5% 75,227 74,715
70% 69.7% 65,824 65,530
60% 60.2% 56,420 56,639
50% 50.4% 47,017 47,434
40% 39.9% 37,614 37,474
30% 30.6% 28,210 28,757
20% 19.8% 18,807 18,645
10% 10.3% 9,403 9,658
Active Idle   0 0

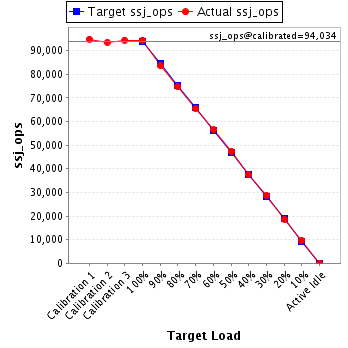

Graph of results
System Under Test
Set: 'RX4770 M4'
Set Identifier: RX4770 M4
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY RX4770 M4
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8176M
CPU Characteristics: 28-Core, 2.10GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 112 cores, 4 chips, 28 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 24 x 8192 MB
Memory Details: 24 x 8 GB 2Rx8 PC4-2666V-R; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J, 1K, 1L, 1M, 1N, 1P, 1Q, 1R, 1S, 1T, 1U, 1V, 1W, 1X, 1Y, 1Z populated
Power Supply Quantity and Rating (W): 1 x 1600
Power Supply Details: Standard power supply part of base unit S26361-K1587-V100
Disk Drive: 1 x SSD M.2 SATA 6Gbps 150GB N H-P, S26361-F5656-L150
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x PLAN EM 4 x 1Gb T OCP(Dynamic LOM), S26361-F3953-E401
NICs Enabled in Firmware / OS / Connected: 4/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600 Build 9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1400m -Xmx1400m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,2,4,7] /AFFINTY 0x3,0xC,0x30,0xC0,0xC000,0x30000,0xC0000,0x30000000,0xC0000000,0x300000000,0xC00000000,0xC0000000000,0x300000000000,0xC00000000000 /NODE [1,3,5,7] /AFFINTY 0x3,0xC,0x30,0x3000,0xC000,0x30000,0xC0000,0x30000000,0xC0000000,0x300000000,0xC00000000,0xC0000000000,0x300000000000,0xC00000000000
JVM Instances: 112
JVM Initial Heap (MB): 1400
JVM Maximum Heap (MB): 1400
JVM Address Bits: 64
Boot Firmware Version: R1.1.0
Management Firmware Version: 1.13P
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 6,901,284 1,395
Payment 6,901,286
Order Status 690,129
Delivery 690,130
Stock Level 690,129
Customer Report 6,901,289
Calibration 2 New Order 6,802,982 1,395
Payment 6,802,974
Order Status 680,297
Delivery 680,298
Stock Level 680,298
Customer Report 6,802,978
Calibration 3 New Order 6,875,281 1,395
Payment 6,875,276
Order Status 687,528
Delivery 687,527
Stock Level 687,527
Customer Report 6,875,281
100% 100.5% New Order 6,875,427 1,395
Payment 6,875,428
Order Status 687,544
Delivery 687,543
Stock Level 687,541
Customer Report 6,875,427
90% 88.9% New Order 6,080,425 1,395
Payment 6,080,425
Order Status 608,043
Delivery 608,043
Stock Level 608,043
Customer Report 6,080,423
80% 79.5% New Order 5,433,966 1,395
Payment 5,433,971
Order Status 543,397
Delivery 543,396
Stock Level 543,397
Customer Report 5,433,969
70% 69.7% New Order 4,766,051 1,395
Payment 4,766,056
Order Status 476,605
Delivery 476,606
Stock Level 476,606
Customer Report 4,766,054
60% 60.2% New Order 4,119,499 1,395
Payment 4,119,498
Order Status 411,951
Delivery 411,950
Stock Level 411,950
Customer Report 4,119,499
50% 50.4% New Order 3,449,971 1,395
Payment 3,449,966
Order Status 344,996
Delivery 344,998
Stock Level 344,997
Customer Report 3,449,968
40% 39.9% New Order 2,725,528 1,395
Payment 2,725,531
Order Status 272,552
Delivery 272,553
Stock Level 272,553
Customer Report 2,725,526
30% 30.6% New Order 2,091,424 1,395
Payment 2,091,419
Order Status 209,142
Delivery 209,143
Stock Level 209,143
Customer Report 2,091,423
20% 19.8% New Order 1,356,062 1,395
Payment 1,356,058
Order Status 135,606
Delivery 135,606
Stock Level 135,605
Customer Report 1,356,063
10% 10.3% New Order 702,427 1,395
Payment 702,423
Order Status 70,242
Delivery 70,242
Stock Level 70,241
Customer Report 702,425
Active Idle New Order 0 1,395
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
