Fujitsu FUJITSU Server PRIMERGY RX4770 M4 ssj_ops@100% = 94,763
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Sep 27, 2017
Hardware Availability: Aug-2017 Software Availability: Jan-2015 Publication: Oct 18, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,891
Calibration 2     93,459
Calibration 3     94,788
ssj_ops@calibrated=94,124
100% 100.7% 94,124 94,763
90% 90.5% 84,711 85,142
80% 79.8% 75,299 75,143
70% 70.3% 65,887 66,124
60% 60.2% 56,474 56,660
50% 49.9% 47,062 47,008
40% 40.1% 37,650 37,733
30% 30.0% 28,237 28,202
20% 19.8% 18,825 18,608
10% 9.8% 9,412 9,236
Active Idle   0 0

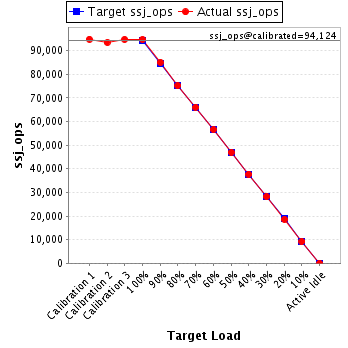

Graph of results
System Under Test
Set: 'RX4770 M4'
Set Identifier: RX4770 M4
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY RX4770 M4
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8176M
CPU Characteristics: 28-Core, 2.10GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 112 cores, 4 chips, 28 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 2,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 24 x 8192 MB
Memory Details: 24 x 8 GB 2Rx8 PC4-2666V-R; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J, 1K, 1L, 1M, 1N, 1P, 1Q, 1R, 1S, 1T, 1U, 1V, 1W, 1X, 1Y, 1Z populated
Power Supply Quantity and Rating (W): 1 x 1600
Power Supply Details: Standard power supply part of base unit S26361-K1587-V100
Disk Drive: 1 x SSD M.2 SATA 6Gbps 150GB N H-P, S26361-F5656-L150
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x PLAN EM 4 x 1Gb T OCP(Dynamic LOM), S26361-F3953-E401
NICs Enabled in Firmware / OS / Connected: 4/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Fujitsu Enhanced Power Settings" power plan)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600 Build 9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1400m -Xmx1400m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,2,4,7] /AFFINTY 0x3,0xC,0x30,0xC0,0xC000,0x30000,0xC0000,0x30000000,0xC0000000,0x300000000,0xC00000000,0xC0000000000,0x300000000000,0xC00000000000 /NODE [1,3,5,7] /AFFINTY 0x3,0xC,0x30,0x3000,0xC000,0x30000,0xC0000,0x30000000,0xC0000000,0x300000000,0xC00000000,0xC0000000000,0x300000000000,0xC00000000000
JVM Instances: 112
JVM Initial Heap (MB): 1400
JVM Maximum Heap (MB): 1400
JVM Address Bits: 64
Boot Firmware Version: R1.1.0
Management Firmware Version: 1.13P
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 6,901,582 1,395
Payment 6,901,580
Order Status 690,159
Delivery 690,157
Stock Level 690,158
Customer Report 6,901,582
Calibration 2 New Order 6,797,467 1,395
Payment 6,797,468
Order Status 679,746
Delivery 679,748
Stock Level 679,746
Customer Report 6,797,460
Calibration 3 New Order 6,894,148 1,395
Payment 6,894,147
Order Status 689,416
Delivery 689,413
Stock Level 689,414
Customer Report 6,894,145
100% 100.7% New Order 6,892,286 1,395
Payment 6,892,290
Order Status 689,228
Delivery 689,228
Stock Level 689,228
Customer Report 6,892,289
90% 90.5% New Order 6,192,169 1,395
Payment 6,192,172
Order Status 619,217
Delivery 619,217
Stock Level 619,217
Customer Report 6,192,171
80% 79.8% New Order 5,465,263 1,395
Payment 5,465,268
Order Status 546,526
Delivery 546,527
Stock Level 546,527
Customer Report 5,465,265
70% 70.3% New Order 4,809,299 1,395
Payment 4,809,301
Order Status 480,932
Delivery 480,931
Stock Level 480,931
Customer Report 4,809,302
60% 60.2% New Order 4,120,904 1,395
Payment 4,120,900
Order Status 412,091
Delivery 412,091
Stock Level 412,091
Customer Report 4,120,902
50% 49.9% New Order 3,418,955 1,395
Payment 3,418,961
Order Status 341,895
Delivery 341,896
Stock Level 341,896
Customer Report 3,418,956
40% 40.1% New Order 2,744,287 1,395
Payment 2,744,290
Order Status 274,429
Delivery 274,429
Stock Level 274,429
Customer Report 2,744,288
30% 30.0% New Order 2,051,196 1,395
Payment 2,051,203
Order Status 205,121
Delivery 205,121
Stock Level 205,119
Customer Report 2,051,199
20% 19.8% New Order 1,353,333 1,395
Payment 1,353,333
Order Status 135,334
Delivery 135,334
Stock Level 135,334
Customer Report 1,353,332
10% 9.8% New Order 671,719 1,395
Payment 671,717
Order Status 67,172
Delivery 67,171
Stock Level 67,171
Customer Report 671,717
Active Idle New Order 0 1,395
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
