Dell Inc. PowerEdge M620 (Intel Xeon E5-2670, 2.6 GHz) ssj_ops@100% = 20,208,781
ssj_ops@100% per Host = 1,263,049
ssj_ops@100% per JVM = 78,941
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Mar 16, 2012
Hardware Availability: Mar-2012 Software Availability: Dec-2011 Publication: Apr 4, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     20,176,594
Calibration 2     20,298,617
Calibration 3     20,287,999
ssj_ops@calibrated=20,293,308
100% 99.6% 20,293,308 20,208,781
90% 90.0% 18,263,977 18,257,722
80% 80.0% 16,234,646 16,228,326
70% 70.0% 14,205,316 14,196,751
60% 60.0% 12,175,985 12,180,630
50% 50.0% 10,146,654 10,140,591
40% 40.0% 8,117,323 8,116,313
30% 30.0% 6,087,992 6,089,412
20% 20.0% 4,058,662 4,057,687
10% 10.0% 2,029,331 2,024,873
Active Idle   0 0

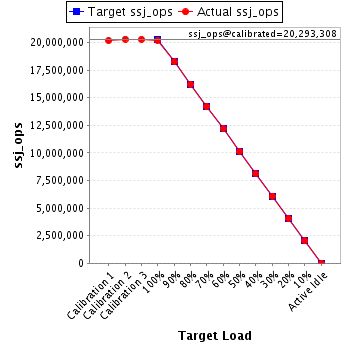

Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
16 32 256 512 384 16 256
System Under Test
Shared Hardware
Shared Hardware
Enclosure: Dell PowerEdge M1000e
Form Factor: 10U
Power Supply Quantity and Rating (W): 3 x 2700
Power Supply Details: Dell PN G803N
Network Switch: Dell PowerConnect 6248
Network Switch Details: 48 Port 1Gb Ethernet Switch
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: Dell M1000e Chassis Management Controller, Dell 16-Port Gigabit Ethernet Pass-Through Module
Comment: Network switch not measured for power
Set: 'sut'
Set Identifier: sut
Set Description: M620
# of Identical Nodes: 16
Comment: None
Hardware per Node
Hardware Vendor: Dell Inc.
Model: PowerEdge M620 (Intel Xeon E5-2670, 2.6 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2670 2.60 GHz
CPU Characteristics: 8 Core, 2.60 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E-9 ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N DYW42
Disk Controller: Onboard PERC S110
# and type of Network Interface Cards (NICs) Installed: 1 x Onboard Intel X520-k
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power saver mode in OS (See Notes)
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -showversion -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.0.4
Management Firmware Version: iDRAC7 1.00 Build 73
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
  • Adjacent Cache Line Prefetch disabled
  • Hardware Prefetcher Disabled
  • DCU Streamer Prefetcher disabled
  • User Accessible USB Ports set to Disabled
  • CPU Power management set to System DBPM (DAPC)
  • Memory Speed set to 1067MHz
  • Turbo Boost Disabled
  • C1E Enabled
  • C States enabled
  • QPI speed set to 6.4 GT/s
  • Memory Patrol Scrub disabled
  • Memory refresh rate set to 1x
  • Memory Operating Voltage set to Auto
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    Host Instance Summary
    Host ssj_ops@100%
    M620-01 1,267,711
    M620-02 1,263,846
    M620-03 1,266,456
    M620-04 1,261,663
    M620-05 1,261,447
    M620-06 1,259,413
    M620-07 1,264,526
    M620-08 1,261,650
    M620-09 1,264,644
    M620-10 1,262,627
    M620-11 1,265,887
    M620-12 1,260,916
    M620-13 1,262,148
    M620-14 1,265,197
    M620-15 1,264,395
    M620-16 1,256,255
    ssj_ops@100% 20,208,781
    ssj_ops@100% per Host 1,263,049
    ssj_ops@100% per JVM 78,941

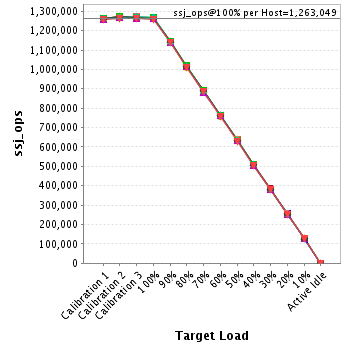

    Graph of per-host results
    Host 'M620-01' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,262,242
    Calibration 2     1,270,216
    Calibration 3     1,271,124
    ssj_ops@calibrated=1,270,670
    100% 99.8% 1,270,670 1,267,711
    90% 90.2% 1,143,603 1,145,862
    80% 79.8% 1,016,536 1,014,575
    70% 70.1% 889,469 890,730
    60% 60.2% 762,402 764,702
    50% 50.4% 635,335 640,083
    40% 40.0% 508,268 507,638
    30% 30.0% 381,201 381,549
    20% 20.0% 254,134 254,289
    10% 9.9% 127,067 126,410
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M620-02' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,259,768
    Calibration 2     1,269,955
    Calibration 3     1,267,128
    ssj_ops@calibrated=1,268,542
    100% 99.6% 1,268,542 1,263,846
    90% 90.2% 1,141,688 1,144,079
    80% 80.0% 1,014,833 1,014,742
    70% 70.2% 887,979 890,090
    60% 59.7% 761,125 757,703
    50% 50.1% 634,271 635,016
    40% 39.9% 507,417 505,855
    30% 30.0% 380,563 380,969
    20% 19.8% 253,708 251,535
    10% 10.0% 126,854 126,882
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M620-03' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,263,365
    Calibration 2     1,273,640
    Calibration 3     1,272,652
    ssj_ops@calibrated=1,273,146
    100% 99.5% 1,273,146 1,266,456
    90% 89.9% 1,145,831 1,144,874
    80% 79.8% 1,018,517 1,015,568
    70% 70.0% 891,202 891,101
    60% 60.1% 763,888 764,646
    50% 50.0% 636,573 636,596
    40% 40.0% 509,258 509,489
    30% 30.0% 381,944 381,530
    20% 20.0% 254,629 254,372
    10% 9.9% 127,315 126,022
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M620-04' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,258,820
    Calibration 2     1,264,519
    Calibration 3     1,268,493
    ssj_ops@calibrated=1,266,506
    100% 99.6% 1,266,506 1,261,663
    90% 90.0% 1,139,855 1,140,009
    80% 80.0% 1,013,205 1,012,790
    70% 69.8% 886,554 883,473
    60% 60.2% 759,904 761,984
    50% 50.0% 633,253 632,795
    40% 40.0% 506,602 506,048
    30% 29.9% 379,952 378,869
    20% 20.0% 253,301 253,640
    10% 10.0% 126,651 126,706
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M620-05' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,259,793
    Calibration 2     1,266,062
    Calibration 3     1,266,663
    ssj_ops@calibrated=1,266,363
    100% 99.6% 1,266,363 1,261,447
    90% 89.9% 1,139,726 1,138,453
    80% 80.1% 1,013,090 1,014,702
    70% 69.9% 886,454 885,009
    60% 60.0% 759,818 759,588
    50% 49.9% 633,181 632,476
    40% 40.0% 506,545 507,055
    30% 30.0% 379,909 380,172
    20% 20.1% 253,273 254,234
    10% 10.0% 126,636 126,589
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M620-06' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,257,342
    Calibration 2     1,264,679
    Calibration 3     1,264,637
    ssj_ops@calibrated=1,264,658
    100% 99.6% 1,264,658 1,259,413
    90% 90.0% 1,138,192 1,138,138
    80% 80.3% 1,011,726 1,015,610
    70% 70.2% 885,260 887,238
    60% 60.2% 758,795 761,137
    50% 49.8% 632,329 629,871
    40% 40.0% 505,863 505,990
    30% 30.0% 379,397 379,493
    20% 20.0% 252,932 252,487
    10% 10.0% 126,466 126,597
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M620-07' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,266,118
    Calibration 2     1,270,251
    Calibration 3     1,271,147
    ssj_ops@calibrated=1,270,699
    100% 99.5% 1,270,699 1,264,526
    90% 89.9% 1,143,629 1,142,598
    80% 80.0% 1,016,559 1,017,167
    70% 69.9% 889,489 887,782
    60% 59.9% 762,419 760,715
    50% 49.9% 635,349 633,543
    40% 40.2% 508,279 510,214
    30% 29.9% 381,210 379,719
    20% 20.2% 254,140 256,555
    10% 10.1% 127,070 128,282
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M620-08' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,263,481
    Calibration 2     1,268,916
    Calibration 3     1,266,611
    ssj_ops@calibrated=1,267,764
    100% 99.5% 1,267,764 1,261,650
    90% 89.8% 1,140,987 1,138,095
    80% 79.9% 1,014,211 1,013,496
    70% 69.5% 887,435 881,091
    60% 60.0% 760,658 761,052
    50% 50.1% 633,882 635,645
    40% 40.0% 507,106 507,718
    30% 29.9% 380,329 378,990
    20% 20.0% 253,553 252,934
    10% 10.0% 126,776 127,342
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M620-09' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,262,185
    Calibration 2     1,272,288
    Calibration 3     1,269,797
    ssj_ops@calibrated=1,271,042
    100% 99.5% 1,271,042 1,264,644
    90% 90.0% 1,143,938 1,143,737
    80% 79.9% 1,016,834 1,015,068
    70% 70.0% 889,729 890,008
    60% 60.0% 762,625 762,264
    50% 50.0% 635,521 635,497
    40% 39.9% 508,417 507,342
    30% 30.2% 381,313 383,342
    20% 19.9% 254,208 253,521
    10% 9.9% 127,104 126,215
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M620-10' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,261,268
    Calibration 2     1,269,974
    Calibration 3     1,267,916
    ssj_ops@calibrated=1,268,945
    100% 99.5% 1,268,945 1,262,627
    90% 89.9% 1,142,051 1,141,266
    80% 80.0% 1,015,156 1,014,923
    70% 70.1% 888,262 889,603
    60% 60.0% 761,367 761,232
    50% 50.0% 634,473 635,084
    40% 39.8% 507,578 505,380
    30% 30.1% 380,684 381,524
    20% 20.1% 253,789 255,517
    10% 9.8% 126,895 124,788
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M620-11' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,261,361
    Calibration 2     1,272,130
    Calibration 3     1,268,981
    ssj_ops@calibrated=1,270,556
    100% 99.6% 1,270,556 1,265,887
    90% 90.0% 1,143,500 1,143,383
    80% 80.1% 1,016,445 1,018,178
    70% 70.1% 889,389 890,352
    60% 60.1% 762,334 763,817
    50% 49.9% 635,278 634,225
    40% 40.0% 508,222 508,574
    30% 30.0% 381,167 380,999
    20% 19.9% 254,111 253,100
    10% 10.1% 127,056 128,045
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M620-12' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,258,527
    Calibration 2     1,267,610
    Calibration 3     1,265,588
    ssj_ops@calibrated=1,266,599
    100% 99.6% 1,266,599 1,260,916
    90% 89.7% 1,139,939 1,136,581
    80% 79.9% 1,013,279 1,011,832
    70% 69.9% 886,619 885,173
    60% 59.9% 759,959 758,070
    50% 49.8% 633,300 631,063
    40% 40.0% 506,640 506,741
    30% 30.0% 379,980 379,718
    20% 20.1% 253,320 254,069
    10% 10.0% 126,660 126,502
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M620-13' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,259,397
    Calibration 2     1,265,382
    Calibration 3     1,264,315
    ssj_ops@calibrated=1,264,848
    100% 99.8% 1,264,848 1,262,148
    90% 89.9% 1,138,364 1,137,649
    80% 80.1% 1,011,879 1,013,659
    70% 69.8% 885,394 883,318
    60% 60.1% 758,909 760,549
    50% 49.9% 632,424 631,271
    40% 39.9% 505,939 504,846
    30% 30.0% 379,455 379,885
    20% 19.9% 252,970 251,823
    10% 10.0% 126,485 125,939
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M620-14' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,261,069
    Calibration 2     1,268,344
    Calibration 3     1,271,890
    ssj_ops@calibrated=1,270,117
    100% 99.6% 1,270,117 1,265,197
    90% 89.6% 1,143,105 1,138,284
    80% 79.7% 1,016,094 1,012,910
    70% 69.7% 889,082 885,369
    60% 60.1% 762,070 763,741
    50% 49.9% 635,059 633,213
    40% 40.0% 508,047 508,659
    30% 30.1% 381,035 382,234
    20% 19.9% 254,023 253,198
    10% 9.9% 127,012 125,991
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M620-15' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,263,277
    Calibration 2     1,271,020
    Calibration 3     1,268,703
    ssj_ops@calibrated=1,269,861
    100% 99.6% 1,269,861 1,264,395
    90% 90.2% 1,142,875 1,145,381
    80% 79.8% 1,015,889 1,012,852
    70% 70.2% 888,903 891,385
    60% 60.1% 761,917 763,482
    50% 50.0% 634,931 634,510
    40% 40.1% 507,945 509,641
    30% 30.0% 380,958 380,758
    20% 20.0% 253,972 253,971
    10% 10.0% 126,986 126,719
    Active Idle   0 0
    Graph of results
    See the Host Performance Report for additional details.
    Host 'M620-16' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     1,258,581
    Calibration 2     1,263,631
    Calibration 3     1,262,354
    ssj_ops@calibrated=1,262,992
    100% 99.5% 1,262,992 1,256,255
    90% 90.2% 1,136,693 1,139,332
    80% 80.0% 1,010,394 1,010,253
    70% 70.1% 884,095 885,028
    60% 59.9% 757,795 755,946
    50% 49.9% 631,496 629,704
    40% 40.0% 505,197 505,124
    30% 30.1% 378,898 379,660
    20% 20.0% 252,598 252,442
    10% 10.0% 126,299 125,846
    Active Idle   0 0

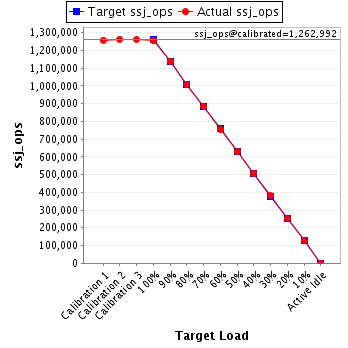

    Graph of results
    See the Host Performance Report for additional details.
