Dell Inc. PowerEdge M620 (Intel Xeon E5-2670, 2.6 GHz) ssj_ops@100% = 1,266,456
ssj_ops@100% per JVM = 79,154
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Mar 16, 2012
Hardware Availability: Mar-2012 Software Availability: Dec-2011 Publication: Apr 4, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,263,365
Calibration 2     1,273,640
Calibration 3     1,272,652
ssj_ops@calibrated=1,273,146
100% 99.5% 1,273,146 1,266,456
90% 89.9% 1,145,831 1,144,874
80% 79.8% 1,018,517 1,015,568
70% 70.0% 891,202 891,101
60% 60.1% 763,888 764,646
50% 50.0% 636,573 636,596
40% 40.0% 509,258 509,489
30% 30.0% 381,944 381,530
20% 20.0% 254,629 254,372
10% 9.9% 127,315 126,022
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M620
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M620 (Intel Xeon E5-2670, 2.6 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2670 2.60 GHz
CPU Characteristics: 8 Core, 2.60 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E-9 ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N DYW42
Disk Controller: Onboard PERC S110
# and type of Network Interface Cards (NICs) Installed: 1 x Onboard Intel X520-k
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver mode in OS (See Notes)
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -showversion -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.0.4
Management Firmware Version: iDRAC7 1.00 Build 73
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
  • Adjacent Cache Line Prefetch disabled
  • Hardware Prefetcher Disabled
  • DCU Streamer Prefetcher disabled
  • User Accessible USB Ports set to Disabled
  • CPU Power management set to System DBPM (DAPC)
  • Memory Speed set to 1067MHz
  • Turbo Boost Disabled
  • C1E Enabled
  • C States enabled
  • QPI speed set to 6.4 GT/s
  • Memory Patrol Scrub disabled
  • Memory refresh rate set to 1x
  • Memory Operating Voltage set to Auto
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    M620-03.001 78,894
    M620-03.002 79,355
    M620-03.003 79,453
    M620-03.004 79,198
    M620-03.005 79,485
    M620-03.006 79,192
    M620-03.007 79,715
    M620-03.008 80,394
    M620-03.009 78,777
    M620-03.010 79,099
    M620-03.011 79,717
    M620-03.012 78,817
    M620-03.013 78,362
    M620-03.014 78,423
    M620-03.015 79,041
    M620-03.016 78,535
    ssj_ops@100% 1,266,456
    ssj_ops@100% per JVM 79,154

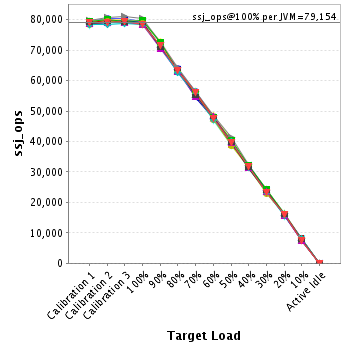

    Graph of per-instance results
    JVM 'M620-03.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,973
    Calibration 2     79,585
    Calibration 3     79,556
    ssj_ops@calibrated=79,570
    100% 99.1% 79,570 78,894
    90% 89.6% 71,613 71,256
    80% 79.3% 63,656 63,088
    70% 70.6% 55,699 56,195
    60% 60.2% 47,742 47,912
    50% 49.2% 39,785 39,128
    40% 40.3% 31,828 32,062
    30% 30.6% 23,871 24,375
    20% 20.2% 15,914 16,060
    10% 9.8% 7,957 7,837
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-03.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,344
    Calibration 2     80,563
    Calibration 3     80,464
    ssj_ops@calibrated=80,513
    100% 98.6% 80,513 79,355
    90% 90.0% 72,462 72,483
    80% 79.6% 64,411 64,073
    70% 70.2% 56,359 56,532
    60% 60.0% 48,308 48,330
    50% 49.6% 40,257 39,935
    40% 39.9% 32,205 32,156
    30% 30.2% 24,154 24,308
    20% 19.5% 16,103 15,662
    10% 10.1% 8,051 8,154
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-03.003' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,513
    Calibration 2     80,206
    Calibration 3     80,012
    ssj_ops@calibrated=80,109
    100% 99.2% 80,109 79,453
    90% 89.1% 72,098 71,356
    80% 79.0% 64,087 63,314
    70% 70.5% 56,076 56,492
    60% 59.3% 48,066 47,534
    50% 50.3% 40,055 40,258
    40% 39.9% 32,044 31,940
    30% 30.1% 24,033 24,144
    20% 20.3% 16,022 16,242
    10% 9.7% 8,011 7,768
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-03.004' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,810
    Calibration 2     79,998
    Calibration 3     79,924
    ssj_ops@calibrated=79,961
    100% 99.0% 79,961 79,198
    90% 91.2% 71,965 72,951
    80% 79.4% 63,969 63,459
    70% 69.9% 55,973 55,854
    60% 60.9% 47,977 48,669
    50% 50.8% 39,981 40,598
    40% 40.3% 31,984 32,223
    30% 30.3% 23,988 24,208
    20% 19.7% 15,992 15,753
    10% 10.2% 7,996 8,183
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-03.005' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,521
    Calibration 2     79,521
    Calibration 3     79,449
    ssj_ops@calibrated=79,485
    100% 100.0% 79,485 79,485
    90% 89.2% 71,537 70,898
    80% 79.6% 63,588 63,291
    70% 70.3% 55,640 55,904
    60% 59.4% 47,691 47,227
    50% 50.4% 39,743 40,094
    40% 40.1% 31,794 31,839
    30% 30.2% 23,846 24,019
    20% 19.9% 15,897 15,789
    10% 9.9% 7,949 7,874
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-03.006' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,164
    Calibration 2     79,154
    Calibration 3     78,791
    ssj_ops@calibrated=78,973
    100% 100.3% 78,973 79,192
    90% 89.4% 71,075 70,640
    80% 79.7% 63,178 62,924
    70% 70.1% 55,281 55,348
    60% 59.3% 47,384 46,867
    50% 49.0% 39,486 38,718
    40% 40.5% 31,589 32,008
    30% 30.3% 23,692 23,898
    20% 19.6% 15,795 15,453
    10% 10.4% 7,897 8,181
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-03.007' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,467
    Calibration 2     79,925
    Calibration 3     79,660
    ssj_ops@calibrated=79,792
    100% 99.9% 79,792 79,715
    90% 91.4% 71,813 72,970
    80% 80.5% 63,834 64,194
    70% 69.2% 55,855 55,182
    60% 60.0% 47,875 47,853
    50% 49.6% 39,896 39,581
    40% 39.7% 31,917 31,650
    30% 29.9% 23,938 23,842
    20% 19.8% 15,958 15,781
    10% 10.0% 7,979 8,010
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-03.008' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,717
    Calibration 2     80,617
    Calibration 3     81,125
    ssj_ops@calibrated=80,871
    100% 99.4% 80,871 80,394
    90% 89.8% 72,784 72,640
    80% 79.7% 64,697 64,447
    70% 69.6% 56,609 56,293
    60% 60.0% 48,522 48,494
    50% 51.1% 40,435 41,313
    40% 40.2% 32,348 32,485
    30% 29.5% 24,261 23,861
    20% 20.4% 16,174 16,485
    10% 10.0% 8,087 8,099
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-03.009' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,090
    Calibration 2     79,621
    Calibration 3     79,532
    ssj_ops@calibrated=79,577
    100% 99.0% 79,577 78,777
    90% 89.3% 71,619 71,055
    80% 79.8% 63,661 63,487
    70% 70.5% 55,704 56,134
    60% 60.4% 47,746 48,033
    50% 50.3% 39,788 40,000
    40% 40.1% 31,831 31,936
    30% 30.1% 23,873 23,989
    20% 20.0% 15,915 15,912
    10% 10.1% 7,958 8,068
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.

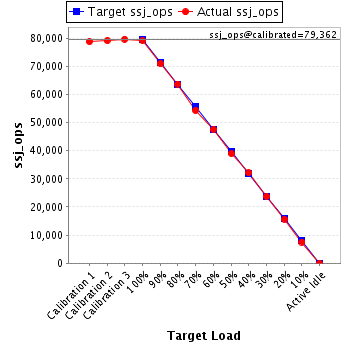

    JVM 'M620-03.010' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,735
    Calibration 2     79,102
    Calibration 3     79,621
    ssj_ops@calibrated=79,362
    100% 99.7% 79,362 79,099
    90% 89.4% 71,425 70,918
    80% 80.2% 63,489 63,677
    70% 68.5% 55,553 54,340
    60% 59.9% 47,617 47,560
    50% 49.1% 39,681 38,973
    40% 40.4% 31,745 32,078
    30% 30.0% 23,808 23,793
    20% 19.8% 15,872 15,683
    10% 9.5% 7,936 7,549
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-03.011' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,300
    Calibration 2     79,955
    Calibration 3     79,367
    ssj_ops@calibrated=79,661
    100% 100.1% 79,661 79,717
    90% 91.1% 71,695 72,570
    80% 79.7% 63,729 63,457
    70% 70.0% 55,763 55,739
    60% 60.2% 47,797 47,919
    50% 50.6% 39,831 40,280
    40% 40.2% 31,864 31,986
    30% 30.6% 23,898 24,344
    20% 20.1% 15,932 16,007
    10% 9.5% 7,966 7,592
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-03.012' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,470
    Calibration 2     79,289
    Calibration 3     79,078
    ssj_ops@calibrated=79,184
    100% 99.5% 79,184 78,817
    90% 89.7% 71,265 70,996
    80% 80.0% 63,347 63,351
    70% 69.9% 55,428 55,373
    60% 59.5% 47,510 47,130
    50% 48.8% 39,592 38,608
    40% 39.6% 31,673 31,364
    30% 29.1% 23,755 23,051
    20% 20.4% 15,837 16,117
    10% 9.9% 7,918 7,816
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-03.013' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,825
    Calibration 2     79,202
    Calibration 3     78,963
    ssj_ops@calibrated=79,083
    100% 99.1% 79,083 78,362
    90% 89.4% 71,174 70,669
    80% 79.8% 63,266 63,136
    70% 69.5% 55,358 54,948
    60% 61.1% 47,450 48,305
    50% 50.2% 39,541 39,695
    40% 39.7% 31,633 31,433
    30% 29.9% 23,725 23,614
    20% 20.0% 15,817 15,831
    10% 9.6% 7,908 7,616
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-03.014' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,505
    Calibration 2     78,526
    Calibration 3     78,763
    ssj_ops@calibrated=78,644
    100% 99.7% 78,644 78,423
    90% 90.4% 70,780 71,089
    80% 79.5% 62,915 62,539
    70% 70.7% 55,051 55,591
    60% 59.9% 47,187 47,107
    50% 51.1% 39,322 40,163
    40% 39.8% 31,458 31,305
    30% 29.5% 23,593 23,219
    20% 20.0% 15,729 15,755
    10% 10.1% 7,864 7,979
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-03.015' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,930
    Calibration 2     79,207
    Calibration 3     79,049
    ssj_ops@calibrated=79,128
    100% 99.9% 79,128 79,041
    90% 89.6% 71,215 70,881
    80% 80.8% 63,302 63,897
    70% 69.6% 55,390 55,058
    60% 60.7% 47,477 48,050
    50% 50.1% 39,564 39,662
    40% 39.4% 31,651 31,200
    30% 30.0% 23,738 23,705
    20% 20.1% 15,826 15,933
    10% 9.7% 7,913 7,708
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-03.016' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,001
    Calibration 2     79,170
    Calibration 3     79,297
    ssj_ops@calibrated=79,233
    100% 99.1% 79,233 78,535
    90% 90.2% 71,310 71,503
    80% 79.8% 63,387 63,232
    70% 70.8% 55,463 56,119
    60% 60.1% 47,540 47,658
    50% 50.0% 39,617 39,591
    40% 40.2% 31,693 31,825
    30% 29.2% 23,770 23,162
    20% 20.1% 15,847 15,909
    10% 9.6% 7,923 7,587
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
