Dell Inc. PowerEdge M620 (Intel Xeon E5-2670, 2.6 GHz) ssj_ops@100% = 1,260,916
ssj_ops@100% per JVM = 78,807
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Mar 16, 2012
Hardware Availability: Mar-2012 Software Availability: Dec-2011 Publication: Apr 4, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,258,527
Calibration 2     1,267,610
Calibration 3     1,265,588
ssj_ops@calibrated=1,266,599
100% 99.6% 1,266,599 1,260,916
90% 89.7% 1,139,939 1,136,581
80% 79.9% 1,013,279 1,011,832
70% 69.9% 886,619 885,173
60% 59.9% 759,959 758,070
50% 49.8% 633,300 631,063
40% 40.0% 506,640 506,741
30% 30.0% 379,980 379,718
20% 20.1% 253,320 254,069
10% 10.0% 126,660 126,502
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M620
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M620 (Intel Xeon E5-2670, 2.6 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2670 2.60 GHz
CPU Characteristics: 8 Core, 2.60 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E-9 ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N DYW42
Disk Controller: Onboard PERC S110
# and type of Network Interface Cards (NICs) Installed: 1 x Onboard Intel X520-k
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver mode in OS (See Notes)
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -showversion -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.0.4
Management Firmware Version: iDRAC7 1.00 Build 73
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
  • Adjacent Cache Line Prefetch disabled
  • Hardware Prefetcher Disabled
  • DCU Streamer Prefetcher disabled
  • User Accessible USB Ports set to Disabled
  • CPU Power management set to System DBPM (DAPC)
  • Memory Speed set to 1067MHz
  • Turbo Boost Disabled
  • C1E Enabled
  • C States enabled
  • QPI speed set to 6.4 GT/s
  • Memory Patrol Scrub disabled
  • Memory refresh rate set to 1x
  • Memory Operating Voltage set to Auto
  • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    M620-12.001 79,266
    M620-12.002 79,621
    M620-12.003 79,153
    M620-12.004 78,973
    M620-12.005 78,392
    M620-12.006 78,646
    M620-12.007 77,445
    M620-12.008 78,031
    M620-12.009 79,536
    M620-12.010 79,289
    M620-12.011 78,574
    M620-12.012 78,489
    M620-12.013 78,740
    M620-12.014 78,805
    M620-12.015 79,075
    M620-12.016 78,881
    ssj_ops@100% 1,260,916
    ssj_ops@100% per JVM 78,807
    Graph of per-instance results
    JVM 'M620-12.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     77,930
    Calibration 2     79,281
    Calibration 3     79,350
    ssj_ops@calibrated=79,315
    100% 99.9% 79,315 79,266
    90% 90.5% 71,384 71,753
    80% 79.7% 63,452 63,217
    70% 70.6% 55,521 55,990
    60% 60.5% 47,589 48,012
    50% 50.6% 39,658 40,155
    40% 39.9% 31,726 31,669
    30% 30.4% 23,795 24,115
    20% 20.2% 15,863 16,036
    10% 10.3% 7,932 8,162
    Active Idle   0 0
    Graph of results
    JVM 'M620-12.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,045
    Calibration 2     79,540
    Calibration 3     79,521
    ssj_ops@calibrated=79,530
    100% 100.1% 79,530 79,621
    90% 88.9% 71,577 70,692
    80% 79.8% 63,624 63,492
    70% 69.1% 55,671 54,953
    60% 60.4% 47,718 47,999
    50% 50.4% 39,765 40,102
    40% 39.7% 31,812 31,566
    30% 30.0% 23,859 23,849
    20% 20.1% 15,906 15,956
    10% 10.2% 7,953 8,125
    Active Idle   0 0
    Graph of results
    JVM 'M620-12.003' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,221
    Calibration 2     78,965
    Calibration 3     79,036
    ssj_ops@calibrated=79,001
    100% 100.2% 79,001 79,153
    90% 89.0% 71,101 70,338
    80% 79.5% 63,201 62,813
    70% 70.9% 55,301 55,994
    60% 59.7% 47,401 47,159
    50% 49.8% 39,500 39,352
    40% 39.6% 31,600 31,317
    30% 29.7% 23,700 23,475
    20% 20.3% 15,800 16,045
    10% 10.0% 7,900 7,925
    Active Idle   0 0
    Graph of results
    JVM 'M620-12.004' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,220
    Calibration 2     79,907
    Calibration 3     79,749
    ssj_ops@calibrated=79,828
    100% 98.9% 79,828 78,973
    90% 89.9% 71,845 71,780
    80% 80.1% 63,862 63,914
    70% 70.0% 55,880 55,858
    60% 60.5% 47,897 48,283
    50% 50.1% 39,914 39,971
    40% 40.6% 31,931 32,423
    30% 29.4% 23,948 23,501
    20% 20.1% 15,966 16,058
    10% 9.6% 7,983 7,675
    Active Idle   0 0
    Graph of results

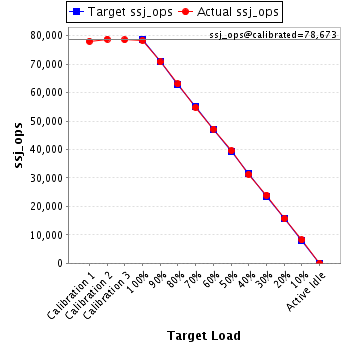

    JVM 'M620-12.005' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,053
    Calibration 2     78,796
    Calibration 3     78,550
    ssj_ops@calibrated=78,673
    100% 99.6% 78,673 78,392
    90% 90.0% 70,806 70,771
    80% 80.1% 62,939 63,050
    70% 69.7% 55,071 54,815
    60% 60.0% 47,204 47,196
    50% 50.3% 39,337 39,564
    40% 39.7% 31,469 31,272
    30% 30.4% 23,602 23,943
    20% 20.0% 15,735 15,701
    10% 10.4% 7,867 8,216
    Active Idle   0 0
    Graph of results
    JVM 'M620-12.006' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,647
    Calibration 2     78,864
    Calibration 3     78,947
    ssj_ops@calibrated=78,906
    100% 99.7% 78,906 78,646
    90% 90.9% 71,015 71,713
    80% 79.9% 63,124 63,014
    70% 69.6% 55,234 54,947
    60% 60.2% 47,343 47,516
    50% 51.2% 39,453 40,387
    40% 40.7% 31,562 32,127
    30% 29.8% 23,672 23,488
    20% 20.2% 15,781 15,920
    10% 10.3% 7,891 8,162
    Active Idle   0 0
    Graph of results
    JVM 'M620-12.007' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,532
    Calibration 2     78,639
    Calibration 3     78,296
    ssj_ops@calibrated=78,467
    100% 98.7% 78,467 77,445
    90% 88.3% 70,621 69,299
    80% 80.4% 62,774 63,105
    70% 69.9% 54,927 54,854
    60% 59.8% 47,080 46,928
    50% 48.9% 39,234 38,388
    40% 39.7% 31,387 31,165
    30% 30.0% 23,540 23,505
    20% 19.6% 15,693 15,391
    10% 10.2% 7,847 7,979
    Active Idle   0 0
    Graph of results
    JVM 'M620-12.008' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,006
    Calibration 2     78,929
    Calibration 3     78,477
    ssj_ops@calibrated=78,703
    100% 99.1% 78,703 78,031
    90% 89.7% 70,832 70,558
    80% 79.1% 62,962 62,285
    70% 69.1% 55,092 54,403
    60% 58.8% 47,222 46,263
    50% 49.6% 39,351 39,022
    40% 39.3% 31,481 30,943
    30% 29.7% 23,611 23,371
    20% 19.5% 15,741 15,382
    10% 9.9% 7,870 7,807
    Active Idle   0 0
    Graph of results
    JVM 'M620-12.009' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,573
    Calibration 2     79,756
    Calibration 3     79,781
    ssj_ops@calibrated=79,769
    100% 99.7% 79,769 79,536
    90% 90.1% 71,792 71,904
    80% 80.6% 63,815 64,314
    70% 69.1% 55,838 55,104
    60% 60.1% 47,861 47,957
    50% 49.4% 39,884 39,431
    40% 40.0% 31,907 31,890
    30% 30.0% 23,931 23,953
    20% 20.5% 15,954 16,319
    10% 9.7% 7,977 7,704
    Active Idle   0 0
    Graph of results
    JVM 'M620-12.010' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,104
    Calibration 2     79,937
    Calibration 3     79,270
    ssj_ops@calibrated=79,604
    100% 99.6% 79,604 79,289
    90% 90.4% 71,643 72,000
    80% 80.2% 63,683 63,866
    70% 70.4% 55,723 56,016
    60% 60.2% 47,762 47,900
    50% 48.7% 39,802 38,742
    40% 40.0% 31,841 31,843
    30% 30.6% 23,881 24,386
    20% 19.9% 15,921 15,870
    10% 9.7% 7,960 7,684
    Active Idle   0 0
    Graph of results
    JVM 'M620-12.011' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,687
    Calibration 2     79,293
    Calibration 3     78,732
    ssj_ops@calibrated=79,012
    100% 99.4% 79,012 78,574
    90% 89.1% 71,111 70,379
    80% 79.4% 63,210 62,765
    70% 70.2% 55,309 55,432
    60% 59.9% 47,407 47,362
    50% 50.3% 39,506 39,729
    40% 40.2% 31,605 31,769
    30% 29.9% 23,704 23,614
    20% 19.8% 15,802 15,676
    10% 9.9% 7,901 7,829
    Active Idle   0 0
    Graph of results
    JVM 'M620-12.012' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,470
    Calibration 2     78,900
    Calibration 3     78,570
    ssj_ops@calibrated=78,735
    100% 99.7% 78,735 78,489
    90% 89.8% 70,862 70,699
    80% 79.9% 62,988 62,877
    70% 69.6% 55,115 54,836
    60% 60.3% 47,241 47,508
    50% 49.1% 39,368 38,673
    40% 40.0% 31,494 31,533
    30% 30.1% 23,621 23,696
    20% 20.2% 15,747 15,937
    10% 9.8% 7,874 7,737
    Active Idle   0 0
    Graph of results
    JVM 'M620-12.013' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,115
    Calibration 2     78,482
    Calibration 3     79,106
    ssj_ops@calibrated=78,794
    100% 99.9% 78,794 78,740
    90% 90.6% 70,915 71,400
    80% 79.8% 63,035 62,877
    70% 70.4% 55,156 55,479
    60% 58.4% 47,276 46,024
    50% 48.6% 39,397 38,266
    40% 40.4% 31,518 31,833
    30% 29.9% 23,638 23,534
    20% 19.9% 15,759 15,712
    10% 10.3% 7,879 8,082
    Active Idle   0 0
    Graph of results
    JVM 'M620-12.014' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,505
    Calibration 2     79,451
    Calibration 3     78,821
    ssj_ops@calibrated=79,136
    100% 99.6% 79,136 78,805
    90% 90.0% 71,222 71,242
    80% 80.5% 63,309 63,703
    70% 70.3% 55,395 55,641
    60% 60.3% 47,482 47,685
    50% 50.4% 39,568 39,858
    40% 40.2% 31,654 31,822
    30% 29.4% 23,741 23,294
    20% 20.2% 15,827 15,972
    10% 9.8% 7,914 7,766
    Active Idle   0 0
    Graph of results
    JVM 'M620-12.015' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,715
    Calibration 2     79,130
    Calibration 3     79,147
    ssj_ops@calibrated=79,138
    100% 99.9% 79,138 79,075
    90% 88.5% 71,224 70,016
    80% 79.8% 63,311 63,151
    70% 69.5% 55,397 54,974
    60% 58.7% 47,483 46,459
    50% 49.8% 39,569 39,383
    40% 39.2% 31,655 31,045
    30% 30.3% 23,741 23,949
    20% 20.0% 15,828 15,824
    10% 10.0% 7,914 7,887
    Active Idle   0 0
    Graph of results
    JVM 'M620-12.016' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,705
    Calibration 2     79,741
    Calibration 3     80,234
    ssj_ops@calibrated=79,988
    100% 98.6% 79,988 78,881
    90% 90.1% 71,989 72,037
    80% 79.2% 63,990 63,388
    70% 69.9% 55,991 55,878
    60% 59.8% 47,993 47,819
    50% 50.1% 39,994 40,042
    40% 40.7% 31,995 32,523
    30% 30.1% 23,996 24,044
    20% 20.3% 15,998 16,270
    10% 9.7% 7,999 7,762
    Active Idle   0 0
    Graph of results
