Dell Inc. PowerEdge M620 (Intel Xeon E5-2670, 2.6 GHz) ssj_ops@100% = 1,264,644
ssj_ops@100% per JVM = 79,040
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Mar 16, 2012
Hardware Availability: Mar-2012 Software Availability: Dec-2011 Publication: Apr 4, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,262,185
Calibration 2     1,272,288
Calibration 3     1,269,797
ssj_ops@calibrated=1,271,042
100% 99.5% 1,271,042 1,264,644
90% 90.0% 1,143,938 1,143,737
80% 79.9% 1,016,834 1,015,068
70% 70.0% 889,729 890,008
60% 60.0% 762,625 762,264
50% 50.0% 635,521 635,497
40% 39.9% 508,417 507,342
30% 30.2% 381,313 383,342
20% 19.9% 254,208 253,521
10% 9.9% 127,104 126,215
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M620
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M620 (Intel Xeon E5-2670, 2.6 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2670 2.60 GHz
CPU Characteristics: 8 Core, 2.60 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E-9 ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N DYW42
Disk Controller: Onboard PERC S110
# and type of Network Interface Cards (NICs) Installed: 1 x Onboard Intel X520-k
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver mode in OS (See Notes)
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -showversion -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.0.4
Management Firmware Version: iDRAC7 1.00 Build 73
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
  • Adjacent Cache Line Prefetch disabled
  • Hardware Prefetcher Disabled
  • DCU Streamer Prefetcher disabled
  • User Accessible USB Ports set to Disabled
  • CPU Power management set to System DBPM (DAPC)
  • Memory Speed set to 1067MHz
  • Turbo Boost Disabled
  • C1E Enabled
  • C States enabled
  • QPI speed set to 6.4 GT/s
  • Memory Patrol Scrub disabled
  • Memory refresh rate set to 1x
  • Memory Operating Voltage set to Auto
  • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    M620-09.001 79,116
    M620-09.002 79,552
    M620-09.003 78,937
    M620-09.004 79,509
    M620-09.005 78,437
    M620-09.006 79,556
    M620-09.007 78,764
    M620-09.008 78,670
    M620-09.009 78,688
    M620-09.010 78,325
    M620-09.011 78,674
    M620-09.012 78,845
    M620-09.013 78,707
    M620-09.014 79,014
    M620-09.015 80,498
    M620-09.016 79,352
    ssj_ops@100% 1,264,644
    ssj_ops@100% per JVM 79,040

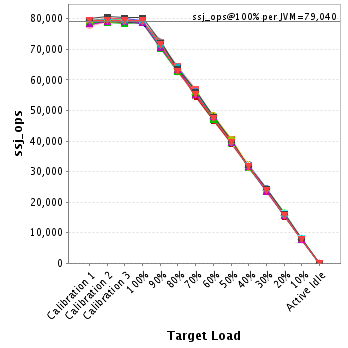

    Graph of per-instance results
    JVM 'M620-09.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,522
    Calibration 2     80,233
    Calibration 3     80,255
    ssj_ops@calibrated=80,244
    100% 98.6% 80,244 79,116
    90% 90.1% 72,220 72,286
    80% 80.4% 64,195 64,490
    70% 70.9% 56,171 56,909
    60% 59.3% 48,146 47,597
    50% 50.4% 40,122 40,403
    40% 40.0% 32,098 32,089
    30% 30.3% 24,073 24,300
    20% 20.2% 16,049 16,197
    10% 9.9% 8,024 7,979
    Active Idle   0 0
    Graph of results
    JVM 'M620-09.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,408
    Calibration 2     79,602
    Calibration 3     79,934
    ssj_ops@calibrated=79,768
    100% 99.7% 79,768 79,552
    90% 89.9% 71,791 71,694
    80% 80.0% 63,814 63,797
    70% 70.6% 55,837 56,290
    60% 60.4% 47,861 48,154
    50% 49.6% 39,884 39,599
    40% 40.4% 31,907 32,226
    30% 30.6% 23,930 24,377
    20% 19.8% 15,954 15,816
    10% 10.0% 7,977 7,941
    Active Idle   0 0
    Graph of results
    JVM 'M620-09.003' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,642
    Calibration 2     79,540
    Calibration 3     79,625
    ssj_ops@calibrated=79,582
    100% 99.2% 79,582 78,937
    90% 90.2% 71,624 71,746
    80% 79.2% 63,666 63,045
    70% 70.1% 55,708 55,793
    60% 59.5% 47,749 47,364
    50% 49.1% 39,791 39,077
    40% 39.8% 31,833 31,647
    30% 30.4% 23,875 24,211
    20% 21.0% 15,916 16,691
    10% 9.8% 7,958 7,766
    Active Idle   0 0
    Graph of results
    JVM 'M620-09.004' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,798
    Calibration 2     79,737
    Calibration 3     79,275
    ssj_ops@calibrated=79,506
    100% 100.0% 79,506 79,509
    90% 90.1% 71,555 71,616
    80% 79.5% 63,605 63,173
    70% 69.5% 55,654 55,219
    60% 59.1% 47,703 46,964
    50% 50.4% 39,753 40,075
    40% 40.5% 31,802 32,225
    30% 29.7% 23,852 23,644
    20% 20.1% 15,901 16,013
    10% 10.3% 7,951 8,150
    Active Idle   0 0
    Graph of results
    JVM 'M620-09.005' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     77,662
    Calibration 2     79,060
    Calibration 3     78,712
    ssj_ops@calibrated=78,886
    100% 99.4% 78,886 78,437
    90% 89.3% 70,998 70,454
    80% 79.5% 63,109 62,699
    70% 71.0% 55,220 55,993
    60% 60.0% 47,332 47,311
    50% 50.4% 39,443 39,796
    40% 40.2% 31,554 31,714
    30% 29.9% 23,666 23,561
    20% 20.0% 15,777 15,755
    10% 9.7% 7,889 7,637
    Active Idle   0 0
    Graph of results
    JVM 'M620-09.006' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,041
    Calibration 2     79,519
    Calibration 3     79,519
    ssj_ops@calibrated=79,519
    100% 100.0% 79,519 79,556
    90% 90.0% 71,567 71,587
    80% 79.5% 63,615 63,202
    70% 69.4% 55,663 55,180
    60% 60.3% 47,711 47,989
    50% 50.2% 39,759 39,922
    40% 39.5% 31,808 31,414
    30% 29.4% 23,856 23,378
    20% 20.3% 15,904 16,149
    10% 10.0% 7,952 7,949
    Active Idle   0 0
    Graph of results
    JVM 'M620-09.007' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     77,442
    Calibration 2     79,215
    Calibration 3     79,123
    ssj_ops@calibrated=79,169
    100% 99.5% 79,169 78,764
    90% 89.2% 71,252 70,589
    80% 79.6% 63,335 63,054
    70% 69.5% 55,418 55,026
    60% 60.0% 47,501 47,491
    50% 49.3% 39,584 38,997
    40% 39.9% 31,667 31,611
    30% 30.9% 23,751 24,432
    20% 19.8% 15,834 15,701
    10% 9.7% 7,917 7,662
    Active Idle   0 0
    Graph of results
    JVM 'M620-09.008' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,813
    Calibration 2     79,532
    Calibration 3     79,548
    ssj_ops@calibrated=79,540
    100% 98.9% 79,540 78,670
    90% 91.5% 71,586 72,772
    80% 79.8% 63,632 63,460
    70% 69.1% 55,678 54,961
    60% 60.8% 47,724 48,336
    50% 49.7% 39,770 39,568
    40% 39.9% 31,816 31,767
    30% 30.6% 23,862 24,367
    20% 19.6% 15,908 15,603
    10% 9.8% 7,954 7,795
    Active Idle   0 0
    Graph of results

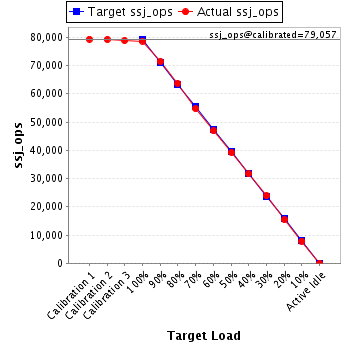

    JVM 'M620-09.009' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,340
    Calibration 2     79,244
    Calibration 3     78,870
    ssj_ops@calibrated=79,057
    100% 99.5% 79,057 78,688
    90% 90.4% 71,151 71,488
    80% 80.6% 63,245 63,686
    70% 69.2% 55,340 54,698
    60% 59.3% 47,434 46,873
    50% 49.6% 39,528 39,248
    40% 40.0% 31,623 31,631
    30% 30.2% 23,717 23,873
    20% 19.5% 15,811 15,414
    10% 9.9% 7,906 7,837
    Active Idle   0 0
    Graph of results
    JVM 'M620-09.010' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,579
    Calibration 2     79,384
    Calibration 3     78,992
    ssj_ops@calibrated=79,188
    100% 98.9% 79,188 78,325
    90% 90.3% 71,269 71,476
    80% 80.6% 63,350 63,791
    70% 69.7% 55,432 55,210
    60% 59.8% 47,513 47,380
    50% 50.2% 39,594 39,726
    40% 39.6% 31,675 31,346
    30% 30.0% 23,756 23,775
    20% 19.6% 15,838 15,486
    10% 9.9% 7,919 7,862
    Active Idle   0 0
    Graph of results
    JVM 'M620-09.011' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,660
    Calibration 2     78,871
    Calibration 3     78,391
    ssj_ops@calibrated=78,631
    100% 100.1% 78,631 78,674
    90% 89.3% 70,768 70,239
    80% 79.9% 62,905 62,811
    70% 70.6% 55,042 55,537
    60% 60.0% 47,179 47,179
    50% 50.9% 39,315 40,014
    40% 40.0% 31,452 31,483
    30% 30.3% 23,589 23,823
    20% 19.8% 15,726 15,595
    10% 10.1% 7,863 7,908
    Active Idle   0 0
    Graph of results
    JVM 'M620-09.012' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,092
    Calibration 2     79,213
    Calibration 3     79,368
    ssj_ops@calibrated=79,291
    100% 99.4% 79,291 78,845
    90% 90.8% 71,362 71,999
    80% 79.9% 63,432 63,329
    70% 70.3% 55,503 55,772
    60% 61.1% 47,574 48,410
    50% 50.9% 39,645 40,358
    40% 39.5% 31,716 31,305
    30% 29.9% 23,787 23,673
    20% 19.9% 15,858 15,762
    10% 9.8% 7,929 7,810
    Active Idle   0 0
    Graph of results
    JVM 'M620-09.013' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,295
    Calibration 2     79,078
    Calibration 3     79,144
    ssj_ops@calibrated=79,111
    100% 99.5% 79,111 78,707
    90% 89.1% 71,200 70,518
    80% 80.2% 63,289 63,484
    70% 69.8% 55,377 55,244
    60% 60.7% 47,466 47,988
    50% 49.9% 39,555 39,505
    40% 40.0% 31,644 31,652
    30% 29.8% 23,733 23,588
    20% 19.7% 15,822 15,607
    10% 9.9% 7,911 7,799
    Active Idle   0 0
    Graph of results
    JVM 'M620-09.014' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,487
    Calibration 2     79,810
    Calibration 3     79,170
    ssj_ops@calibrated=79,490
    100% 99.4% 79,490 79,014
    90% 89.7% 71,541 71,315
    80% 80.9% 63,592 64,316
    70% 70.9% 55,643 56,345
    60% 60.1% 47,694 47,804
    50% 49.7% 39,745 39,520
    40% 40.0% 31,796 31,778
    30% 30.4% 23,847 24,165
    20% 19.7% 15,898 15,670
    10% 10.3% 7,949 8,187
    Active Idle   0 0
    Graph of results
    JVM 'M620-09.015' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,971
    Calibration 2     80,800
    Calibration 3     80,449
    ssj_ops@calibrated=80,625
    100% 99.8% 80,625 80,498
    90% 89.9% 72,562 72,443
    80% 79.2% 64,500 63,833
    70% 70.1% 56,437 56,504
    60% 59.6% 48,375 48,035
    50% 49.7% 40,312 40,084
    40% 39.3% 32,250 31,715
    30% 30.4% 24,187 24,492
    20% 20.3% 16,125 16,364
    10% 10.0% 8,062 8,091
    Active Idle   0 0
    Graph of results
    JVM 'M620-09.016' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,433
    Calibration 2     79,451
    Calibration 3     79,423
    ssj_ops@calibrated=79,437
    100% 99.9% 79,437 79,352
    90% 90.0% 71,493 71,515
    80% 79.2% 63,549 62,895
    70% 69.6% 55,606 55,327
    60% 59.7% 47,662 47,389
    50% 49.9% 39,718 39,604
    40% 40.0% 31,775 31,739
    30% 29.8% 23,831 23,681
    20% 19.8% 15,887 15,699
    10% 9.9% 7,944 7,841
    Active Idle   0 0
    Graph of results
