Dell Inc. PowerEdge M620 (Intel Xeon E5-2670, 2.6 GHz) ssj_ops@100% = 1,262,148
ssj_ops@100% per JVM = 78,884
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Mar 16, 2012
Hardware Availability: Mar-2012 Software Availability: Dec-2011 Publication: Apr 4, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,259,397
Calibration 2     1,265,382
Calibration 3     1,264,315
ssj_ops@calibrated=1,264,848
100% 99.8% 1,264,848 1,262,148
90% 89.9% 1,138,364 1,137,649
80% 80.1% 1,011,879 1,013,659
70% 69.8% 885,394 883,318
60% 60.1% 758,909 760,549
50% 49.9% 632,424 631,271
40% 39.9% 505,939 504,846
30% 30.0% 379,455 379,885
20% 19.9% 252,970 251,823
10% 10.0% 126,485 125,939
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: M620
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M620 (Intel Xeon E5-2670, 2.6 GHz)
Form Factor: Blade
CPU Name: Intel Xeon E5-2670 2.60 GHz
CPU Characteristics: 8 Core, 2.60 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E-9 ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 100 GB 2.5" SATA SSD, Dell P/N DYW42
Disk Controller: Onboard PERC S110
# and type of Network Interface Cards (NICs) Installed: 1 x Onboard Intel X520-k
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver mode in OS (See Notes)
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -showversion -Xmx1024m -Xms1024m -Xmn853m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [3, C, 30, C0, 300, C00, 3000, C000, 30000, C0000, 300000, C00000, 3000000, C0000000, 30000000, C0000000]
JVM Instances: 16
JVM Initial Heap (MB): 1024
JVM Maximum Heap (MB): 1024
JVM Address Bits: 64
Boot Firmware Version: 1.0.4
Management Firmware Version: iDRAC7 1.00 Build 73
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
  • Adjacent Cache Line Prefetch disabled
  • Hardware Prefetcher Disabled
  • DCU Streamer Prefetcher disabled
  • User Accessible USB Ports set to Disabled
  • CPU Power management set to System DBPM (DAPC)
  • Memory Speed set to 1067MHz
  • Turbo Boost Disabled
  • C1E Enabled
  • C States enabled
  • QPI speed set to 6.4 GT/s
  • Memory Patrol Scrub disabled
  • Memory refresh rate set to 1x
  • Memory Operating Voltage set to Auto
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    M620-13.001 78,645
    M620-13.002 79,681
    M620-13.003 78,365
    M620-13.004 79,084
    M620-13.005 78,104
    M620-13.006 79,309
    M620-13.007 79,012
    M620-13.008 77,858
    M620-13.009 79,673
    M620-13.010 79,509
    M620-13.011 79,242
    M620-13.012 78,569
    M620-13.013 78,356
    M620-13.014 78,321
    M620-13.015 78,804
    M620-13.016 79,618
    ssj_ops@100% 1,262,148
    ssj_ops@100% per JVM 78,884

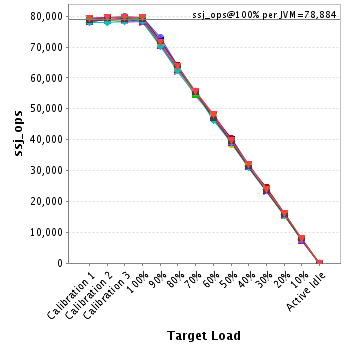

    Graph of per-instance results
    JVM 'M620-13.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,974
    Calibration 2     79,403
    Calibration 3     79,304
    ssj_ops@calibrated=79,354
    100% 99.1% 79,354 78,645
    90% 90.2% 71,418 71,553
    80% 80.3% 63,483 63,752
    70% 70.1% 55,547 55,615
    60% 60.8% 47,612 48,253
    50% 50.0% 39,677 39,666
    40% 40.3% 31,741 31,969
    30% 30.4% 23,806 24,113
    20% 19.4% 15,871 15,382
    10% 10.1% 7,935 8,054
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-13.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,373
    Calibration 2     79,554
    Calibration 3     79,934
    ssj_ops@calibrated=79,744
    100% 99.9% 79,744 79,681
    90% 91.5% 71,769 72,933
    80% 80.3% 63,795 64,062
    70% 69.3% 55,821 55,225
    60% 58.6% 47,846 46,759
    50% 50.7% 39,872 40,405
    40% 40.2% 31,897 32,060
    30% 30.2% 23,923 24,105
    20% 20.3% 15,949 16,178
    10% 10.1% 7,974 8,083
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-13.003' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,145
    Calibration 2     79,037
    Calibration 3     79,071
    ssj_ops@calibrated=79,054
    100% 99.1% 79,054 78,365
    90% 89.8% 71,148 71,023
    80% 81.1% 63,243 64,125
    70% 70.4% 55,338 55,627
    60% 60.2% 47,432 47,561
    50% 49.4% 39,527 39,023
    40% 40.0% 31,622 31,631
    30% 30.0% 23,716 23,732
    20% 20.0% 15,811 15,778
    10% 10.0% 7,905 7,907
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-13.004' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,627
    Calibration 2     79,128
    Calibration 3     79,178
    ssj_ops@calibrated=79,153
    100% 99.9% 79,153 79,084
    90% 88.5% 71,238 70,037
    80% 79.8% 63,322 63,131
    70% 70.0% 55,407 55,372
    60% 60.3% 47,492 47,765
    50% 49.5% 39,577 39,186
    40% 39.4% 31,661 31,200
    30% 30.3% 23,746 23,988
    20% 19.7% 15,831 15,593
    10% 10.1% 7,915 7,962
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-13.005' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,665
    Calibration 2     78,920
    Calibration 3     78,046
    ssj_ops@calibrated=78,483
    100% 99.5% 78,483 78,104
    90% 90.1% 70,635 70,715
    80% 80.7% 62,787 63,367
    70% 68.9% 54,938 54,092
    60% 61.0% 47,090 47,862
    50% 50.2% 39,242 39,403
    40% 40.2% 31,393 31,516
    30% 30.1% 23,545 23,640
    20% 20.1% 15,697 15,753
    10% 9.8% 7,848 7,712
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-13.006' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,788
    Calibration 2     79,294
    Calibration 3     78,781
    ssj_ops@calibrated=79,037
    100% 100.3% 79,037 79,309
    90% 89.7% 71,134 70,932
    80% 80.0% 63,230 63,264
    70% 70.4% 55,326 55,673
    60% 60.4% 47,422 47,763
    50% 49.6% 39,519 39,208
    40% 40.0% 31,615 31,633
    30% 29.6% 23,711 23,423
    20% 19.7% 15,807 15,588
    10% 10.2% 7,904 8,041
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.

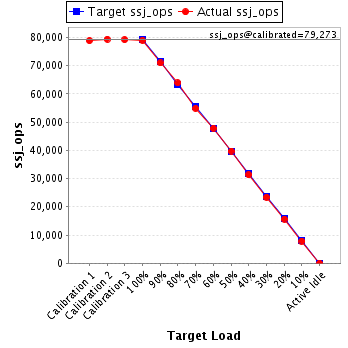

    JVM 'M620-13.007' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,821
    Calibration 2     79,385
    Calibration 3     79,161
    ssj_ops@calibrated=79,273
    100% 99.7% 79,273 79,012
    90% 89.5% 71,346 70,944
    80% 80.6% 63,418 63,858
    70% 69.3% 55,491 54,922
    60% 60.4% 47,564 47,880
    50% 50.2% 39,636 39,768
    40% 39.5% 31,709 31,331
    30% 29.6% 23,782 23,441
    20% 19.8% 15,855 15,670
    10% 9.9% 7,927 7,870
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-13.008' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,276
    Calibration 2     78,954
    Calibration 3     78,958
    ssj_ops@calibrated=78,956
    100% 98.6% 78,956 77,858
    90% 89.9% 71,061 70,974
    80% 78.8% 63,165 62,198
    70% 69.4% 55,269 54,772
    60% 60.2% 47,374 47,511
    50% 49.8% 39,478 39,332
    40% 40.6% 31,582 32,090
    30% 29.3% 23,687 23,113
    20% 19.8% 15,791 15,599
    10% 10.1% 7,896 8,000
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-13.009' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,915
    Calibration 2     79,628
    Calibration 3     79,289
    ssj_ops@calibrated=79,458
    100% 100.3% 79,458 79,673
    90% 90.2% 71,513 71,687
    80% 80.7% 63,567 64,102
    70% 69.4% 55,621 55,117
    60% 59.7% 47,675 47,398
    50% 50.8% 39,729 40,371
    40% 39.5% 31,783 31,387
    30% 31.0% 23,838 24,637
    20% 20.1% 15,892 15,961
    10% 9.8% 7,946 7,766
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-13.010' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,237
    Calibration 2     79,411
    Calibration 3     79,615
    ssj_ops@calibrated=79,513
    100% 100.0% 79,513 79,509
    90% 90.7% 71,562 72,111
    80% 80.1% 63,610 63,651
    70% 69.6% 55,659 55,305
    60% 60.1% 47,708 47,761
    50% 50.4% 39,757 40,105
    40% 39.2% 31,805 31,178
    30% 30.2% 23,854 24,032
    20% 19.8% 15,903 15,774
    10% 9.7% 7,951 7,702
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-13.011' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,461
    Calibration 2     78,702
    Calibration 3     78,882
    ssj_ops@calibrated=78,792
    100% 100.6% 78,792 79,242
    90% 89.5% 70,913 70,503
    80% 80.1% 63,033 63,150
    70% 69.5% 55,154 54,779
    60% 60.2% 47,275 47,415
    50% 49.7% 39,396 39,183
    40% 40.4% 31,517 31,796
    30% 30.3% 23,638 23,880
    20% 20.3% 15,758 16,028
    10% 10.4% 7,879 8,174
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-13.012' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,217
    Calibration 2     78,885
    Calibration 3     78,449
    ssj_ops@calibrated=78,667
    100% 99.9% 78,667 78,569
    90% 89.5% 70,800 70,380
    80% 79.2% 62,934 62,322
    70% 70.2% 55,067 55,255
    60% 60.7% 47,200 47,712
    50% 49.0% 39,334 38,585
    40% 40.2% 31,467 31,592
    30% 30.0% 23,600 23,605
    20% 19.8% 15,733 15,541
    10% 9.9% 7,867 7,758
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-13.013' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,230
    Calibration 2     78,769
    Calibration 3     78,803
    ssj_ops@calibrated=78,786
    100% 99.5% 78,786 78,356
    90% 89.5% 70,908 70,483
    80% 79.6% 63,029 62,724
    70% 70.6% 55,151 55,644
    60% 60.6% 47,272 47,759
    50% 49.5% 39,393 39,006
    40% 39.9% 31,515 31,434
    30% 29.7% 23,636 23,431
    20% 20.0% 15,757 15,732
    10% 9.5% 7,879 7,495
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-13.014' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     77,913
    Calibration 2     77,838
    Calibration 3     78,271
    ssj_ops@calibrated=78,055
    100% 100.3% 78,055 78,321
    90% 89.9% 70,249 70,174
    80% 79.9% 62,444 62,362
    70% 70.7% 54,638 55,160
    60% 59.2% 46,833 46,207
    50% 50.1% 39,027 39,106
    40% 39.6% 31,222 30,918
    30% 30.3% 23,416 23,615
    20% 20.0% 15,611 15,605
    10% 10.0% 7,805 7,779
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-13.015' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     78,359
    Calibration 2     79,016
    Calibration 3     78,883
    ssj_ops@calibrated=78,949
    100% 99.8% 78,949 78,804
    90% 90.7% 71,054 71,585
    80% 80.8% 63,159 63,826
    70% 70.0% 55,264 55,243
    60% 59.3% 47,370 46,811
    50% 49.7% 39,475 39,233
    40% 39.3% 31,580 31,010
    30% 29.6% 23,685 23,340
    20% 19.8% 15,790 15,599
    10% 9.8% 7,895 7,770
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'M620-13.016' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     79,396
    Calibration 2     79,457
    Calibration 3     79,690
    ssj_ops@calibrated=79,573
    100% 100.1% 79,573 79,618
    90% 90.0% 71,616 71,616
    80% 80.1% 63,659 63,767
    70% 69.8% 55,701 55,518
    60% 60.5% 47,744 48,132
    50% 49.9% 39,787 39,692
    40% 40.3% 31,829 32,100
    30% 29.9% 23,872 23,786
    20% 20.2% 15,915 16,041
    10% 9.9% 7,957 7,866
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
