Dell Inc. PowerEdge M610 ssj_ops@100% = 14,437,407
ssj_ops@100% per Host = 902,338
ssj_ops@100% per JVM = 150,390
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Aug 12, 2010
Hardware Availability: Sep-2010 Software Availability: Jul-2009 Publication: Sep 9, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     14,477,014
Calibration 2     14,520,749
Calibration 3     14,495,824
ssj_ops@calibrated=14,508,286
100% 99.5% 14,508,286 14,437,407
90% 90.0% 13,057,458 13,059,903
80% 80.0% 11,606,629 11,611,558
70% 70.0% 10,155,800 10,155,306
60% 60.0% 8,704,972 8,699,021
50% 50.0% 7,254,143 7,250,931
40% 40.0% 5,803,315 5,803,201
30% 30.0% 4,352,486 4,357,138
20% 20.0% 2,901,657 2,900,976
10% 10.0% 1,450,829 1,457,648
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
16 32 192 384 192 16 96
System Under Test
Shared Hardware
Shared Hardware
Enclosure: Dell PowerEdge M1000E
Form Factor: 10U
Power Supply Quantity and Rating (W): 3 x 2700
Power Supply Details: Dell PN G803N
Network Switch: 1
Network Switch Details: 24 port Dell Gigabit Switch
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: 1 x Dell 16-port Gigabit Ethernet Pass-Through Module
Comment: Network Switch not measured for Power
Set: 'sut'
Set Identifier: sut
Set Description: PowerEdge M610
# of Identical Nodes: 16
Comment: None
Hardware per Node
Hardware Vendor: Dell Inc.
Model: PowerEdge M610
Form Factor: Blade
CPU Name: Intel Xeon X5670
CPU Characteristics: Six Core, 2.93 GHz, 12 MB L3 Cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12
# and size of DIMM: 6 x 2048 MB
Memory Details: 2GB 2Rx8 PC3L-10600E ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 50GB 2.5" SSD SATA (Dell PN Y949P)
Disk Controller: Modular SATA Pass-Through
# and type of Network Interface Cards (NICs) Installed: 1 x onboard dual-port Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Windows 2008 Server Enterprise x64 Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1100m -Xms1500m -Xmx1500m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000]
JVM Instances: 6
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 2.1.9
Management Firmware Version: iDRAC 3.0.0 A02 / CMC 3.0.1 A00
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
M610-1 897,621
M610-10 907,718
M610-11 902,343
M610-12 901,110
M610-13 895,242
M610-14 898,232
M610-15 902,147
M610-16 908,730
M610-2 909,991
M610-3 899,818
M610-4 896,317
M610-5 906,159
M610-6 899,691
M610-7 901,243
M610-8 901,737
M610-9 909,310
ssj_ops@100% 14,437,407
ssj_ops@100% per Host 902,338
ssj_ops@100% per JVM 150,390

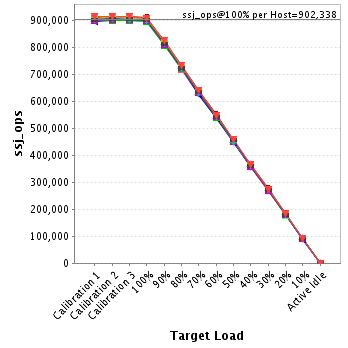

Graph of per-host results
Host 'M610-1' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     900,589
Calibration 2     903,503
Calibration 3     899,529
ssj_ops@calibrated=901,516
100% 99.6% 901,516 897,621
90% 89.8% 811,364 809,795
80% 79.7% 721,213 718,852
70% 70.1% 631,061 631,934
60% 60.0% 540,909 541,023
50% 50.0% 450,758 450,317
40% 39.9% 360,606 359,380
30% 30.0% 270,455 270,442
20% 20.0% 180,303 180,076
10% 10.1% 90,152 90,965
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M610-10' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     910,512
Calibration 2     911,596
Calibration 3     912,202
ssj_ops@calibrated=911,899
100% 99.5% 911,899 907,718
90% 90.3% 820,709 823,725
80% 79.9% 729,519 728,412
70% 70.1% 638,329 639,442
60% 59.9% 547,139 546,324
50% 49.9% 455,949 455,050
40% 40.0% 364,760 364,623
30% 30.2% 273,570 275,409
20% 20.2% 182,380 184,287
10% 10.0% 91,190 91,200
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M610-11' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     901,819
Calibration 2     904,894
Calibration 3     902,080
ssj_ops@calibrated=903,487
100% 99.9% 903,487 902,343
90% 90.0% 813,138 813,320
80% 80.0% 722,789 722,662
70% 69.9% 632,441 631,575
60% 59.9% 542,092 541,532
50% 49.8% 451,743 450,200
40% 40.1% 361,395 362,326
30% 29.9% 271,046 269,708
20% 19.8% 180,697 178,988
10% 10.0% 90,349 90,011
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M610-12' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     909,205
Calibration 2     905,894
Calibration 3     904,156
ssj_ops@calibrated=905,025
100% 99.6% 905,025 901,110
90% 90.1% 814,522 815,231
80% 80.2% 724,020 725,574
70% 69.9% 633,517 632,898
60% 60.0% 543,015 543,202
50% 50.0% 452,512 452,078
40% 40.0% 362,010 362,411
30% 30.1% 271,507 272,099
20% 20.0% 181,005 180,844
10% 10.0% 90,502 90,788
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M610-13' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     900,683
Calibration 2     899,364
Calibration 3     900,568
ssj_ops@calibrated=899,966
100% 99.5% 899,966 895,242
90% 90.3% 809,969 812,953
80% 79.8% 719,973 718,290
70% 69.6% 629,976 626,565
60% 59.9% 539,980 539,351
50% 50.3% 449,983 452,272
40% 40.0% 359,986 359,852
30% 29.8% 269,990 267,827
20% 20.1% 179,993 180,654
10% 10.2% 89,997 91,390
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M610-14' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     899,172
Calibration 2     904,826
Calibration 3     902,200
ssj_ops@calibrated=903,513
100% 99.4% 903,513 898,232
90% 89.8% 813,162 811,536
80% 80.0% 722,810 723,236
70% 70.0% 632,459 632,058
60% 60.4% 542,108 545,899
50% 49.8% 451,757 449,513
40% 39.9% 361,405 360,292
30% 30.2% 271,054 272,711
20% 20.1% 180,703 181,812
10% 10.1% 90,351 91,221
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M610-15' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     906,728
Calibration 2     910,425
Calibration 3     907,797
ssj_ops@calibrated=909,111
100% 99.2% 909,111 902,147
90% 90.1% 818,200 819,000
80% 80.0% 727,289 726,979
70% 70.3% 636,378 638,651
60% 60.0% 545,467 545,864
50% 50.1% 454,556 455,597
40% 40.1% 363,644 364,357
30% 30.1% 272,733 273,535
20% 20.0% 181,822 181,752
10% 10.1% 90,911 91,962
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M610-16' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     907,612
Calibration 2     913,814
Calibration 3     911,968
ssj_ops@calibrated=912,891
100% 99.5% 912,891 908,730
90% 90.1% 821,602 822,139
80% 80.0% 730,313 730,226
70% 70.2% 639,024 640,560
60% 59.8% 547,735 546,242
50% 50.0% 456,445 456,341
40% 40.0% 365,156 365,023
30% 30.1% 273,867 274,384
20% 20.0% 182,578 182,575
10% 10.1% 91,289 91,771
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M610-2' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     912,522
Calibration 2     914,979
Calibration 3     914,837
ssj_ops@calibrated=914,908
100% 99.5% 914,908 909,991
90% 89.9% 823,417 822,445
80% 80.3% 731,926 735,015
70% 70.0% 640,435 640,085
60% 60.1% 548,945 550,172
50% 49.9% 457,454 456,610
40% 40.1% 365,963 366,507
30% 30.2% 274,472 276,549
20% 20.0% 182,982 183,039
10% 10.0% 91,491 91,229
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M610-3' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     897,572
Calibration 2     901,321
Calibration 3     900,843
ssj_ops@calibrated=901,082
100% 99.9% 901,082 899,818
90% 90.2% 810,974 812,897
80% 80.0% 720,866 720,955
70% 69.5% 630,758 625,946
60% 59.7% 540,649 538,366
50% 49.8% 450,541 448,995
40% 39.7% 360,433 357,919
30% 30.1% 270,325 271,295
20% 19.9% 180,216 179,644
10% 9.9% 90,108 89,515
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M610-4' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     900,270
Calibration 2     901,912
Calibration 3     899,408
ssj_ops@calibrated=900,660
100% 99.5% 900,660 896,317
90% 89.7% 810,594 808,163
80% 80.2% 720,528 722,140
70% 70.3% 630,462 633,065
60% 59.9% 540,396 539,328
50% 50.2% 450,330 452,196
40% 40.1% 360,264 361,524
30% 29.9% 270,198 269,482
20% 19.9% 180,132 179,237
10% 10.0% 90,066 90,222
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M610-5' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     909,266
Calibration 2     913,614
Calibration 3     911,472
ssj_ops@calibrated=912,543
100% 99.3% 912,543 906,159
90% 90.2% 821,288 823,173
80% 80.0% 730,034 729,775
70% 70.0% 638,780 638,769
60% 59.9% 547,526 546,711
50% 50.0% 456,271 456,385
40% 40.2% 365,017 367,276
30% 30.2% 273,763 275,335
20% 20.1% 182,509 183,824
10% 10.0% 91,254 91,014
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M610-6' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     900,985
Calibration 2     903,308
Calibration 3     905,207
ssj_ops@calibrated=904,258
100% 99.5% 904,258 899,691
90% 89.7% 813,832 810,942
80% 80.3% 723,406 725,772
70% 70.0% 632,980 633,015
60% 60.0% 542,555 542,835
50% 49.8% 452,129 450,400
40% 39.9% 361,703 360,625
30% 30.0% 271,277 271,382
20% 19.9% 180,852 179,751
10% 10.1% 90,426 91,705
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M610-7' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     903,008
Calibration 2     908,913
Calibration 3     905,151
ssj_ops@calibrated=907,032
100% 99.4% 907,032 901,243
90% 89.9% 816,328 815,038
80% 80.0% 725,625 725,249
70% 70.0% 634,922 634,963
60% 59.9% 544,219 543,466
50% 49.8% 453,516 452,141
40% 40.1% 362,813 364,041
30% 30.0% 272,109 272,229
20% 20.0% 181,406 181,257
10% 10.1% 90,703 91,476
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M610-8' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     903,141
Calibration 2     906,628
Calibration 3     904,192
ssj_ops@calibrated=905,410
100% 99.6% 905,410 901,737
90% 90.0% 814,869 814,463
80% 80.0% 724,328 723,983
70% 70.1% 633,787 634,560
60% 59.8% 543,246 541,062
50% 50.3% 452,705 455,379
40% 40.0% 362,164 362,141
30% 29.8% 271,623 270,052
20% 19.9% 181,082 179,912
10% 10.0% 90,541 90,702
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'M610-9' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     913,930
Calibration 2     915,759
Calibration 3     914,215
ssj_ops@calibrated=914,987
100% 99.4% 914,987 909,310
90% 90.2% 823,488 825,084
80% 80.3% 731,990 734,438
70% 70.1% 640,491 641,222
60% 59.9% 548,992 547,643
50% 50.0% 457,494 457,459
40% 39.9% 365,995 364,905
30% 30.0% 274,496 274,696
20% 20.0% 182,997 183,325
10% 10.1% 91,499 92,476
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
