Dell Inc. PowerEdge M610 ssj_ops@100% = 907,718
ssj_ops@100% per JVM = 151,286
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Aug 12, 2010
Hardware Availability: Sep-2010 Software Availability: Jul-2009 Publication: Sep 9, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     910,512
Calibration 2     911,596
Calibration 3     912,202
ssj_ops@calibrated=911,899
100% 99.5% 911,899 907,718
90% 90.3% 820,709 823,725
80% 79.9% 729,519 728,412
70% 70.1% 638,329 639,442
60% 59.9% 547,139 546,324
50% 49.9% 455,949 455,050
40% 40.0% 364,760 364,623
30% 30.2% 273,570 275,409
20% 20.2% 182,380 184,287
10% 10.0% 91,190 91,200
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: PowerEdge M610
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M610
Form Factor: Blade
CPU Name: Intel Xeon X5670
CPU Characteristics: Six Core, 2.93 GHz, 12 MB L3 Cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12
# and size of DIMM: 6 x 2048 MB
Memory Details: 2GB 2Rx8 PC3L-10600E ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 50GB 2.5" SSD SATA (Dell PN Y949P)
Disk Controller: Modular SATA Pass-Through
# and type of Network Interface Cards (NICs) Installed: 1 x onboard dual-port Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Windows 2008 Server Enterprise x64 Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1100m -Xms1500m -Xmx1500m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000]
JVM Instances: 6
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 2.1.9
Management Firmware Version: iDRAC 3.0.0 A02 / CMC 3.0.1 A00
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M610-10.001 152,024
M610-10.002 152,371
M610-10.003 151,164
M610-10.004 148,288
M610-10.005 151,337
M610-10.006 152,535
ssj_ops@100% 907,718
ssj_ops@100% per JVM 151,286

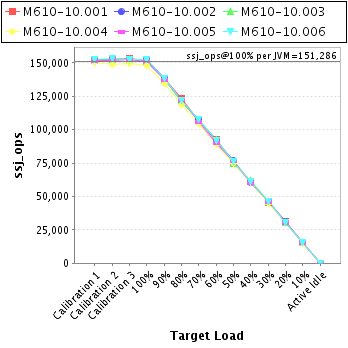

Graph of per-instance results
JVM 'M610-10.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,856
Calibration 2     152,151
Calibration 3     153,464
ssj_ops@calibrated=152,808
100% 99.5% 152,808 152,024
90% 90.3% 137,527 137,981
80% 80.5% 122,246 123,010
70% 70.0% 106,965 106,994
60% 60.5% 91,685 92,380
50% 49.5% 76,404 75,678
40% 39.9% 61,123 60,988
30% 30.0% 45,842 45,777
20% 20.5% 30,562 31,281
10% 10.0% 15,281 15,341
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M610-10.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     151,711
Calibration 2     152,667
Calibration 3     152,544
ssj_ops@calibrated=152,605
100% 99.8% 152,605 152,371
90% 90.4% 137,345 138,021
80% 79.1% 122,084 120,774
70% 70.5% 106,824 107,537
60% 59.7% 91,563 91,071
50% 50.3% 76,303 76,725
40% 39.6% 61,042 60,356
30% 30.4% 45,782 46,353
20% 20.5% 30,521 31,322
10% 10.0% 15,261 15,200
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M610-10.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     151,636
Calibration 2     152,456
Calibration 3     152,294
ssj_ops@calibrated=152,375
100% 99.2% 152,375 151,164
90% 90.2% 137,138 137,486
80% 79.5% 121,900 121,094
70% 70.0% 106,663 106,664
60% 60.6% 91,425 92,285
50% 49.2% 76,188 74,955
40% 40.6% 60,950 61,813
30% 30.3% 45,713 46,222
20% 20.2% 30,475 30,795
10% 10.0% 15,238 15,251
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M610-10.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     150,241
Calibration 2     148,958
Calibration 3     149,414
ssj_ops@calibrated=149,186
100% 99.4% 149,186 148,288
90% 90.1% 134,267 134,404
80% 79.9% 119,349 119,181
70% 70.1% 104,430 104,513
60% 59.6% 89,511 88,919
50% 50.3% 74,593 75,022
40% 40.5% 59,674 60,389
30% 29.9% 44,756 44,627
20% 20.4% 29,837 30,491
10% 9.9% 14,919 14,821
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M610-10.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     151,459
Calibration 2     151,876
Calibration 3     152,234
ssj_ops@calibrated=152,055
100% 99.5% 152,055 151,337
90% 90.3% 136,849 137,281
80% 80.5% 121,644 122,398
70% 69.7% 106,438 105,936
60% 59.2% 91,233 89,976
50% 50.1% 76,027 76,222
40% 39.6% 60,822 60,192
30% 30.4% 45,616 46,152
20% 19.9% 30,411 30,206
10% 10.1% 15,205 15,417
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M610-10.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,607
Calibration 2     153,487
Calibration 3     152,253
ssj_ops@calibrated=152,870
100% 99.8% 152,870 152,535
90% 90.6% 137,583 138,553
80% 79.8% 122,296 121,955
70% 70.5% 107,009 107,797
60% 60.0% 91,722 91,692
50% 50.0% 76,435 76,448
40% 39.8% 61,148 60,884
30% 30.3% 45,861 46,278
20% 19.8% 30,574 30,192
10% 9.9% 15,287 15,171
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
