Dell Inc. PowerEdge M610 ssj_ops@100% = 902,147
ssj_ops@100% per JVM = 150,358
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Aug 12, 2010
Hardware Availability: Sep-2010 Software Availability: Jul-2009 Publication: Sep 9, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     906,728
Calibration 2     910,425
Calibration 3     907,797
ssj_ops@calibrated=909,111
100% 99.2% 909,111 902,147
90% 90.1% 818,200 819,000
80% 80.0% 727,289 726,979
70% 70.3% 636,378 638,651
60% 60.0% 545,467 545,864
50% 50.1% 454,556 455,597
40% 40.1% 363,644 364,357
30% 30.1% 272,733 273,535
20% 20.0% 181,822 181,752
10% 10.1% 90,911 91,962
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: PowerEdge M610
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M610
Form Factor: Blade
CPU Name: Intel Xeon X5670
CPU Characteristics: Six Core, 2.93 GHz, 12 MB L3 Cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12
# and size of DIMM: 6 x 2048 MB
Memory Details: 2GB 2Rx8 PC3L-10600E ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 50GB 2.5" SSD SATA (Dell PN Y949P)
Disk Controller: Modular SATA Pass-Through
# and type of Network Interface Cards (NICs) Installed: 1 x onboard dual-port Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Windows 2008 Server Enterprise x64 Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1100m -Xms1500m -Xmx1500m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000]
JVM Instances: 6
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 2.1.9
Management Firmware Version: iDRAC 3.0.0 A02 / CMC 3.0.1 A00
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M610-15.001 152,306
M610-15.002 147,511
M610-15.003 152,185
M610-15.004 150,358
M610-15.005 148,401
M610-15.006 151,386
ssj_ops@100% 902,147
ssj_ops@100% per JVM 150,358

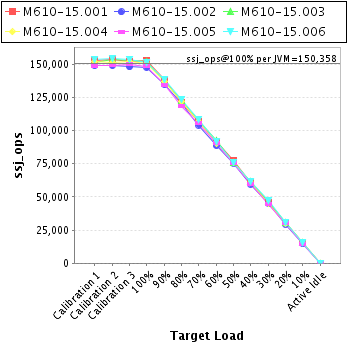

Graph of per-instance results
JVM 'M610-15.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,816
Calibration 2     153,489
Calibration 3     151,917
ssj_ops@calibrated=152,703
100% 99.7% 152,703 152,306
90% 90.4% 137,433 138,071
80% 79.3% 122,162 121,072
70% 70.1% 106,892 106,973
60% 60.3% 91,622 92,047
50% 50.7% 76,352 77,417
40% 40.0% 61,081 61,054
30% 29.9% 45,811 45,662
20% 20.0% 30,541 30,527
10% 10.2% 15,270 15,554
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M610-15.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,710
Calibration 2     148,936
Calibration 3     147,801
ssj_ops@calibrated=148,368
100% 99.4% 148,368 147,511
90% 90.7% 133,531 134,566
80% 81.1% 118,695 120,324
70% 70.2% 103,858 104,081
60% 59.7% 89,021 88,610
50% 50.8% 74,184 75,422
40% 40.2% 59,347 59,659
30% 30.3% 44,510 44,980
20% 19.9% 29,674 29,477
10% 10.0% 14,837 14,826
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M610-15.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     151,205
Calibration 2     153,251
Calibration 3     152,768
ssj_ops@calibrated=153,010
100% 99.5% 153,010 152,185
90% 89.6% 137,709 137,149
80% 79.9% 122,408 122,296
70% 70.2% 107,107 107,398
60% 60.5% 91,806 92,628
50% 49.5% 76,505 75,713
40% 40.1% 61,204 61,340
30% 30.4% 45,903 46,466
20% 19.9% 30,602 30,458
10% 10.2% 15,301 15,619
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M610-15.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     151,582
Calibration 2     151,235
Calibration 3     151,917
ssj_ops@calibrated=151,576
100% 99.2% 151,576 150,358
90% 90.2% 136,418 136,784
80% 80.5% 121,261 121,976
70% 70.2% 106,103 106,385
60% 59.7% 90,946 90,516
50% 50.0% 75,788 75,802
40% 40.2% 60,630 60,996
30% 29.7% 45,473 44,954
20% 19.9% 30,315 30,208
10% 10.4% 15,158 15,691
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M610-15.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,729
Calibration 2     149,094
Calibration 3     149,794
ssj_ops@calibrated=149,444
100% 99.3% 149,444 148,401
90% 90.0% 134,500 134,434
80% 79.1% 119,555 118,259
70% 70.4% 104,611 105,276
60% 60.5% 89,666 90,433
50% 50.4% 74,722 75,366
40% 40.1% 59,778 59,966
30% 29.8% 44,833 44,573
20% 20.2% 29,889 30,155
10% 9.8% 14,944 14,705
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M610-15.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     153,685
Calibration 2     154,421
Calibration 3     153,599
ssj_ops@calibrated=154,010
100% 98.3% 154,010 151,386
90% 89.6% 138,609 137,996
80% 79.9% 123,208 123,052
70% 70.5% 107,807 108,537
60% 59.5% 92,406 91,630
50% 49.3% 77,005 75,876
40% 39.8% 61,604 61,342
30% 30.5% 46,203 46,900
20% 20.1% 30,802 30,927
10% 10.1% 15,401 15,567
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
