Dell Inc. PowerEdge M610 ssj_ops@100% = 901,243
ssj_ops@100% per JVM = 150,207
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Aug 12, 2010
Hardware Availability: Sep-2010 Software Availability: Jul-2009 Publication: Sep 9, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     903,008
Calibration 2     908,913
Calibration 3     905,151
ssj_ops@calibrated=907,032
100% 99.4% 907,032 901,243
90% 89.9% 816,328 815,038
80% 80.0% 725,625 725,249
70% 70.0% 634,922 634,963
60% 59.9% 544,219 543,466
50% 49.8% 453,516 452,141
40% 40.1% 362,813 364,041
30% 30.0% 272,109 272,229
20% 20.0% 181,406 181,257
10% 10.1% 90,703 91,476
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: PowerEdge M610
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M610
Form Factor: Blade
CPU Name: Intel Xeon X5670
CPU Characteristics: Six Core, 2.93 GHz, 12 MB L3 Cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12
# and size of DIMM: 6 x 2048 MB
Memory Details: 2GB 2Rx8 PC3L-10600E ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 50GB 2.5" SSD SATA (Dell PN Y949P)
Disk Controller: Modular SATA Pass-Through
# and type of Network Interface Cards (NICs) Installed: 1 x onboard dual-port Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Windows 2008 Server Enterprise x64 Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1100m -Xms1500m -Xmx1500m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000]
JVM Instances: 6
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 2.1.9
Management Firmware Version: iDRAC 3.0.0 A02 / CMC 3.0.1 A00
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M610-7.001 150,921
M610-7.002 146,129
M610-7.003 154,224
M610-7.004 152,695
M610-7.005 148,370
M610-7.006 148,904
ssj_ops@100% 901,243
ssj_ops@100% per JVM 150,207

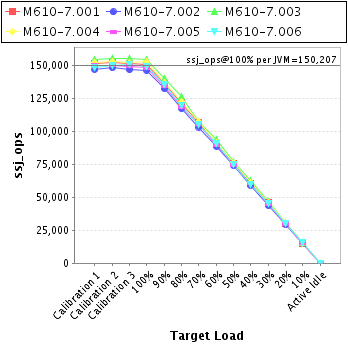

Graph of per-instance results
JVM 'M610-7.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     151,423
Calibration 2     152,425
Calibration 3     151,340
ssj_ops@calibrated=151,882
100% 99.4% 151,882 150,921
90% 89.7% 136,694 136,188
80% 79.6% 121,506 120,935
70% 70.0% 106,318 106,360
60% 59.1% 91,129 89,733
50% 49.7% 75,941 75,448
40% 40.0% 60,753 60,804
30% 30.1% 45,565 45,709
20% 19.8% 30,376 30,046
10% 10.0% 15,188 15,191
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M610-7.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     146,933
Calibration 2     148,237
Calibration 3     146,672
ssj_ops@calibrated=147,455
100% 99.1% 147,455 146,129
90% 89.8% 132,709 132,455
80% 79.5% 117,964 117,248
70% 70.0% 103,218 103,251
60% 60.2% 88,473 88,766
50% 50.2% 73,727 74,027
40% 40.1% 58,982 59,115
30% 29.7% 44,236 43,739
20% 19.9% 29,491 29,389
10% 10.1% 14,745 14,823
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M610-7.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     154,119
Calibration 2     155,453
Calibration 3     155,160
ssj_ops@calibrated=155,306
100% 99.3% 155,306 154,224
90% 90.0% 139,776 139,759
80% 81.3% 124,245 126,313
70% 69.3% 108,714 107,664
60% 60.3% 93,184 93,615
50% 49.7% 77,653 77,239
40% 40.3% 62,122 62,634
30% 30.0% 46,592 46,550
20% 20.1% 31,061 31,170
10% 10.2% 15,531 15,803
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M610-7.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,440
Calibration 2     152,814
Calibration 3     151,867
ssj_ops@calibrated=152,341
100% 100.2% 152,341 152,695
90% 90.1% 137,107 137,203
80% 80.6% 121,872 122,736
70% 70.5% 106,638 107,426
60% 59.9% 91,404 91,251
50% 49.9% 76,170 76,085
40% 40.4% 60,936 61,525
30% 30.2% 45,702 46,057
20% 20.1% 30,468 30,619
10% 10.0% 15,234 15,187
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M610-7.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     150,001
Calibration 2     150,154
Calibration 3     149,482
ssj_ops@calibrated=149,818
100% 99.0% 149,818 148,370
90% 89.6% 134,836 134,297
80% 79.1% 119,854 118,458
70% 70.3% 104,873 105,290
60% 59.9% 89,891 89,697
50% 49.7% 74,909 74,515
40% 40.4% 59,927 60,464
30% 29.8% 44,945 44,659
20% 20.0% 29,964 29,944
10% 10.1% 14,982 15,097
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M610-7.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,094
Calibration 2     149,830
Calibration 3     150,630
ssj_ops@calibrated=150,230
100% 99.1% 150,230 148,904
90% 90.0% 135,207 135,136
80% 79.6% 120,184 119,559
70% 69.9% 105,161 104,972
60% 60.2% 90,138 90,404
50% 49.8% 75,115 74,827
40% 39.6% 60,092 59,498
30% 30.3% 45,069 45,516
20% 20.0% 30,046 30,089
10% 10.2% 15,023 15,375
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
