Dell Inc. PowerEdge M610 ssj_ops@100% = 901,737
ssj_ops@100% per JVM = 150,289
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Aug 12, 2010
Hardware Availability: Sep-2010 Software Availability: Jul-2009 Publication: Sep 9, 2010
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     903,141
Calibration 2     906,628
Calibration 3     904,192
ssj_ops@calibrated=905,410
100% 99.6% 905,410 901,737
90% 90.0% 814,869 814,463
80% 80.0% 724,328 723,983
70% 70.1% 633,787 634,560
60% 59.8% 543,246 541,062
50% 50.3% 452,705 455,379
40% 40.0% 362,164 362,141
30% 29.8% 271,623 270,052
20% 19.9% 181,082 179,912
10% 10.0% 90,541 90,702
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: PowerEdge M610
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M610
Form Factor: Blade
CPU Name: Intel Xeon X5670
CPU Characteristics: Six Core, 2.93 GHz, 12 MB L3 Cache
CPU Frequency (MHz): 2933
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 12
# and size of DIMM: 6 x 2048 MB
Memory Details: 2GB 2Rx8 PC3L-10600E ECC, Slots A1-A3, B1-B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 50GB 2.5" SSD SATA (Dell PN Y949P)
Disk Controller: Modular SATA Pass-Through
# and type of Network Interface Cards (NICs) Installed: 1 x onboard dual-port Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Windows 2008 Server Enterprise x64 Edition
OS Version: R2
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.4, J2RE 1.6.0 IBM J9 2.4 Windows Server 2008 amd64-64 jvmwa64 60sr5-20090519_35743 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xmn1100m -Xms1500m -Xmx1500m -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -XlockReservation -Xnoloa -XtlhPrefetch -Xlp
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000]
JVM Instances: 6
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 2.1.9
Management Firmware Version: iDRAC 3.0.0 A02 / CMC 3.0.1 A00
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
M610-8.001 146,873
M610-8.002 148,450
M610-8.003 151,497
M610-8.004 151,625
M610-8.005 150,549
M610-8.006 152,742
ssj_ops@100% 901,737
ssj_ops@100% per JVM 150,289

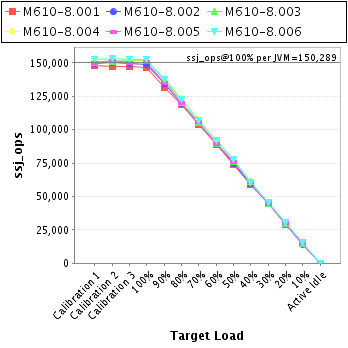

Graph of per-instance results
JVM 'M610-8.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     148,211
Calibration 2     147,521
Calibration 3     147,395
ssj_ops@calibrated=147,458
100% 99.6% 147,458 146,873
90% 89.2% 132,712 131,547
80% 80.4% 117,966 118,530
70% 70.5% 103,221 103,942
60% 60.1% 88,475 88,614
50% 50.1% 73,729 73,922
40% 40.0% 58,983 58,923
30% 30.2% 44,237 44,478
20% 19.8% 29,492 29,196
10% 10.0% 14,746 14,758
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M610-8.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     149,797
Calibration 2     149,975
Calibration 3     149,658
ssj_ops@calibrated=149,817
100% 99.1% 149,817 148,450
90% 89.6% 134,835 134,217
80% 79.6% 119,853 119,321
70% 70.3% 104,872 105,368
60% 59.8% 89,890 89,564
50% 50.1% 74,908 74,986
40% 40.0% 59,927 59,899
30% 30.0% 44,945 44,959
20% 20.0% 29,963 29,925
10% 9.6% 14,982 14,407
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M610-8.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     149,895
Calibration 2     151,125
Calibration 3     151,653
ssj_ops@calibrated=151,389
100% 100.1% 151,389 151,497
90% 90.8% 136,250 137,428
80% 79.5% 121,111 120,294
70% 69.6% 105,972 105,437
60% 59.3% 90,833 89,743
50% 50.3% 75,694 76,083
40% 40.6% 60,555 61,502
30% 29.7% 45,417 45,013
20% 19.9% 30,278 30,067
10% 9.9% 15,139 14,962
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M610-8.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,823
Calibration 2     153,120
Calibration 3     152,559
ssj_ops@calibrated=152,839
100% 99.2% 152,839 151,625
90% 90.6% 137,555 138,436
80% 80.9% 122,271 123,595
70% 70.4% 106,987 107,634
60% 60.2% 91,703 92,007
50% 50.2% 76,420 76,735
40% 39.7% 61,136 60,630
30% 29.7% 45,852 45,401
20% 19.8% 30,568 30,336
10% 10.2% 15,284 15,646
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M610-8.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     149,965
Calibration 2     151,397
Calibration 3     150,136
ssj_ops@calibrated=150,767
100% 99.9% 150,767 150,549
90% 89.6% 135,690 135,098
80% 79.5% 120,613 119,905
70% 69.9% 105,537 105,411
60% 59.3% 90,460 89,400
50% 50.4% 75,383 75,963
40% 40.3% 60,307 60,794
30% 29.6% 45,230 44,676
20% 19.9% 30,153 30,067
10% 10.0% 15,077 15,133
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'M610-8.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     152,451
Calibration 2     153,489
Calibration 3     152,793
ssj_ops@calibrated=153,141
100% 99.7% 153,141 152,742
90% 89.9% 137,827 137,737
80% 79.9% 122,513 122,338
70% 69.7% 107,199 106,769
60% 59.9% 91,885 91,734
50% 50.7% 76,571 77,690
40% 39.4% 61,256 60,392
30% 29.7% 45,942 45,525
20% 19.8% 30,628 30,322
10% 10.3% 15,314 15,796
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
