SPECpower_ssj2008 Aggregate Performance Report

SPECpower_ssj2008

Aggregate Performance Report

Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module			ssj_ops@100% = 57,553,033 ssj_ops@100% per Host = 5,755,303 ssj_ops@100% per JVM = 1,438,826
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 26, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	May 8, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			57,725,322
Calibration 2			57,679,059
Calibration 3			57,756,235
ssj_ops@calibrated=57,717,647
100%	99.7%	57,717,647	57,553,033
90%	90.0%	51,945,883	51,973,112
80%	80.0%	46,174,118	46,194,421
70%	70.0%	40,402,353	40,392,143
60%	60.0%	34,630,588	34,644,863
50%	50.0%	28,858,824	28,856,605
40%	40.0%	23,087,059	23,087,130
30%	30.0%	17,315,294	17,306,768
20%	20.0%	11,543,529	11,559,498
10%	10.0%	5,771,765	5,778,754
Active Idle		0	0

Aggregate SUT Data

# of Nodes	# of Chips	# of Cores	# of Threads	Total RAM (GB)	# of OS Images	# of JVM Instances
10	20	560	1,120	1,920	10	40

System Under Test

Shared Hardware

Shared Hardware
Enclosure:	HPE Synergy 12000 Frame
Form Factor:	12U
Power Supply Quantity and Rating (W):	6 x 2650
Power Supply Details:	HPE 2650W Performance Hot Plug Titanium Plus Power Supply Kit (798095-B21)
Network Switch:	1 x H3C S5820X-28S (JD373A)
Network Switch Details:	10 Gb Fibre 24 ports
KVM Switch:	None
KVM Switch Details:	N/A
Other Hardware:	1 x HPE Synergy 10/40Gb Pass Thru Module (799330-B21), 1 x Synergy Composer (804353-B21), 1 x Synergy Frame Link Module (804942-B21)
Comment:	Network switch not measured for power

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	10
Comment:	SUT

Hardware per Node
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 480 Gen10 Compute Module
Form Factor:	7U
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	56 cores, 2 chips, 28 cores/chip
Hardware Threads:	112 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	192
# and size of DIMM:	12 x 16384 MB
Memory Details:	12 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated in each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x HPE 240GB 6G SATA M.2 SSD (875488-B21)
Disk Controller:	HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	H/S: Standard

Software per Node
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn21000m -Xms24000m -Xmx24000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	4
JVM Initial Heap (MB):	24000
JVM Maximum Heap (MB):	24000
JVM Address Bits:	64
Boot Firmware Version:	I42 v2.00 (02/02/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) Version: 2019.03.0, Microsoft Windows KB4056898, KB4338815

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled

USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled

x2APIC: Disabled

Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled

SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled

Smart Array SW RAID Support

Power Regulator: OS Control Mode
Intel Turbo Boost Technology: Enabled (default)
Energy Efficient Turbo: Enabled (default: Enabled if Turbo Enabled)
Energy Performance Bias: Balanced Power (default: Balanced Performance)
Collaborative Power Control: Enabled (default)
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled

HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Enabled

Intel NIC DMA Channels (IOAT): Disabled

Intel UPI Link Frequency: Min UPI Speed

HPE Synergy 3820C 10/20Gb CNA: PCIe Generation 1

AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

Windows Power Options = Power Saver
Turn off Display = 1 Minute
Turn off hard disk = 1 Minute
System Cooling = Passive
Processor power management = Minimum Processor State = 0%
Maximum Processor State = 95%
PCI Express Power Management = Maximum Power Savings

Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverride /t REG_DWORD /d 0 /f
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverrideMask /t REG_DWORD /d 3 /f

Notes

None

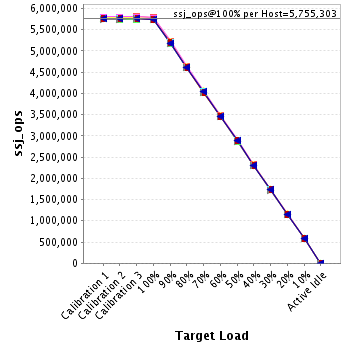

Host Instance Summary

Host	ssj_ops@100%
NODE01	5,780,151
NODE02	5,752,087
NODE03	5,728,678
NODE04	5,774,487
NODE05	5,791,586
NODE06	5,748,113
NODE07	5,743,581
NODE08	5,733,050
NODE09	5,751,458
NODE10	5,749,842
ssj_ops@100%	57,553,033
ssj_ops@100% per Host	5,755,303
ssj_ops@100% per JVM	1,438,826

Host 'NODE01' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,785,044
Calibration 2			5,789,322
Calibration 3			5,799,717
ssj_ops@calibrated=5,794,520
100%	99.8%	5,794,520	5,780,151
90%	90.1%	5,215,068	5,218,414
80%	80.1%	4,635,616	4,639,854
70%	70.0%	4,056,164	4,055,200
60%	60.0%	3,476,712	3,479,386
50%	50.1%	2,897,260	2,901,418
40%	40.0%	2,317,808	2,320,433
30%	30.0%	1,738,356	1,739,631
20%	20.0%	1,158,904	1,158,046
10%	10.0%	579,452	580,242
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE02' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,763,911
Calibration 2			5,761,857
Calibration 3			5,768,047
ssj_ops@calibrated=5,764,952
100%	99.8%	5,764,952	5,752,087
90%	89.9%	5,188,457	5,183,199
80%	80.2%	4,611,961	4,621,573
70%	70.0%	4,035,466	4,035,249
60%	60.1%	3,458,971	3,464,368
50%	50.0%	2,882,476	2,880,214
40%	40.1%	2,305,981	2,311,832
30%	30.0%	1,729,486	1,728,309
20%	20.1%	1,152,990	1,158,336
10%	10.0%	576,495	575,608
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE03' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,753,727
Calibration 2			5,746,952
Calibration 3			5,749,398
ssj_ops@calibrated=5,748,175
100%	99.7%	5,748,175	5,728,678
90%	90.0%	5,173,357	5,172,959
80%	80.1%	4,598,540	4,604,802
70%	70.1%	4,023,722	4,029,112
60%	60.0%	3,448,905	3,451,542
50%	50.0%	2,874,087	2,876,740
40%	39.9%	2,299,270	2,296,006
30%	30.0%	1,724,452	1,725,557
20%	20.0%	1,149,635	1,149,712
10%	10.0%	574,817	575,386
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE04' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,797,422
Calibration 2			5,787,131
Calibration 3			5,795,907
ssj_ops@calibrated=5,791,519
100%	99.7%	5,791,519	5,774,487
90%	90.0%	5,212,367	5,213,967
80%	80.0%	4,633,215	4,634,701
70%	70.1%	4,054,063	4,059,191
60%	60.0%	3,474,911	3,474,611
50%	50.0%	2,895,760	2,896,255
40%	40.0%	2,316,608	2,318,390
30%	30.0%	1,737,456	1,736,475
20%	20.1%	1,158,304	1,161,717
10%	10.0%	579,152	577,761
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE05' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,814,704
Calibration 2			5,811,134
Calibration 3			5,814,396
ssj_ops@calibrated=5,812,765
100%	99.6%	5,812,765	5,791,586
90%	90.1%	5,231,488	5,237,921
80%	80.0%	4,650,212	4,648,163
70%	69.9%	4,068,935	4,062,140
60%	59.9%	3,487,659	3,484,352
50%	50.1%	2,906,382	2,909,712
40%	40.0%	2,325,106	2,325,676
30%	30.0%	1,743,829	1,743,928
20%	20.0%	1,162,553	1,160,924
10%	10.0%	581,276	582,832
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE06' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,767,791
Calibration 2			5,762,479
Calibration 3			5,768,439
ssj_ops@calibrated=5,765,459
100%	99.7%	5,765,459	5,748,113
90%	90.1%	5,188,913	5,195,571
80%	80.0%	4,612,367	4,614,542
70%	70.0%	4,035,821	4,033,115
60%	60.0%	3,459,275	3,459,948
50%	50.0%	2,882,729	2,882,427
40%	40.0%	2,306,184	2,306,711
30%	30.0%	1,729,638	1,728,135
20%	20.0%	1,153,092	1,155,423
10%	10.0%	576,546	574,331
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE07' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,766,564
Calibration 2			5,756,169
Calibration 3			5,761,111
ssj_ops@calibrated=5,758,640
100%	99.7%	5,758,640	5,743,581
90%	90.0%	5,182,776	5,182,202
80%	79.9%	4,606,912	4,603,686
70%	69.9%	4,031,048	4,027,303
60%	60.0%	3,455,184	3,453,271
50%	49.9%	2,879,320	2,874,865
40%	40.0%	2,303,456	2,303,985
30%	30.0%	1,727,592	1,727,865
20%	20.0%	1,151,728	1,151,343
10%	10.0%	575,864	576,704
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE08' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,747,044
Calibration 2			5,745,687
Calibration 3			5,756,708
ssj_ops@calibrated=5,751,198
100%	99.7%	5,751,198	5,733,050
90%	90.1%	5,176,078	5,184,699
80%	80.0%	4,600,958	4,600,995
70%	69.9%	4,025,838	4,021,577
60%	60.1%	3,450,719	3,456,319
50%	49.9%	2,875,599	2,868,055
40%	40.0%	2,300,479	2,300,670
30%	30.0%	1,725,359	1,722,553
20%	20.1%	1,150,240	1,154,901
10%	10.0%	575,120	574,825
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE09' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,767,596
Calibration 2			5,760,573
Calibration 3			5,773,948
ssj_ops@calibrated=5,767,261
100%	99.7%	5,767,261	5,751,458
90%	90.2%	5,190,535	5,200,499
80%	80.0%	4,613,809	4,615,663
70%	69.9%	4,037,083	4,032,559
60%	60.0%	3,460,356	3,458,300
50%	50.0%	2,883,630	2,884,771
40%	39.9%	2,306,904	2,298,738
30%	30.0%	1,730,178	1,727,944
20%	20.0%	1,153,452	1,154,600
10%	10.0%	576,726	577,822
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE10' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,761,518
Calibration 2			5,757,756
Calibration 3			5,768,565
ssj_ops@calibrated=5,763,160
100%	99.8%	5,763,160	5,749,842
90%	89.9%	5,186,844	5,183,681
80%	80.0%	4,610,528	4,610,443
70%	70.0%	4,034,212	4,036,696
60%	60.1%	3,457,896	3,462,766
50%	50.0%	2,881,580	2,882,149
40%	40.0%	2,305,264	2,304,690
30%	30.0%	1,728,948	1,726,372
20%	20.0%	1,152,632	1,154,495
10%	10.1%	576,316	583,242
Active Idle		0	0

See the Host Performance Report for additional details.

http://www.spec.org - info@spec.org

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
