Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,780,151
ssj_ops@100% per JVM = 1,445,038
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 26, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: May 8, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,785,044
Calibration 2     5,789,322
Calibration 3     5,799,717
ssj_ops@calibrated=5,794,520
100% 99.8% 5,794,520 5,780,151
90% 90.1% 5,215,068 5,218,414
80% 80.1% 4,635,616 4,639,854
70% 70.0% 4,056,164 4,055,200
60% 60.0% 3,476,712 3,479,386
50% 50.1% 2,897,260 2,901,418
40% 40.0% 2,317,808 2,320,433
30% 30.0% 1,738,356 1,739,631
20% 20.0% 1,158,904 1,158,046
10% 10.0% 579,452 580,242
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 10
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: 7U
CPU Name: Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated in each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x HPE 240GB 6G SATA M.2 SSD (875488-B21)
Disk Controller: HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: H/S: Standard
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn21000m -Xms24000m -Xmx24000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 24000
JVM Maximum Heap (MB): 24000
JVM Address Bits: 64
Boot Firmware Version: I42 v2.00 (02/02/2019)
Management Firmware Version: 1.40 Feb 05 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) Version: 2019.03.0, Microsoft Windows KB4056898, KB4338815
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE01.001 1,441,445
NODE01.002 1,423,716
NODE01.003 1,461,629
NODE01.004 1,453,361
ssj_ops@100% 5,780,151
ssj_ops@100% per JVM 1,445,038
Graph of per-instance results
JVM 'NODE01.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,444,425
Calibration 2     1,445,864
Calibration 3     1,447,062
ssj_ops@calibrated=1,446,463
100% 99.7% 1,446,463 1,441,445
90% 90.0% 1,301,816 1,301,711
80% 80.2% 1,157,170 1,159,936
70% 69.9% 1,012,524 1,010,620
60% 59.9% 867,878 865,997
50% 50.2% 723,231 726,163
40% 40.0% 578,585 579,219
30% 30.1% 433,939 435,578
20% 20.1% 289,293 290,213
10% 10.0% 144,646 145,354
Active Idle   0 0

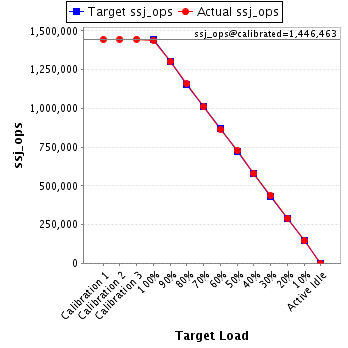

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE01.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,427,509
Calibration 2     1,425,250
Calibration 3     1,427,497
ssj_ops@calibrated=1,426,374
100% 99.8% 1,426,374 1,423,716
90% 89.9% 1,283,736 1,281,711
80% 79.9% 1,141,099 1,140,173
70% 70.3% 998,461 1,002,064
60% 60.0% 855,824 855,659
50% 49.9% 713,187 712,029
40% 40.0% 570,549 570,680
30% 30.0% 427,912 428,475
20% 20.0% 285,275 284,949
10% 10.0% 142,637 143,298
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE01.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,467,800
Calibration 2     1,467,066
Calibration 3     1,468,911
ssj_ops@calibrated=1,467,988
100% 99.6% 1,467,988 1,461,629
90% 90.1% 1,321,189 1,323,050
80% 80.1% 1,174,391 1,175,918
70% 69.9% 1,027,592 1,026,711
60% 60.2% 880,793 883,796
50% 50.2% 733,994 736,257
40% 40.1% 587,195 588,499
30% 30.0% 440,396 440,391
20% 19.9% 293,598 291,834
10% 10.0% 146,799 146,242
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE01.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,445,310
Calibration 2     1,451,143
Calibration 3     1,456,247
ssj_ops@calibrated=1,453,695
100% 100.0% 1,453,695 1,453,361
90% 90.2% 1,308,326 1,311,942
80% 80.1% 1,162,956 1,163,826
70% 69.9% 1,017,587 1,015,805
60% 60.1% 872,217 873,934
50% 50.0% 726,848 726,969
40% 40.0% 581,478 582,035
30% 29.9% 436,109 435,188
20% 20.0% 290,739 291,050
10% 10.0% 145,370 145,348
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
