Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,733,050
ssj_ops@100% per JVM = 1,433,262
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 26, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: May 8, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,747,044
Calibration 2     5,745,687
Calibration 3     5,756,708
ssj_ops@calibrated=5,751,198
100% 99.7% 5,751,198 5,733,050
90% 90.1% 5,176,078 5,184,699
80% 80.0% 4,600,958 4,600,995
70% 69.9% 4,025,838 4,021,577
60% 60.1% 3,450,719 3,456,319
50% 49.9% 2,875,599 2,868,055
40% 40.0% 2,300,479 2,300,670
30% 30.0% 1,725,359 1,722,553
20% 20.1% 1,150,240 1,154,901
10% 10.0% 575,120 574,825
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 10
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: 7U
CPU Name: Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated in each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x HPE 240GB 6G SATA M.2 SSD (875488-B21)
Disk Controller: HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: H/S: Standard
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn21000m -Xms24000m -Xmx24000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 24000
JVM Maximum Heap (MB): 24000
JVM Address Bits: 64
Boot Firmware Version: I42 v2.00 (02/02/2019)
Management Firmware Version: 1.40 Feb 05 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) Version: 2019.03.0, Microsoft Windows KB4056898, KB4338815
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE08.001 1,440,930
NODE08.002 1,418,583
NODE08.003 1,445,199
NODE08.004 1,428,337
ssj_ops@100% 5,733,050
ssj_ops@100% per JVM 1,433,262

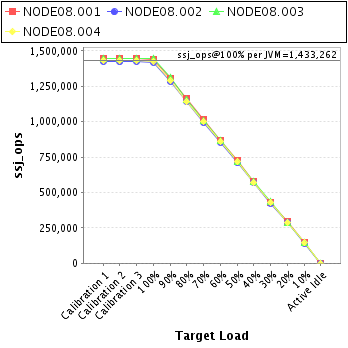

Graph of per-instance results
JVM 'NODE08.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,443,350
Calibration 2     1,444,916
Calibration 3     1,448,432
ssj_ops@calibrated=1,446,674
100% 99.6% 1,446,674 1,440,930
90% 90.1% 1,302,007 1,302,959
80% 80.2% 1,157,339 1,160,630
70% 70.2% 1,012,672 1,016,248
60% 60.1% 868,004 869,383
50% 50.0% 723,337 723,060
40% 40.1% 578,670 579,903
30% 29.9% 434,002 432,181
20% 20.1% 289,335 291,498
10% 9.9% 144,667 143,909
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE08.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,424,953
Calibration 2     1,422,121
Calibration 3     1,426,101
ssj_ops@calibrated=1,424,111
100% 99.6% 1,424,111 1,418,583
90% 90.2% 1,281,700 1,284,441
80% 80.2% 1,139,289 1,141,891
70% 69.8% 996,878 993,673
60% 60.0% 854,467 853,956
50% 49.8% 712,055 709,615
40% 40.0% 569,644 569,512
30% 29.7% 427,233 423,338
20% 20.1% 284,822 286,690
10% 10.0% 142,411 141,861
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE08.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,446,582
Calibration 2     1,447,765
Calibration 3     1,448,617
ssj_ops@calibrated=1,448,191
100% 99.8% 1,448,191 1,445,199
90% 90.4% 1,303,372 1,308,664
80% 79.9% 1,158,553 1,157,070
70% 69.7% 1,013,734 1,009,287
60% 60.1% 868,915 870,632
50% 49.7% 724,096 719,532
40% 40.1% 579,277 580,132
30% 30.1% 434,457 436,247
20% 20.0% 289,638 289,245
10% 10.0% 144,819 144,997
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE08.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,432,159
Calibration 2     1,430,884
Calibration 3     1,433,558
ssj_ops@calibrated=1,432,221
100% 99.7% 1,432,221 1,428,337
90% 90.0% 1,288,999 1,288,635
80% 79.7% 1,145,777 1,141,404
70% 70.0% 1,002,555 1,002,369
60% 60.2% 859,333 862,348
50% 50.0% 716,111 715,848
40% 39.9% 572,889 571,123
30% 30.1% 429,666 430,788
20% 20.1% 286,444 287,468
10% 10.1% 143,222 144,058
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
