Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,749,842
ssj_ops@100% per JVM = 1,437,460
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 26, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: May 8, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,761,518
Calibration 2     5,757,756
Calibration 3     5,768,565
ssj_ops@calibrated=5,763,160
100% 99.8% 5,763,160 5,749,842
90% 89.9% 5,186,844 5,183,681
80% 80.0% 4,610,528 4,610,443
70% 70.0% 4,034,212 4,036,696
60% 60.1% 3,457,896 3,462,766
50% 50.0% 2,881,580 2,882,149
40% 40.0% 2,305,264 2,304,690
30% 30.0% 1,728,948 1,726,372
20% 20.0% 1,152,632 1,154,495
10% 10.1% 576,316 583,242
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 10
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: 7U
CPU Name: Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated in each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x HPE 240GB 6G SATA M.2 SSD (875488-B21)
Disk Controller: HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: H/S: Standard
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn21000m -Xms24000m -Xmx24000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 24000
JVM Maximum Heap (MB): 24000
JVM Address Bits: 64
Boot Firmware Version: I42 v2.00 (02/02/2019)
Management Firmware Version: 1.40 Feb 05 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) Version: 2019.03.0, Microsoft Windows KB4056898, KB4338815
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE10.001 1,433,575
NODE10.002 1,435,222
NODE10.003 1,431,412
NODE10.004 1,449,633
ssj_ops@100% 5,749,842
ssj_ops@100% per JVM 1,437,460

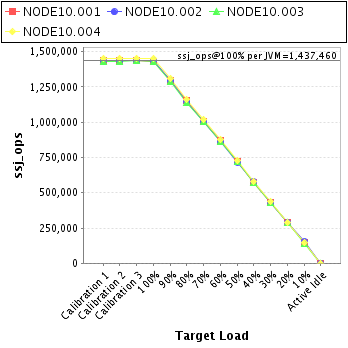

Graph of per-instance results
JVM 'NODE10.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,439,118
Calibration 2     1,437,181
Calibration 3     1,440,879
ssj_ops@calibrated=1,439,030
100% 99.6% 1,439,030 1,433,575
90% 89.9% 1,295,127 1,293,811
80% 80.3% 1,151,224 1,154,984
70% 70.1% 1,007,321 1,008,189
60% 60.3% 863,418 867,450
50% 50.0% 719,515 719,789
40% 39.8% 575,612 572,446
30% 29.9% 431,709 430,498
20% 20.0% 287,806 287,448
10% 10.0% 143,903 143,785
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE10.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,438,093
Calibration 2     1,436,553
Calibration 3     1,436,635
ssj_ops@calibrated=1,436,594
100% 99.9% 1,436,594 1,435,222
90% 90.1% 1,292,935 1,294,626
80% 80.1% 1,149,275 1,150,234
70% 69.9% 1,005,616 1,003,968
60% 59.9% 861,956 860,996
50% 49.9% 718,297 717,093
40% 40.2% 574,638 576,800
30% 30.0% 430,978 430,611
20% 20.2% 287,319 289,781
10% 10.6% 143,659 151,701
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE10.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,433,084
Calibration 2     1,431,827
Calibration 3     1,436,713
ssj_ops@calibrated=1,434,270
100% 99.8% 1,434,270 1,431,412
90% 89.7% 1,290,843 1,286,869
80% 79.7% 1,147,416 1,143,213
70% 70.2% 1,003,989 1,006,795
60% 60.0% 860,562 860,008
50% 50.1% 717,135 718,789
40% 40.1% 573,708 575,377
30% 29.9% 430,281 428,790
20% 20.0% 286,854 286,653
10% 10.0% 143,427 142,862
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE10.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,451,223
Calibration 2     1,452,195
Calibration 3     1,454,338
ssj_ops@calibrated=1,453,267
100% 99.7% 1,453,267 1,449,633
90% 90.0% 1,307,940 1,308,376
80% 80.0% 1,162,613 1,162,012
70% 70.0% 1,017,287 1,017,744
60% 60.2% 871,960 874,312
50% 50.0% 726,633 726,478
40% 39.9% 581,307 580,068
30% 30.0% 435,980 436,474
20% 20.0% 290,653 290,613
10% 10.0% 145,327 144,894
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
