SPECpower_ssj2008

New H3C Technologies Co., Ltd. H3C UniServer R4900 G5			SPECpower_ssj2008 = 12,521 overall ssj_ops/watt
Test Sponsor:	New H3C Technologies Co., Ltd.	SPEC License #:	9066	Test Method:	Single Node
Tested By:	New H3C Technologies Co., Ltd.	Test Location:	Hangzhou, Zhejiang, China	Test Date:	Oct 9, 2021
Hardware Availability:	May-2021	Software Availability:	Jul-2021	Publication:	Oct 28, 2021
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	New H3C Technologies Co., Ltd.
Model:	H3C UniServer R4900 G5
Form Factor:	2U
CPU Name:	Intel Xeon Platinum 8380 2.3GHz
CPU Characteristics:	2.3 GHz, 40 core, 60MB L3 cache
CPU Frequency (MHz):	2300
CPU(s) Enabled:	80 cores, 2 chips, 40 cores/chip
Hardware Threads:	160 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 48 KB D on chip per core
Secondary Cache:	1280 KB I+D on chip per chip
Tertiary Cache:	60 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	256
# and size of DIMM:	16 x 16 GB
Memory Details:	16 GB 2Rx8 PC4-3200AA-RE2-12; slots 1, 3, 5, 7, 10, 12, 14, 16 populated in each Socket
Power Supply Quantity and Rating (W):	1 x 850
Power Supply Details:	1 X DELTA DPS-850AB-11A PN:IRHD2111000036
Disk Drive:	1 x Intel M.2 SSD 240GB SSDSCKKB240GZ,PN:PHYK115400HH240A
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x H3C 4-Port 1GE OCP3.0 Adapter
NICs Enabled in Firmware / OS / Connected:	4/4/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Balanced Mode Enabled In OS (see SUT Notes)
Operating System (OS):	Windows Server 2019 Datacenter
OS Version:	Version 1809(OS Build 17763.1)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-bit Server VM 18.9 (build 11.0.9+7-LTS,mixed mode)
JVM Command-line Options:	set JAVAOPTIONS_SSJ=-server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=1 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity:	start /node [0,1,2,3] /affinity [3,C,30,C0,300,C00,3000,C000,30000,C0000,300000,C00000,3000000,C000000,30000000,C0000000,300000000,C00000000,3000000000,C000000000]
JVM Instances:	80
JVM Initial Heap (MB):	1950
JVM Maximum Heap (MB):	1950
JVM Address Bits:	64
Boot Firmware Version:	5.30.00
Management Firmware Version:	2.60.00
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	Microsoft Windows KB4072698

Degrade Precedence: Feature Precedence

UPI Link Frequency Select: 9.6GT/s

Patrol Scrub: Disabled

Hardware Prefetcher: Disabled

Adjacent Cache Prefetch: Disabled

DCU Streamer Prefetcher: Disabled

Memory Frequency: 2400

Turbo Mode: Disabled

CPU C6 Report: Enabled

Package C State: C6(non Retention state)

SNC (Sub NUMA): Enable SNC2(2-clusters)

none

Each JVM instance was bound to 2 logical processors
Using the local security settings console, "lock pages in memory " was enabled for the user running the benchmark
Benchmark was started via Windows Remote Desktop Connection
Hard Disk set to turn off after 1 minute
Display set to turn off after 1 minute
Minimum processor state set to 0%
Maximum processor state set to 100%
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Software
Operating System (OS):	Microsoft Windows Server 2019 Datacenter
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-bit Server VM 18.9 (build 11.0.9+7-LTS,mixed mode), version 11.0.9
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	CHROMA
Model:	66203
Serial Number:	662030000500
Connectivity:	GPIB
Input Connection:	Default
Metrology Institute:	CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by:	CEPREI Calibration and Testing Center
Calibration Label:	1JA20002540-0002
Date of Calibration:	5-Feb-2021
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.9.2-3976349f-20201208
Setup Description:	Connected to PSU1

Temperature Sensor temp1
Hardware Vendor:	DIGI.
Model:	Watchport/H
Driver Version:	6.2.1.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	Placed in front the main airflow inlet of the SUT less than 50mm

None

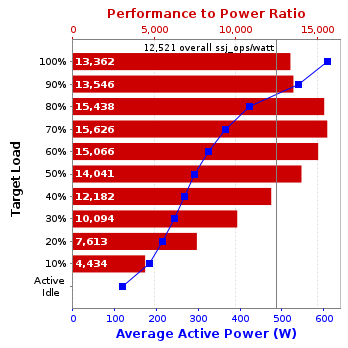

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	609	21.3
90%	541	21.6
80%	423	21.0
70%	365	21.1
60%	325	21.7
50%	290	22.7
40%	267	21.6
30%	242	21.6
20%	215	21.6
10%	183	21.6
Active Idle	119	21.2

Line Standard	Minimum Temperature (°C)	Elevation (m)
230V / 50 Hz / 1 phase / 2 wires	21.0	132

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
