New H3C Technologies Co., Ltd. H3C UniServer R4900 G5 SPECpower_ssj2008 = 12,521 overall ssj_ops/watt
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Single Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: Oct 9, 2021
Hardware Availability: May-2021 Software Availability: Jul-2021 Publication: Oct 28, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 605 21.8
Calibration 2 608 21.5
Calibration 3 609 21.4
100% 609 21.3
90% 541 21.6
80% 423 21.0
70% 365 21.1
60% 325 21.7
50% 290 22.7
40% 267 21.6
30% 242 21.6
20% 215 21.6
10% 183 21.6
Active Idle 119 21.2

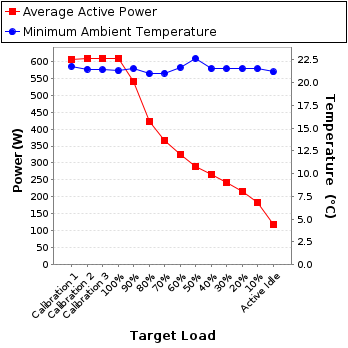

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: CHROMA
Model: 66203
Serial Number: 662030000500
Connectivity: GPIB
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: CEPREI Calibration and Testing Center
Calibration Label: 1JA20002540-0002
Date of Calibration: 5-Feb-2021
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.2-3976349f-20201208
Setup Description: Connected to PSU1
Temperature Sensor temp1
Hardware Vendor: DIGI.
Model: Watchport/H
Driver Version: 6.2.1.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: Placed in front the main airflow inlet of the SUT less than 50mm
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 236 300.0 2.58 5.0 0.995 605 0.3%
Calibration 2 236 300.0 2.59 5.0 0.995 608 0.3%
Calibration 3 237 300.0 2.58 5.0 0.995 609 0.3%
100% 237 300.0 2.58 5.0 0.995 609 0.3%
90% 236 300.0 2.31 5.0 0.994 541 0.4%
80% 235 300.0 1.81 5.0 0.991 423 0.5%
70% 236 300.0 1.57 5.0 0.987 365 0.5%
60% 236 300.0 1.39 5.0 0.985 325 0.6%
50% 237 300.0 1.25 2.0 0.983 290 0.3%
40% 237 300.0 1.15 2.0 0.982 267 0.3%
30% 237 300.0 1.04 2.0 0.979 242 0.3%
20% 237 300.0 0.933 2.0 0.973 215 0.4%
10% 237 300.0 0.798 2.0 0.971 183 0.4%
Active Idle 237 300.0 0.528 2.0 0.948 119 0.6%

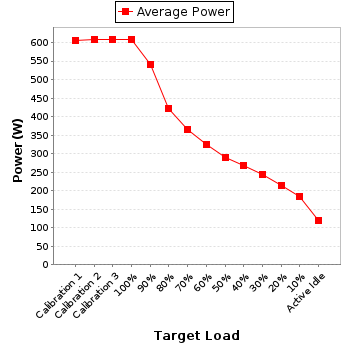

Power details for pwr1
