SPECpower_ssj2008

Fujitsu FUJITSU Server PRIMERGY RX4770 M5			SPECpower_ssj2008 = 12,979 overall ssj_ops/watt
Test Sponsor:	Fujitsu	SPEC License #:	19	Test Method:	Single Node
Tested By:	Fujitsu	Test Location:	Kawasaki, Kanagawa, Japan	Test Date:	Apr 24, 2019
Hardware Availability:	Jun-2019	Software Availability:	Dec-2018	Publication:	Jun 5, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

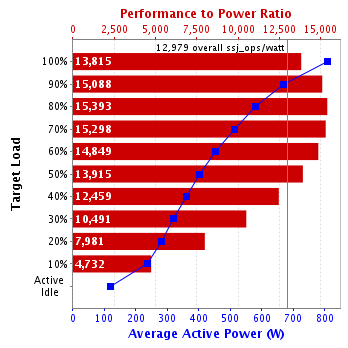

Benchmark Results Summary

Performance			Power	Performance to Power Ratio
Target Load	Actual Load	ssj_ops	Average Active Power (W)	Performance to Power Ratio
100%	99.8%	11,162,949	808	13,815
90%	90.1%	10,076,651	668	15,088
80%	79.9%	8,941,321	581	15,393
70%	70.0%	7,832,822	512	15,298
60%	60.1%	6,723,475	453	14,849
50%	50.0%	5,596,891	402	13,915
40%	40.0%	4,474,650	359	12,459
30%	30.0%	3,358,285	320	10,491
20%	20.0%	2,238,257	280	7,981
10%	10.0%	1,122,533	237	4,732
Active Idle		0	120	0
∑ssj_ops / ∑power =				12,979

System Under Test

Set: 'RX4770M5'

Set Identifier:	RX4770M5
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	Single Node

Hardware
Hardware Vendor:	Fujitsu
Model:	FUJITSU Server PRIMERGY RX4770 M5
Form Factor:	2U
CPU Name:	Intel Xeon Platinum 8280L
CPU Characteristics:	28-Core, 2.70GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16 GB 2Rx8 PC4-2933Y-R; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J, 1K, 1L, 1M, 1N, 1P, 1Q, 1R, 1S, 1T, 1U, 1V, 1W, 1X, 1Y, 1Z populated
Power Supply Quantity and Rating (W):	1 x 1600
Power Supply Details:	Standard power supply part of base unit S26361-K1657-V300
Disk Drive:	1 x SSD M.2 240GB, S26361-F5706-E240
Disk Controller:	Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed:	1 x PLAN EM 4 x 1Gb T OCP(Dynamic LOM), S26361-F3953-E401
NICs Enabled in Firmware / OS / Connected:	4/4/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 12 SP4
OS Version:	4.12.14-94.41-default
Filesystem:	xfs
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=8 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=0
JVM Affinity:	chrt -r 1 taskset -c [(0,112),(1,113),(2,114),(3,115),(7,119),(8,120),(9,121),(14,126),(15,127),(16,128),(17,129),(21,133),(22,134),(23,135),(4,116),(5,117),(6,118),(10,122),(11,123),(12,124),(13,125),(18,130),(19,131),(20,132),(24,136),(25,137),(26,138),(27,139),(28,140),(29,141),(30,142),(31,143),(35,147),(36,148),(37,149),(42,154),(43,155),(44,156),(45,157),(49,161),(50,162),(51,163),(32,144),(33,145),(34,146),(38,150),(39,151),(40,152),(41,153),(46,158),(47,159),(48,160),(52,164),(53,165),(54,166),(55,167),(56,168),(57,169),(58,170),(59,171),(63,175),(64,176),(65,177),(70,182),(71,183),(72,184),(73,185),(77,189),(78,190),(79,191),(60,172),(61,173),(62,174),(66,178),(67,179),(68,180),(69,181),(74,186),(75,187),(76,188),(80,192),(81,193),(82,194),(83,195),(84,196),(85,197),(86,198),(87,199),(91,203),(92,204),(93,205),(98,210),(99,211),(100,212),(101,213),(105,217),(106,218),(107,219),(88,200),(89,201),(90,202),(94,206),(95,207),(96,208),(97,209),(102,214),(103,215),(104,216),(108,220),(109,221),(110,222),(111,223)] numactl --membind=[0-7]
JVM Instances:	112
JVM Initial Heap (MB):	1950
JVM Maximum Heap (MB):	1950
JVM Address Bits:	64
Boot Firmware Version:	R1.8.0
Management Firmware Version:	2.20c
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

Boot Firmware Settings

Set "SATA Controller = Disabled" in BIOS.
Set "Serial Port = Disabled" in BIOS.
Set "Hardware Prefetcher = Disabled" in BIOS.
Set "Adjacent Cache Line Prefetch = Disabled" in BIOS.
Set "DCU Streamer Prefetcher = Disabled" in BIOS.
Set "Intel Virtualization Technology = Disabled" in BIOS.
Set "Turbo Mode = Disabled" in BIOS.
Set "Override OS Energy Performance = Enabled" in BIOS.
Set "Energy Performance = Energy Efficient" in BIOS.
Set "DDR Performance = Power balanced" in BIOS.(effective memory frequency = 2666 MHz)
Set "Autonomous C-state Support = Enabled" in BIOS.
Set "ASPM Support = Force L0s" in BIOS.
Set "UPI Link Frequency Select = 9.6GT/s" in BIOS.
Set "Uncore Frequency Override = Power balanced" in BIOS.
Set "IMC Interleaving = 1-way" in BIOS.
Set "HWPM = Native Mode" in BIOS
Set "USB Port Control = Enable internal ports only" in BIOS.
Set "Network Stack = Disabled" in BIOS.
Set "Link L0p Enable = Enabled" in BIOS.
Set "Link L1 Enable = Enabled" in BIOS.

Management Firmware Settings

None

System Under Test Notes

kernal parameter:pcie_aspm=force pcie_aspm.policy=powersave intel_pstate=disable rcu_nocbs=1-223 nohz_full=1-223 isolcpus=1-223
Benchmark started via ssh
modprobe cpufreq_conservative
cpupower frequency-set --governor conservative
echo -n 98 > /sys/devices/system/cpu/cpufreq/conservative/up_threshold
echo -n 1 > /sys/devices/system/cpu/cpufreq/conservative/freq_step
echo -n 1000000 > /sys/devices/system/cpu/cpufreq/conservative/sampling_rate
echo -n 0 > /sys/devices/system/cpu/cpufreq/conservative/ignore_nice_load
sysctl -w kernel.sched_migration_cost_ns=6000
echo -n 97 > /sys/devices/system/cpu/cpufreq/conservative/down_threshold
echo -n 1 > /sys/devices/system/cpu/cpufreq/conservative/sampling_down_factor
sysctl -w kernel.sched_min_granularity_ns=10000000
echo always > /sys/kernel/mm/transparent_hugepage/enabled
powertop --auto-tune
echo 0 > /proc/sys/kernel/nmi_watchdog
cpupower frequency-set -u 2400MHz
sysctl -w vm.swappiness=50
sysctl -w vm.laptop_mode=5
<Yes>: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
<Yes>: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
<Yes>: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Controller System

Hardware
Hardware Vendor:	Fujitsu
Model:	PRIMERGY RX2530 M2
CPU Description:	2x Intel Xeon E5-2643 v4
Memory amount (GB):	64

Software
Operating System (OS):	Microsoft Windows Server 2012 R2 Standard
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
CCS Version:	1.2.6

Measurement Devices

Power Analyzer pwr1
Hardware Vendor:	Hioki
Model:	Hioki3336
Serial Number:	170130930
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	NICT (National Institute of Information and Communications Technology)
Accredited by:	HIOKI E.E. CORPORATION
Calibration Label:	H06400086-1901
Date of Calibration:	30-Jan-2019
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.8.1-260d064e-20161220
Setup Description:	Connected to PSU 1

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/H
Driver Version:	Watchport Virtual Port 5.70.105.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	5 mm in front of SUT main air intake

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 224 due to a known inconsistency in processor reporting with this Java version.

Aggregate Electrical and Environmental Data

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	808	21.6
90%	668	21.6
80%	581	21.6
70%	512	21.6
60%	453	21.5
50%	402	21.5
40%	359	21.5
30%	320	21.4
20%	280	21.4
10%	237	21.4
Active Idle	120	21.4

Line Standard	Minimum Temperature (°C)	Elevation (m)
200V / 50 Hz / 1 phase / 2 wires	21.4	11

See the Power/Temperature Details Report for additional details.

Aggregate Performance Data

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			10,546,323
Calibration 2			11,182,011
Calibration 3			11,195,169
ssj_ops@calibrated=11,188,590
100%	99.8%	11,188,590	11,162,949
90%	90.1%	10,069,731	10,076,651
80%	79.9%	8,950,872	8,941,321
70%	70.0%	7,832,013	7,832,822
60%	60.1%	6,713,154	6,723,475
50%	50.0%	5,594,295	5,596,891
40%	40.0%	4,475,436	4,474,650
30%	30.0%	3,356,577	3,358,285
20%	20.0%	2,237,718	2,238,257
10%	10.0%	1,118,859	1,122,533
Active Idle		0	0

See the Host Performance Report for additional details.
