Fujitsu FUJITSU Server PRIMERGY RX4770 M5 | ssj_ops@100% = 11,162,949 ssj_ops@100% per JVM = 99,669 |
||||
Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
Tested By: | Fujitsu | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | Apr 24, 2019 |
Hardware Availability: | Jun-2019 | Software Availability: | Dec-2018 | Publication: | Jun 5, 2019 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

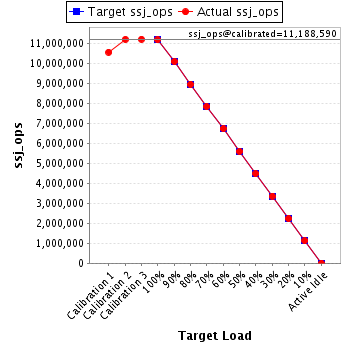

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 10,546,323 | ||
Calibration 2 | 11,182,011 | ||
Calibration 3 | 11,195,169 | ||
ssj_ops@calibrated=11,188,590 | |||
100% | 99.8% | 11,188,590 | 11,162,949 |
90% | 90.1% | 10,069,731 | 10,076,651 |
80% | 79.9% | 8,950,872 | 8,941,321 |
70% | 70.0% | 7,832,013 | 7,832,822 |
60% | 60.1% | 6,713,154 | 6,723,475 |
50% | 50.0% | 5,594,295 | 5,596,891 |
40% | 40.0% | 4,475,436 | 4,474,650 |
30% | 30.0% | 3,356,577 | 3,358,285 |
20% | 20.0% | 2,237,718 | 2,238,257 |
10% | 10.0% | 1,118,859 | 1,122,533 |
Active Idle | 0 | 0 |
Set Identifier: | RX4770M5 |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | Single Node |
Hardware | |
---|---|
Hardware Vendor: | Fujitsu |
Model: | FUJITSU Server PRIMERGY RX4770 M5 |
Form Factor: | 2U |
CPU Name: | Intel Xeon Platinum 8280L |
CPU Characteristics: | 28-Core, 2.70GHz, 38.5MB L3 Cache |
CPU Frequency (MHz): | 2700 |
CPU(s) Enabled: | 112 cores, 4 chips, 28 cores/chip |
Hardware Threads: | 224 (2 / core) |
CPU(s) Orderable: | 4 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 1 MB I+D on chip per core |
Tertiary Cache: | 39424 KB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 384 |
# and size of DIMM: | 24 x 16384 MB |
Memory Details: | 24 x 16 GB 2Rx8 PC4-2933Y-R; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J, 1K, 1L, 1M, 1N, 1P, 1Q, 1R, 1S, 1T, 1U, 1V, 1W, 1X, 1Y, 1Z populated |
Power Supply Quantity and Rating (W): | 1 x 1600 |
Power Supply Details: | Standard power supply part of base unit S26361-K1657-V300 |
Disk Drive: | 1 x SSD M.2 240GB, S26361-F5706-E240 |
Disk Controller: | Integrated SATA Controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x PLAN EM 4 x 1Gb T OCP(Dynamic LOM), S26361-F3953-E401 |
NICs Enabled in Firmware / OS / Connected: | 4/4/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Enabled (see SUT Notes) |
Operating System (OS): | SUSE Linux Enterprise Server 12 SP4 |
OS Version: | 4.12.14-94.41-default |
Filesystem: | xfs |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80 |
JVM Command-line Options: | -server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=8 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=0 |
JVM Affinity: | chrt -r 1 taskset -c [(0,112),(1,113),(2,114),(3,115),(7,119),(8,120),(9,121),(14,126),(15,127),(16,128),(17,129),(21,133),(22,134),(23,135),(4,116),(5,117),(6,118),(10,122),(11,123),(12,124),(13,125),(18,130),(19,131),(20,132),(24,136),(25,137),(26,138),(27,139),(28,140),(29,141),(30,142),(31,143),(35,147),(36,148),(37,149),(42,154),(43,155),(44,156),(45,157),(49,161),(50,162),(51,163),(32,144),(33,145),(34,146),(38,150),(39,151),(40,152),(41,153),(46,158),(47,159),(48,160),(52,164),(53,165),(54,166),(55,167),(56,168),(57,169),(58,170),(59,171),(63,175),(64,176),(65,177),(70,182),(71,183),(72,184),(73,185),(77,189),(78,190),(79,191),(60,172),(61,173),(62,174),(66,178),(67,179),(68,180),(69,181),(74,186),(75,187),(76,188),(80,192),(81,193),(82,194),(83,195),(84,196),(85,197),(86,198),(87,199),(91,203),(92,204),(93,205),(98,210),(99,211),(100,212),(101,213),(105,217),(106,218),(107,219),(88,200),(89,201),(90,202),(94,206),(95,207),(96,208),(97,209),(102,214),(103,215),(104,216),(108,220),(109,221),(110,222),(111,223)] numactl --membind=[0-7] |
JVM Instances: | 112 |
JVM Initial Heap (MB): | 1950 |
JVM Maximum Heap (MB): | 1950 |
JVM Address Bits: | 64 |
Boot Firmware Version: | R1.8.0 |
Management Firmware Version: | 2.20c |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | None |

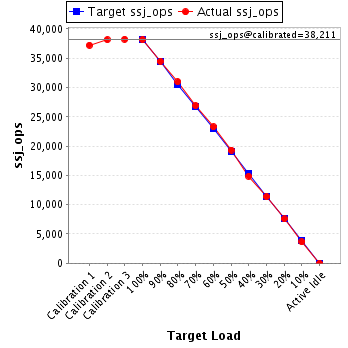

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 37,246 | ||
Calibration 2 | 38,167 | ||
Calibration 3 | 38,256 | ||
ssj_ops@calibrated=38,211 | |||
100% | 99.8% | 38,211 | 38,152 |
90% | 90.3% | 34,390 | 34,496 |
80% | 81.0% | 30,569 | 30,968 |
70% | 70.4% | 26,748 | 26,910 |
60% | 61.0% | 22,927 | 23,292 |
50% | 50.6% | 19,106 | 19,329 |
40% | 38.9% | 15,285 | 14,879 |
30% | 29.7% | 11,463 | 11,349 |
20% | 19.8% | 7,642 | 7,562 |
10% | 9.6% | 3,821 | 3,658 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,380 | ||
Calibration 2 | 99,806 | ||
Calibration 3 | 99,996 | ||
ssj_ops@calibrated=99,901 | |||
100% | 99.4% | 99,901 | 99,257 |
90% | 88.7% | 89,911 | 88,617 |
80% | 80.0% | 79,921 | 79,950 |
70% | 69.9% | 69,931 | 69,847 |
60% | 60.5% | 59,941 | 60,449 |
50% | 49.5% | 49,951 | 49,402 |
40% | 39.9% | 39,960 | 39,816 |
30% | 30.0% | 29,970 | 29,995 |
20% | 20.0% | 19,980 | 19,988 |
10% | 10.4% | 9,990 | 10,346 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,237 | ||
Calibration 2 | 99,232 | ||
Calibration 3 | 98,997 | ||
ssj_ops@calibrated=99,114 | |||
100% | 99.5% | 99,114 | 98,602 |
90% | 90.6% | 89,203 | 89,821 |
80% | 80.1% | 79,292 | 79,416 |
70% | 70.2% | 69,380 | 69,546 |
60% | 60.8% | 59,469 | 60,273 |
50% | 50.6% | 49,557 | 50,187 |
40% | 40.2% | 39,646 | 39,870 |
30% | 30.5% | 29,734 | 30,214 |
20% | 20.2% | 19,823 | 20,036 |
10% | 10.0% | 9,911 | 9,918 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,228 | ||
Calibration 2 | 96,673 | ||
Calibration 3 | 96,955 | ||
ssj_ops@calibrated=96,814 | |||
100% | 100.0% | 96,814 | 96,803 |
90% | 90.4% | 87,133 | 87,495 |
80% | 79.3% | 77,451 | 76,820 |
70% | 69.9% | 67,770 | 67,709 |
60% | 59.2% | 58,088 | 57,282 |
50% | 50.0% | 48,407 | 48,435 |
40% | 39.2% | 38,726 | 37,969 |
30% | 29.7% | 29,044 | 28,739 |
20% | 20.7% | 19,363 | 20,014 |
10% | 10.1% | 9,681 | 9,792 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,639 | ||
Calibration 2 | 97,085 | ||
Calibration 3 | 97,334 | ||
ssj_ops@calibrated=97,210 | |||
100% | 100.2% | 97,210 | 97,439 |
90% | 90.2% | 87,489 | 87,693 |
80% | 80.9% | 77,768 | 78,597 |
70% | 69.6% | 68,047 | 67,694 |
60% | 60.1% | 58,326 | 58,392 |
50% | 50.4% | 48,605 | 48,983 |
40% | 40.1% | 38,884 | 39,019 |
30% | 30.2% | 29,163 | 29,344 |
20% | 20.2% | 19,442 | 19,637 |
10% | 9.7% | 9,721 | 9,436 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,228 | ||
Calibration 2 | 99,813 | ||
Calibration 3 | 100,140 | ||
ssj_ops@calibrated=99,976 | |||
100% | 100.0% | 99,976 | 99,929 |
90% | 91.0% | 89,979 | 90,953 |
80% | 80.1% | 79,981 | 80,130 |
70% | 69.8% | 69,984 | 69,822 |
60% | 59.8% | 59,986 | 59,771 |
50% | 50.3% | 49,988 | 50,288 |
40% | 40.6% | 39,991 | 40,619 |
30% | 30.8% | 29,993 | 30,789 |
20% | 20.0% | 19,995 | 19,985 |
10% | 10.1% | 9,998 | 10,058 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,035 | ||
Calibration 2 | 98,751 | ||
Calibration 3 | 98,865 | ||
ssj_ops@calibrated=98,808 | |||
100% | 99.5% | 98,808 | 98,345 |
90% | 90.6% | 88,927 | 89,544 |
80% | 80.3% | 79,046 | 79,324 |
70% | 70.1% | 69,166 | 69,235 |
60% | 61.0% | 59,285 | 60,238 |
50% | 50.5% | 49,404 | 49,864 |
40% | 40.3% | 39,523 | 39,786 |
30% | 29.6% | 29,642 | 29,267 |
20% | 20.6% | 19,762 | 20,371 |
10% | 10.0% | 9,881 | 9,837 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 96,963 | ||
Calibration 2 | 100,200 | ||
Calibration 3 | 100,566 | ||
ssj_ops@calibrated=100,383 | |||
100% | 99.8% | 100,383 | 100,148 |
90% | 90.7% | 90,344 | 90,999 |
80% | 79.2% | 80,306 | 79,530 |
70% | 70.1% | 70,268 | 70,333 |
60% | 60.5% | 60,230 | 60,696 |
50% | 50.2% | 50,191 | 50,347 |
40% | 39.7% | 40,153 | 39,838 |
30% | 30.0% | 30,115 | 30,083 |
20% | 20.0% | 20,077 | 20,097 |
10% | 10.1% | 10,038 | 10,137 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,023 | ||
Calibration 2 | 99,258 | ||
Calibration 3 | 98,724 | ||
ssj_ops@calibrated=98,991 | |||
100% | 99.6% | 98,991 | 98,556 |
90% | 89.6% | 89,092 | 88,683 |
80% | 78.8% | 79,193 | 78,002 |
70% | 69.4% | 69,294 | 68,736 |
60% | 60.3% | 59,395 | 59,741 |
50% | 50.6% | 49,496 | 50,060 |
40% | 39.9% | 39,596 | 39,526 |
30% | 29.4% | 29,697 | 29,093 |
20% | 19.7% | 19,798 | 19,525 |
10% | 9.7% | 9,899 | 9,621 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,153 | ||
Calibration 2 | 98,107 | ||
Calibration 3 | 97,963 | ||
ssj_ops@calibrated=98,035 | |||
100% | 99.5% | 98,035 | 97,549 |
90% | 89.6% | 88,231 | 87,878 |
80% | 80.4% | 78,428 | 78,840 |
70% | 70.5% | 68,624 | 69,069 |
60% | 60.1% | 58,821 | 58,920 |
50% | 50.0% | 49,017 | 48,981 |
40% | 39.5% | 39,214 | 38,696 |
30% | 30.3% | 29,410 | 29,700 |
20% | 20.1% | 19,607 | 19,727 |
10% | 9.9% | 9,803 | 9,696 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,858 | ||
Calibration 2 | 97,583 | ||
Calibration 3 | 98,111 | ||
ssj_ops@calibrated=97,847 | |||
100% | 99.9% | 97,847 | 97,774 |
90% | 91.0% | 88,063 | 89,021 |
80% | 80.0% | 78,278 | 78,249 |
70% | 70.7% | 68,493 | 69,148 |
60% | 61.2% | 58,708 | 59,921 |
50% | 50.2% | 48,924 | 49,135 |
40% | 40.8% | 39,139 | 39,966 |
30% | 30.0% | 29,354 | 29,382 |
20% | 19.6% | 19,569 | 19,196 |
10% | 10.1% | 9,785 | 9,907 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,433 | ||
Calibration 2 | 99,963 | ||
Calibration 3 | 99,964 | ||
ssj_ops@calibrated=99,964 | |||
100% | 99.2% | 99,964 | 99,208 |
90% | 90.4% | 89,967 | 90,357 |
80% | 79.7% | 79,971 | 79,683 |
70% | 70.3% | 69,975 | 70,266 |
60% | 60.1% | 59,978 | 60,067 |
50% | 50.4% | 49,982 | 50,397 |
40% | 40.5% | 39,986 | 40,513 |
30% | 30.1% | 29,989 | 30,121 |
20% | 20.1% | 19,993 | 20,065 |
10% | 10.0% | 9,996 | 9,996 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,543 | ||
Calibration 2 | 100,613 | ||
Calibration 3 | 100,602 | ||
ssj_ops@calibrated=100,607 | |||
100% | 99.6% | 100,607 | 100,234 |
90% | 91.2% | 90,547 | 91,742 |
80% | 80.3% | 80,486 | 80,810 |
70% | 70.8% | 70,425 | 71,202 |
60% | 59.1% | 60,364 | 59,439 |
50% | 50.4% | 50,304 | 50,670 |
40% | 40.7% | 40,243 | 40,977 |
30% | 30.3% | 30,182 | 30,471 |
20% | 20.0% | 20,121 | 20,094 |
10% | 10.1% | 10,061 | 10,142 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,555 | ||
Calibration 2 | 98,895 | ||
Calibration 3 | 98,866 | ||
ssj_ops@calibrated=98,881 | |||
100% | 99.6% | 98,881 | 98,449 |
90% | 89.2% | 88,993 | 88,195 |
80% | 79.7% | 79,105 | 78,824 |
70% | 70.9% | 69,216 | 70,121 |
60% | 60.6% | 59,328 | 59,943 |
50% | 50.4% | 49,440 | 49,789 |
40% | 40.5% | 39,552 | 40,053 |
30% | 30.8% | 29,664 | 30,489 |
20% | 20.0% | 19,776 | 19,759 |
10% | 10.3% | 9,888 | 10,150 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,249 | ||
Calibration 2 | 96,902 | ||
Calibration 3 | 97,221 | ||
ssj_ops@calibrated=97,062 | |||
100% | 100.0% | 97,062 | 97,045 |
90% | 89.4% | 87,355 | 86,736 |
80% | 80.9% | 77,649 | 78,502 |
70% | 70.4% | 67,943 | 68,327 |
60% | 59.9% | 58,237 | 58,155 |
50% | 51.1% | 48,531 | 49,567 |
40% | 39.8% | 38,825 | 38,641 |
30% | 30.2% | 29,118 | 29,265 |
20% | 20.3% | 19,412 | 19,674 |
10% | 10.0% | 9,706 | 9,704 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,537 | ||
Calibration 2 | 98,695 | ||
Calibration 3 | 99,074 | ||
ssj_ops@calibrated=98,884 | |||
100% | 98.5% | 98,884 | 97,353 |
90% | 91.2% | 88,996 | 90,136 |
80% | 78.4% | 79,108 | 77,532 |
70% | 69.7% | 69,219 | 68,958 |
60% | 60.4% | 59,331 | 59,690 |
50% | 50.5% | 49,442 | 49,894 |
40% | 38.9% | 39,554 | 38,484 |
30% | 31.0% | 29,665 | 30,617 |
20% | 19.6% | 19,777 | 19,373 |
10% | 9.7% | 9,888 | 9,630 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,492 | ||
Calibration 2 | 95,544 | ||
Calibration 3 | 95,691 | ||

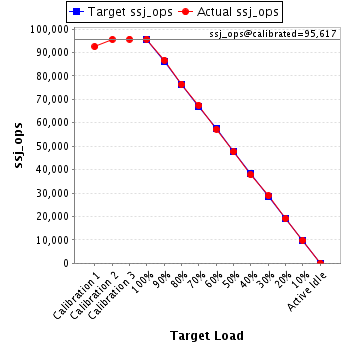

ssj_ops@calibrated=95,617 | |||
100% | 100.0% | 95,617 | 95,637 |
90% | 90.7% | 86,056 | 86,728 |
80% | 80.0% | 76,494 | 76,457 |
70% | 70.6% | 66,932 | 67,460 |
60% | 59.9% | 57,370 | 57,261 |
50% | 49.8% | 47,809 | 47,578 |
40% | 39.5% | 38,247 | 37,746 |
30% | 30.1% | 28,685 | 28,824 |
20% | 19.9% | 19,123 | 19,072 |
10% | 10.2% | 9,562 | 9,792 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,575 | ||
Calibration 2 | 96,099 | ||
Calibration 3 | 96,618 | ||

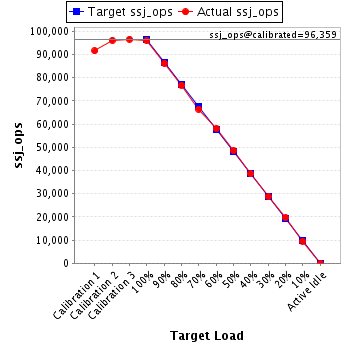

ssj_ops@calibrated=96,359 | |||
100% | 99.7% | 96,359 | 96,098 |
90% | 89.5% | 86,723 | 86,250 |
80% | 79.7% | 77,087 | 76,814 |
70% | 69.0% | 67,451 | 66,470 |
60% | 60.2% | 57,815 | 58,028 |
50% | 50.4% | 48,179 | 48,554 |
40% | 40.0% | 38,543 | 38,526 |
30% | 29.8% | 28,908 | 28,718 |
20% | 20.4% | 19,272 | 19,631 |
10% | 9.9% | 9,636 | 9,583 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 90,828 | ||
Calibration 2 | 97,435 | ||
Calibration 3 | 97,932 | ||
ssj_ops@calibrated=97,683 | |||
100% | 99.9% | 97,683 | 97,593 |
90% | 90.4% | 87,915 | 88,263 |
80% | 79.6% | 78,147 | 77,727 |
70% | 70.7% | 68,378 | 69,051 |
60% | 60.1% | 58,610 | 58,724 |
50% | 50.2% | 48,842 | 49,000 |
40% | 39.8% | 39,073 | 38,861 |
30% | 30.0% | 29,305 | 29,281 |
20% | 19.5% | 19,537 | 19,037 |
10% | 9.7% | 9,768 | 9,496 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,020 | ||
Calibration 2 | 97,604 | ||
Calibration 3 | 98,141 | ||
ssj_ops@calibrated=97,873 | |||
100% | 100.0% | 97,873 | 97,909 |
90% | 90.2% | 88,085 | 88,310 |
80% | 80.7% | 78,298 | 78,982 |
70% | 70.1% | 68,511 | 68,624 |
60% | 60.5% | 58,724 | 59,187 |
50% | 49.8% | 48,936 | 48,768 |
40% | 39.8% | 39,149 | 38,982 |
30% | 30.2% | 29,362 | 29,556 |
20% | 19.9% | 19,575 | 19,512 |
10% | 9.8% | 9,787 | 9,637 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,640 | ||
Calibration 2 | 97,892 | ||
Calibration 3 | 98,335 | ||
ssj_ops@calibrated=98,113 | |||
100% | 100.0% | 98,113 | 98,151 |
90% | 90.0% | 88,302 | 88,336 |
80% | 79.2% | 78,491 | 77,738 |
70% | 70.0% | 68,679 | 68,707 |
60% | 59.9% | 58,868 | 58,744 |
50% | 50.7% | 49,057 | 49,732 |
40% | 39.8% | 39,245 | 39,087 |
30% | 30.0% | 29,434 | 29,423 |
20% | 20.4% | 19,623 | 20,064 |
10% | 10.0% | 9,811 | 9,829 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,414 | ||
Calibration 2 | 97,330 | ||
Calibration 3 | 97,642 | ||
ssj_ops@calibrated=97,486 | |||
100% | 100.1% | 97,486 | 97,584 |
90% | 89.5% | 87,738 | 87,268 |
80% | 80.5% | 77,989 | 78,428 |
70% | 69.8% | 68,240 | 68,001 |
60% | 60.6% | 58,492 | 59,067 |
50% | 50.2% | 48,743 | 48,893 |
40% | 39.8% | 38,995 | 38,807 |
30% | 29.7% | 29,246 | 28,963 |
20% | 20.1% | 19,497 | 19,642 |
10% | 10.1% | 9,749 | 9,892 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 89,916 | ||
Calibration 2 | 95,539 | ||
Calibration 3 | 95,812 | ||

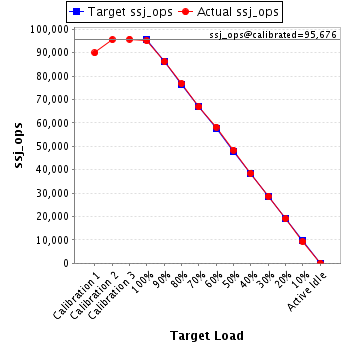

ssj_ops@calibrated=95,676 | |||
100% | 99.4% | 95,676 | 95,062 |
90% | 90.2% | 86,108 | 86,286 |
80% | 80.3% | 76,540 | 76,834 |
70% | 69.9% | 66,973 | 66,845 |
60% | 60.9% | 57,405 | 58,253 |
50% | 50.6% | 47,838 | 48,387 |
40% | 40.2% | 38,270 | 38,509 |
30% | 29.9% | 28,703 | 28,638 |
20% | 19.9% | 19,135 | 19,041 |
10% | 9.7% | 9,568 | 9,263 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,557 | ||
Calibration 2 | 98,093 | ||
Calibration 3 | 98,549 | ||
ssj_ops@calibrated=98,321 | |||
100% | 99.8% | 98,321 | 98,112 |
90% | 89.9% | 88,489 | 88,408 |
80% | 79.3% | 78,657 | 77,924 |
70% | 70.1% | 68,825 | 68,903 |
60% | 60.1% | 58,992 | 59,134 |
50% | 50.4% | 49,160 | 49,578 |
40% | 40.0% | 39,328 | 39,368 |
30% | 29.5% | 29,496 | 29,007 |
20% | 20.4% | 19,664 | 20,060 |
10% | 9.8% | 9,832 | 9,597 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,733 | ||
Calibration 2 | 96,555 | ||
Calibration 3 | 97,042 | ||
ssj_ops@calibrated=96,798 | |||
100% | 99.7% | 96,798 | 96,463 |
90% | 90.6% | 87,119 | 87,655 |
80% | 80.5% | 77,439 | 77,912 |
70% | 69.7% | 67,759 | 67,430 |
60% | 60.2% | 58,079 | 58,231 |
50% | 51.1% | 48,399 | 49,482 |
40% | 39.3% | 38,719 | 38,024 |
30% | 29.6% | 29,040 | 28,646 |
20% | 19.7% | 19,360 | 19,071 |
10% | 10.2% | 9,680 | 9,858 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,262 | ||
Calibration 2 | 97,156 | ||
Calibration 3 | 97,048 | ||

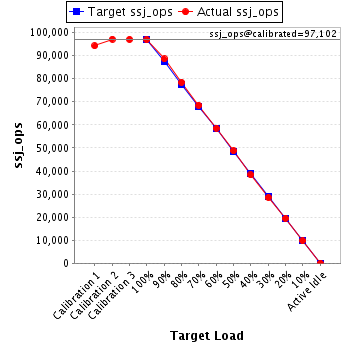

ssj_ops@calibrated=97,102 | |||
100% | 99.8% | 97,102 | 96,926 |
90% | 91.2% | 87,392 | 88,565 |
80% | 80.8% | 77,681 | 78,473 |
70% | 70.6% | 67,971 | 68,525 |
60% | 60.3% | 58,261 | 58,590 |
50% | 50.2% | 48,551 | 48,738 |
40% | 39.4% | 38,841 | 38,284 |
30% | 29.4% | 29,131 | 28,509 |
20% | 20.1% | 19,420 | 19,529 |
10% | 10.1% | 9,710 | 9,765 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,295 | ||
Calibration 2 | 97,118 | ||
Calibration 3 | 97,553 | ||

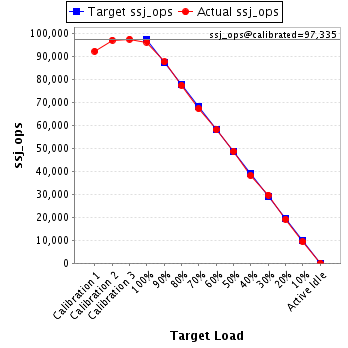

ssj_ops@calibrated=97,335 | |||
100% | 98.9% | 97,335 | 96,276 |
90% | 90.0% | 87,602 | 87,649 |
80% | 79.6% | 77,868 | 77,446 |
70% | 69.2% | 68,135 | 67,324 |
60% | 59.7% | 58,401 | 58,136 |
50% | 50.1% | 48,668 | 48,764 |
40% | 39.3% | 38,934 | 38,215 |
30% | 30.5% | 29,201 | 29,705 |
20% | 19.7% | 19,467 | 19,137 |
10% | 9.7% | 9,734 | 9,396 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 89,988 | ||
Calibration 2 | 97,376 | ||
Calibration 3 | 97,778 | ||
ssj_ops@calibrated=97,577 | |||
100% | 99.8% | 97,577 | 97,420 |
90% | 90.5% | 87,820 | 88,294 |
80% | 79.3% | 78,062 | 77,418 |
70% | 69.8% | 68,304 | 68,152 |
60% | 60.7% | 58,546 | 59,272 |
50% | 49.6% | 48,789 | 48,403 |
40% | 39.9% | 39,031 | 38,960 |
30% | 29.7% | 29,273 | 28,989 |
20% | 20.1% | 19,515 | 19,567 |
10% | 9.7% | 9,758 | 9,487 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,412 | ||
Calibration 2 | 99,508 | ||
Calibration 3 | 99,671 | ||
ssj_ops@calibrated=99,590 | |||
100% | 99.7% | 99,590 | 99,334 |
90% | 90.3% | 89,631 | 89,894 |
80% | 80.0% | 79,672 | 79,644 |
70% | 70.8% | 69,713 | 70,470 |
60% | 60.2% | 59,754 | 59,995 |
50% | 49.5% | 49,795 | 49,342 |
40% | 39.6% | 39,836 | 39,416 |
30% | 30.1% | 29,877 | 30,018 |
20% | 20.0% | 19,918 | 19,898 |
10% | 9.9% | 9,959 | 9,861 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,500 | ||
Calibration 2 | 102,491 | ||
Calibration 3 | 102,177 | ||
ssj_ops@calibrated=102,334 | |||
100% | 100.2% | 102,334 | 102,510 |
90% | 89.3% | 92,101 | 91,388 |
80% | 80.8% | 81,867 | 82,727 |
70% | 69.9% | 71,634 | 71,481 |
60% | 60.2% | 61,401 | 61,603 |
50% | 50.9% | 51,167 | 52,052 |
40% | 40.0% | 40,934 | 40,962 |
30% | 30.1% | 30,700 | 30,786 |
20% | 20.4% | 20,467 | 20,872 |
10% | 10.3% | 10,233 | 10,529 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 96,562 | ||
Calibration 2 | 100,910 | ||
Calibration 3 | 100,637 | ||
ssj_ops@calibrated=100,774 | |||
100% | 99.8% | 100,774 | 100,553 |
90% | 89.7% | 90,696 | 90,360 |
80% | 79.8% | 80,619 | 80,399 |
70% | 69.7% | 70,542 | 70,226 |
60% | 59.2% | 60,464 | 59,658 |
50% | 50.6% | 50,387 | 50,988 |
40% | 40.3% | 40,309 | 40,612 |
30% | 30.0% | 30,232 | 30,245 |
20% | 19.9% | 20,155 | 20,042 |
10% | 10.0% | 10,077 | 10,054 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,533 | ||
Calibration 2 | 100,216 | ||
Calibration 3 | 100,063 | ||
ssj_ops@calibrated=100,140 | |||
100% | 100.1% | 100,140 | 100,242 |
90% | 90.8% | 90,126 | 90,963 |
80% | 79.3% | 80,112 | 79,427 |
70% | 70.0% | 70,098 | 70,120 |
60% | 59.4% | 60,084 | 59,439 |
50% | 50.1% | 50,070 | 50,185 |
40% | 39.6% | 40,056 | 39,697 |
30% | 30.3% | 30,042 | 30,322 |
20% | 20.1% | 20,028 | 20,079 |
10% | 10.0% | 10,014 | 9,975 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 96,024 | ||
Calibration 2 | 100,798 | ||
Calibration 3 | 101,257 | ||
ssj_ops@calibrated=101,028 | |||
100% | 100.2% | 101,028 | 101,278 |
90% | 90.0% | 90,925 | 90,891 |
80% | 79.9% | 80,822 | 80,766 |
70% | 69.9% | 70,719 | 70,639 |
60% | 59.9% | 60,617 | 60,487 |
50% | 49.4% | 50,514 | 49,873 |
40% | 39.9% | 40,411 | 40,338 |
30% | 30.7% | 30,308 | 31,005 |
20% | 19.5% | 20,206 | 19,750 |
10% | 10.0% | 10,103 | 10,121 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,854 | ||
Calibration 2 | 101,209 | ||
Calibration 3 | 101,169 | ||
ssj_ops@calibrated=101,189 | |||
100% | 99.7% | 101,189 | 100,905 |
90% | 90.3% | 91,070 | 91,327 |
80% | 80.6% | 80,951 | 81,591 |
70% | 69.7% | 70,833 | 70,573 |
60% | 59.1% | 60,714 | 59,781 |
50% | 49.9% | 50,595 | 50,466 |
40% | 40.7% | 40,476 | 41,231 |
30% | 30.2% | 30,357 | 30,556 |
20% | 19.4% | 20,238 | 19,626 |
10% | 10.1% | 10,119 | 10,245 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,252 | ||
Calibration 2 | 99,886 | ||
Calibration 3 | 100,998 | ||
ssj_ops@calibrated=100,442 | |||
100% | 100.3% | 100,442 | 100,750 |
90% | 91.1% | 90,398 | 91,515 |
80% | 80.2% | 80,353 | 80,536 |
70% | 69.7% | 70,309 | 70,048 |
60% | 60.1% | 60,265 | 60,387 |
50% | 50.1% | 50,221 | 50,336 |
40% | 40.4% | 40,177 | 40,616 |
30% | 30.1% | 30,133 | 30,206 |
20% | 20.0% | 20,088 | 20,134 |
10% | 10.3% | 10,044 | 10,304 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,690 | ||
Calibration 2 | 100,146 | ||
Calibration 3 | 100,212 | ||
ssj_ops@calibrated=100,179 | |||
100% | 100.0% | 100,179 | 100,186 |
90% | 90.0% | 90,161 | 90,178 |
80% | 79.8% | 80,143 | 79,921 |
70% | 69.1% | 70,125 | 69,258 |
60% | 59.9% | 60,107 | 60,024 |
50% | 49.3% | 50,090 | 49,436 |
40% | 39.9% | 40,072 | 39,978 |
30% | 29.8% | 30,054 | 29,885 |
20% | 19.9% | 20,036 | 19,909 |
10% | 10.3% | 10,018 | 10,337 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,847 | ||
Calibration 2 | 101,622 | ||
Calibration 3 | 101,270 | ||
ssj_ops@calibrated=101,446 | |||
100% | 100.0% | 101,446 | 101,486 |
90% | 90.6% | 91,301 | 91,931 |
80% | 78.7% | 81,157 | 79,881 |
70% | 69.6% | 71,012 | 70,641 |
60% | 59.6% | 60,868 | 60,471 |
50% | 49.2% | 50,723 | 49,876 |
40% | 39.6% | 40,578 | 40,159 |
30% | 30.6% | 30,434 | 31,085 |
20% | 20.2% | 20,289 | 20,499 |
10% | 10.3% | 10,145 | 10,495 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 90,817 | ||
Calibration 2 | 99,512 | ||
Calibration 3 | 99,436 | ||
ssj_ops@calibrated=99,474 | |||
100% | 100.2% | 99,474 | 99,720 |
90% | 89.1% | 89,527 | 88,618 |
80% | 80.5% | 79,579 | 80,106 |
70% | 70.0% | 69,632 | 69,583 |
60% | 60.8% | 59,684 | 60,463 |
50% | 49.3% | 49,737 | 49,082 |
40% | 40.1% | 39,790 | 39,855 |
30% | 30.4% | 29,842 | 30,245 |
20% | 20.1% | 19,895 | 19,971 |
10% | 10.5% | 9,947 | 10,446 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,007 | ||
Calibration 2 | 101,053 | ||
Calibration 3 | 101,693 | ||
ssj_ops@calibrated=101,373 | |||
100% | 99.5% | 101,373 | 100,825 |
90% | 90.7% | 91,236 | 91,993 |
80% | 79.8% | 81,098 | 80,940 |
70% | 70.5% | 70,961 | 71,445 |
60% | 60.3% | 60,824 | 61,143 |
50% | 50.6% | 50,686 | 51,344 |
40% | 41.2% | 40,549 | 41,724 |
30% | 29.6% | 30,412 | 30,056 |
20% | 20.0% | 20,275 | 20,292 |
10% | 10.1% | 10,137 | 10,208 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,048 | ||
Calibration 2 | 97,801 | ||
Calibration 3 | 98,082 | ||
ssj_ops@calibrated=97,942 | |||
100% | 100.1% | 97,942 | 98,001 |
90% | 90.2% | 88,147 | 88,346 |
80% | 79.4% | 78,353 | 77,789 |
70% | 70.1% | 68,559 | 68,673 |
60% | 60.2% | 58,765 | 58,932 |
50% | 50.0% | 48,971 | 49,007 |
40% | 40.4% | 39,177 | 39,607 |
30% | 30.7% | 29,382 | 30,053 |
20% | 20.0% | 19,588 | 19,612 |
10% | 9.9% | 9,794 | 9,737 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 96,871 | ||
Calibration 2 | 101,507 | ||
Calibration 3 | 102,060 | ||
ssj_ops@calibrated=101,784 | |||
100% | 98.7% | 101,784 | 100,489 |
90% | 90.5% | 91,605 | 92,100 |
80% | 79.0% | 81,427 | 80,445 |
70% | 70.1% | 71,249 | 71,318 |
60% | 60.2% | 61,070 | 61,288 |
50% | 50.1% | 50,892 | 50,970 |
40% | 39.7% | 40,713 | 40,361 |
30% | 29.9% | 30,535 | 30,426 |
20% | 19.9% | 20,357 | 20,282 |
10% | 10.1% | 10,178 | 10,275 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,859 | ||
Calibration 2 | 100,114 | ||
Calibration 3 | 100,206 | ||
ssj_ops@calibrated=100,160 | |||
100% | 100.2% | 100,160 | 100,337 |
90% | 90.7% | 90,144 | 90,893 |
80% | 79.6% | 80,128 | 79,760 |
70% | 70.0% | 70,112 | 70,071 |
60% | 59.8% | 60,096 | 59,878 |
50% | 49.4% | 50,080 | 49,443 |
40% | 39.8% | 40,064 | 39,826 |
30% | 30.6% | 30,048 | 30,610 |
20% | 19.6% | 20,032 | 19,668 |
10% | 9.8% | 10,016 | 9,808 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,611 | ||
Calibration 2 | 100,083 | ||
Calibration 3 | 100,225 | ||
ssj_ops@calibrated=100,154 | |||
100% | 99.8% | 100,154 | 99,951 |
90% | 89.4% | 90,139 | 89,543 |
80% | 79.9% | 80,123 | 80,001 |
70% | 69.2% | 70,108 | 69,270 |
60% | 59.8% | 60,092 | 59,934 |
50% | 49.6% | 50,077 | 49,673 |
40% | 40.0% | 40,062 | 40,051 |
30% | 29.9% | 30,046 | 29,958 |
20% | 20.3% | 20,031 | 20,378 |
10% | 10.2% | 10,015 | 10,192 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 96,420 | ||
Calibration 2 | 103,729 | ||
Calibration 3 | 103,754 | ||
ssj_ops@calibrated=103,742 | |||
100% | 99.6% | 103,742 | 103,371 |
90% | 90.4% | 93,367 | 93,735 |
80% | 80.6% | 82,993 | 83,595 |
70% | 70.2% | 72,619 | 72,877 |
60% | 60.3% | 62,245 | 62,584 |
50% | 50.2% | 51,871 | 52,076 |
40% | 40.1% | 41,497 | 41,593 |
30% | 30.3% | 31,122 | 31,432 |
20% | 19.6% | 20,748 | 20,358 |
10% | 10.1% | 10,374 | 10,479 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 96,542 | ||
Calibration 2 | 101,719 | ||
Calibration 3 | 101,087 | ||
ssj_ops@calibrated=101,403 | |||
100% | 100.1% | 101,403 | 101,478 |
90% | 90.0% | 91,262 | 91,262 |
80% | 81.4% | 81,122 | 82,513 |
70% | 70.6% | 70,982 | 71,637 |
60% | 61.0% | 60,842 | 61,828 |
50% | 49.6% | 50,701 | 50,315 |
40% | 40.5% | 40,561 | 41,058 |
30% | 30.0% | 30,421 | 30,458 |
20% | 20.2% | 20,281 | 20,517 |
10% | 10.1% | 10,140 | 10,258 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,069 | ||
Calibration 2 | 101,219 | ||
Calibration 3 | 101,057 | ||
ssj_ops@calibrated=101,138 | |||
100% | 99.6% | 101,138 | 100,741 |
90% | 90.1% | 91,024 | 91,171 |
80% | 78.4% | 80,910 | 79,290 |
70% | 70.6% | 70,797 | 71,443 |
60% | 59.5% | 60,683 | 60,226 |
50% | 50.3% | 50,569 | 50,839 |
40% | 39.8% | 40,455 | 40,300 |
30% | 30.0% | 30,341 | 30,383 |
20% | 19.9% | 20,228 | 20,093 |
10% | 10.1% | 10,114 | 10,171 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,000 | ||
Calibration 2 | 101,730 | ||
Calibration 3 | 101,783 | ||
ssj_ops@calibrated=101,757 | |||
100% | 99.4% | 101,757 | 101,193 |
90% | 89.1% | 91,581 | 90,661 |
80% | 80.8% | 81,405 | 82,178 |
70% | 69.1% | 71,230 | 70,284 |
60% | 60.5% | 61,054 | 61,602 |
50% | 50.6% | 50,878 | 51,522 |
40% | 40.2% | 40,703 | 40,904 |
30% | 29.6% | 30,527 | 30,163 |
20% | 20.2% | 20,351 | 20,551 |
10% | 10.4% | 10,176 | 10,550 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,305 | ||
Calibration 2 | 99,969 | ||
Calibration 3 | 99,549 | ||
ssj_ops@calibrated=99,759 | |||
100% | 100.6% | 99,759 | 100,342 |
90% | 90.5% | 89,783 | 90,249 |
80% | 79.7% | 79,807 | 79,462 |
70% | 70.6% | 69,831 | 70,450 |
60% | 60.0% | 59,855 | 59,902 |
50% | 49.8% | 49,880 | 49,673 |
40% | 40.1% | 39,904 | 40,038 |
30% | 30.1% | 29,928 | 29,983 |
20% | 20.3% | 19,952 | 20,274 |
10% | 10.4% | 9,976 | 10,408 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 96,138 | ||
Calibration 2 | 101,990 | ||
Calibration 3 | 101,414 | ||
ssj_ops@calibrated=101,702 | |||
100% | 100.5% | 101,702 | 102,186 |
90% | 88.9% | 91,532 | 90,409 |
80% | 80.0% | 81,362 | 81,385 |
70% | 70.2% | 71,191 | 71,382 |
60% | 60.3% | 61,021 | 61,321 |
50% | 50.0% | 50,851 | 50,864 |
40% | 40.1% | 40,681 | 40,827 |
30% | 29.7% | 30,511 | 30,189 |
20% | 19.9% | 20,340 | 20,254 |
10% | 10.0% | 10,170 | 10,121 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,184 | ||
Calibration 2 | 100,638 | ||
Calibration 3 | 100,785 | ||
ssj_ops@calibrated=100,712 | |||
100% | 99.3% | 100,712 | 100,007 |
90% | 89.4% | 90,640 | 90,077 |
80% | 80.4% | 80,569 | 80,950 |
70% | 70.6% | 70,498 | 71,083 |
60% | 59.6% | 60,427 | 60,072 |
50% | 50.2% | 50,356 | 50,553 |
40% | 40.0% | 40,285 | 40,276 |
30% | 29.6% | 30,213 | 29,775 |
20% | 19.6% | 20,142 | 19,786 |
10% | 9.7% | 10,071 | 9,762 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,107 | ||
Calibration 2 | 101,887 | ||
Calibration 3 | 101,924 | ||
ssj_ops@calibrated=101,905 | |||
100% | 98.6% | 101,905 | 100,481 |
90% | 92.0% | 91,715 | 93,743 |
80% | 79.3% | 81,524 | 80,836 |
70% | 69.9% | 71,334 | 71,266 |
60% | 59.4% | 61,143 | 60,526 |
50% | 49.6% | 50,953 | 50,510 |
40% | 39.3% | 40,762 | 40,038 |
30% | 29.8% | 30,572 | 30,400 |
20% | 19.7% | 20,381 | 20,114 |
10% | 10.3% | 10,191 | 10,483 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 97,161 | ||
Calibration 2 | 101,950 | ||
Calibration 3 | 101,625 | ||
ssj_ops@calibrated=101,787 | |||
100% | 99.7% | 101,787 | 101,456 |
90% | 89.6% | 91,609 | 91,203 |
80% | 79.5% | 81,430 | 80,934 |
70% | 69.4% | 71,251 | 70,642 |
60% | 59.3% | 61,072 | 60,401 |
50% | 50.1% | 50,894 | 51,012 |
40% | 41.0% | 40,715 | 41,700 |
30% | 30.2% | 30,536 | 30,743 |
20% | 20.5% | 20,357 | 20,883 |
10% | 9.9% | 10,179 | 10,034 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,555 | ||
Calibration 2 | 98,766 | ||
Calibration 3 | 99,464 | ||
ssj_ops@calibrated=99,115 | |||
100% | 99.8% | 99,115 | 98,943 |
90% | 89.7% | 89,203 | 88,916 |
80% | 81.3% | 79,292 | 80,595 |
70% | 70.2% | 69,380 | 69,559 |
60% | 60.4% | 59,469 | 59,896 |
50% | 49.3% | 49,557 | 48,904 |
40% | 39.4% | 39,646 | 39,097 |
30% | 29.6% | 29,734 | 29,353 |
20% | 20.2% | 19,823 | 20,011 |
10% | 10.1% | 9,911 | 10,013 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,778 | ||
Calibration 2 | 100,480 | ||
Calibration 3 | 100,178 | ||
ssj_ops@calibrated=100,329 | |||
100% | 99.6% | 100,329 | 99,893 |
90% | 88.4% | 90,296 | 88,659 |
80% | 81.6% | 80,263 | 81,868 |
70% | 69.8% | 70,230 | 70,009 |
60% | 59.2% | 60,197 | 59,355 |
50% | 49.8% | 50,164 | 49,974 |
40% | 40.3% | 40,132 | 40,469 |
30% | 30.6% | 30,099 | 30,734 |
20% | 20.5% | 20,066 | 20,575 |
10% | 10.0% | 10,033 | 10,052 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 97,183 | ||
Calibration 2 | 102,534 | ||
Calibration 3 | 102,963 | ||
ssj_ops@calibrated=102,749 | |||
100% | 99.8% | 102,749 | 102,583 |
90% | 90.8% | 92,474 | 93,288 |
80% | 79.9% | 82,199 | 82,123 |
70% | 69.9% | 71,924 | 71,772 |
60% | 60.6% | 61,649 | 62,294 |
50% | 49.8% | 51,374 | 51,216 |
40% | 40.0% | 41,099 | 41,054 |
30% | 29.9% | 30,825 | 30,695 |
20% | 20.3% | 20,550 | 20,839 |
10% | 9.9% | 10,275 | 10,121 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,843 | ||
Calibration 2 | 100,986 | ||
Calibration 3 | 100,525 | ||
ssj_ops@calibrated=100,755 | |||
100% | 100.3% | 100,755 | 101,046 |
90% | 89.4% | 90,680 | 90,027 |
80% | 80.5% | 80,604 | 81,081 |
70% | 70.2% | 70,529 | 70,769 |
60% | 60.0% | 60,453 | 60,502 |
50% | 50.7% | 50,378 | 51,109 |
40% | 39.9% | 40,302 | 40,184 |
30% | 29.8% | 30,227 | 29,988 |
20% | 20.4% | 20,151 | 20,550 |
10% | 10.2% | 10,076 | 10,233 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 96,604 | ||
Calibration 2 | 103,550 | ||
Calibration 3 | 103,718 | ||
ssj_ops@calibrated=103,634 | |||
100% | 100.0% | 103,634 | 103,588 |
90% | 90.1% | 93,270 | 93,403 |
80% | 79.7% | 82,907 | 82,578 |
70% | 70.5% | 72,544 | 73,076 |
60% | 60.2% | 62,180 | 62,422 |
50% | 50.4% | 51,817 | 52,243 |
40% | 40.8% | 41,454 | 42,254 |
30% | 30.2% | 31,090 | 31,246 |
20% | 20.2% | 20,727 | 20,964 |
10% | 10.3% | 10,363 | 10,707 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,395 | ||
Calibration 2 | 100,874 | ||
Calibration 3 | 101,469 | ||
ssj_ops@calibrated=101,172 | |||
100% | 99.4% | 101,172 | 100,606 |
90% | 90.2% | 91,054 | 91,225 |
80% | 80.4% | 80,937 | 81,310 |
70% | 69.8% | 70,820 | 70,650 |
60% | 60.3% | 60,703 | 61,049 |
50% | 50.1% | 50,586 | 50,711 |
40% | 40.2% | 40,469 | 40,624 |
30% | 29.7% | 30,351 | 30,005 |
20% | 19.7% | 20,234 | 19,932 |
10% | 9.9% | 10,117 | 10,044 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,607 | ||
Calibration 2 | 100,434 | ||
Calibration 3 | 100,298 | ||
ssj_ops@calibrated=100,366 | |||
100% | 99.9% | 100,366 | 100,306 |
90% | 89.3% | 90,329 | 89,672 |
80% | 80.3% | 80,293 | 80,550 |
70% | 69.9% | 70,256 | 70,188 |
60% | 59.6% | 60,220 | 59,851 |
50% | 50.0% | 50,183 | 50,188 |
40% | 40.0% | 40,146 | 40,186 |
30% | 30.4% | 30,110 | 30,505 |
20% | 20.0% | 20,073 | 20,042 |
10% | 10.0% | 10,037 | 10,008 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,388 | ||
Calibration 2 | 100,857 | ||
Calibration 3 | 101,005 | ||
ssj_ops@calibrated=100,931 | |||
100% | 100.0% | 100,931 | 100,956 |
90% | 90.4% | 90,838 | 91,261 |
80% | 79.9% | 80,745 | 80,640 |
70% | 69.9% | 70,652 | 70,558 |
60% | 59.9% | 60,559 | 60,412 |
50% | 50.2% | 50,466 | 50,639 |
40% | 40.4% | 40,372 | 40,797 |
30% | 30.5% | 30,279 | 30,822 |
20% | 20.2% | 20,186 | 20,358 |
10% | 10.2% | 10,093 | 10,246 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 96,696 | ||
Calibration 2 | 102,177 | ||
Calibration 3 | 102,449 | ||
ssj_ops@calibrated=102,313 | |||
100% | 99.8% | 102,313 | 102,159 |
90% | 88.8% | 92,082 | 90,847 |
80% | 79.6% | 81,850 | 81,405 |
70% | 69.7% | 71,619 | 71,311 |
60% | 60.2% | 61,388 | 61,590 |
50% | 49.9% | 51,156 | 51,045 |
40% | 39.9% | 40,925 | 40,850 |
30% | 29.7% | 30,694 | 30,412 |
20% | 20.3% | 20,463 | 20,755 |
10% | 10.1% | 10,231 | 10,358 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,938 | ||
Calibration 2 | 103,502 | ||
Calibration 3 | 103,459 | ||
ssj_ops@calibrated=103,480 | |||
100% | 99.9% | 103,480 | 103,340 |
90% | 89.3% | 93,132 | 92,457 |
80% | 78.6% | 82,784 | 81,318 |
70% | 70.9% | 72,436 | 73,338 |
60% | 60.2% | 62,088 | 62,323 |
50% | 50.1% | 51,740 | 51,802 |
40% | 39.8% | 41,392 | 41,227 |
30% | 29.8% | 31,044 | 30,815 |
20% | 19.9% | 20,696 | 20,578 |
10% | 10.2% | 10,348 | 10,562 |
Active Idle | 0 | 0 |

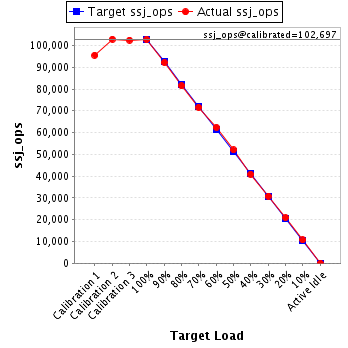

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,546 | ||
Calibration 2 | 102,889 | ||
Calibration 3 | 102,504 | ||
ssj_ops@calibrated=102,697 | |||
100% | 100.1% | 102,697 | 102,749 |
90% | 89.8% | 92,427 | 92,188 |
80% | 79.3% | 82,157 | 81,445 |
70% | 69.7% | 71,888 | 71,586 |
60% | 60.7% | 61,618 | 62,386 |
50% | 50.6% | 51,348 | 52,011 |
40% | 39.8% | 41,079 | 40,874 |
30% | 30.0% | 30,809 | 30,850 |
20% | 20.3% | 20,539 | 20,898 |
10% | 10.4% | 10,270 | 10,686 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,977 | ||
Calibration 2 | 101,788 | ||
Calibration 3 | 101,859 | ||
ssj_ops@calibrated=101,824 | |||
100% | 98.5% | 101,824 | 100,276 |
90% | 90.8% | 91,641 | 92,451 |
80% | 79.7% | 81,459 | 81,145 |
70% | 69.9% | 71,277 | 71,208 |
60% | 60.6% | 61,094 | 61,685 |
50% | 50.5% | 50,912 | 51,417 |
40% | 39.9% | 40,730 | 40,624 |
30% | 30.1% | 30,547 | 30,680 |
20% | 20.1% | 20,365 | 20,416 |
10% | 9.8% | 10,182 | 9,984 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 96,602 | ||
Calibration 2 | 101,867 | ||
Calibration 3 | 102,417 | ||
ssj_ops@calibrated=102,142 | |||
100% | 100.3% | 102,142 | 102,459 |
90% | 90.1% | 91,928 | 92,038 |
80% | 81.0% | 81,714 | 82,718 |
70% | 70.4% | 71,499 | 71,869 |
60% | 60.2% | 61,285 | 61,525 |
50% | 49.7% | 51,071 | 50,757 |
40% | 39.9% | 40,857 | 40,704 |
30% | 29.2% | 30,643 | 29,829 |
20% | 20.2% | 20,428 | 20,671 |
10% | 9.9% | 10,214 | 10,112 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,751 | ||
Calibration 2 | 101,039 | ||
Calibration 3 | 101,450 | ||
ssj_ops@calibrated=101,244 | |||
100% | 100.1% | 101,244 | 101,392 |
90% | 90.3% | 91,120 | 91,419 |
80% | 80.0% | 80,995 | 81,017 |
70% | 69.6% | 70,871 | 70,441 |
60% | 59.4% | 60,747 | 60,137 |
50% | 50.0% | 50,622 | 50,644 |
40% | 39.4% | 40,498 | 39,857 |
30% | 29.7% | 30,373 | 30,109 |
20% | 19.5% | 20,249 | 19,693 |
10% | 10.1% | 10,124 | 10,238 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,484 | ||
Calibration 2 | 101,892 | ||
Calibration 3 | 101,371 | ||
ssj_ops@calibrated=101,632 | |||
100% | 100.0% | 101,632 | 101,638 |
90% | 89.5% | 91,469 | 90,989 |
80% | 81.0% | 81,305 | 82,293 |
70% | 69.5% | 71,142 | 70,600 |
60% | 60.5% | 60,979 | 61,453 |
50% | 50.2% | 50,816 | 51,021 |
40% | 40.1% | 40,653 | 40,726 |
30% | 30.3% | 30,490 | 30,753 |
20% | 20.1% | 20,326 | 20,400 |
10% | 10.0% | 10,163 | 10,204 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,764 | ||
Calibration 2 | 100,794 | ||
Calibration 3 | 101,310 | ||
ssj_ops@calibrated=101,052 | |||
100% | 99.9% | 101,052 | 100,913 |
90% | 89.6% | 90,947 | 90,527 |
80% | 80.2% | 80,842 | 81,067 |
70% | 69.8% | 70,737 | 70,578 |
60% | 60.2% | 60,631 | 60,835 |
50% | 49.4% | 50,526 | 49,944 |
40% | 40.0% | 40,421 | 40,409 |
30% | 30.2% | 30,316 | 30,562 |
20% | 20.7% | 20,210 | 20,921 |
10% | 9.8% | 10,105 | 9,912 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 97,746 | ||
Calibration 2 | 102,098 | ||
Calibration 3 | 102,135 | ||
ssj_ops@calibrated=102,117 | |||
100% | 99.7% | 102,117 | 101,760 |
90% | 90.1% | 91,905 | 92,048 |
80% | 79.7% | 81,693 | 81,337 |
70% | 70.4% | 71,482 | 71,900 |
60% | 60.3% | 61,270 | 61,600 |
50% | 49.3% | 51,058 | 50,380 |
40% | 40.2% | 40,847 | 41,003 |
30% | 30.3% | 30,635 | 30,990 |
20% | 20.2% | 20,423 | 20,602 |
10% | 9.9% | 10,212 | 10,137 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,145 | ||
Calibration 2 | 100,855 | ||
Calibration 3 | 101,007 | ||
ssj_ops@calibrated=100,931 | |||
100% | 99.8% | 100,931 | 100,771 |
90% | 90.0% | 90,838 | 90,833 |
80% | 79.2% | 80,745 | 79,976 |
70% | 70.1% | 70,652 | 70,757 |
60% | 59.2% | 60,559 | 59,729 |
50% | 50.0% | 50,466 | 50,426 |
40% | 39.4% | 40,373 | 39,792 |
30% | 29.6% | 30,279 | 29,900 |
20% | 19.6% | 20,186 | 19,737 |
10% | 10.0% | 10,093 | 10,096 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,576 | ||
Calibration 2 | 102,062 | ||
Calibration 3 | 102,604 | ||
ssj_ops@calibrated=102,333 | |||
100% | 99.6% | 102,333 | 101,891 |
90% | 90.0% | 92,100 | 92,083 |
80% | 79.1% | 81,867 | 80,967 |
70% | 70.2% | 71,633 | 71,815 |
60% | 60.1% | 61,400 | 61,517 |
50% | 49.7% | 51,167 | 50,896 |
40% | 40.5% | 40,933 | 41,408 |
30% | 29.8% | 30,700 | 30,517 |
20% | 19.7% | 20,467 | 20,166 |
10% | 10.2% | 10,233 | 10,399 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 97,532 | ||
Calibration 2 | 103,310 | ||
Calibration 3 | 103,766 | ||
ssj_ops@calibrated=103,538 | |||
100% | 99.4% | 103,538 | 102,888 |
90% | 90.6% | 93,185 | 93,811 |
80% | 79.3% | 82,831 | 82,105 |
70% | 69.7% | 72,477 | 72,169 |
60% | 59.7% | 62,123 | 61,791 |
50% | 50.0% | 51,769 | 51,789 |
40% | 40.3% | 41,415 | 41,686 |
30% | 30.2% | 31,062 | 31,246 |
20% | 19.7% | 20,708 | 20,371 |
10% | 10.3% | 10,354 | 10,652 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 97,216 | ||
Calibration 2 | 103,469 | ||
Calibration 3 | 103,375 | ||
ssj_ops@calibrated=103,422 | |||
100% | 99.9% | 103,422 | 103,286 |
90% | 90.9% | 93,080 | 94,027 |
80% | 79.4% | 82,738 | 82,091 |
70% | 70.5% | 72,396 | 72,889 |
60% | 60.1% | 62,053 | 62,137 |
50% | 49.9% | 51,711 | 51,646 |
40% | 39.6% | 41,369 | 40,926 |
30% | 30.5% | 31,027 | 31,578 |
20% | 20.1% | 20,684 | 20,755 |
10% | 10.0% | 10,342 | 10,325 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 90,694 | ||
Calibration 2 | 97,733 | ||
Calibration 3 | 97,638 | ||
ssj_ops@calibrated=97,686 | |||
100% | 100.0% | 97,686 | 97,704 |
90% | 89.9% | 87,917 | 87,779 |
80% | 80.4% | 78,149 | 78,544 |
70% | 70.2% | 68,380 | 68,602 |
60% | 61.6% | 58,611 | 60,219 |
50% | 49.8% | 48,843 | 48,613 |
40% | 41.0% | 39,074 | 40,098 |
30% | 29.8% | 29,306 | 29,106 |
20% | 19.9% | 19,537 | 19,437 |
10% | 9.8% | 9,769 | 9,544 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,815 | ||
Calibration 2 | 98,596 | ||
Calibration 3 | 99,583 | ||
ssj_ops@calibrated=99,089 | |||
100% | 99.3% | 99,089 | 98,359 |
90% | 90.5% | 89,180 | 89,667 |
80% | 80.5% | 79,271 | 79,723 |
70% | 69.7% | 69,363 | 69,021 |
60% | 60.0% | 59,454 | 59,439 |
50% | 50.1% | 49,545 | 49,599 |
40% | 40.0% | 39,636 | 39,634 |
30% | 30.1% | 29,727 | 29,875 |
20% | 20.1% | 19,818 | 19,958 |
10% | 10.1% | 9,909 | 9,988 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 96,389 | ||
Calibration 2 | 101,467 | ||
Calibration 3 | 102,900 | ||
ssj_ops@calibrated=102,183 | |||
100% | 98.6% | 102,183 | 100,717 |
90% | 89.5% | 91,965 | 91,422 |
80% | 80.3% | 81,747 | 82,045 |
70% | 70.5% | 71,528 | 72,048 |
60% | 60.8% | 61,310 | 62,089 |
50% | 50.0% | 51,092 | 51,140 |
40% | 40.3% | 40,873 | 41,155 |
30% | 30.2% | 30,655 | 30,863 |
20% | 19.9% | 20,437 | 20,375 |
10% | 9.8% | 10,218 | 10,009 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,625 | ||
Calibration 2 | 99,752 | ||
Calibration 3 | 100,435 | ||
ssj_ops@calibrated=100,093 | |||
100% | 99.2% | 100,093 | 99,280 |
90% | 90.7% | 90,084 | 90,761 |
80% | 79.6% | 80,075 | 79,646 |
70% | 70.2% | 70,065 | 70,312 |
60% | 59.9% | 60,056 | 59,943 |
50% | 50.6% | 50,047 | 50,693 |
40% | 40.2% | 40,037 | 40,279 |
30% | 30.0% | 30,028 | 30,031 |
20% | 20.3% | 20,019 | 20,338 |
10% | 9.9% | 10,009 | 9,921 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,334 | ||
Calibration 2 | 100,579 | ||
Calibration 3 | 100,606 | ||
ssj_ops@calibrated=100,592 | |||
100% | 99.7% | 100,592 | 100,282 |
90% | 90.4% | 90,533 | 90,899 |
80% | 80.3% | 80,474 | 80,750 |
70% | 70.4% | 70,415 | 70,779 |
60% | 60.0% | 60,355 | 60,330 |
50% | 49.8% | 50,296 | 50,049 |
40% | 39.6% | 40,237 | 39,855 |
30% | 29.8% | 30,178 | 29,993 |
20% | 19.7% | 20,118 | 19,823 |
10% | 10.0% | 10,059 | 10,084 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,504 | ||
Calibration 2 | 100,315 | ||
Calibration 3 | 101,101 | ||
ssj_ops@calibrated=100,708 | |||
100% | 99.7% | 100,708 | 100,442 |
90% | 89.9% | 90,637 | 90,582 |
80% | 80.0% | 80,566 | 80,567 |
70% | 69.5% | 70,495 | 69,946 |
60% | 60.3% | 60,425 | 60,716 |
50% | 49.2% | 50,354 | 49,569 |
40% | 40.2% | 40,283 | 40,502 |
30% | 30.0% | 30,212 | 30,225 |
20% | 19.9% | 20,142 | 20,003 |
10% | 10.4% | 10,071 | 10,458 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,998 | ||
Calibration 2 | 101,224 | ||
Calibration 3 | 100,443 | ||
ssj_ops@calibrated=100,834 | |||
100% | 99.8% | 100,834 | 100,627 |
90% | 89.7% | 90,750 | 90,474 |
80% | 79.9% | 80,667 | 80,586 |
70% | 69.6% | 70,583 | 70,142 |
60% | 59.3% | 60,500 | 59,793 |
50% | 50.1% | 50,417 | 50,561 |
40% | 40.2% | 40,333 | 40,554 |
30% | 30.2% | 30,250 | 30,457 |
20% | 20.0% | 20,167 | 20,191 |
10% | 10.2% | 10,083 | 10,278 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,907 | ||
Calibration 2 | 100,978 | ||
Calibration 3 | 102,305 | ||
ssj_ops@calibrated=101,642 | |||
100% | 99.0% | 101,642 | 100,612 |
90% | 90.2% | 91,478 | 91,715 |
80% | 80.5% | 81,314 | 81,780 |
70% | 69.0% | 71,149 | 70,170 |
60% | 60.4% | 60,985 | 61,372 |
50% | 50.2% | 50,821 | 51,009 |
40% | 39.9% | 40,657 | 40,561 |
30% | 30.0% | 30,493 | 30,442 |
20% | 19.9% | 20,328 | 20,208 |
10% | 10.1% | 10,164 | 10,239 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,991 | ||
Calibration 2 | 101,406 | ||
Calibration 3 | 101,466 | ||
ssj_ops@calibrated=101,436 | |||
100% | 99.9% | 101,436 | 101,314 |
90% | 90.5% | 91,292 | 91,825 |
80% | 79.4% | 81,149 | 80,557 |
70% | 69.1% | 71,005 | 70,083 |
60% | 59.9% | 60,862 | 60,750 |
50% | 50.6% | 50,718 | 51,357 |
40% | 40.2% | 40,574 | 40,783 |
30% | 29.9% | 30,431 | 30,346 |
20% | 19.9% | 20,287 | 20,158 |
10% | 10.2% | 10,144 | 10,355 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 96,234 | ||
Calibration 2 | 102,170 | ||
Calibration 3 | 102,129 | ||
ssj_ops@calibrated=102,150 | |||
100% | 99.3% | 102,150 | 101,457 |
90% | 89.9% | 91,935 | 91,792 |
80% | 81.1% | 81,720 | 82,844 |
70% | 70.1% | 71,505 | 71,570 |
60% | 60.3% | 61,290 | 61,590 |
50% | 49.0% | 51,075 | 50,063 |
40% | 39.6% | 40,860 | 40,417 |
30% | 30.2% | 30,645 | 30,802 |
20% | 19.9% | 20,430 | 20,292 |
10% | 9.6% | 10,215 | 9,837 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 96,315 | ||
Calibration 2 | 102,450 | ||
Calibration 3 | 102,127 | ||
ssj_ops@calibrated=102,288 | |||
100% | 99.8% | 102,288 | 102,122 |
90% | 89.8% | 92,060 | 91,875 |
80% | 78.8% | 81,831 | 80,643 |
70% | 68.6% | 71,602 | 70,177 |
60% | 59.9% | 61,373 | 61,239 |
50% | 49.9% | 51,144 | 51,031 |
40% | 39.9% | 40,915 | 40,850 |
30% | 30.1% | 30,687 | 30,752 |
20% | 20.1% | 20,458 | 20,519 |
10% | 9.8% | 10,229 | 10,021 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,989 | ||
Calibration 2 | 100,890 | ||
Calibration 3 | 100,241 | ||
ssj_ops@calibrated=100,566 | |||
100% | 100.6% | 100,566 | 101,125 |
90% | 90.3% | 90,509 | 90,811 |
80% | 79.6% | 80,452 | 80,062 |
70% | 70.2% | 70,396 | 70,643 |
60% | 58.7% | 60,339 | 58,998 |
50% | 49.6% | 50,283 | 49,889 |
40% | 39.9% | 40,226 | 40,160 |
30% | 29.8% | 30,170 | 29,979 |
20% | 20.1% | 20,113 | 20,175 |
10% | 10.3% | 10,057 | 10,312 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 97,139 | ||
Calibration 2 | 102,685 | ||
Calibration 3 | 102,001 | ||
ssj_ops@calibrated=102,343 | |||
100% | 100.0% | 102,343 | 102,332 |
90% | 88.3% | 92,108 | 90,362 |
80% | 79.9% | 81,874 | 81,730 |
70% | 70.0% | 71,640 | 71,685 |
60% | 60.7% | 61,406 | 62,084 |
50% | 49.6% | 51,171 | 50,777 |
40% | 40.1% | 40,937 | 41,017 |
30% | 30.3% | 30,703 | 31,058 |
20% | 20.0% | 20,469 | 20,494 |
10% | 9.9% | 10,234 | 10,112 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,139 | ||
Calibration 2 | 100,194 | ||
Calibration 3 | 100,193 | ||
ssj_ops@calibrated=100,194 | |||
100% | 100.6% | 100,194 | 100,773 |
90% | 89.7% | 90,174 | 89,864 |
80% | 79.2% | 80,155 | 79,370 |
70% | 70.4% | 70,136 | 70,501 |
60% | 59.0% | 60,116 | 59,077 |
50% | 49.8% | 50,097 | 49,898 |
40% | 40.0% | 40,077 | 40,083 |
30% | 29.8% | 30,058 | 29,820 |
20% | 19.8% | 20,039 | 19,817 |
10% | 10.0% | 10,019 | 10,050 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 97,832 | ||
Calibration 2 | 102,111 | ||
Calibration 3 | 101,687 | ||
ssj_ops@calibrated=101,899 | |||
100% | 99.9% | 101,899 | 101,807 |
90% | 88.0% | 91,709 | 89,660 |
80% | 79.5% | 81,519 | 81,025 |
70% | 69.4% | 71,329 | 70,675 |
60% | 59.9% | 61,139 | 61,026 |
50% | 49.9% | 50,949 | 50,833 |
40% | 39.9% | 40,760 | 40,611 |
30% | 29.5% | 30,570 | 30,099 |
20% | 19.5% | 20,380 | 19,843 |
10% | 9.9% | 10,190 | 10,100 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,751 | ||
Calibration 2 | 103,098 | ||
Calibration 3 | 103,063 | ||
ssj_ops@calibrated=103,080 | |||
100% | 99.8% | 103,080 | 102,854 |
90% | 90.4% | 92,772 | 93,153 |
80% | 79.7% | 82,464 | 82,171 |
70% | 70.6% | 72,156 | 72,741 |
60% | 59.9% | 61,848 | 61,764 |
50% | 49.4% | 51,540 | 50,881 |
40% | 40.0% | 41,232 | 41,225 |
30% | 30.1% | 30,924 | 31,009 |
20% | 20.1% | 20,616 | 20,674 |
10% | 10.1% | 10,308 | 10,370 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,857 | ||
Calibration 2 | 102,190 | ||
Calibration 3 | 101,432 | ||
ssj_ops@calibrated=101,811 | |||
100% | 99.7% | 101,811 | 101,508 |
90% | 89.9% | 91,630 | 91,561 |
80% | 79.9% | 81,449 | 81,311 |
70% | 69.7% | 71,268 | 70,912 |
60% | 60.8% | 61,087 | 61,902 |
50% | 50.2% | 50,905 | 51,098 |
40% | 40.3% | 40,724 | 41,032 |
30% | 30.0% | 30,543 | 30,547 |
20% | 20.0% | 20,362 | 20,392 |
10% | 10.0% | 10,181 | 10,171 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,600 | ||
Calibration 2 | 99,068 | ||
Calibration 3 | 98,315 | ||
ssj_ops@calibrated=98,691 | |||
100% | 100.0% | 98,691 | 98,728 |
90% | 90.6% | 88,822 | 89,378 |
80% | 80.4% | 78,953 | 79,309 |
70% | 70.1% | 69,084 | 69,148 |
60% | 60.1% | 59,215 | 59,315 |
50% | 49.5% | 49,346 | 48,826 |
40% | 40.8% | 39,477 | 40,253 |
30% | 29.3% | 29,607 | 28,882 |
20% | 20.0% | 19,738 | 19,731 |
10% | 9.8% | 9,869 | 9,658 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 96,585 | ||
Calibration 2 | 102,903 | ||
Calibration 3 | 102,133 | ||
ssj_ops@calibrated=102,518 | |||
100% | 100.1% | 102,518 | 102,591 |
90% | 90.0% | 92,266 | 92,250 |
80% | 79.4% | 82,014 | 81,402 |
70% | 69.4% | 71,763 | 71,168 |
60% | 60.5% | 61,511 | 62,034 |
50% | 49.3% | 51,259 | 50,583 |
40% | 40.0% | 41,007 | 41,030 |
30% | 29.8% | 30,755 | 30,539 |
20% | 20.0% | 20,504 | 20,475 |
10% | 9.9% | 10,252 | 10,171 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,848 | ||
Calibration 2 | 102,281 | ||
Calibration 3 | 102,478 | ||
ssj_ops@calibrated=102,379 | |||
100% | 99.7% | 102,379 | 102,118 |
90% | 89.9% | 92,141 | 92,018 |
80% | 79.9% | 81,903 | 81,827 |
70% | 69.6% | 71,666 | 71,276 |
60% | 59.7% | 61,428 | 61,121 |
50% | 49.7% | 51,190 | 50,918 |
40% | 40.0% | 40,952 | 40,921 |
30% | 30.4% | 30,714 | 31,128 |
20% | 20.0% | 20,476 | 20,519 |
10% | 9.9% | 10,238 | 10,137 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 96,732 | ||
Calibration 2 | 100,957 | ||
Calibration 3 | 100,661 | ||
ssj_ops@calibrated=100,809 | |||
100% | 100.3% | 100,809 | 101,118 |
90% | 90.2% | 90,728 | 90,956 |
80% | 81.0% | 80,647 | 81,686 |
70% | 70.3% | 70,566 | 70,919 |
60% | 60.4% | 60,486 | 60,876 |
50% | 50.3% | 50,405 | 50,725 |
40% | 39.9% | 40,324 | 40,223 |
30% | 29.4% | 30,243 | 29,642 |
20% | 20.1% | 20,162 | 20,291 |
10% | 10.1% | 10,081 | 10,184 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 91,361 | ||
Calibration 2 | 100,443 | ||
Calibration 3 | 100,064 | ||
ssj_ops@calibrated=100,254 | |||
100% | 99.8% | 100,254 | 100,080 |
90% | 90.2% | 90,228 | 90,426 |
80% | 79.7% | 80,203 | 79,899 |
70% | 70.4% | 70,178 | 70,534 |
60% | 60.1% | 60,152 | 60,280 |
50% | 50.0% | 50,127 | 50,133 |
40% | 39.3% | 40,101 | 39,422 |
30% | 29.8% | 30,076 | 29,838 |
20% | 20.2% | 20,051 | 20,273 |
10% | 9.9% | 10,025 | 9,917 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 96,954 | ||
Calibration 2 | 101,148 | ||
Calibration 3 | 99,827 | ||
ssj_ops@calibrated=100,488 | |||
100% | 100.4% | 100,488 | 100,937 |
90% | 89.4% | 90,439 | 89,845 |
80% | 79.6% | 80,390 | 79,997 |
70% | 70.0% | 70,341 | 70,342 |
60% | 59.4% | 60,293 | 59,692 |
50% | 50.6% | 50,244 | 50,868 |
40% | 40.3% | 40,195 | 40,458 |
30% | 30.4% | 30,146 | 30,587 |
20% | 19.8% | 20,098 | 19,920 |
10% | 9.9% | 10,049 | 9,933 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,506 | ||
Calibration 2 | 100,985 | ||
Calibration 3 | 100,204 | ||
ssj_ops@calibrated=100,595 | |||
100% | 100.0% | 100,595 | 100,586 |
90% | 90.4% | 90,535 | 90,936 |
80% | 79.5% | 80,476 | 79,934 |
70% | 71.0% | 70,416 | 71,437 |
60% | 59.3% | 60,357 | 59,690 |
50% | 50.1% | 50,297 | 50,381 |
40% | 39.9% | 40,238 | 40,093 |
30% | 29.8% | 30,178 | 30,006 |
20% | 20.0% | 20,119 | 20,100 |
10% | 10.1% | 10,059 | 10,121 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 96,431 | ||
Calibration 2 | 99,927 | ||
Calibration 3 | 100,743 | ||
ssj_ops@calibrated=100,335 | |||
100% | 99.9% | 100,335 | 100,240 |
90% | 90.9% | 90,302 | 91,183 |
80% | 79.8% | 80,268 | 80,041 |
70% | 69.4% | 70,235 | 69,591 |
60% | 60.2% | 60,201 | 60,428 |
50% | 50.1% | 50,168 | 50,219 |
40% | 39.8% | 40,134 | 39,946 |
30% | 29.4% | 30,101 | 29,502 |
20% | 20.5% | 20,067 | 20,562 |
10% | 10.0% | 10,034 | 10,008 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,861 | ||
Calibration 2 | 102,530 | ||
Calibration 3 | 102,334 | ||
ssj_ops@calibrated=102,432 | |||
100% | 99.9% | 102,432 | 102,323 |
90% | 89.2% | 92,189 | 91,360 |
80% | 79.8% | 81,946 | 81,776 |
70% | 69.7% | 71,702 | 71,379 |
60% | 60.2% | 61,459 | 61,693 |
50% | 49.8% | 51,216 | 50,986 |
40% | 39.5% | 40,973 | 40,469 |
30% | 30.3% | 30,730 | 31,002 |
20% | 19.8% | 20,486 | 20,325 |
10% | 10.0% | 10,243 | 10,258 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,586 | ||
Calibration 2 | 101,325 | ||
Calibration 3 | 101,845 | ||
ssj_ops@calibrated=101,585 | |||
100% | 100.0% | 101,585 | 101,595 |
90% | 91.2% | 91,426 | 92,647 |
80% | 79.6% | 81,268 | 80,900 |
70% | 70.2% | 71,109 | 71,318 |
60% | 59.2% | 60,951 | 60,107 |
50% | 49.3% | 50,792 | 50,074 |
40% | 39.9% | 40,634 | 40,577 |
30% | 30.5% | 30,475 | 30,946 |
20% | 20.4% | 20,317 | 20,717 |
10% | 9.9% | 10,158 | 10,053 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,345 | ||
Calibration 2 | 98,214 | ||
Calibration 3 | 98,677 | ||
ssj_ops@calibrated=98,446 | |||
100% | 100.2% | 98,446 | 98,668 |
90% | 89.7% | 88,601 | 88,276 |
80% | 80.1% | 78,757 | 78,870 |
70% | 70.9% | 68,912 | 69,833 |
60% | 59.7% | 59,067 | 58,763 |
50% | 49.9% | 49,223 | 49,156 |
40% | 40.2% | 39,378 | 39,528 |
30% | 29.7% | 29,534 | 29,245 |
20% | 19.9% | 19,689 | 19,601 |
10% | 10.3% | 9,845 | 10,104 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,294 | ||
Calibration 2 | 100,141 | ||
Calibration 3 | 100,601 | ||
ssj_ops@calibrated=100,371 | |||
100% | 99.8% | 100,371 | 100,205 |
90% | 89.3% | 90,334 | 89,676 |
80% | 79.5% | 80,297 | 79,775 |
70% | 69.1% | 70,260 | 69,344 |
60% | 59.8% | 60,223 | 60,053 |
50% | 50.2% | 50,186 | 50,422 |
40% | 40.5% | 40,148 | 40,616 |
30% | 29.4% | 30,111 | 29,509 |
20% | 19.9% | 20,074 | 19,967 |
10% | 10.1% | 10,037 | 10,146 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 93,544 | ||
Calibration 2 | 100,570 | ||
Calibration 3 | 101,179 | ||
ssj_ops@calibrated=100,874 | |||
100% | 99.5% | 100,874 | 100,418 |
90% | 90.6% | 90,787 | 91,362 |
80% | 80.4% | 80,700 | 81,074 |
70% | 70.1% | 70,612 | 70,729 |
60% | 60.8% | 60,525 | 61,288 |
50% | 49.3% | 50,437 | 49,682 |
40% | 39.9% | 40,350 | 40,220 |
30% | 29.8% | 30,262 | 30,104 |
20% | 19.8% | 20,175 | 19,961 |
10% | 10.2% | 10,087 | 10,254 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 96,140 | ||
Calibration 2 | 101,800 | ||
Calibration 3 | 101,751 | ||
ssj_ops@calibrated=101,775 | |||
100% | 99.4% | 101,775 | 101,123 |
90% | 90.6% | 91,598 | 92,234 |
80% | 80.7% | 81,420 | 82,083 |
70% | 70.9% | 71,243 | 72,202 |
60% | 60.7% | 61,065 | 61,793 |
50% | 49.7% | 50,888 | 50,569 |
40% | 40.2% | 40,710 | 40,897 |
30% | 30.7% | 30,533 | 31,250 |
20% | 20.1% | 20,355 | 20,411 |
10% | 10.0% | 10,178 | 10,214 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,233 | ||
Calibration 2 | 100,860 | ||
Calibration 3 | 101,627 | ||
ssj_ops@calibrated=101,243 | |||
100% | 99.9% | 101,243 | 101,131 |
90% | 90.2% | 91,119 | 91,341 |
80% | 79.7% | 80,995 | 80,676 |
70% | 70.6% | 70,870 | 71,442 |
60% | 59.3% | 60,746 | 60,007 |
50% | 49.9% | 50,622 | 50,499 |
40% | 40.2% | 40,497 | 40,744 |
30% | 30.4% | 30,373 | 30,800 |
20% | 19.7% | 20,249 | 19,983 |
10% | 10.5% | 10,124 | 10,617 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 94,194 | ||
Calibration 2 | 100,322 | ||
Calibration 3 | 100,939 | ||
ssj_ops@calibrated=100,630 | |||
100% | 99.6% | 100,630 | 100,218 |
90% | 90.2% | 90,567 | 90,801 |
80% | 79.6% | 80,504 | 80,073 |
70% | 70.0% | 70,441 | 70,461 |
60% | 60.6% | 60,378 | 60,982 |
50% | 50.3% | 50,315 | 50,591 |
40% | 40.2% | 40,252 | 40,451 |
30% | 30.2% | 30,189 | 30,407 |
20% | 20.6% | 20,126 | 20,696 |
10% | 10.3% | 10,063 | 10,363 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 96,522 | ||
Calibration 2 | 102,558 | ||
Calibration 3 | 102,848 | ||
ssj_ops@calibrated=102,703 | |||
100% | 99.7% | 102,703 | 102,358 |
90% | 90.1% | 92,433 | 92,492 |
80% | 80.9% | 82,162 | 83,102 |
70% | 70.0% | 71,892 | 71,890 |
60% | 59.8% | 61,622 | 61,425 |
50% | 50.4% | 51,351 | 51,714 |
40% | 40.2% | 41,081 | 41,279 |
30% | 29.9% | 30,811 | 30,757 |
20% | 19.1% | 20,541 | 19,617 |
10% | 10.0% | 10,270 | 10,312 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,132 | ||
Calibration 2 | 101,034 | ||
Calibration 3 | 101,616 | ||
ssj_ops@calibrated=101,325 | |||
100% | 99.6% | 101,325 | 100,931 |
90% | 89.6% | 91,193 | 90,793 |
80% | 79.3% | 81,060 | 80,371 |
70% | 70.0% | 70,928 | 70,935 |
60% | 60.2% | 60,795 | 60,988 |
50% | 49.6% | 50,663 | 50,246 |
40% | 40.0% | 40,530 | 40,575 |
30% | 29.6% | 30,398 | 29,975 |
20% | 20.0% | 20,265 | 20,229 |
10% | 10.2% | 10,133 | 10,342 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 96,907 | ||
Calibration 2 | 102,642 | ||
Calibration 3 | 102,656 | ||
ssj_ops@calibrated=102,649 | |||
100% | 99.5% | 102,649 | 102,185 |
90% | 89.9% | 92,384 | 92,290 |
80% | 79.5% | 82,119 | 81,627 |
70% | 68.9% | 71,854 | 70,767 |
60% | 60.4% | 61,589 | 62,016 |
50% | 49.7% | 51,325 | 50,971 |
40% | 39.7% | 41,060 | 40,748 |
30% | 30.0% | 30,795 | 30,800 |
20% | 20.0% | 20,530 | 20,499 |
10% | 10.0% | 10,265 | 10,256 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 97,658 | ||
Calibration 2 | 101,046 | ||
Calibration 3 | 101,287 | ||
ssj_ops@calibrated=101,167 | |||
100% | 99.8% | 101,167 | 100,977 |
90% | 90.2% | 91,050 | 91,232 |
80% | 79.3% | 80,933 | 80,232 |
70% | 69.8% | 70,817 | 70,653 |
60% | 60.9% | 60,700 | 61,600 |
50% | 50.3% | 50,583 | 50,919 |
40% | 39.6% | 40,467 | 40,056 |
30% | 29.4% | 30,350 | 29,730 |
20% | 19.6% | 20,233 | 19,862 |
10% | 9.9% | 10,117 | 10,015 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 92,467 | ||
Calibration 2 | 101,672 | ||
Calibration 3 | 102,351 | ||
ssj_ops@calibrated=102,011 | |||
100% | 99.8% | 102,011 | 101,819 |
90% | 90.0% | 91,810 | 91,837 |
80% | 80.4% | 81,609 | 82,063 |
70% | 70.4% | 71,408 | 71,794 |
60% | 60.8% | 61,207 | 61,999 |
50% | 49.8% | 51,006 | 50,771 |
40% | 39.8% | 40,805 | 40,587 |
30% | 29.6% | 30,603 | 30,179 |
20% | 19.8% | 20,402 | 20,198 |
10% | 9.7% | 10,201 | 9,929 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 95,745 | ||
Calibration 2 | 100,351 | ||
Calibration 3 | 100,446 | ||
ssj_ops@calibrated=100,399 | |||
100% | 99.5% | 100,399 | 99,945 |
90% | 89.8% | 90,359 | 90,111 |
80% | 78.9% | 80,319 | 79,211 |
70% | 71.0% | 70,279 | 71,315 |
60% | 59.4% | 60,239 | 59,664 |
50% | 51.0% | 50,199 | 51,176 |
40% | 38.6% | 40,160 | 38,804 |
30% | 30.2% | 30,120 | 30,303 |
20% | 20.0% | 20,080 | 20,082 |
10% | 10.1% | 10,040 | 10,117 |
Active Idle | 0 | 0 |
