SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2019 Standard Performance Evaluation Corporation
| Fujitsu FUJITSU Server PRIMERGY RX4770 M5 | SPECpower_ssj2008 = 12,979 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | Apr 24, 2019 |
| Hardware Availability: | Jun-2019 | Software Availability: | Dec-2018 | Publication: | Jun 5, 2019 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

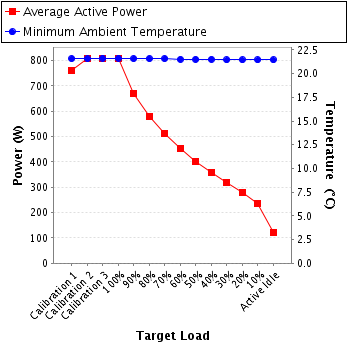

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 761 | 21.6 |
| Calibration 2 | 808 | 21.6 |
| Calibration 3 | 809 | 21.6 |
| 100% | 808 | 21.6 |
| 90% | 668 | 21.6 |
| 80% | 581 | 21.6 |
| 70% | 512 | 21.6 |
| 60% | 453 | 21.5 |
| 50% | 402 | 21.5 |
| 40% | 359 | 21.5 |
| 30% | 320 | 21.4 |
| 20% | 280 | 21.4 |
| 10% | 237 | 21.4 |
| Active Idle | 120 | 21.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Hioki |
| Model: | Hioki3336 |
| Serial Number: | 170130930 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NICT (National Institute of Information and Communications Technology) |
| Accredited by: | HIOKI E.E. CORPORATION |
| Calibration Label: | H06400086-1901 |
| Date of Calibration: | 30-Jan-2019 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.1-260d064e-20161220 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 206 | 300.0 | 3.73 | 5.0 | 0.997 | 761 | 0.2% |
| Calibration 2 | 206 | 300.0 | 3.94 | 5.0 | 0.998 | 808 | 0.2% |
| Calibration 3 | 206 | 300.0 | 3.95 | 5.0 | 0.998 | 809 | 0.2% |
| 100% | 205 | 300.0 | 3.94 | 5.0 | 0.998 | 808 | 0.2% |
| 90% | 206 | 300.0 | 3.26 | 5.0 | 0.997 | 668 | 0.2% |
| 80% | 206 | 300.0 | 2.83 | 5.0 | 0.996 | 581 | 0.2% |
| 70% | 206 | 300.0 | 2.50 | 5.0 | 0.995 | 512 | 0.3% |
| 60% | 205 | 300.0 | 2.22 | 5.0 | 0.994 | 453 | 0.3% |
| 50% | 206 | 300.0 | 1.97 | 5.0 | 0.992 | 402 | 0.3% |
| 40% | 206 | 300.0 | 1.76 | 5.0 | 0.991 | 359 | 0.3% |
| 30% | 206 | 300.0 | 1.57 | 5.0 | 0.989 | 320 | 0.3% |
| 20% | 206 | 300.0 | 1.38 | 2.0 | 0.986 | 280 | 0.2% |
| 10% | 206 | 300.0 | 1.17 | 2.0 | 0.982 | 237 | 0.2% |
| Active Idle | 206 | 300.0 | 0.615 | 2.0 | 0.948 | 120 | 0.4% |
