SPECpower_ssj2008 Aggregate Performance Report

SPECpower_ssj2008

Aggregate Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 45,870,814 ssj_ops@100% per Host = 11,467,704 ssj_ops@100% per JVM = 1,433,463
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 9, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

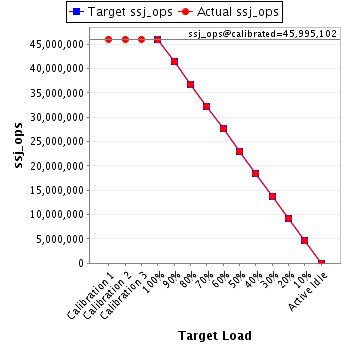

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			46,033,852
Calibration 2			45,964,461
Calibration 3			46,025,743
ssj_ops@calibrated=45,995,102
100%	99.7%	45,995,102	45,870,814
90%	90.0%	41,395,592	41,393,940
80%	80.0%	36,796,082	36,796,363
70%	70.0%	32,196,572	32,195,288
60%	60.0%	27,597,061	27,588,256
50%	50.0%	22,997,551	23,002,087
40%	40.0%	18,398,041	18,411,164
30%	30.0%	13,798,531	13,796,413
20%	20.0%	9,199,020	9,204,820
10%	10.0%	4,599,510	4,593,030
Active Idle		0	0

Aggregate SUT Data

# of Nodes	# of Chips	# of Cores	# of Threads	Total RAM (GB)	# of OS Images	# of JVM Instances
4	16	448	896	1,536	4	32

System Under Test

Shared Hardware

Shared Hardware
Enclosure:	HPE Synergy 12000 Frame
Form Factor:	10U
Power Supply Quantity and Rating (W):	4 x 2650
Power Supply Details:	HPE 2650W Performance Hot Plug Titanium Plus Power Supply Kit (798095-B21)
Network Switch:	1 x HP A5820X Series Switch (JG219A)
Network Switch Details:	10 Gb Fibre 24 ports
KVM Switch:	None
KVM Switch Details:	N/A
Other Hardware:	1 x HPE Synergy 10/40Gb Pass Thru Module (799330-B21), 1 x Synergy Composer (804353-B21), 1 x Synergy Frame Link Module (804942-B21)
Comment:	Network switch not measured for power

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	4
Comment:	SUT

Hardware per Node
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	blade
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller:	HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software per Node
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v2.10 (01/18/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019), Microsoft Windows KB4054519, and KB4056898

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled

USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled

x2APIC: Disabled

Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled

SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled

Smart Array SW RAID Support

Power Regulator: OS Control Mode
Intel Turbo Boost Technology: Enabled (default)
Energy Efficient Turbo: Enabled (default: Enabled if Turbo Enabled)
Energy Performance Bias: Balanced Power (default: Balanced Performance)
Collaborative Power Control: Enabled (default)
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled

HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Enabled

Intel NIC DMA Channels (IOAT): Disabled

Intel UPI Link Frequency: Min UPI Speed

HPE Synergy 3820C 10/20Gb CNA: PCIe Generation 1

AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

Windows Power Options = Power Saver
Turn off Display = 1 Minute
Turn off hard disk = 1 Minute
System Cooling = Passive
Processor power management = Minimum Processor State = 0%
Maximum Processor State = 95%
PCI Express Power Management = Maximum Power Savings

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverride /t REG_DWORD /d 0 /f
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverrideMask /t REG_DWORD /d 3 /f

Notes

None

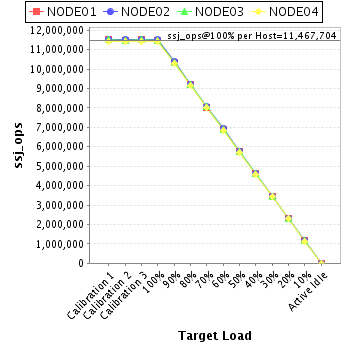

Host Instance Summary

Host	ssj_ops@100%
NODE01	11,484,940
NODE02	11,507,267
NODE03	11,472,895
NODE04	11,405,712
ssj_ops@100%	45,870,814
ssj_ops@100% per Host	11,467,704
ssj_ops@100% per JVM	1,433,463

Host 'NODE01' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,521,994
Calibration 2			11,500,681
Calibration 3			11,522,104
ssj_ops@calibrated=11,511,393
100%	99.8%	11,511,393	11,484,940
90%	90.1%	10,360,253	10,366,801
80%	80.1%	9,209,114	9,216,498
70%	69.9%	8,057,975	8,049,146
60%	60.0%	6,906,836	6,910,360
50%	50.0%	5,755,696	5,756,715
40%	40.1%	4,604,557	4,614,489
30%	30.0%	3,453,418	3,456,819
20%	20.1%	2,302,279	2,309,207
10%	10.0%	1,151,139	1,149,597
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE02' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,536,729
Calibration 2			11,537,692
Calibration 3			11,545,797
ssj_ops@calibrated=11,541,744
100%	99.7%	11,541,744	11,507,267
90%	90.0%	10,387,570	10,382,700
80%	80.0%	9,233,395	9,235,258
70%	70.0%	8,079,221	8,076,005
60%	59.9%	6,925,047	6,919,062
50%	50.0%	5,770,872	5,774,808
40%	40.0%	4,616,698	4,616,311
30%	30.0%	3,462,523	3,463,098
20%	20.0%	2,308,349	2,308,554
10%	10.0%	1,154,174	1,150,622
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE03' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,527,386
Calibration 2			11,497,518
Calibration 3			11,515,169
ssj_ops@calibrated=11,506,343
100%	99.7%	11,506,343	11,472,895
90%	90.0%	10,355,709	10,351,548
80%	80.0%	9,205,075	9,204,250
70%	70.0%	8,054,440	8,057,770
60%	60.0%	6,903,806	6,898,538
50%	50.0%	5,753,172	5,758,257
40%	40.0%	4,602,537	4,606,055
30%	30.0%	3,451,903	3,450,097
20%	20.0%	2,301,269	2,301,043
10%	10.0%	1,150,634	1,151,200
Active Idle		0	0

See the Host Performance Report for additional details.

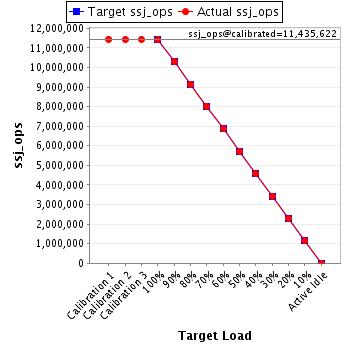

Host 'NODE04' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,447,743
Calibration 2			11,428,569
Calibration 3			11,442,674
ssj_ops@calibrated=11,435,622
100%	99.7%	11,435,622	11,405,712
90%	90.0%	10,292,060	10,292,891
80%	79.9%	9,148,497	9,140,356
70%	70.1%	8,004,935	8,012,368
60%	60.0%	6,861,373	6,860,297
50%	50.0%	5,717,811	5,712,307
40%	40.0%	4,574,249	4,574,309
30%	30.0%	3,430,687	3,426,399
20%	20.0%	2,287,124	2,286,016
10%	10.0%	1,143,562	1,141,611
Active Idle		0	0

See the Host Performance Report for additional details.

http://www.spec.org - info@spec.org

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
