SPECpower_ssj2008 Host 'NODE04' Performance Report

SPECpower_ssj2008

Host 'NODE04' Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 11,405,712 ssj_ops@100% per JVM = 1,425,714
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 9, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,447,743
Calibration 2			11,428,569
Calibration 3			11,442,674
ssj_ops@calibrated=11,435,622
100%	99.7%	11,435,622	11,405,712
90%	90.0%	10,292,060	10,292,891
80%	79.9%	9,148,497	9,140,356
70%	70.1%	8,004,935	8,012,368
60%	60.0%	6,861,373	6,860,297
50%	50.0%	5,717,811	5,712,307
40%	40.0%	4,574,249	4,574,309
30%	30.0%	3,430,687	3,426,399
20%	20.0%	2,287,124	2,286,016
10%	10.0%	1,143,562	1,141,611
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	4
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	blade
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller:	HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v2.10 (01/18/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019), Microsoft Windows KB4054519, and KB4056898

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled

USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled

x2APIC: Disabled

Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled

SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled

Smart Array SW RAID Support

Power Regulator: OS Control Mode
Intel Turbo Boost Technology: Enabled (default)
Energy Efficient Turbo: Enabled (default: Enabled if Turbo Enabled)
Energy Performance Bias: Balanced Power (default: Balanced Performance)
Collaborative Power Control: Enabled (default)
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled

HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Enabled

Intel NIC DMA Channels (IOAT): Disabled

Intel UPI Link Frequency: Min UPI Speed

HPE Synergy 3820C 10/20Gb CNA: PCIe Generation 1

AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

Windows Power Options = Power Saver
Turn off Display = 1 Minute
Turn off hard disk = 1 Minute
System Cooling = Passive
Processor power management = Minimum Processor State = 0%
Maximum Processor State = 95%
PCI Express Power Management = Maximum Power Savings

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverride /t REG_DWORD /d 0 /f
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverrideMask /t REG_DWORD /d 3 /f

Notes

None

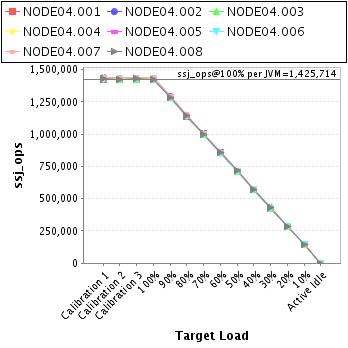

JVM Instance Summary

JVM Instance	ssj_ops@100%
NODE04.001	1,421,153
NODE04.002	1,428,675
NODE04.003	1,422,545
NODE04.004	1,430,508
NODE04.005	1,420,566
NODE04.006	1,419,804
NODE04.007	1,437,038
NODE04.008	1,425,421
ssj_ops@100%	11,405,712
ssj_ops@100% per JVM	1,425,714

JVM 'NODE04.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,426,487
Calibration 2			1,426,090
Calibration 3			1,426,412
ssj_ops@calibrated=1,426,251
100%	99.6%	1,426,251	1,421,153
90%	90.1%	1,283,626	1,285,070
80%	79.8%	1,141,001	1,138,712
70%	70.2%	998,376	1,001,930
60%	60.0%	855,751	855,564
50%	50.0%	713,125	712,446
40%	39.9%	570,500	568,839
30%	30.0%	427,875	427,922
20%	20.0%	285,250	284,871
10%	10.0%	142,625	142,141
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

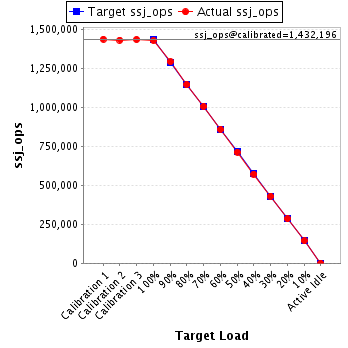

JVM 'NODE04.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,436,073
Calibration 2			1,430,563
Calibration 3			1,433,830
ssj_ops@calibrated=1,432,196
100%	99.8%	1,432,196	1,428,675
90%	90.2%	1,288,977	1,292,262
80%	80.0%	1,145,757	1,145,473
70%	70.3%	1,002,537	1,006,132
60%	60.0%	859,318	858,999
50%	49.8%	716,098	712,976
40%	39.9%	572,878	571,766
30%	30.1%	429,659	430,752
20%	19.8%	286,439	284,105
10%	10.1%	143,220	144,271
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE04.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,428,755
Calibration 2			1,424,984
Calibration 3			1,425,658
ssj_ops@calibrated=1,425,321
100%	99.8%	1,425,321	1,422,545
90%	90.3%	1,282,789	1,287,377
80%	80.0%	1,140,257	1,140,946
70%	70.2%	997,725	1,000,880
60%	60.2%	855,193	857,402
50%	50.0%	712,661	712,323
40%	39.9%	570,128	568,887
30%	30.0%	427,596	427,093
20%	20.0%	285,064	285,302
10%	10.0%	142,532	142,059
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE04.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,436,313
Calibration 2			1,434,413
Calibration 3			1,434,165
ssj_ops@calibrated=1,434,289
100%	99.7%	1,434,289	1,430,508
90%	89.5%	1,290,860	1,284,270
80%	79.8%	1,147,431	1,144,301
70%	69.9%	1,004,002	1,002,273
60%	60.0%	860,573	860,364
50%	49.8%	717,145	714,249
40%	40.0%	573,716	574,209
30%	30.0%	430,287	430,081
20%	20.0%	286,858	286,563
10%	10.0%	143,429	142,754
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE04.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,426,281
Calibration 2			1,423,697
Calibration 3			1,425,362
ssj_ops@calibrated=1,424,530
100%	99.7%	1,424,530	1,420,566
90%	90.0%	1,282,077	1,281,928
80%	79.9%	1,139,624	1,138,356
70%	70.0%	997,171	997,668
60%	59.8%	854,718	852,018
50%	50.0%	712,265	711,612
40%	40.1%	569,812	571,665
30%	30.0%	427,359	426,734
20%	20.1%	284,906	286,343
10%	10.0%	142,453	142,654
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE04.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,423,074
Calibration 2			1,422,472
Calibration 3			1,423,375
ssj_ops@calibrated=1,422,923
100%	99.8%	1,422,923	1,419,804
90%	90.1%	1,280,631	1,282,700
80%	79.8%	1,138,339	1,135,861
70%	69.9%	996,046	994,763
60%	60.0%	853,754	854,139
50%	49.9%	711,462	709,941
40%	40.0%	569,169	569,375
30%	29.9%	426,877	425,828
20%	20.0%	284,585	284,658
10%	10.0%	142,292	142,090
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

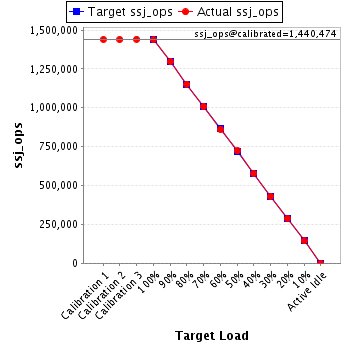

JVM 'NODE04.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,439,659
Calibration 2			1,439,549
Calibration 3			1,441,399
ssj_ops@calibrated=1,440,474
100%	99.8%	1,440,474	1,437,038
90%	90.0%	1,296,427	1,296,575
80%	80.0%	1,152,379	1,152,765
70%	70.0%	1,008,332	1,007,634
60%	59.9%	864,285	862,479
50%	50.1%	720,237	722,210
40%	40.1%	576,190	577,706
30%	29.8%	432,142	429,217
20%	19.9%	288,095	287,148
10%	10.0%	144,047	143,344
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE04.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,431,101
Calibration 2			1,426,801
Calibration 3			1,432,473
ssj_ops@calibrated=1,429,637
100%	99.7%	1,429,637	1,425,421
90%	89.7%	1,286,674	1,282,709
80%	80.0%	1,143,710	1,143,942
70%	70.0%	1,000,746	1,001,088
60%	60.1%	857,782	859,332
50%	50.1%	714,819	716,551
40%	40.0%	571,855	571,861
30%	30.0%	428,891	428,771
20%	20.1%	285,927	287,024
10%	10.0%	142,964	142,299
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

http://www.spec.org - info@spec.org

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
