Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module | ssj_ops@100% = 11,507,267 ssj_ops@100% per JVM = 1,438,408 |
||||
Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Multi Node |
Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Mar 9, 2019 |
Hardware Availability: | Apr-2019 | Software Availability: | Mar-2019 | Publication: | Apr 2, 2019 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

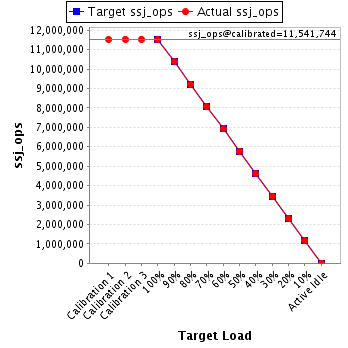

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 11,536,729 | ||
Calibration 2 | 11,537,692 | ||
Calibration 3 | 11,545,797 | ||
ssj_ops@calibrated=11,541,744 | |||
100% | 99.7% | 11,541,744 | 11,507,267 |
90% | 90.0% | 10,387,570 | 10,382,700 |
80% | 80.0% | 9,233,395 | 9,235,258 |
70% | 70.0% | 8,079,221 | 8,076,005 |
60% | 59.9% | 6,925,047 | 6,919,062 |
50% | 50.0% | 5,770,872 | 5,774,808 |
40% | 40.0% | 4,616,698 | 4,616,311 |
30% | 30.0% | 3,462,523 | 3,463,098 |
20% | 20.0% | 2,308,349 | 2,308,554 |
10% | 10.0% | 1,154,174 | 1,150,622 |
Active Idle | 0 | 0 |
Set Identifier: | SUT |
Set Description: | System Under Test |
# of Identical Nodes: | 4 |
Comment: | SUT |
Hardware | |
---|---|
Hardware Vendor: | Hewlett Packard Enterprise |
Model: | Synergy 660 Gen10 Compute Module |
Form Factor: | blade |
CPU Name: | Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz) |
CPU Characteristics: | 28-Core, 2.70 GHz, 38.5MB L3 Cache |
CPU Frequency (MHz): | 2700 |
CPU(s) Enabled: | 112 cores, 4 chips, 28 cores/chip |
Hardware Threads: | 224 (2 / core) |
CPU(s) Orderable: | 1,2,3,4 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 1 MB I+D on chip per core |
Tertiary Cache: | 39424 KB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 384 |
# and size of DIMM: | 24 x 16384 MB |
Memory Details: | 24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket |
Power Supply Quantity and Rating (W): | None |
Power Supply Details: | N/A |
Disk Drive: | 1 x HPE 480GB SATA 6G M.2 2280 (875498-B21) |
Disk Controller: | HPE Smart Array S100i SR Gen10 |
# and type of Network Interface Cards (NICs) Installed: | 1 x HPE Synergy 3820C 10/20Gb CNA |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Enabled (see SUT Notes) |
Operating System (OS): | Windows Server 2012 R2 Datacenter |
OS Version: | Version 6.3 (Build 9600) |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80 |
JVM Command-line Options: | -server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC |
JVM Affinity: | start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF] |
JVM Instances: | 8 |
JVM Initial Heap (MB): | 21000 |
JVM Maximum Heap (MB): | 21000 |
JVM Address Bits: | 64 |
Boot Firmware Version: | I43 v2.10 (01/18/2019) |
Management Firmware Version: | 1.40 Feb 05 2019 |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019), Microsoft Windows KB4054519, and KB4056898 |

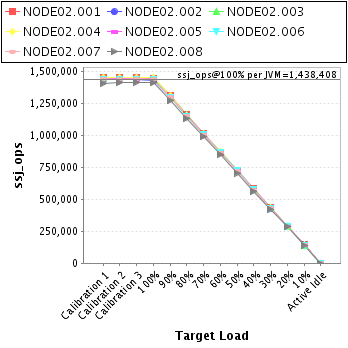

JVM Instance | ssj_ops@100% |
---|---|
NODE02.001 | 1,447,852 |
NODE02.002 | 1,433,705 |
NODE02.003 | 1,449,867 |
NODE02.004 | 1,449,899 |
NODE02.005 | 1,440,516 |
NODE02.006 | 1,435,713 |
NODE02.007 | 1,438,879 |
NODE02.008 | 1,410,837 |
ssj_ops@100% | 11,507,267 |
ssj_ops@100% per JVM | 1,438,408 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,452,868 | ||
Calibration 2 | 1,452,011 | ||
Calibration 3 | 1,453,312 | ||
ssj_ops@calibrated=1,452,662 | |||
100% | 99.7% | 1,452,662 | 1,447,852 |
90% | 90.1% | 1,307,396 | 1,309,125 |
80% | 80.0% | 1,162,129 | 1,161,484 |
70% | 70.2% | 1,016,863 | 1,019,111 |
60% | 59.8% | 871,597 | 868,956 |
50% | 50.0% | 726,331 | 726,359 |
40% | 40.1% | 581,065 | 582,213 |
30% | 30.1% | 435,799 | 437,760 |
20% | 20.0% | 290,532 | 290,157 |
10% | 10.0% | 145,266 | 145,534 |
Active Idle | 0 | 0 |

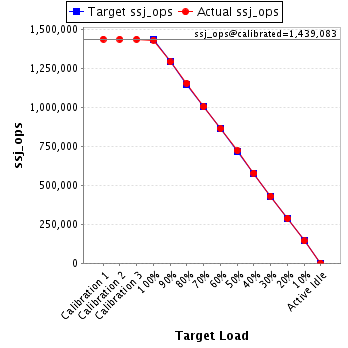

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,439,415 | ||
Calibration 2 | 1,439,196 | ||
Calibration 3 | 1,438,971 | ||
ssj_ops@calibrated=1,439,083 | |||
100% | 99.6% | 1,439,083 | 1,433,705 |
90% | 89.9% | 1,295,175 | 1,293,582 |
80% | 80.4% | 1,151,267 | 1,156,644 |
70% | 69.9% | 1,007,358 | 1,006,078 |
60% | 60.1% | 863,450 | 864,527 |
50% | 50.2% | 719,542 | 722,962 |
40% | 40.2% | 575,633 | 578,795 |
30% | 30.0% | 431,725 | 431,796 |
20% | 20.0% | 287,817 | 287,997 |
10% | 10.0% | 143,908 | 143,982 |
Active Idle | 0 | 0 |

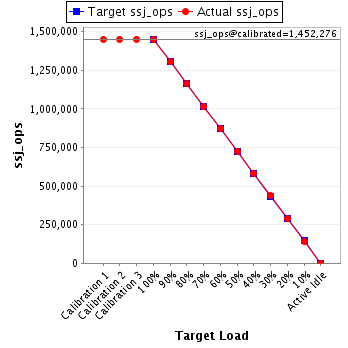

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,451,586 | ||
Calibration 2 | 1,452,230 | ||
Calibration 3 | 1,452,322 | ||
ssj_ops@calibrated=1,452,276 | |||
100% | 99.8% | 1,452,276 | 1,449,867 |
90% | 89.9% | 1,307,048 | 1,305,587 |
80% | 80.1% | 1,161,821 | 1,162,724 |
70% | 69.9% | 1,016,593 | 1,015,783 |
60% | 60.0% | 871,365 | 870,656 |
50% | 50.0% | 726,138 | 726,515 |
40% | 40.0% | 580,910 | 580,347 |
30% | 30.1% | 435,683 | 437,419 |
20% | 20.0% | 290,455 | 290,584 |
10% | 9.8% | 145,228 | 142,844 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,455,860 | ||
Calibration 2 | 1,453,636 | ||
Calibration 3 | 1,454,596 | ||
ssj_ops@calibrated=1,454,116 | |||
100% | 99.7% | 1,454,116 | 1,449,899 |
90% | 90.1% | 1,308,705 | 1,310,413 |
80% | 79.8% | 1,163,293 | 1,159,738 |
70% | 69.9% | 1,017,881 | 1,016,351 |
60% | 60.0% | 872,470 | 872,647 |
50% | 50.0% | 727,058 | 726,620 |
40% | 39.9% | 581,646 | 580,016 |
30% | 30.1% | 436,235 | 437,350 |
20% | 20.0% | 290,823 | 291,159 |
10% | 10.0% | 145,412 | 145,898 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,447,160 | ||
Calibration 2 | 1,447,524 | ||
Calibration 3 | 1,445,372 | ||
ssj_ops@calibrated=1,446,448 | |||
100% | 99.6% | 1,446,448 | 1,440,516 |
90% | 89.9% | 1,301,803 | 1,299,974 |
80% | 80.1% | 1,157,158 | 1,158,057 |
70% | 70.2% | 1,012,513 | 1,014,782 |
60% | 59.8% | 867,869 | 864,713 |
50% | 50.0% | 723,224 | 723,395 |
40% | 39.9% | 578,579 | 576,988 |
30% | 30.0% | 433,934 | 434,590 |
20% | 20.0% | 289,290 | 288,583 |
10% | 10.0% | 144,645 | 144,773 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,438,360 | ||
Calibration 2 | 1,439,872 | ||
Calibration 3 | 1,441,636 | ||
ssj_ops@calibrated=1,440,754 | |||
100% | 99.7% | 1,440,754 | 1,435,713 |
90% | 89.8% | 1,296,678 | 1,294,127 |
80% | 79.8% | 1,152,603 | 1,150,438 |
70% | 70.0% | 1,008,528 | 1,007,972 |
60% | 59.9% | 864,452 | 863,221 |
50% | 50.2% | 720,377 | 722,766 |
40% | 40.0% | 576,301 | 576,043 |
30% | 30.0% | 432,226 | 431,533 |
20% | 20.0% | 288,151 | 288,079 |
10% | 9.9% | 144,075 | 142,607 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,443,449 | ||
Calibration 2 | 1,439,556 | ||
Calibration 3 | 1,442,571 | ||
ssj_ops@calibrated=1,441,063 | |||
100% | 99.8% | 1,441,063 | 1,438,879 |
90% | 90.2% | 1,296,957 | 1,299,585 |
80% | 80.0% | 1,152,851 | 1,152,631 |
70% | 69.8% | 1,008,744 | 1,006,479 |
60% | 59.9% | 864,638 | 862,769 |
50% | 50.0% | 720,532 | 720,080 |
40% | 40.0% | 576,425 | 577,073 |
30% | 29.7% | 432,319 | 428,716 |
20% | 19.9% | 288,213 | 286,840 |
10% | 10.0% | 144,106 | 144,126 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,408,031 | ||
Calibration 2 | 1,413,668 | ||
Calibration 3 | 1,417,018 | ||
ssj_ops@calibrated=1,415,343 | |||
100% | 99.7% | 1,415,343 | 1,410,837 |
90% | 89.8% | 1,273,808 | 1,270,307 |
80% | 80.1% | 1,132,274 | 1,133,542 |
70% | 69.9% | 990,740 | 989,450 |
60% | 60.2% | 849,206 | 851,574 |
50% | 49.9% | 707,671 | 706,111 |
40% | 39.9% | 566,137 | 564,835 |
30% | 30.0% | 424,603 | 423,934 |
20% | 20.1% | 283,069 | 285,156 |
10% | 10.0% | 141,534 | 140,858 |
Active Idle | 0 | 0 |
