SPECpower_ssj2008 Aggregate Performance Report

SPECpower_ssj2008

Aggregate Performance Report

Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module			ssj_ops@100% = 57,334,339 ssj_ops@100% per Host = 5,733,434 ssj_ops@100% per JVM = 1,433,358
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Aug 24, 2018
Hardware Availability:	Jun-2018	Software Availability:	Mar-2018	Publication:	Sep 12, 2018
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			57,485,158
Calibration 2			57,428,536
Calibration 3			57,521,235
ssj_ops@calibrated=57,474,885
100%	99.8%	57,474,885	57,334,339
90%	90.0%	51,727,397	51,730,277
80%	80.0%	45,979,908	45,985,923
70%	70.0%	40,232,420	40,224,645
60%	60.0%	34,484,931	34,480,877
50%	50.0%	28,737,443	28,747,796
40%	40.0%	22,989,954	22,994,376
30%	30.0%	17,242,466	17,247,527
20%	20.0%	11,494,977	11,480,734
10%	10.0%	5,747,489	5,750,312
Active Idle		0	0

Aggregate SUT Data

# of Nodes	# of Chips	# of Cores	# of Threads	Total RAM (GB)	# of OS Images	# of JVM Instances
10	20	560	1,120	1,920	10	40

System Under Test

Shared Hardware

Shared Hardware
Enclosure:	HPE Synergy 12000 Frame
Form Factor:	10U
Power Supply Quantity and Rating (W):	6 x 2650
Power Supply Details:	HPE 2650W Performance Hot Plug Titanium Plus Power Supply Kit (798095-B21)
Network Switch:	1
Network Switch Details:	HP A5820X Series Switch JG219A
KVM Switch:	None
KVM Switch Details:	N/A
Other Hardware:	1 x HPE Synergy 10Gb Pass Thru Module (799330-B21), 1 x HPE Synergy Composer (804353-B21), 1 x HPE Synergy Frame Link Module (804942-B21)
Comment:	Network switch not measured for power

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	10
Comment:	SUT

Hardware per Node
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 480 Gen10 Compute Module
Form Factor:	Other
CPU Name:	Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics:	28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz):	2500
CPU(s) Enabled:	56 cores, 2 chips, 28 cores/chip
Hardware Threads:	112 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	192
# and size of DIMM:	12 x 16384 MB
Memory Details:	12 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	Shared
Disk Drive:	1 x HPE Synergy 480 Gen10 M.2 FIO Adapter Board Kit (873165-B21); 1 x HPE 480GB SATA 6G Read Intensive M.2 2280 SSD (875498-B21)
Disk Controller:	1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected:	2/1/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software per Node
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2012 R2 Datacenter
OS Version:	6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	4
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I42 v1.32 (02/01/2018)
Management Firmware Version:	1.15 Aug 17 2017
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898

Boot Firmware Settings

USB Control: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled
SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled
x2APIC: Disabled
Memory Refresh Rate: 1x Refresh
Memory Patrol Scrubbing: Disabled
Memory Bus Frequency: 2400 MHz
Power Regulator: OS Control
Energy Performance Bias: Balanced Power
Turbo Boost Technology: Disabled
Collaborative Power Control: Disabled
DMI Link Frequency: Gen 1
Sub-NUMA Clustering: Enabled
Intel NIC DMA Channels (IOAT): Disabled
HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
DCU IP Prefetcher: Disabled
LLC Prefetcher: Disabled
XPT Prefetcher: Enabled
UPI Link Frequency: Min UPI Speed
Maximum PCI Express Speed: PCIe Generation 1.0
Embedded SATA Configuration: Smart Array SW RAID Support
Embedded SATA Controller #1: Disabled
AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Run initiated via Windows Remote Desktop Connection
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.
Windows Power Plan = Balanced
Turn off display = 1 minute
Turn off hard disk = 1 minute
Processor power management: Minimum Processor State = 0%, Maximum Processor State = 100%
System cooling policy = Active
Synergy Frame Power Supply mode set to Redundant Power Supply via HPE OneView.

Applied protection against speculative execution as explained in https://support.microsoft.com/en-us/help/4072698/windows-server-guidance-to-protect-against-the-speculative-execution (Last Updated: Aug 14, 2018)
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Notes

None

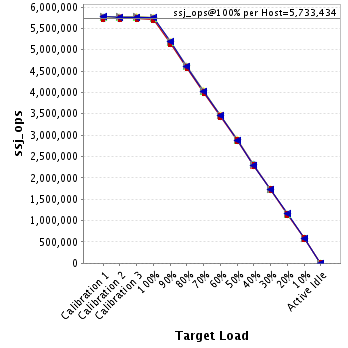

Host Instance Summary

Host	ssj_ops@100%
NODE01	5,735,419
NODE02	5,728,244
NODE03	5,734,170
NODE04	5,745,064
NODE05	5,731,394
NODE06	5,713,060
NODE07	5,718,495
NODE08	5,766,425
NODE09	5,714,631
NODE10	5,747,438
ssj_ops@100%	57,334,339
ssj_ops@100% per Host	5,733,434
ssj_ops@100% per JVM	1,433,358

Host 'NODE01' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,757,011
Calibration 2			5,749,653
Calibration 3			5,756,018
ssj_ops@calibrated=5,752,836
100%	99.7%	5,752,836	5,735,419
90%	89.9%	5,177,552	5,170,442
80%	80.0%	4,602,268	4,601,878
70%	70.0%	4,026,985	4,027,126
60%	60.0%	3,451,701	3,453,848
50%	50.0%	2,876,418	2,877,791
40%	40.0%	2,301,134	2,299,592
30%	30.0%	1,725,851	1,727,140
20%	20.0%	1,150,567	1,149,094
10%	10.0%	575,284	575,639
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE02' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,742,794
Calibration 2			5,740,402
Calibration 3			5,754,760
ssj_ops@calibrated=5,747,581
100%	99.7%	5,747,581	5,728,244
90%	90.1%	5,172,823	5,175,749
80%	80.0%	4,598,065	4,597,526
70%	70.0%	4,023,307	4,022,776
60%	59.9%	3,448,549	3,444,575
50%	50.1%	2,873,790	2,877,578
40%	40.1%	2,299,032	2,302,305
30%	29.9%	1,724,274	1,721,258
20%	19.9%	1,149,516	1,146,545
10%	10.0%	574,758	573,925
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE03' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,754,123
Calibration 2			5,745,141
Calibration 3			5,754,144
ssj_ops@calibrated=5,749,642
100%	99.7%	5,749,642	5,734,170
90%	90.0%	5,174,678	5,175,267
80%	79.9%	4,599,714	4,595,739
70%	69.9%	4,024,750	4,021,607
60%	60.0%	3,449,785	3,451,028
50%	50.0%	2,874,821	2,872,800
40%	40.1%	2,299,857	2,307,468
30%	30.0%	1,724,893	1,726,405
20%	19.9%	1,149,928	1,146,836
10%	10.1%	574,964	578,320
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE04' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,753,320
Calibration 2			5,749,535
Calibration 3			5,768,248
ssj_ops@calibrated=5,758,891
100%	99.8%	5,758,891	5,745,064
90%	90.1%	5,183,002	5,190,677
80%	80.2%	4,607,113	4,618,012
70%	70.1%	4,031,224	4,034,810
60%	60.1%	3,455,335	3,463,299
50%	50.1%	2,879,446	2,887,573
40%	39.9%	2,303,556	2,298,462
30%	30.0%	1,727,667	1,726,810
20%	20.0%	1,151,778	1,148,997
10%	10.0%	575,889	577,218
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE05' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,737,863
Calibration 2			5,738,401
Calibration 3			5,743,048
ssj_ops@calibrated=5,740,725
100%	99.8%	5,740,725	5,731,394
90%	90.1%	5,166,652	5,171,231
80%	80.0%	4,592,580	4,591,275
70%	70.1%	4,018,507	4,021,528
60%	59.8%	3,444,435	3,434,061
50%	50.0%	2,870,362	2,869,560
40%	40.1%	2,296,290	2,302,033
30%	30.0%	1,722,217	1,722,595
20%	19.9%	1,148,145	1,145,267
10%	10.0%	574,072	573,653
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE06' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,735,694
Calibration 2			5,724,905
Calibration 3			5,730,211
ssj_ops@calibrated=5,727,558
100%	99.7%	5,727,558	5,713,060
90%	89.9%	5,154,802	5,146,830
80%	80.0%	4,582,046	4,581,740
70%	70.0%	4,009,290	4,006,825
60%	60.0%	3,436,535	3,438,056
50%	50.0%	2,863,779	2,866,177
40%	40.1%	2,291,023	2,296,777
30%	30.1%	1,718,267	1,721,829
20%	20.0%	1,145,512	1,144,484
10%	10.0%	572,756	573,070
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE07' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,730,655
Calibration 2			5,723,881
Calibration 3			5,736,472
ssj_ops@calibrated=5,730,177
100%	99.8%	5,730,177	5,718,495
90%	90.0%	5,157,159	5,155,751
80%	79.9%	4,584,141	4,580,698
70%	70.0%	4,011,124	4,009,537
60%	60.1%	3,438,106	3,441,740
50%	50.0%	2,865,088	2,862,810
40%	40.0%	2,292,071	2,293,120
30%	30.0%	1,719,053	1,717,367
20%	19.9%	1,146,035	1,140,857
10%	10.0%	573,018	573,252
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE08' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,776,663
Calibration 2			5,775,840
Calibration 3			5,781,857
ssj_ops@calibrated=5,778,848
100%	99.8%	5,778,848	5,766,425
90%	90.0%	5,200,964	5,201,462
80%	80.0%	4,623,079	4,622,433
70%	69.9%	4,045,194	4,041,284
60%	60.0%	3,467,309	3,469,620
50%	50.1%	2,889,424	2,892,521
40%	39.9%	2,311,539	2,303,484
30%	30.0%	1,733,655	1,733,210
20%	20.0%	1,155,770	1,156,980
10%	10.0%	577,885	578,967
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE09' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,726,115
Calibration 2			5,722,668
Calibration 3			5,731,467
ssj_ops@calibrated=5,727,068
100%	99.8%	5,727,068	5,714,631
90%	90.0%	5,154,361	5,154,839
80%	80.1%	4,581,654	4,587,106
70%	70.0%	4,008,948	4,008,649
60%	59.9%	3,436,241	3,429,352
50%	50.0%	2,863,534	2,864,802
40%	40.0%	2,290,827	2,293,549
30%	30.0%	1,718,120	1,720,637
20%	20.0%	1,145,414	1,147,813
10%	10.0%	572,707	570,376
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'NODE10' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,770,918
Calibration 2			5,758,110
Calibration 3			5,765,011
ssj_ops@calibrated=5,761,560
100%	99.8%	5,761,560	5,747,438
90%	90.0%	5,185,404	5,188,027
80%	80.0%	4,609,248	4,609,517
70%	70.0%	4,033,092	4,030,502
60%	60.0%	3,456,936	3,455,300
50%	49.9%	2,880,780	2,876,184
40%	39.9%	2,304,624	2,297,587
30%	30.0%	1,728,468	1,730,276
20%	20.0%	1,152,312	1,153,863
10%	10.0%	576,156	575,891
Active Idle		0	0

See the Host Performance Report for additional details.

http://www.spec.org - info@spec.org

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
