Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,747,438
ssj_ops@100% per JVM = 1,436,859
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 24, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,770,918
Calibration 2     5,758,110
Calibration 3     5,765,011
ssj_ops@calibrated=5,761,560
100% 99.8% 5,761,560 5,747,438
90% 90.0% 5,185,404 5,188,027
80% 80.0% 4,609,248 4,609,517
70% 70.0% 4,033,092 4,030,502
60% 60.0% 3,456,936 3,455,300
50% 49.9% 2,880,780 2,876,184
40% 39.9% 2,304,624 2,297,587
30% 30.0% 1,728,468 1,730,276
20% 20.0% 1,152,312 1,153,863
10% 10.0% 576,156 575,891
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 10
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE Synergy 480 Gen10 M.2 FIO Adapter Board Kit (873165-B21); 1 x HPE 480GB SATA 6G Read Intensive M.2 2280 SSD (875498-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v1.32 (02/01/2018)
Management Firmware Version: 1.15 Aug 17 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE10.001 1,443,253
NODE10.002 1,427,268
NODE10.003 1,448,993
NODE10.004 1,427,923
ssj_ops@100% 5,747,438
ssj_ops@100% per JVM 1,436,859

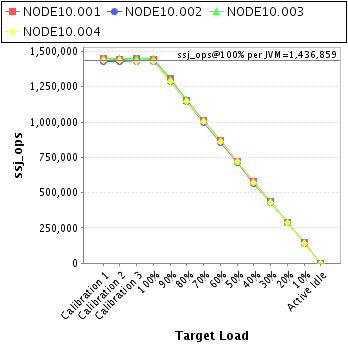

Graph of per-instance results

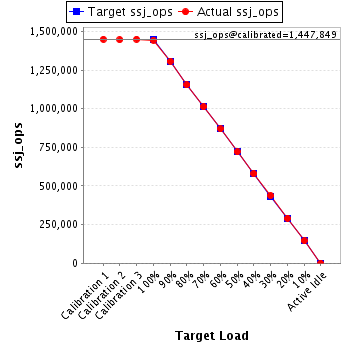

JVM 'NODE10.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,449,634
Calibration 2     1,445,910
Calibration 3     1,449,787
ssj_ops@calibrated=1,447,849
100% 99.7% 1,447,849 1,443,253
90% 90.3% 1,303,064 1,306,929
80% 79.7% 1,158,279 1,153,855
70% 70.0% 1,013,494 1,012,860
60% 60.0% 868,709 868,869
50% 49.8% 723,924 720,991
40% 40.0% 579,139 579,131
30% 30.2% 434,355 437,309
20% 20.1% 289,570 291,179
10% 10.1% 144,785 145,595
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE10.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,428,917
Calibration 2     1,428,798
Calibration 3     1,432,452
ssj_ops@calibrated=1,430,625
100% 99.8% 1,430,625 1,427,268
90% 89.9% 1,287,563 1,286,539
80% 80.1% 1,144,500 1,145,791
70% 69.8% 1,001,438 998,785
60% 59.9% 858,375 857,557
50% 49.9% 715,313 713,190
40% 39.7% 572,250 567,581
30% 30.0% 429,188 429,061
20% 20.0% 286,125 285,512
10% 10.0% 143,063 142,995
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

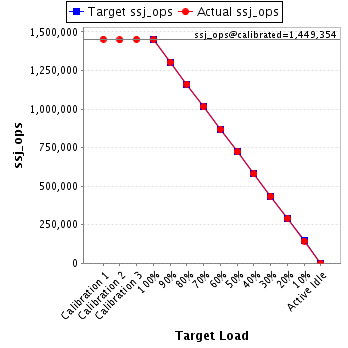

JVM 'NODE10.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,452,720
Calibration 2     1,447,623
Calibration 3     1,451,085
ssj_ops@calibrated=1,449,354
100% 100.0% 1,449,354 1,448,993
90% 90.0% 1,304,419 1,304,549
80% 80.1% 1,159,483 1,161,580
70% 70.0% 1,014,548 1,014,141
60% 59.9% 869,612 868,534
50% 49.9% 724,677 723,165
40% 39.9% 579,742 578,959
30% 30.0% 434,806 434,473
20% 20.0% 289,871 289,755
10% 9.9% 144,935 144,016
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE10.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,439,647
Calibration 2     1,435,779
Calibration 3     1,431,686
ssj_ops@calibrated=1,433,732
100% 99.6% 1,433,732 1,427,923
90% 90.0% 1,290,359 1,290,010
80% 80.1% 1,146,986 1,148,291
70% 70.1% 1,003,613 1,004,716
60% 60.0% 860,239 860,340
50% 50.1% 716,866 718,838
40% 39.9% 573,493 571,915
30% 30.0% 430,120 429,433
20% 20.0% 286,746 287,417
10% 10.0% 143,373 143,286
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
