Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,714,631
ssj_ops@100% per JVM = 1,428,658
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 24, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,726,115
Calibration 2     5,722,668
Calibration 3     5,731,467
ssj_ops@calibrated=5,727,068
100% 99.8% 5,727,068 5,714,631
90% 90.0% 5,154,361 5,154,839
80% 80.1% 4,581,654 4,587,106
70% 70.0% 4,008,948 4,008,649
60% 59.9% 3,436,241 3,429,352
50% 50.0% 2,863,534 2,864,802
40% 40.0% 2,290,827 2,293,549
30% 30.0% 1,718,120 1,720,637
20% 20.0% 1,145,414 1,147,813
10% 10.0% 572,707 570,376
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 10
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE Synergy 480 Gen10 M.2 FIO Adapter Board Kit (873165-B21); 1 x HPE 480GB SATA 6G Read Intensive M.2 2280 SSD (875498-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v1.32 (02/01/2018)
Management Firmware Version: 1.15 Aug 17 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE09.001 1,428,620
NODE09.002 1,428,282
NODE09.003 1,430,112
NODE09.004 1,427,618
ssj_ops@100% 5,714,631
ssj_ops@100% per JVM 1,428,658

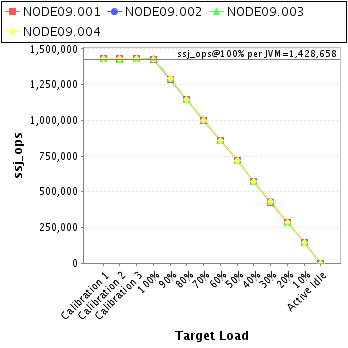

Graph of per-instance results

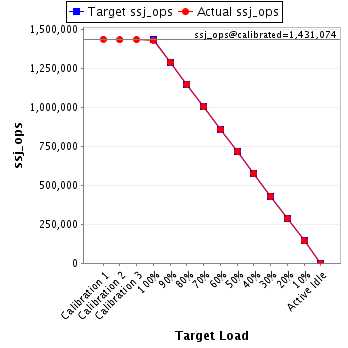

JVM 'NODE09.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,434,958
Calibration 2     1,430,196
Calibration 3     1,431,951
ssj_ops@calibrated=1,431,074
100% 99.8% 1,431,074 1,428,620
90% 89.9% 1,287,966 1,286,648
80% 80.2% 1,144,859 1,147,287
70% 70.0% 1,001,752 1,001,042
60% 59.9% 858,644 857,899
50% 50.0% 715,537 716,222
40% 40.0% 572,429 572,457
30% 29.9% 429,322 428,214
20% 20.0% 286,215 286,812
10% 10.0% 143,107 143,321
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE09.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,430,423
Calibration 2     1,431,806
Calibration 3     1,432,180
ssj_ops@calibrated=1,431,993
100% 99.7% 1,431,993 1,428,282
90% 89.8% 1,288,794 1,286,490
80% 80.1% 1,145,594 1,147,609
70% 70.0% 1,002,395 1,001,874
60% 59.8% 859,196 856,691
50% 50.0% 715,997 715,546
40% 40.0% 572,797 573,294
30% 30.0% 429,598 429,490
20% 20.0% 286,399 285,732
10% 9.9% 143,199 142,427
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE09.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,429,290
Calibration 2     1,428,828
Calibration 3     1,434,039
ssj_ops@calibrated=1,431,434
100% 99.9% 1,431,434 1,430,112
90% 90.1% 1,288,290 1,289,354
80% 80.2% 1,145,147 1,147,685
70% 70.1% 1,002,004 1,003,805
60% 59.9% 858,860 856,902
50% 50.1% 715,717 717,090
40% 40.0% 572,573 572,568
30% 30.2% 429,430 431,848
20% 20.1% 286,287 287,502
10% 9.9% 143,143 141,933
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE09.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,431,444
Calibration 2     1,431,838
Calibration 3     1,433,297
ssj_ops@calibrated=1,432,567
100% 99.7% 1,432,567 1,427,618
90% 90.2% 1,289,311 1,292,347
80% 79.9% 1,146,054 1,144,526
70% 69.9% 1,002,797 1,001,928
60% 59.9% 859,540 857,859
50% 50.0% 716,284 715,943
40% 40.2% 573,027 575,230
30% 30.1% 429,770 431,085
20% 20.1% 286,513 287,768
10% 10.0% 143,257 142,695
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
