Quanta Computer Inc. QuantaGrid T42S-2U ssj_ops@100% = 19,474,075
ssj_ops@100% per Host = 4,868,519
ssj_ops@100% per JVM = 1,217,130
Test Sponsor: Quanta Computer Inc. SPEC License #: 9050 Test Method: Multi Node
Tested By: Quanta Computer Inc. Test Location: Taoyuan, TW, R.O.C Test Date: Sep 26, 2017
Hardware Availability: Jul-2017 Software Availability: Sep-2016 Publication: Oct 25, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     19,727,932
Calibration 2     19,541,827
Calibration 3     19,554,437
ssj_ops@calibrated=19,548,132
100% 99.6% 19,548,132 19,474,075
90% 90.0% 17,593,319 17,601,667
80% 79.9% 15,638,506 15,622,423
70% 69.9% 13,683,693 13,670,579
60% 60.0% 11,728,879 11,724,542
50% 50.0% 9,774,066 9,779,247
40% 40.0% 7,819,253 7,819,267
30% 30.0% 5,864,440 5,864,207
20% 20.0% 3,909,626 3,911,119
10% 10.0% 1,954,813 1,957,457
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
4 8 224 448 768 4 16
System Under Test
Shared Hardware
Shared Hardware
Enclosure: T42S-2U
Form Factor: 2U
Power Supply Quantity and Rating (W): 1 x 2200
Power Supply Details: ARTESYN MC2200B4-3-4R-02
Network Switch: QuantaMesh T1048-LB9
Network Switch Details: 48-PORT QuantaMesh T1048-LB9
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: None
Comment: Network switch did not measure for Power
Set: 'T42S-2U'
Set Identifier: T42S-2U
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware per Node
Hardware Vendor: Quanta Computer Inc.
Model: QuantaGrid T42S-2U
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8176
CPU Characteristics: 28 core, 2.10GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 16GB 2Rx8 PC4-2666V-RE1-12-PA0; slots A0, B0, C0, D0, E0, F0, populated for both Processor sockets
Power Supply Quantity and Rating (W): 1 x 2200
Power Supply Details: None
Disk Drive: 1 x 256G SATA SSD,Quanta P/N ABSAV256008
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x dual-port Intel I357 Gigabit Ethernet controllerQuanta P/N 3GS5BMA00D0
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Balanced power plan in OS
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600 (Build 9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmx13g -Xms13g -Xmn11g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=24 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts -XX:+OptimizeStringConcat -XX:+UseStringCache
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 13000
JVM Maximum Heap (MB): 13000
JVM Address Bits: 64
Boot Firmware Version: 3A03E7
Management Firmware Version: 3.20
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Specpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this java version
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
Host Instance Summary
Host ssj_ops@100%
WINDOWS-2KQ3HK3 4,885,686
WINDOWS-5SEDD45 4,924,712
WINDOWS-IO5BT5F 4,762,316
WINDOWS-PQSE238 4,901,361
ssj_ops@100% 19,474,075
ssj_ops@100% per Host 4,868,519
ssj_ops@100% per JVM 1,217,130

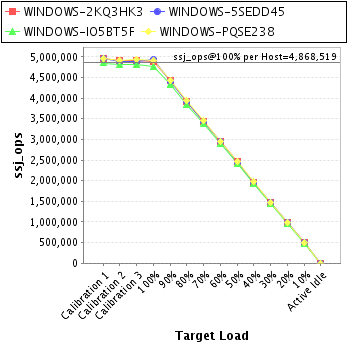

Graph of per-host results
Host 'WINDOWS-2KQ3HK3' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     4,968,208
Calibration 2     4,908,781
Calibration 3     4,905,385
ssj_ops@calibrated=4,907,083
100% 99.6% 4,907,083 4,885,686
90% 90.0% 4,416,375 4,417,849
80% 79.9% 3,925,667 3,919,410
70% 69.8% 3,434,958 3,424,171
60% 59.9% 2,944,250 2,938,679
50% 50.2% 2,453,542 2,462,054
40% 40.0% 1,962,833 1,964,214
30% 30.1% 1,472,125 1,475,055
20% 20.1% 981,417 984,615
10% 10.0% 490,708 491,581
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
Host 'WINDOWS-5SEDD45' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     4,952,989
Calibration 2     4,895,032
Calibration 3     4,899,457
ssj_ops@calibrated=4,897,244
100% 100.6% 4,897,244 4,924,712
90% 90.1% 4,407,520 4,411,148
80% 80.0% 3,917,796 3,916,392
70% 69.9% 3,428,071 3,424,136
60% 60.0% 2,938,347 2,940,221
50% 49.9% 2,448,622 2,445,141
40% 40.0% 1,958,898 1,957,258
30% 30.0% 1,469,173 1,466,785
20% 20.0% 979,449 981,621
10% 10.0% 489,724 491,594
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.

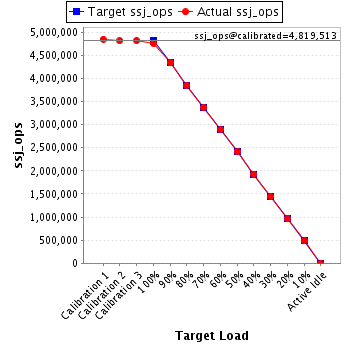

Host 'WINDOWS-IO5BT5F' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     4,851,443
Calibration 2     4,817,589
Calibration 3     4,821,438
ssj_ops@calibrated=4,819,513
100% 98.8% 4,819,513 4,762,316
90% 90.1% 4,337,562 4,342,362
80% 79.9% 3,855,611 3,850,064
70% 70.0% 3,373,659 3,374,967
60% 60.0% 2,891,708 2,893,063
50% 50.1% 2,409,757 2,413,674
40% 40.0% 1,927,805 1,927,041
30% 30.0% 1,445,854 1,444,203
20% 19.9% 963,903 961,098
10% 10.0% 481,951 482,009
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.

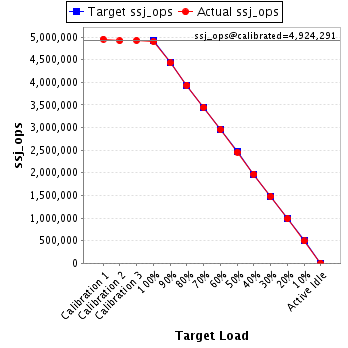

Host 'WINDOWS-PQSE238' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     4,955,292
Calibration 2     4,920,425
Calibration 3     4,928,157
ssj_ops@calibrated=4,924,291
100% 99.5% 4,924,291 4,901,361
90% 90.0% 4,431,862 4,430,307
80% 79.9% 3,939,433 3,936,558
70% 70.0% 3,447,004 3,447,304
60% 60.0% 2,954,575 2,952,578
50% 49.9% 2,462,146 2,458,378
40% 40.0% 1,969,716 1,970,752
30% 30.0% 1,477,287 1,478,163
20% 20.0% 984,858 983,786
10% 10.0% 492,429 492,274
Active Idle   0 0
Graph of results
See the Host Performance Report for additional details.
