Quanta Computer Inc. QuantaGrid T42S-2U ssj_ops@100% = 4,885,686
ssj_ops@100% per JVM = 1,221,422
Test Sponsor: Quanta Computer Inc. SPEC License #: 9050 Test Method: Multi Node
Tested By: Quanta Computer Inc. Test Location: Taoyuan, TW, R.O.C Test Date: Sep 26, 2017
Hardware Availability: Jul-2017 Software Availability: Sep-2016 Publication: Oct 25, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     4,968,208
Calibration 2     4,908,781
Calibration 3     4,905,385
ssj_ops@calibrated=4,907,083
100% 99.6% 4,907,083 4,885,686
90% 90.0% 4,416,375 4,417,849
80% 79.9% 3,925,667 3,919,410
70% 69.8% 3,434,958 3,424,171
60% 59.9% 2,944,250 2,938,679
50% 50.2% 2,453,542 2,462,054
40% 40.0% 1,962,833 1,964,214
30% 30.1% 1,472,125 1,475,055
20% 20.1% 981,417 984,615
10% 10.0% 490,708 491,581
Active Idle   0 0
Graph of results
System Under Test
Set: 'T42S-2U'
Set Identifier: T42S-2U
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware
Hardware Vendor: Quanta Computer Inc.
Model: QuantaGrid T42S-2U
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8176
CPU Characteristics: 28 core, 2.10GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 16GB 2Rx8 PC4-2666V-RE1-12-PA0; slots A0, B0, C0, D0, E0, F0, populated for both Processor sockets
Power Supply Quantity and Rating (W): 1 x 2200
Power Supply Details: None
Disk Drive: 1 x 256G SATA SSD,Quanta P/N ABSAV256008
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x dual-port Intel I357 Gigabit Ethernet controllerQuanta P/N 3GS5BMA00D0
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced power plan in OS
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600 (Build 9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmx13g -Xms13g -Xmn11g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=24 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts -XX:+OptimizeStringConcat -XX:+UseStringCache
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 13000
JVM Maximum Heap (MB): 13000
JVM Address Bits: 64
Boot Firmware Version: 3A03E7
Management Firmware Version: 3.20
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Specpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this java version
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
WINDOWS-2KQ3HK3.001 1,215,014
WINDOWS-2KQ3HK3.002 1,219,436
WINDOWS-2KQ3HK3.003 1,224,075
WINDOWS-2KQ3HK3.004 1,227,162
ssj_ops@100% 4,885,686
ssj_ops@100% per JVM 1,221,422

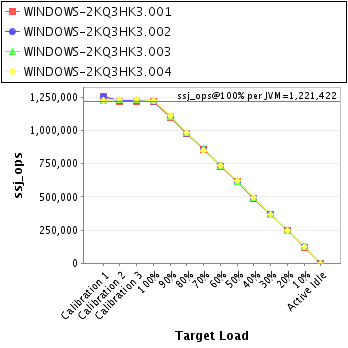

Graph of per-instance results
JVM 'WINDOWS-2KQ3HK3.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,257,519
Calibration 2     1,219,843
Calibration 3     1,218,152
ssj_ops@calibrated=1,218,997
100% 99.7% 1,218,997 1,215,014
90% 90.2% 1,097,098 1,099,202
80% 80.1% 975,198 975,959
70% 70.0% 853,298 853,177
60% 59.9% 731,398 729,821
50% 50.3% 609,499 613,625
40% 40.1% 487,599 488,495
30% 30.0% 365,699 366,009
20% 20.0% 243,799 243,685
10% 10.0% 121,900 121,583
Active Idle   0 0

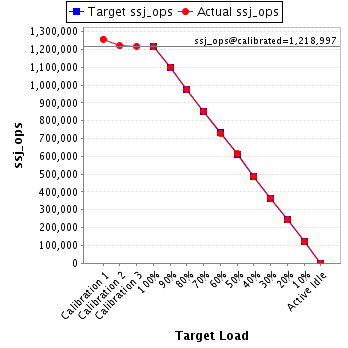

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-2KQ3HK3.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,258,045
Calibration 2     1,225,544
Calibration 3     1,223,459
ssj_ops@calibrated=1,224,501
100% 99.6% 1,224,501 1,219,436
90% 90.0% 1,102,051 1,102,536
80% 79.9% 979,601 978,150
70% 70.0% 857,151 856,691
60% 59.9% 734,701 733,546
50% 50.1% 612,251 613,097
40% 40.1% 489,801 490,583
30% 30.2% 367,350 369,956
20% 20.1% 244,900 246,159
10% 10.1% 122,450 123,328
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-2KQ3HK3.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,224,949
Calibration 2     1,229,811
Calibration 3     1,232,583
ssj_ops@calibrated=1,231,197
100% 99.4% 1,231,197 1,224,075
90% 89.9% 1,108,077 1,106,270
80% 79.8% 984,958 982,295
70% 70.0% 861,838 861,976
60% 60.0% 738,718 738,135
50% 50.0% 615,599 615,766
40% 40.0% 492,479 491,938
30% 30.0% 369,359 369,913
20% 20.1% 246,239 246,983
10% 10.0% 123,120 123,418
Active Idle   0 0

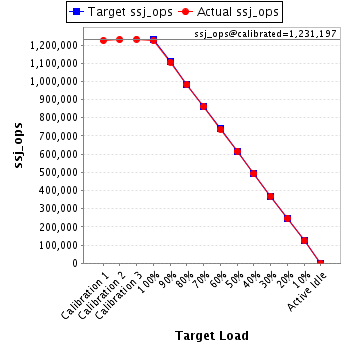

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-2KQ3HK3.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,227,695
Calibration 2     1,233,584
Calibration 3     1,231,192
ssj_ops@calibrated=1,232,388
100% 99.6% 1,232,388 1,227,162
90% 90.1% 1,109,149 1,109,841
80% 79.8% 985,910 983,005
70% 69.2% 862,671 852,327
60% 59.8% 739,433 737,177
50% 50.3% 616,194 619,565
40% 40.0% 492,955 493,197
30% 30.0% 369,716 369,178
20% 20.1% 246,478 247,788
10% 10.0% 123,239 123,252
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
