Quanta Computer Inc. QuantaGrid T42S-2U ssj_ops@100% = 4,901,361
ssj_ops@100% per JVM = 1,225,340
Test Sponsor: Quanta Computer Inc. SPEC License #: 9050 Test Method: Multi Node
Tested By: Quanta Computer Inc. Test Location: Taoyuan, TW, R.O.C Test Date: Sep 26, 2017
Hardware Availability: Jul-2017 Software Availability: Sep-2016 Publication: Oct 25, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     4,955,292
Calibration 2     4,920,425
Calibration 3     4,928,157
ssj_ops@calibrated=4,924,291
100% 99.5% 4,924,291 4,901,361
90% 90.0% 4,431,862 4,430,307
80% 79.9% 3,939,433 3,936,558
70% 70.0% 3,447,004 3,447,304
60% 60.0% 2,954,575 2,952,578
50% 49.9% 2,462,146 2,458,378
40% 40.0% 1,969,716 1,970,752
30% 30.0% 1,477,287 1,478,163
20% 20.0% 984,858 983,786
10% 10.0% 492,429 492,274
Active Idle   0 0
Graph of results
System Under Test
Set: 'T42S-2U'
Set Identifier: T42S-2U
Set Description: System Under Test
# of Identical Nodes: 4
Comment: None
Hardware
Hardware Vendor: Quanta Computer Inc.
Model: QuantaGrid T42S-2U
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8176
CPU Characteristics: 28 core, 2.10GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 16GB 2Rx8 PC4-2666V-RE1-12-PA0; slots A0, B0, C0, D0, E0, F0, populated for both Processor sockets
Power Supply Quantity and Rating (W): 1 x 2200
Power Supply Details: None
Disk Drive: 1 x 256G SATA SSD,Quanta P/N ABSAV256008
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x dual-port Intel I357 Gigabit Ethernet controllerQuanta P/N 3GS5BMA00D0
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced power plan in OS
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600 (Build 9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmx13g -Xms13g -Xmn11g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=24 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts -XX:+OptimizeStringConcat -XX:+UseStringCache
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 13000
JVM Maximum Heap (MB): 13000
JVM Address Bits: 64
Boot Firmware Version: 3A03E7
Management Firmware Version: 3.20
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Specpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this java version
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
JVM Instance Summary
JVM Instance ssj_ops@100%
WINDOWS-PQSE238.001 1,247,219
WINDOWS-PQSE238.002 1,255,576
WINDOWS-PQSE238.003 1,197,459
WINDOWS-PQSE238.004 1,201,107
ssj_ops@100% 4,901,361
ssj_ops@100% per JVM 1,225,340

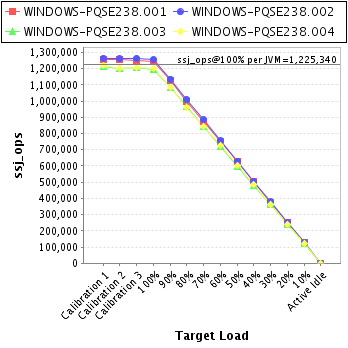

Graph of per-instance results
JVM 'WINDOWS-PQSE238.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,256,770
Calibration 2     1,254,651
Calibration 3     1,250,689
ssj_ops@calibrated=1,252,670
100% 99.6% 1,252,670 1,247,219
90% 90.0% 1,127,403 1,127,143
80% 79.8% 1,002,136 999,700
70% 69.8% 876,869 874,504
60% 59.8% 751,602 749,483
50% 50.0% 626,335 626,940
40% 40.0% 501,068 501,684
30% 30.1% 375,801 376,599
20% 20.0% 250,534 250,980
10% 10.0% 125,267 125,400
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-PQSE238.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,265,072
Calibration 2     1,260,237
Calibration 3     1,263,848
ssj_ops@calibrated=1,262,043
100% 99.5% 1,262,043 1,255,576
90% 90.0% 1,135,838 1,136,454
80% 80.0% 1,009,634 1,009,766
70% 70.2% 883,430 886,237
60% 59.9% 757,226 755,621
50% 50.0% 631,021 630,770
40% 40.0% 504,817 505,141
30% 30.0% 378,613 378,018
20% 19.9% 252,409 251,745
10% 10.0% 126,204 126,386
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-PQSE238.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,213,400
Calibration 2     1,201,093
Calibration 3     1,204,719
ssj_ops@calibrated=1,202,906
100% 99.5% 1,202,906 1,197,459
90% 90.1% 1,082,615 1,083,670
80% 80.2% 962,325 964,537
70% 69.9% 842,034 840,936
60% 60.0% 721,744 721,575
50% 49.8% 601,453 598,762
40% 39.9% 481,162 480,557
30% 29.9% 360,872 359,533
20% 19.9% 240,581 239,219
10% 10.0% 120,291 120,101
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WINDOWS-PQSE238.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,220,049
Calibration 2     1,204,444
Calibration 3     1,208,901
ssj_ops@calibrated=1,206,673
100% 99.5% 1,206,673 1,201,107
90% 89.8% 1,086,005 1,083,040
80% 79.8% 965,338 962,555
70% 70.1% 844,671 845,627
60% 60.2% 724,004 725,900
50% 49.9% 603,336 601,905
40% 40.1% 482,669 483,371
30% 30.2% 362,002 364,013
20% 20.0% 241,335 241,842
10% 10.0% 120,667 120,387
Active Idle   0 0

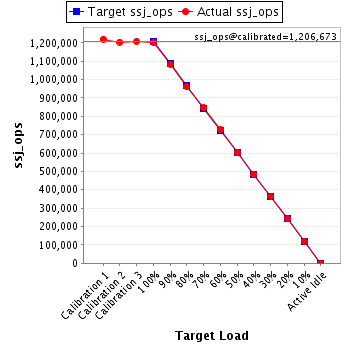

Graph of results
See the JVM Instance Performance Report for additional details.
