SPECpower_ssj2008
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| Fujitsu PRIMERGY TX200 S7 (Intel Xeon E5-2470) | SPECpower_ssj2008 = 5,689 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Paderborn, NRW, Germany | Test Date: | Aug 31, 2012 |
| Hardware Availability: | Aug-2012 | Software Availability: | Jun-2012 | Publication: | Sep 19, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

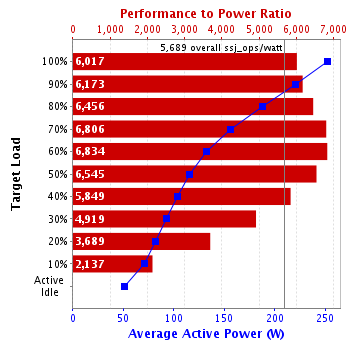

| Performance | Power | Performance to Power Ratio | ||
|---|---|---|---|---|
| Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
| 100% | 100.0% | 1,516,025 | 252 | 6,017 |
| 90% | 89.9% | 1,363,127 | 221 | 6,173 |
| 80% | 80.1% | 1,214,468 | 188 | 6,456 |
| 70% | 69.9% | 1,060,316 | 156 | 6,806 |
| 60% | 59.8% | 906,891 | 133 | 6,834 |
| 50% | 49.9% | 756,454 | 116 | 6,545 |
| 40% | 39.8% | 604,164 | 103 | 5,849 |
| 30% | 30.0% | 454,989 | 92.5 | 4,919 |
| 20% | 20.0% | 302,814 | 82.1 | 3,689 |
| 10% | 10.0% | 151,766 | 71.0 | 2,137 |
| Active Idle | 0 | 50.7 | 0 | |
| ∑ssj_ops / ∑power = | 5,689 | |||
| Set Identifier: | TX200 S7 |
| Set Description: | System Under Test |
| # of Identical Nodes: | 1 |
| Comment: | Single Node |
| Hardware | |
|---|---|
| Hardware Vendor: | Fujitsu |
| Model: | PRIMERGY TX200 S7 (Intel Xeon E5-2470) |
| Form Factor: | Tower |
| CPU Name: | Intel Xeon E5-2470 |
| CPU Characteristics: | 8-Core, 2.30GHz, 20MB L3 Cache (Turbo Boost Technology up to 3.10 GHz) |
| CPU Frequency (MHz): | 2300 |
| CPU(s) Enabled: | 16 cores, 2 chips, 8 cores/chip |
| Hardware Threads: | 32 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 20 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 24 |
| # and size of DIMM: | 6 x 4096 MB |
| Memory Details: | 4 GB 2Rx8 PC3L-12800E-11, ECC; slots 1A, 1B, 1C, 1D, 1E, 1F populated |
| Power Supply Quantity and Rating (W): | 1 x 450 |
| Power Supply Details: | Fujitsu Technology Solutions S26113-E575-E10 |
| Disk Drive: | 1 x 250GB, HDD, 2.5" SATA, S26361-F3708-E250 |
| Disk Controller: | Integrated SATA Controller |
| # and type of Network Interface Cards (NICs) Installed: | 2 x Intel 82574L Gigabit Network Connection (onboard) |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled ("Fujitsu Enhanced Power Settings" power plan) |
| Operating System (OS): | Microsoft Windows Server 2008 R2 Enterprise SP1 |
| OS Version: | Version 6.1.7601 Service Pack 1 Build 7601 |
| Filesystem: | NTFS |
| JVM Vendor: | IBM Corporation |
| JVM Version: | IBM J9 VM (build 2.6, JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled) |
| JVM Command-line Options: | -Xaggressive -Xcompressedrefs -Xgcpolicy:gencon -Xmn800m -Xms1024m -Xmx1024m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 |
| JVM Affinity: | start /NODE [0,1] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000] |
| JVM Instances: | 16 |
| JVM Initial Heap (MB): | 1024 |
| JVM Maximum Heap (MB): | 1024 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | R1.7.0 |
| Management Firmware Version: | 6.53A |
| Workload Version: | SSJ 1.2.10 |
| Director Location: | Controller |
| Other Software: | IBM SDK Java Technology Edition Version 7.0 for Windows x64 |
| Hardware | |
|---|---|
| Hardware Vendor: | Fujitsu |
| Model: | PRIMERGY RX100 S3 |
| CPU Description: | Pentium D 950 |
| Memory amount (GB): | 2 |
| Software | |
|---|---|
| Operating System (OS): | Windows Server 2003 Enterprise Edition + SP1 |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Oracle JRockit(R) R27.6.0 (build R27.6.0-50_o-100423-1.6.0_05-20080626-2105-windows-ia32) |
| CCS Version: | 1.2.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | ZES Zimmer Electronic Systems GmbH |
| Model: | LMG95 |
| Serial Number: | 11780806 |
| Connectivity: | RS-232 |
| Input Connection: | Default (20A) |
| Metrology Institute: | PTB (Physikalisch Technische Bundesanstalt) |
| Accredited by: | Kalibrierdienst Stenger |
| Calibration Label: | 12084181 |
| Date of Calibration: | 06-Aug-2012 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.2-bc965ca0-20120417 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |
| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| 100% | 252 | 20.6 |
| 90% | 221 | 20.6 |
| 80% | 188 | 20.6 |
| 70% | 156 | 20.7 |
| 60% | 133 | 20.7 |
| 50% | 116 | 20.7 |
| 40% | 103 | 20.6 |
| 30% | 92.5 | 20.6 |
| 20% | 82.1 | 20.6 |
| 10% | 71.0 | 20.5 |
| Active Idle | 50.7 | 20.5 |
| Line Standard | Minimum Temperature (°C) | Elevation (m) |
|---|---|---|
| 230V / 50 Hz / 1 phase / 2 wires | 20.5 | 117 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 1,444,279 | ||
| Calibration 2 | 1,514,541 | ||
| Calibration 3 | 1,518,862 | ||
| ssj_ops@calibrated=1,516,701 | |||
| 100% | 100.0% | 1,516,701 | 1,516,025 |
| 90% | 89.9% | 1,365,031 | 1,363,127 |
| 80% | 80.1% | 1,213,361 | 1,214,468 |
| 70% | 69.9% | 1,061,691 | 1,060,316 |
| 60% | 59.8% | 910,021 | 906,891 |
| 50% | 49.9% | 758,351 | 756,454 |
| 40% | 39.8% | 606,681 | 604,164 |
| 30% | 30.0% | 455,010 | 454,989 |
| 20% | 20.0% | 303,340 | 302,814 |
| 10% | 10.0% | 151,670 | 151,766 |
| Active Idle | 0 | 0 | |
